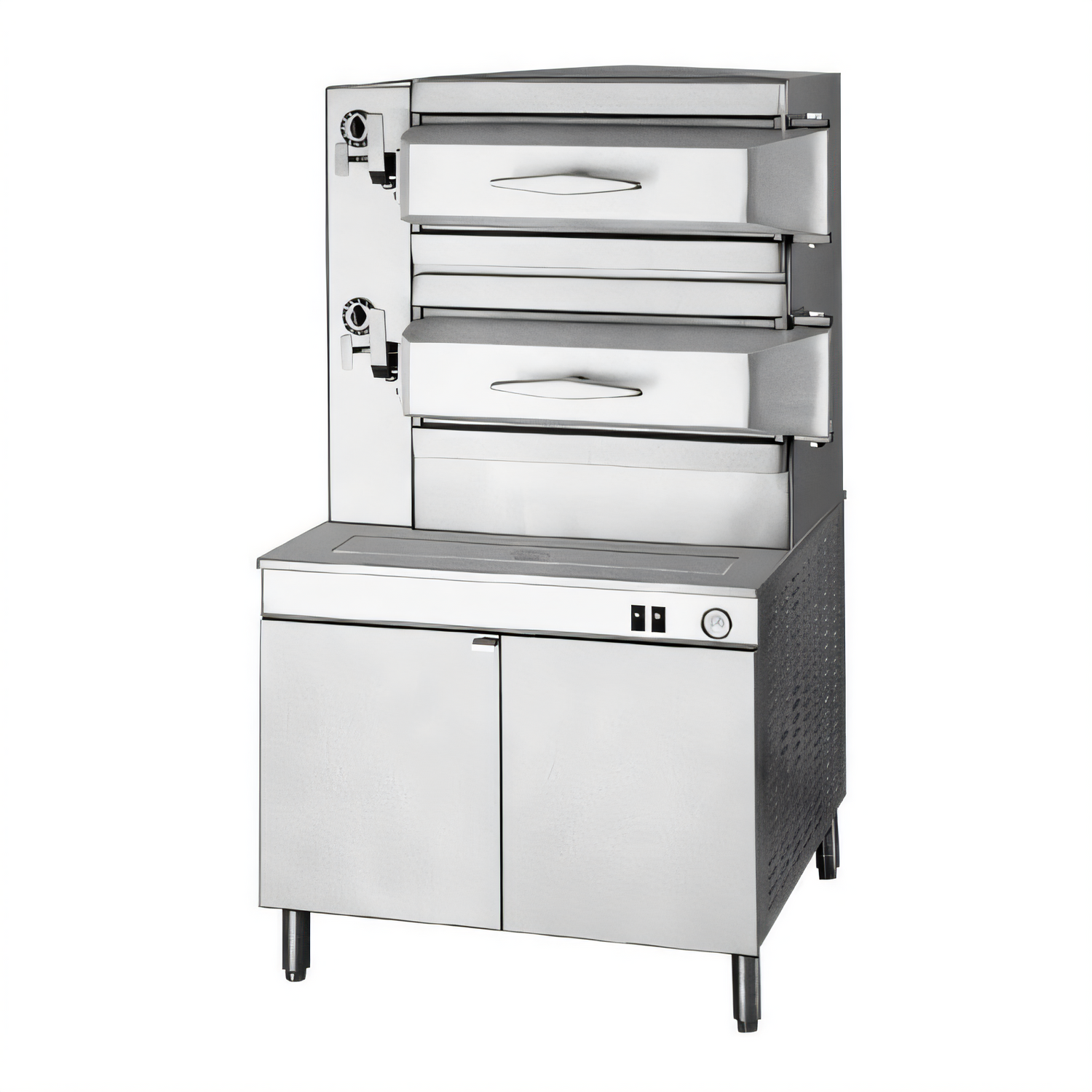

Cleveland PEM-24-3 Electric Pressure Steamer
3 Compartments • 24 kW Boiler • 36" Cabinet BaseEngineered for high-volume, high-speed production, the Cleveland PEM-24-3 delivers true pressure steaming power in a compact 36 inch footprint. Three independent 5 psi compartments let you batch, stage or finish up to 24 full-size hotel pans at once—perfect for schools, healthcare, commissaries and demanding restaurants that can’t afford to wait.
Why Choose the PEM-24-3

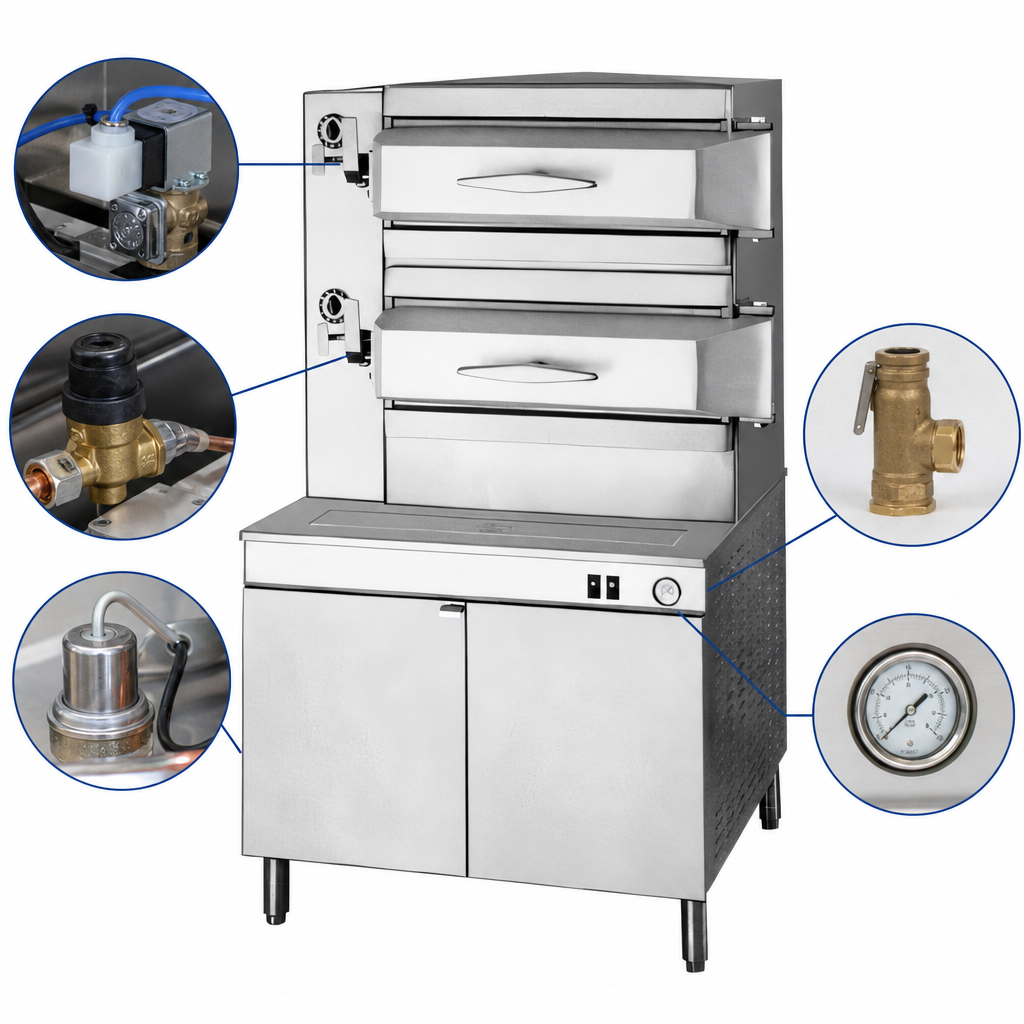

- 24 kW electric steam boiler reaches operating pressure fast and maintains consistent steam for every load.
- Three separate 60-minute mechanical timers with audible signal—simple, dependable and easy for any crew member to run.
- Heavy-duty cast-aluminum doors with safety interlock; door cannot be opened while the compartment is pressurized.
- Tool-free maintenance – slide racks & door gaskets remove in seconds for quick cleaning or replacement.
- Automatic water fill & boiler blowdown reduce daily maintenance and protect the steam generator from scale buildup.
- All-stainless cabinet & 8-gauge cooking chambers (Type 430) stand up to years of commercial punishment.
- 6" adjustable stainless legs with flanged feet simplify floor anchoring for code compliance.
- Single cold-water connection—no hot water required.
- Front-serviceable design keeps downtime (and service bills) to a minimum.
Steaming Capacity

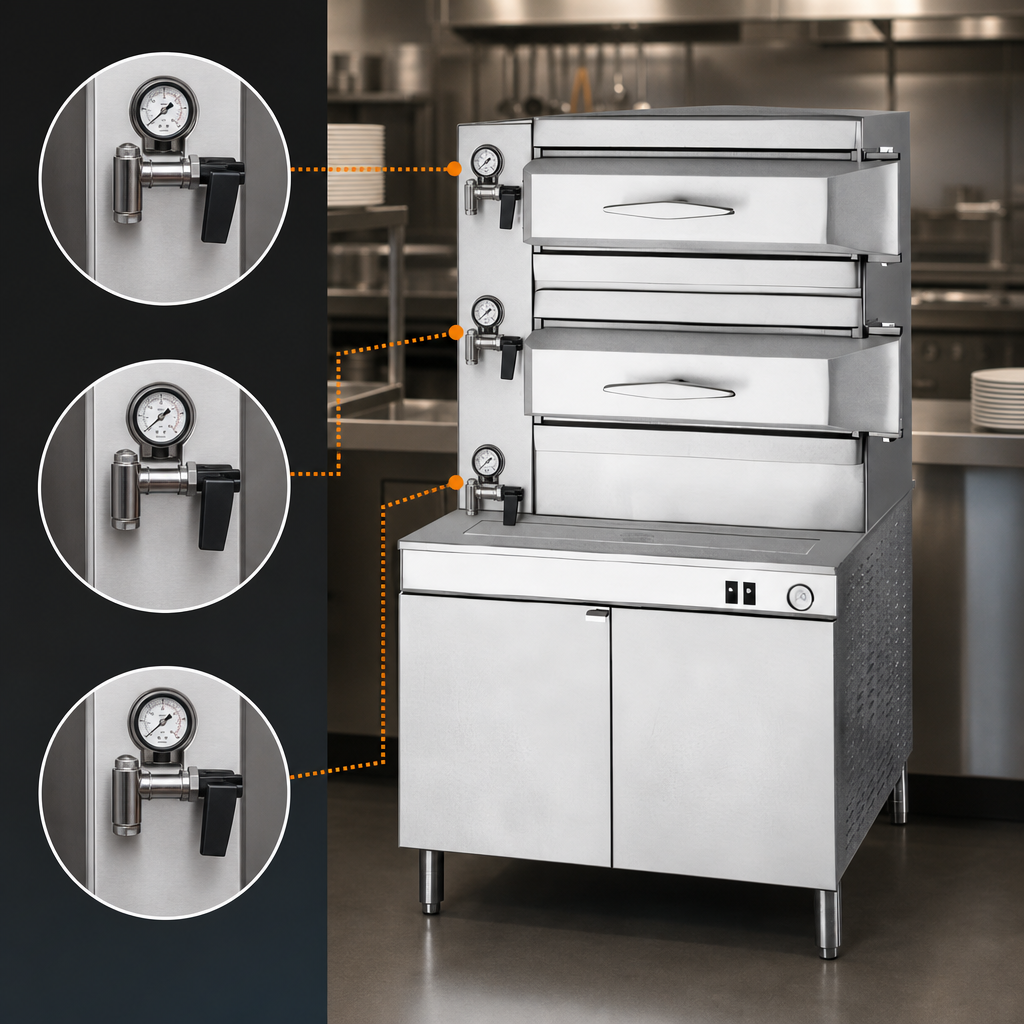

| Compartments | 3 (independent) |
|---|---|
| Per Compartment |
8 × 12" × 20" × 2½" pans 6 × 12" × 20" × 4" pans 4 × 12" × 20" × 6" pans 4 × 18" × 26" bun pans |
| Total Pan Capacity | Up to 24 full-size 2½" pans |
| Operating Pressure | 5 psi (8 psi safety valve) |
Technical Specifications
| Boiler Power | 24 kW electric steam generator |
|---|---|
| Standard Voltage* | 208–240 V, 60 Hz, 3 PH, 3-wire (other voltages available) |
| Cabinet Width | 36 in W |
| Overall Footprint | Approx. 32.2" W × 34.5" D × 71.4" H |
| Water Connection | ¼" NPT cold water |
| Drain | 1½" IPS open floor drain (PVC not recommended) |
| Shipping Weight | ≈ 940 lb |
*Confirm voltage, phase and amperage with your electrician before ordering.
Warranty & Start-Up Support
- 1-year parts & labor warranty (18 months from shipment if installed later).
- Additional 4-year prorated parts coverage on the steam boiler.
- Free factory-authorized performance start-up and water quality check upon request.
Important: Proper water treatment is essential. Total dissolved solids must be
50–250 ppm with 7.0–8.5 pH. Failure to meet Cleveland’s water quality requirements can void the boiler warranty.
$42,328.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Cleveland Range PEM243 3-compartment pressure steamer: 24 kW electric boiler, manual controls, 60-min timer, stainless steel, durable 36" base.
Manufacturer
Cleveland Range
Height
73.63in
Width
35.43in
Depth
33.5in
Shipping Weight
940.0lbs
Controls
manual controls
Width (side - side)
36"
Compartments
3
Specifications
Pressure Steamer, electric heated boiler, 3 compartments, 36" cabinet base, manual controls, 60-minute mechanical timer, 6" adjustable legs with flanged feet, stainless steel construction, 24 kW
