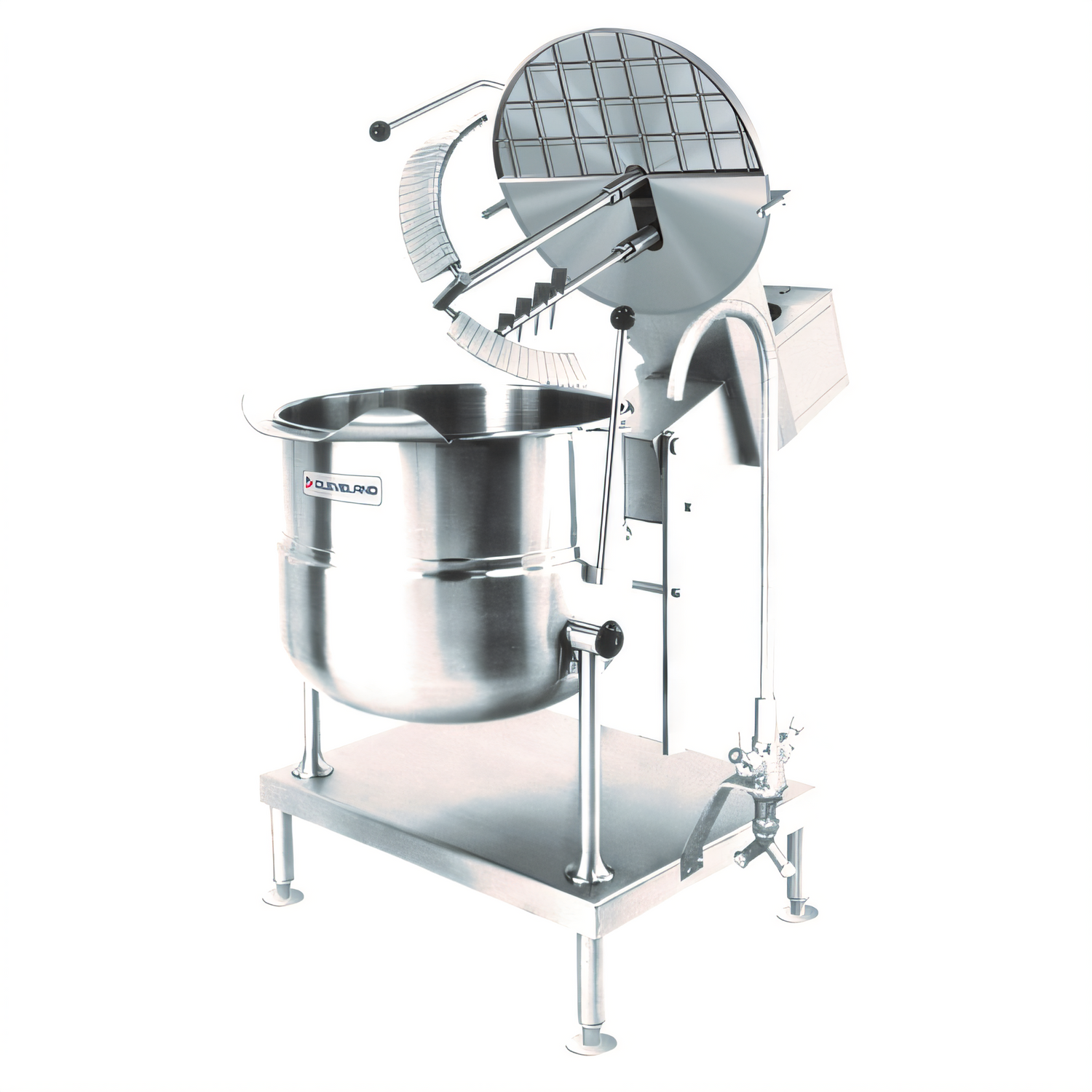

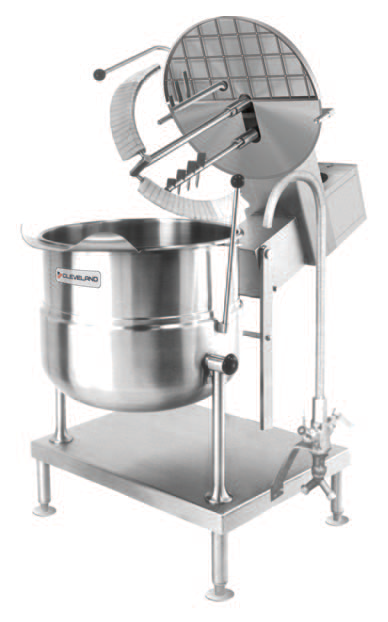

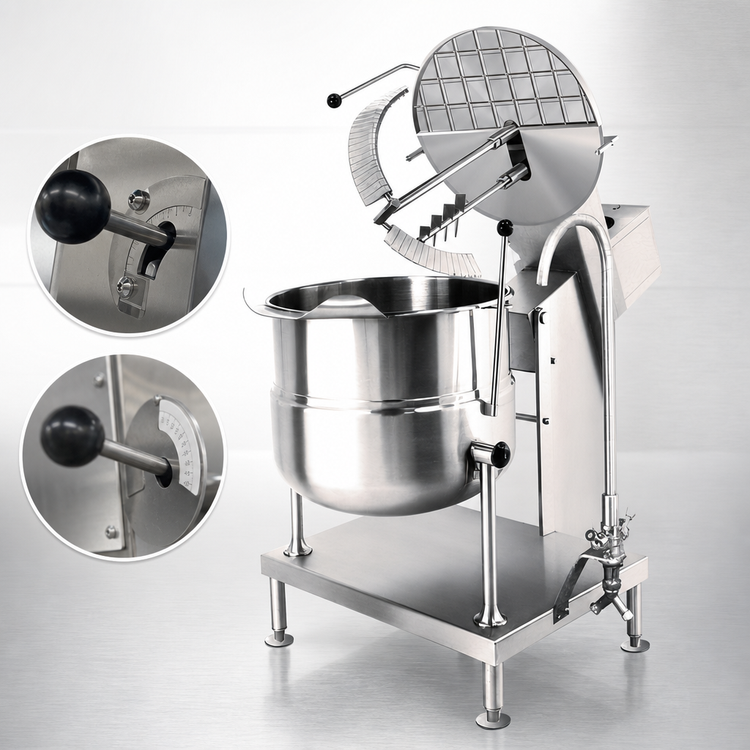

Cleveland Range MKDT20T 20-Gallon Direct Steam Mixer Kettle, Floor-Type Lever Tilt, 2/3 Jacketed

316 Stainless Steel Liner, Infinitely Variable Speed, 3/4 HP Drive

Built for high-volume batch cooking, this 20-gallon mixer kettle combines direct steam heating, variable-speed mixing, and a 316 stainless liner for efficient, durable performance.

  • 20-gallon, 2/3-jacketed direct steam mixer kettle for large batch production.
  • Infinitely variable speed control with separate scraper and agitator ranges for precise mixing.
  • 316 stainless steel interior and stainless steel exterior surfaces for durability and cleanup.
  • Reversible lever tilt and large pouring lip help simplify unloading and transfer.
  • Built-in safety features help protect operators during operation.
  • Standard double pantry faucet and two-piece safety-screen cover add convenience.

Product Weight:

410.0 lb

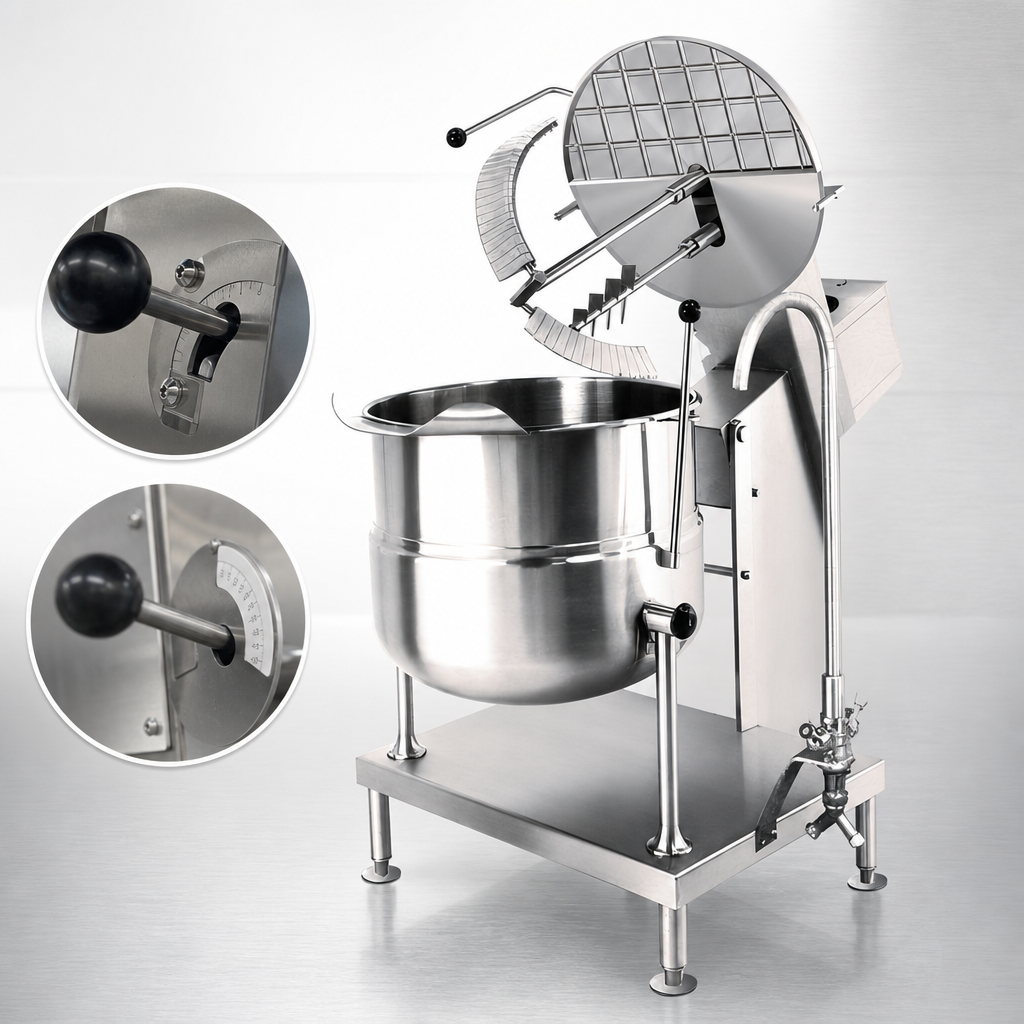

Infinitely Variable Speed

Provides precise control with scraper speed from 0-70 rpm and agitator speed from 0-210 rpm.

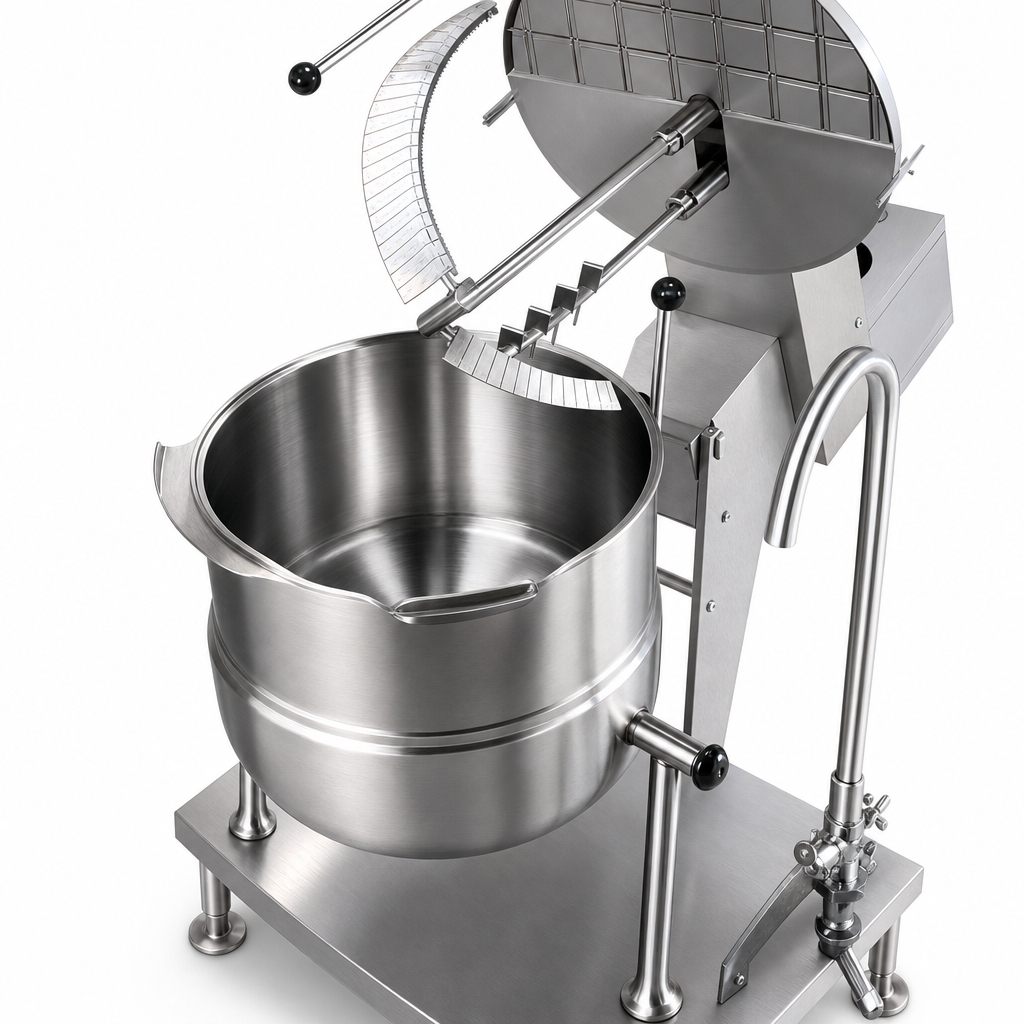

316 Stainless Steel Interior

The liner is made from 316 stainless steel for corrosion resistance and long service life.

2/3 Steam Jacket

Direct steam design with a 50 PSI jacket rating for efficient heat transfer.

Built-In Steam Control

Steam control valve is built into the trunnion and includes a factory-installed steam control kit.

Safety Interlocks

Mixing stops when the bridge is lifted, and a safety device helps prevent high-speed starts.

Tool-Free Agitator Removal

Agitator and scraper are bayonet mounted for easy removal, and the nylon blade scrapes the jacketed surface.

Reversible Tilt Handle

Tilt handle is interchangeable for left or right operation to support easier pouring and service.

Standard Faucet And Cover

Includes a double pantry faucet and a two-piece cover with safety screen for everyday convenience.

Type Mixer Kettle
Style Direct Steam
Installation Type Floor Model
Capacity 20 Gallons
Jacket 2/3 Jacketed
Tilt Type Lever Tilt
Material Stainless Steel
Interior Finish 316 Stainless Steel
Controls Variable Speed
Horsepower 3/4 HP
Steam Jacket Rating 50 PSI
Operating Pressure 5 to 45 PSI
Agitator Speed 0 to 210 RPM
Scraper Speed 0 to 70 RPM
Voltage 120 Volts
Amps 7.5 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a standard 120 volt, 60 Hz, single-phase, 3-wire supply and draws 7.5 amps.
The scraper runs from 0-70 rpm and the agitator runs from 0-210 rpm.
The document lists a 5 to 45 PSI operating pressure with a 50 PSI safety valve and a 50 PSI steam jacket rating.
Yes. The tilt handle is interchangeable for left or right operation.
Mixing stops when the bridge is lifted, and a safety device prevents high-speed starts.
Optional accessories include a food strainer (FS-12), flow diverter (FD), accessory kit (KAK), pressure reducing valve (PRV-K), and water meter options (GMF or LMF) with stand option SWM.
