Cleveland Range KGT12T Steam Kettles
Description

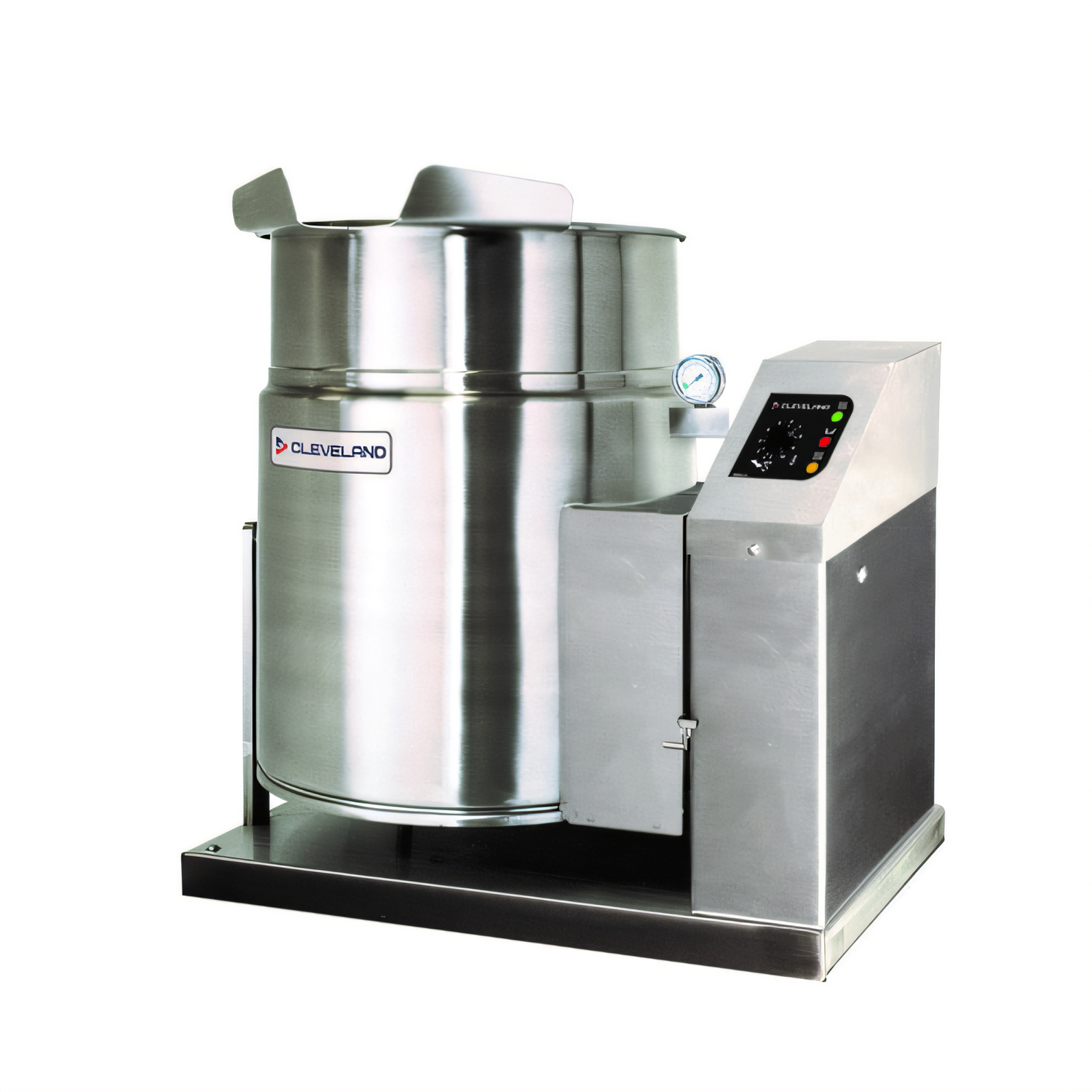

Cleveland Countertop Gas Tilting Kettle – 12 Gal / 45 L
Model KGT-12-T “Splash Proof” SeriesProduce up to 352 x 4 oz servings per batch in a compact footprint. Cleveland’s self-contained, gas-fired KGT-12-T delivers rapid heat-up, splash-proof controls and effortless lever tilting—everything today’s high-volume kitchens demand from a 12-gallon countertop kettle.
Why this kettle
- Fast, efficient cooking – 53,000 BTU firing rate with 65 % heat-transfer efficiency means shorter batch times and quicker recovery.
- Ultra-durable 316 stainless liner – resists acidic foods far better than 304 SS for longer service life.
- Splash-Proof IPX6 control console – solid-state temp dial (145–260 °F / 63–127 °C) holds ±1 °C accuracy even when simmering.
- Safe, balanced tilting – lever handle with self-locking marine latch and double gas shut-off prevents accidental spills or flame-outs.
- 2⁄3 steam jacket rated at 50 PSI is permanently filled & sealed—no boiler, venting or refilling required.
- Large anti-drip pour lip & rolled rim – clean, controlled transfers and impact protection in busy kitchens.
- Plug-and-play installation – only a ¾ in. NPT gas line and 115 V outlet needed; regulator, 6 ft cord & electronic spark ignition are factory-installed.
Built-in safety & sanitation
- IPX6 rated controls withstand heavy spray-down cleaning.
- Reinforced rolled rim protects against dents and harboring bacteria.
- Self-locking tilt plus rear-mounted 50 PSI safety valve keep operators protected.
- All exterior surfaces are easy-clean #4 finish stainless steel.
- NSF, CSA (AGA/CGA) & ASME certified for food-service compliance.
Technical specifications
| Capacity | 12 gal | 45 L (≈ 352 x 4 oz servings) |
|---|---|
| Jacket design | 2⁄3 steam jacket, 50 PSI rating, self-contained distilled water |
| Heat source | Natural gas (LP kit optional) – 53,000 BTU/h |
| Heating efficiency | ≈ 65 % | 34,450 BTU directly applied to product |
| Temperature range | 145 – 260 °F (63 – 127 °C) ±1 °C accuracy |
| Electrical | 115 V, 1 Ø, 5 A – 6 ft cord & plug included |
| Gas connection | ¾ in. NPT with pressure regulator |
| Controls | Solid-state dial 1–10, LEDs for heat cycle & low-water, electronic spark ignition |
| Construction | 316 SS liner, 304 SS exterior, #4 finish |
| Tilt mechanism | Lever handle (left or right mount), self-locking marine latch, support console on right |
| Overall dimensions* | W 27 in | D 23¼ in | H 38¼ in |
| Shipping weight* | ≈ 195 lb (88 kg) |
| Certifications | NSF • CSA • ASME |
*Dimensions and weight are nominal. Refer to spec sheet for detailed clearances.
Popular options & accessories
- easyDial digital control package with timer & cooking modes
- ST-28 stainless equipment stand with sliding drain drawer & splash shield
- Hot/cold water swing faucet kit (DPK/SPK + FBKT)
- Lift-off cover (CL), cooking baskets (BS) & food strainers (FS)
- Spray rinse hose (PRS-K) for on-the-spot cleanup
Warranty & service
Includes a one-year parts & labor warranty (18 months from shipment) with start-up demonstration by a Factory Authorized Servicer. Additional prorated steam-jacket coverage available. Extended warranties may be purchased at checkout.
