Cleveland Range KGL80T Steam Kettles
Description
Cleveland KGL-80-T Gas Tilting Kettle – 80 gal
Splash Proof Series™ | 2⁄3-Jacket | 190,000 BTU | CEEngineered for demanding, high-volume kitchens, the Cleveland KGL-80-T delivers fast heat-up, rock-solid temperature accuracy and effortless, balanced tilting—all in an 80-gallon footprint that bolts securely to the floor. A high-efficiency power burner drives a permanently sealed 2⁄3 steam jacket, while 316 series stainless steel stands up to acidic recipes and daily cleaning. From delicate sauces to hearty soups, you’ll turn out consistent results batch after batch.
Why you’ll love it
- High-efficiency Power Burner (62–65 % overall) saves energy and slashes recovery times.

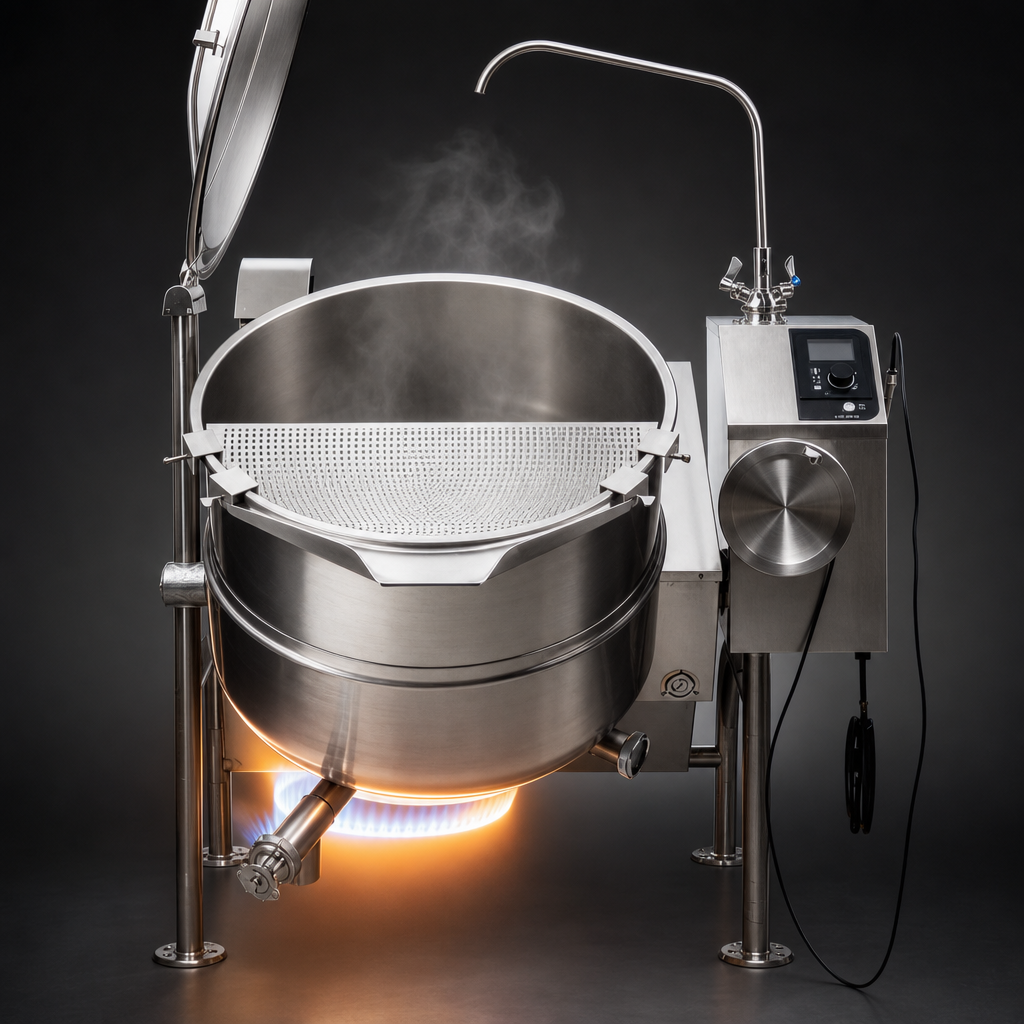

- 190,000 BTU heat input—ideal for rapid batch production and quick turn-around.

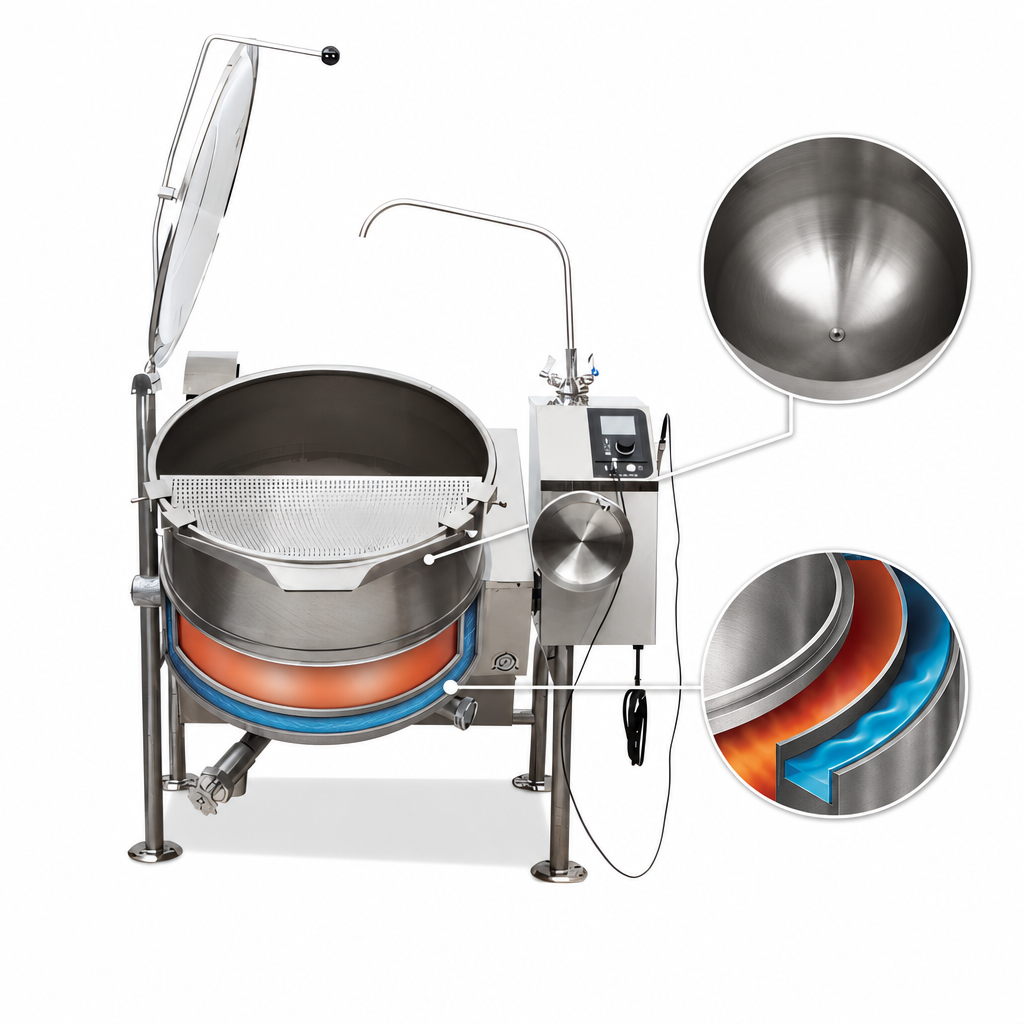

- Permanently sealed steam jacket is factory charged with treated, distilled water—no venting or refilling required.
- Solid-state thermostat holds set point within ±1 °C across the full 145–260 °F range (perfect for simmering).
- Automatic electronic spark (hot-surface) ignition with LED status indicators for Heat Cycle and Low Water.
- Smooth, balanced manual tilt mechanism with self-locking worm & segment gear and large pouring lip.
- 316 series stainless steel kettle interior with #4 sanitary finish resists corrosion from tomato- or citrus-based products.
- Insulated heat exchanger keeps the kitchen cooler and improves efficiency.
- Heavy-duty flanged feet for bolting to the floor; adjustable for a level installation.
- 50 psi jacket rating, ASME stamped and CE marked for global code compliance.
Performance & capacity
- Makes up to 1,280 servings (8 oz) per batch.
- Fast heat-up and recovery keep pace with peak-hour demand.
- Splash-proof control console keeps electronics protected during wash-down.
Popular options (factory-installed or field-add)
- Spring-assisted, hinged stainless-steel cover (CHS-)
- 2″ or 3″ tangent draw-off valve (TD2 / TD3) or 3″ butterfly valve (BV3)
- easyDial™ advanced control with 99-minute timer & cooking modes
- Core temperature probe
- Hot/Cold water faucet with swing spout (DPK)
- Kettle accessory kit: paddles, whips, brushes & ladle
Technical specifications
| Model | KGL-80-T |
|---|---|
| Capacity | 80 US gal | 300 L (≈1,280 × 8 oz servings) |
| Jacket design | 2⁄3 steam jacket, 50 psi working pressure |
| Heat input | 190,000 BTU/hr – Natural gas (LP available) |
| Electrical | 115 V, 1-ph, 10 A, 60 Hz (cord & plug supplied) |
| Construction | Type 316 stainless kettle, #4 exterior finish, insulated heat exchanger |
| Ignition system | Automatic hot-surface electronic spark |
| Controls | ON/OFF & 1–10 temperature dial, heat & low-water LEDs |
| Gas connection | ¾″ NPT, 4–14″ W.C. supply pressure |
| Shipping weight | ≈ 630 lb / 286 kg |
| Approvals | CE, NSF, CSA, ASME |
| Warranty | 1-year parts & labor; 4-year prorated jacket warranty |
Performance start-up by a Factory Authorized Service agent is included upon request. Extended warranty packages are available at the time of purchase.
