Cleveland Range KGL80 Steam Kettles
Description

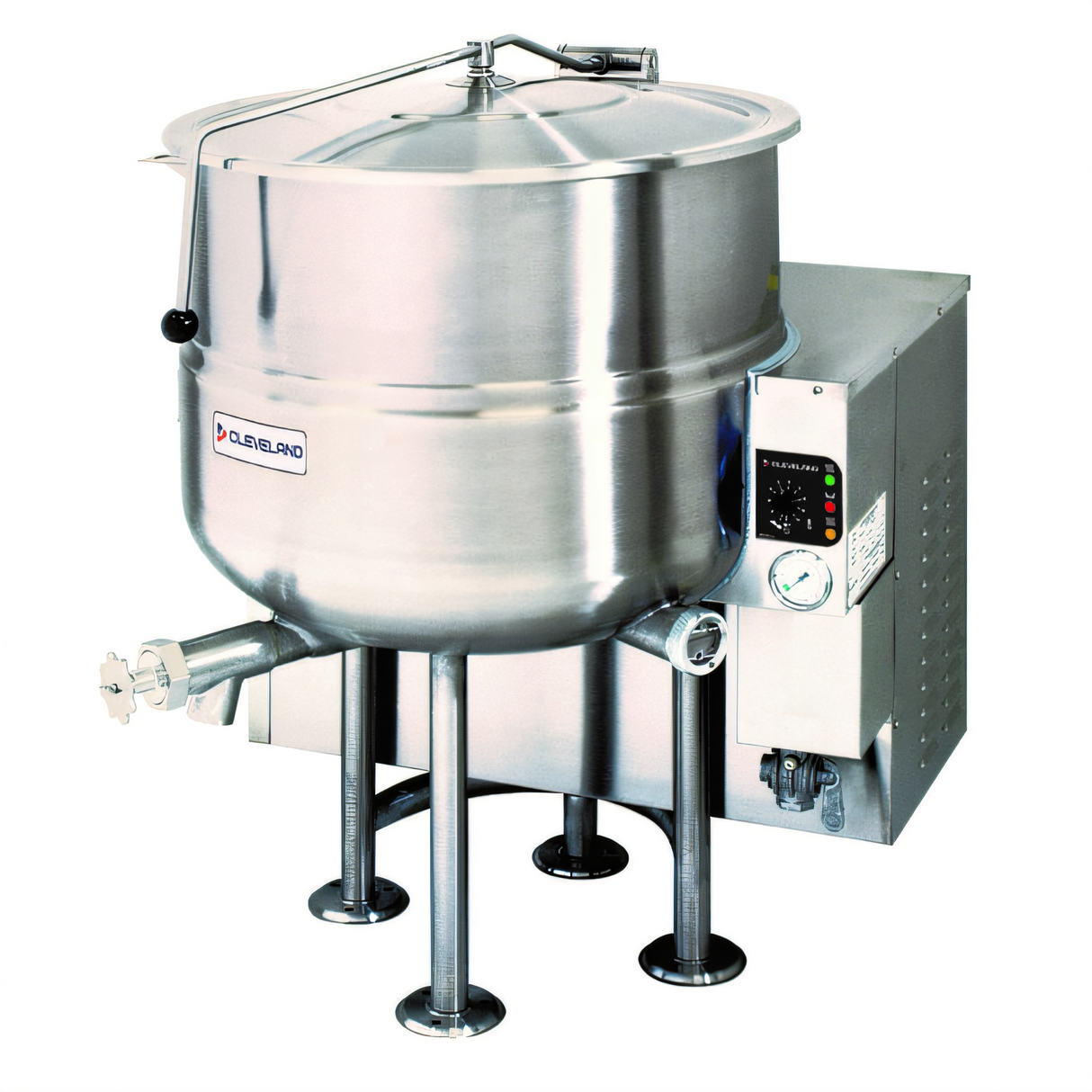

Cleveland KGL-80 Gas Stationary Steam-Jacketed Kettle
80 gal / 300 L • 2/3 Jacket • 190,000 BTU • 316 SS InteriorEngineered for high-volume kitchens, the Cleveland KGL-80 turns out up to 1,280 eight-ounce portions per batch with unbeatable speed and consistency. Its self-contained 50 psi steam jacket—heated by a 190,000 BTU power burner—delivers lightning-fast heat-up and rock-steady temperature control, while the 316 stainless interior shrugs off the most acidic ingredients.
Key advantages

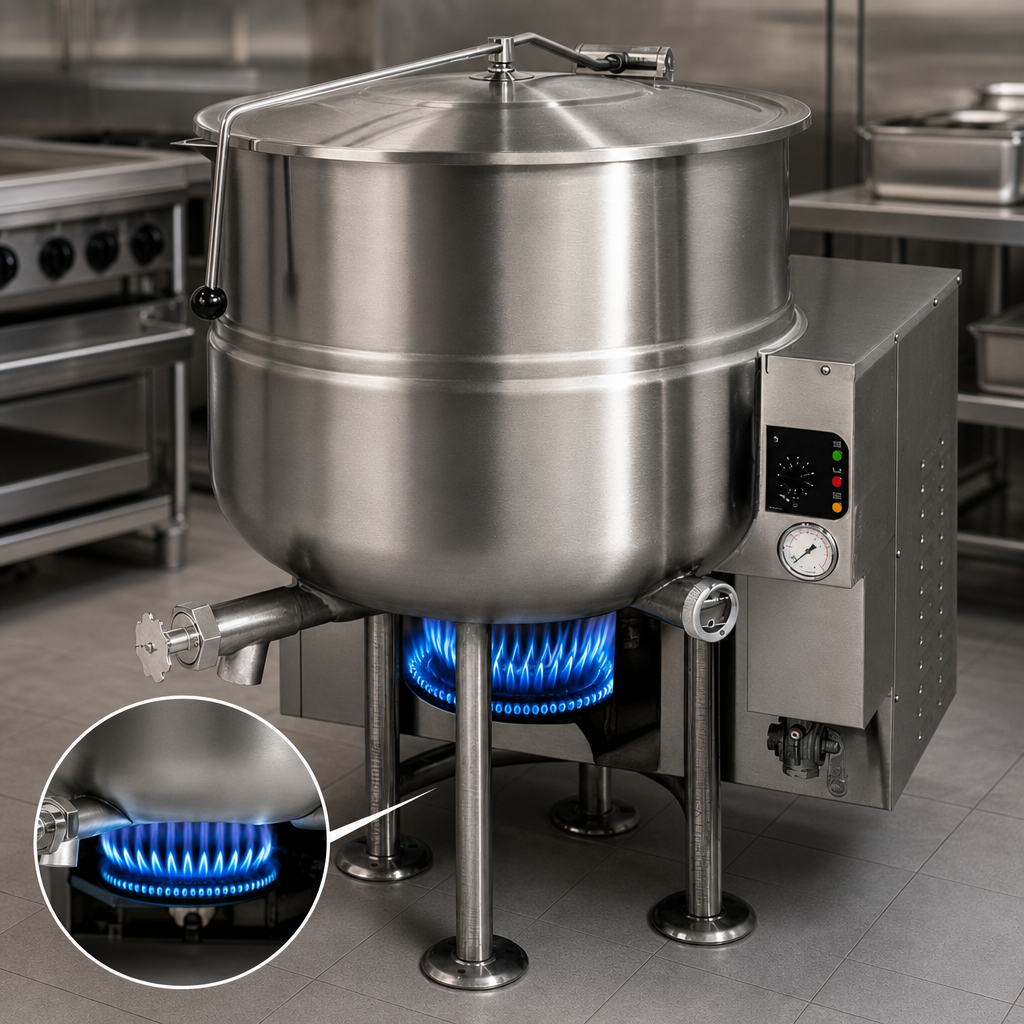

- High-efficiency power burner (62–65 %) for lower operating costs.
- Electronic ignition with automatic re-light—no standing pilot.

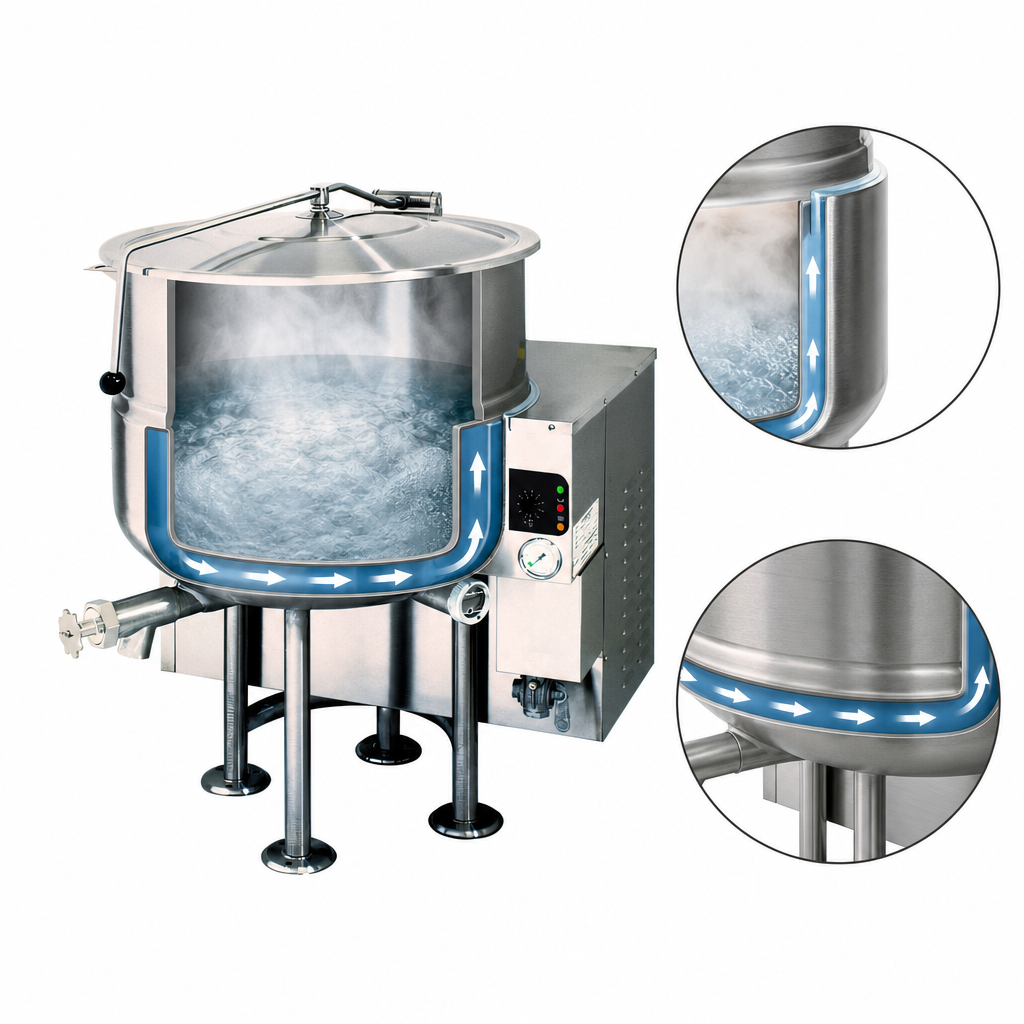

- Sealed, distilled-water jacket never needs venting or refilling.
- Solid-state controls hold setpoint within ± 1 °C; LED heat-cycle & low-water indicators.
- Spring-assisted domed stainless cover—opens easily & stays put.
- 2″ tangent draw-off valve with removable stainless strainer for clog-free portioning.
- Leg console with flanged, adjustable feet for secure floor mounting.
- Factory-installed faucet bracket simplifies adding a swing-spout water faucet.
- CE, CSA, NSF & ASME certified for worldwide acceptance.
Technical specifications
| Model | KGL-80 (gas-fired, stationary) |
|---|---|
| Capacity | 80 gal / 300 L (≈ 1,280 servings) |
| Heat input | 190,000 BTU/hr (55.7 kW) — natural gas (LP kit optional) |
| Steam jacket | 2/3 kettle height, sealed & self-contained |
| Jacket rating | 50 psi (3.4 bar) |
| Temperature control | ± 1 °C solid-state |
| Gas connection | ¾″ NPT, 4.0″ W.C. natural / 10.0″ W.C. propane |
| Electrical | 115 V / 60 Hz / 1-ph, 10 A (cord & plug supplied) |
| Interior / exterior | 316 SS liner, stainless exterior with #4 sanitary finish |
| Draw-off valve | 2″ tangent, stainless, w/ removable strainer |
| Cover | Hinged, spring-assisted, rotatable stainless lid |
| Overall dimensions (ship) | 56″ W × 56″ D × 54″ H (1,422 × 1,422 × 1,372 mm) |
| Shipping weight | ≈ 597 lb (271 kg) |
| Certifications | CE • CSA • NSF • ASME |
Popular accessories (sold separately)
- Hot & cold swing-spout faucet kit (DPK)
- 3″ draw-off valve assembly (TD3)
- Kettle Accessory Kit—paddles, whips, brushes & ladle
- Automatic water meter (GMF / LMF)
- Heat deflector shield (HS001)
Includes Cleveland Range 1-year parts & labor warranty; extended coverage available at time of purchase.
