Cleveland Range | SKU:
KGL60T
Cleveland Range KGL60T Steam Kettles
$38,804.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Cleveland Range KGL60T Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KGL60T Steam Kettles
$38,804.00
Unit price
/
Unavailable
Description

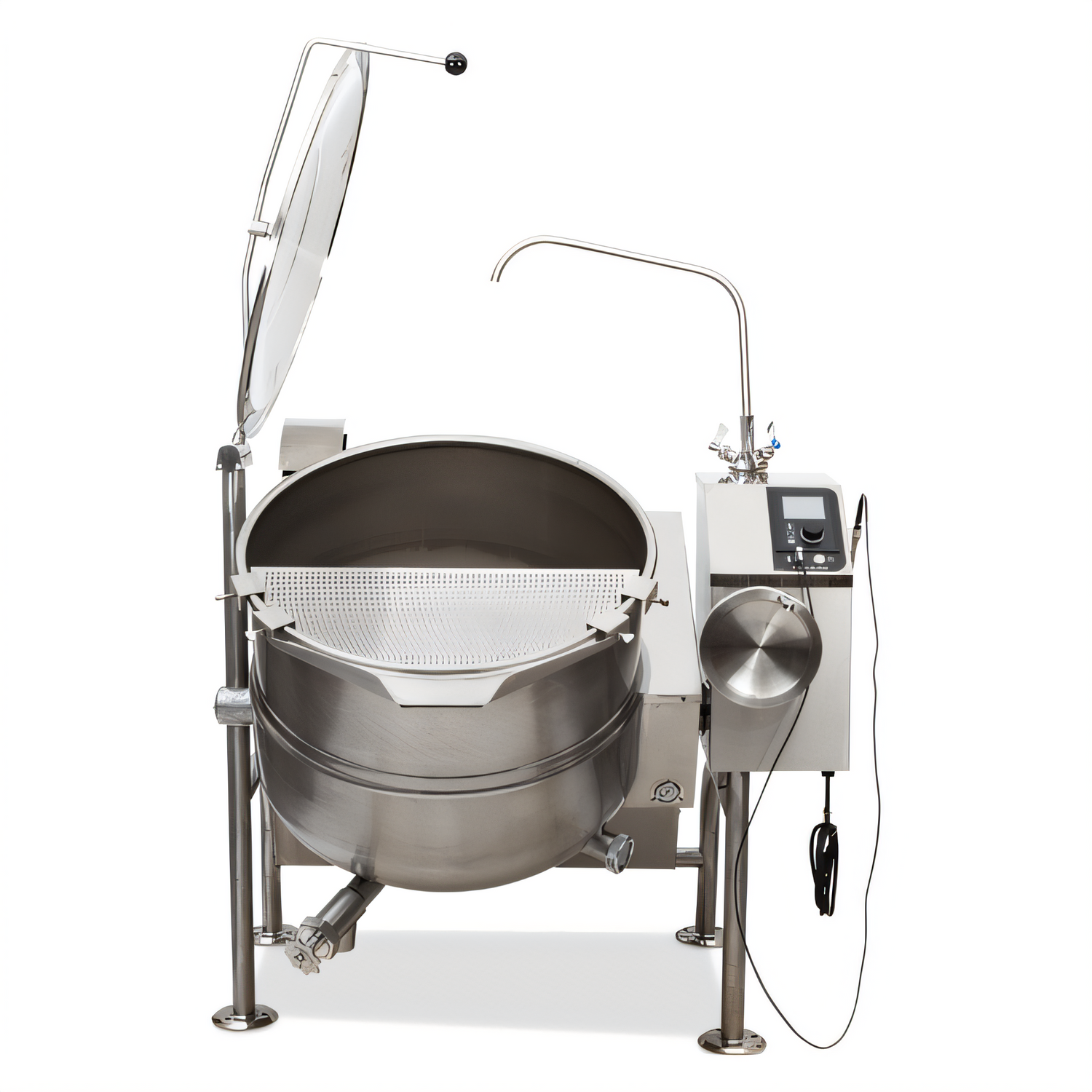

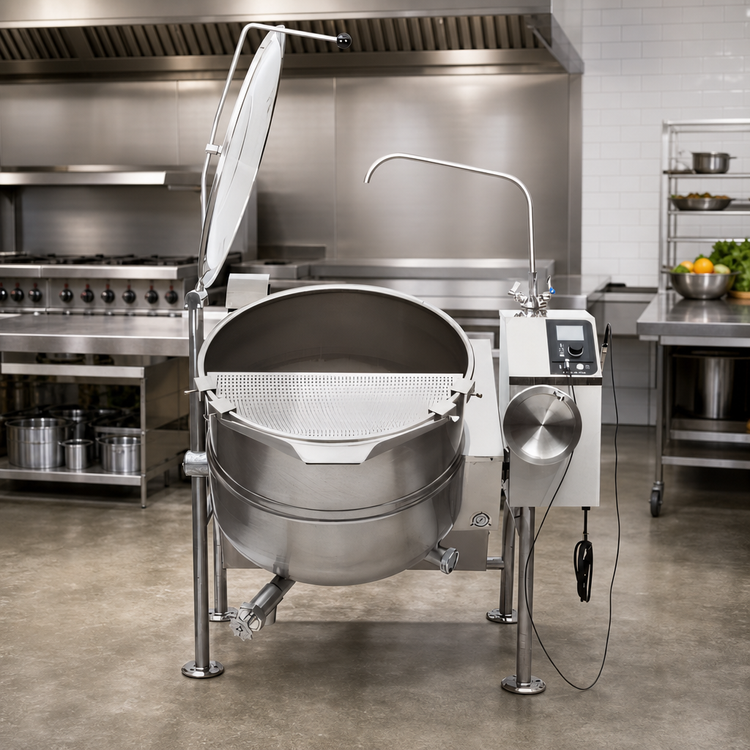

Cleveland KGL-60-T Gas Tilting Kettle – 60 Gal.
2/3 Steam Jacket • 316 Stainless Interior • 190,000 BTUEngineered for high-volume production, the KGL-60-T delivers rapid heat-up, spot-on temperature control and effortless tilting—so your kitchen can turn out soups, sauces and stocks faster, safer and more consistently than stock pots ever could.
Why you’ll love it

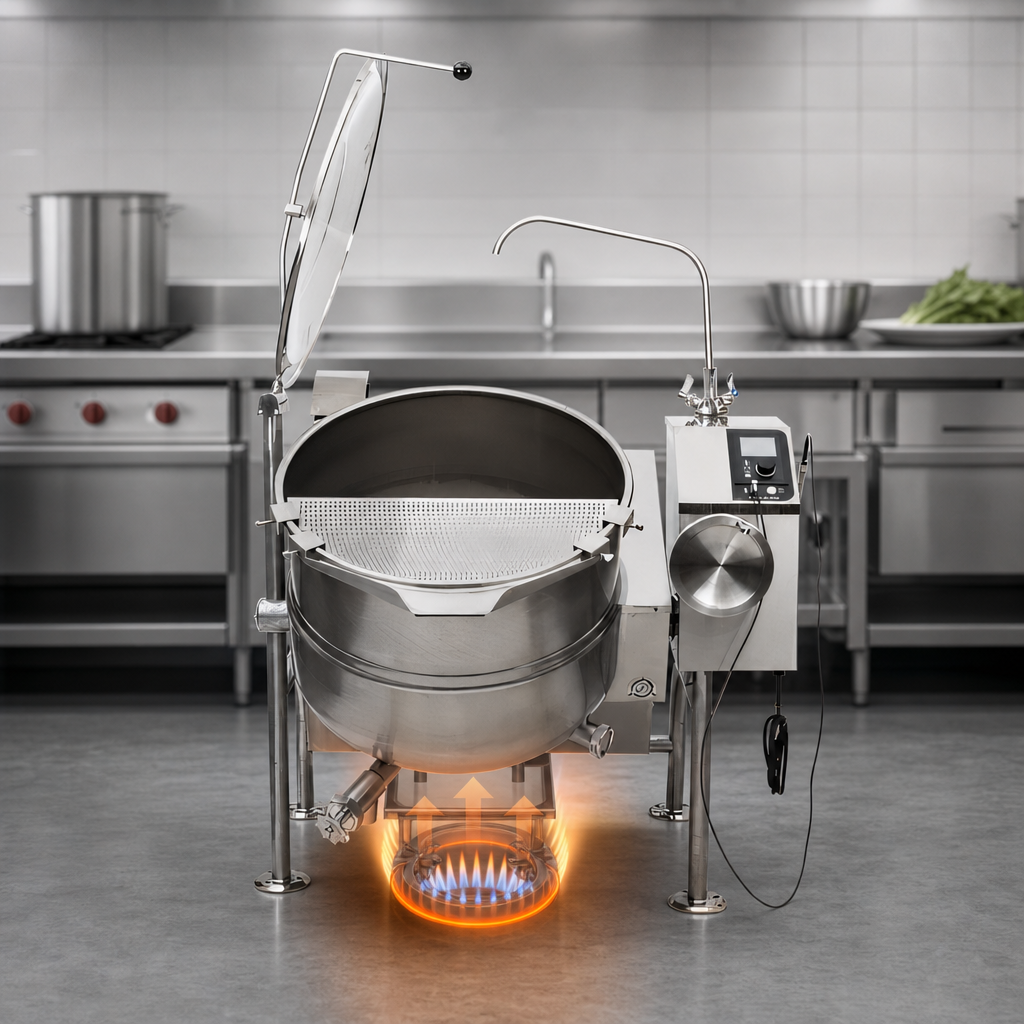

- High-efficiency Power Burner (62–65 % efficient) slashes heat-up and recovery times.

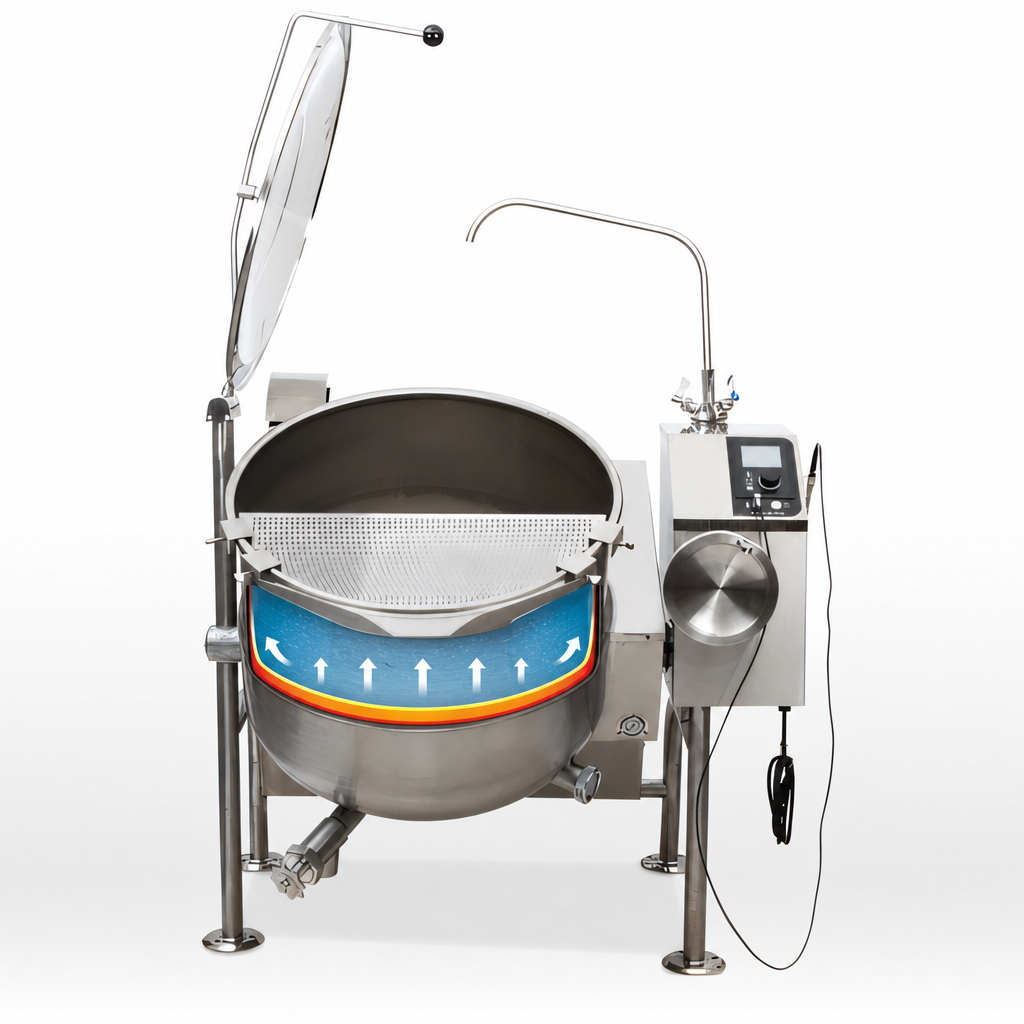

- Permanently sealed 2/3 steam jacket; no venting or refilling required.
- 316 series stainless steel cooking surface resists acidic foods and cleaning chemicals.
- Accurate solid-state thermostat (±1 °C) from 145 °F to 260 °F for gentle simmering or rapid boils.
- Automatic electronic spark / hot-surface ignition with low-water and heat cycle LEDs.
- Smooth hand-tilt with self-locking worm gear; pour with confidence every time.
- Floor-mounted console legs with flanged feet keep the kettle anchored and compliant.
- ASME-stamped 50 psi jacket, factory safety valve and CE, CSA & NSF approvals.
Technical specifications
| Model | KGL-60-T |
|---|---|
| Capacity | 60 gal / 225 L (≈ 960 eight-ounce servings) |
| Jacket Coverage | 2/3 steam jacket |
| Interior Material | 316 SS, #4 finish |
| Jacket Rating | 50 psi (3.4 bar) |
| Heat Input | 190,000 BTU /hr (natural or LP gas) |
| Temperature Range | 145 °F – 260 °F (63 °C – 127 °C) |
| Controls | Power ON/OFF dial • 1-10 temperature dial • Heat & Low-Water LEDs |
| Ignition | Automatic electronic spark / hot-surface |
| Gas Connection | 3/4" NPT, 4–14" W.C. supply pressure |
| Electrical | 115 V, 1 ph, 60 Hz, 10 A (6' cord & plug) |
| Exterior (W × D × H) | 49 3/8" × 51" × 43" |
| Shipping Weight | ≈ 600 lb (272 kg) |
| Approvals | ASME, CE, CSA, NSF |
| Standard Warranty | 1-year parts & labor + 4-year prorated jacket |
Optional accessories
- Spring-assisted stainless cover (CHS-60)
- 2" or 3" tangent draw-off valve with strainer
- 3" butterfly or air valve for chunky or thick products
- easyDial™ digital control panel with 99-min timer & cooking modes
- Hot/cold kettle faucet with swing spout
- Kettle accessory kit: paddle, whip, brushes & ladle
Need a custom configuration? Our equipment specialists are ready to help—just give us a call or start a chat.
Installation note: This kettle must be bolted to the floor under a code-compliant ventilation hood.
Supply clean water meeting Cleveland Range quality guidelines and follow all local gas & electrical codes.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Certifications
CE
Height
48.13in
Width
49.38in
Depth
47.25in
Shipping Weight
600.0lbs
Kettle Jacket
partial jacket
Width
49 - 62 inches
Capacity
50 - 70 gallon
Kettle Liner
316 stainless steel
Specifications
Kettle, gas, tilting, 60-gallon capacity, 2/3 steam jacket design, with floor mounted control console supports, 316 series stainless steel interior, flanged feet, 50 psi rating, electronic spark ignition, cover & draw-off optional, 190,000 BTU, CE
