Cleveland Range KGL60SH Short Series Steam Kettles
Description

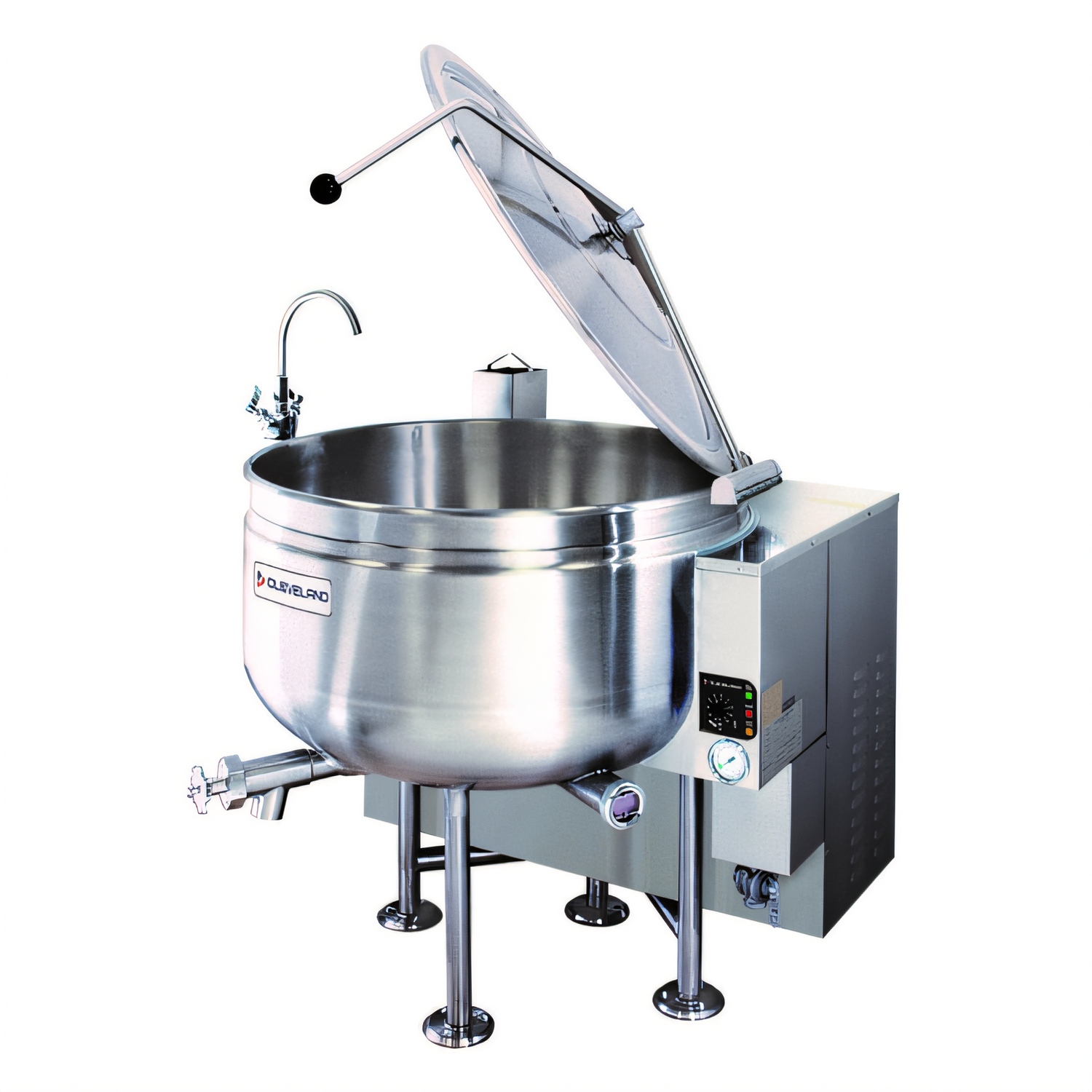

Cleveland Short Series™ 60-Gallon Gas Steam Jacketed Kettle
Model KGL-60-SH • 37.5" Rim Height • Full Steam Jacket • 190,000 BTUBuilt for high-volume kitchens that refuse to compromise on speed or precision, the Short Series™ KGL-60-SH pairs Cleveland Range’s renowned durability with an ergonomic 37.5" working height. A 65 % efficient, double-pass burner drives 190,000 BTU through a 50 psi jacket, rocketing 60 gallons (225 L) of product to temperature and holding it within 1 °C—batch after batch.
Performance at a Glance
- 60 gal / 225 L capacity—up to 960 eight-ounce servings per batch

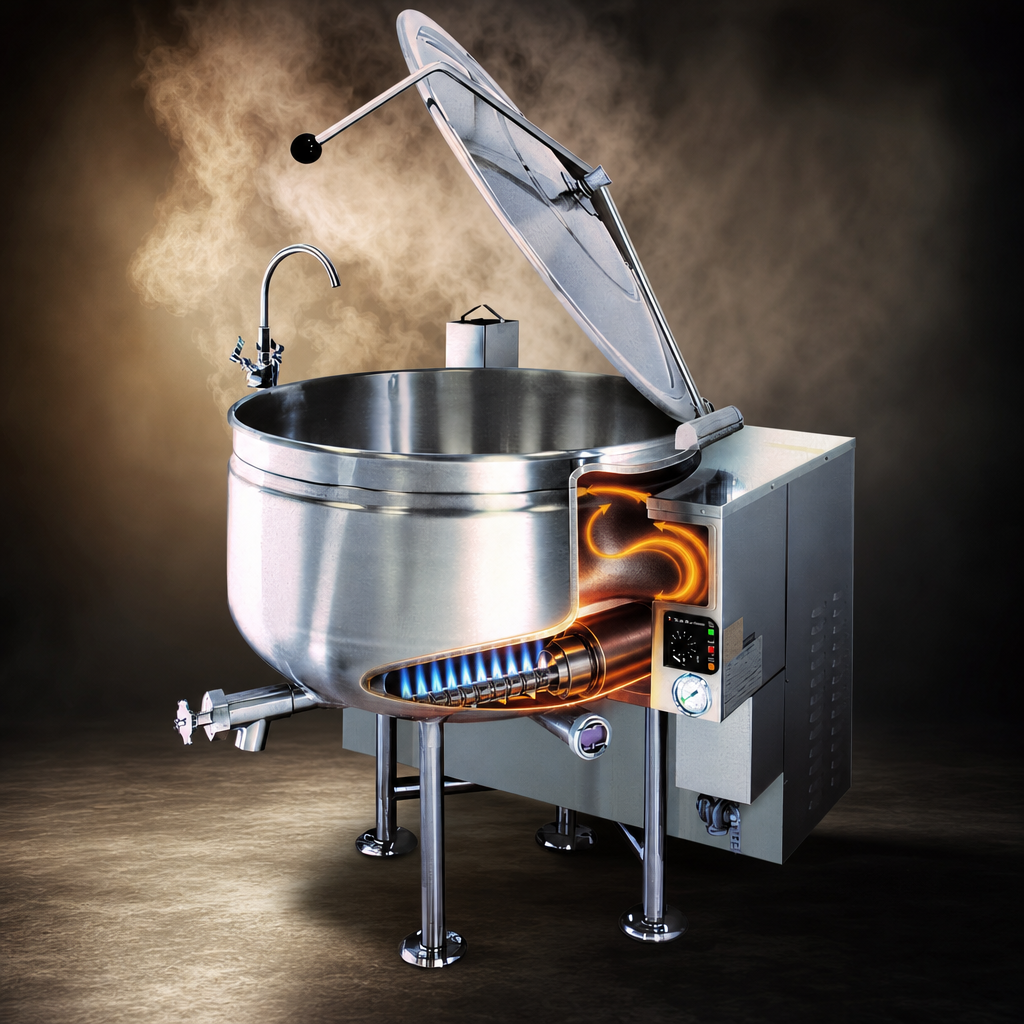

- High-efficiency forced-air burner with automatic hot-surface ignition
- Full 316 stainless interior resists acidic foods and aggressive cleaners
- Splash-proof solid-state controls with LED heat & low-water indicators

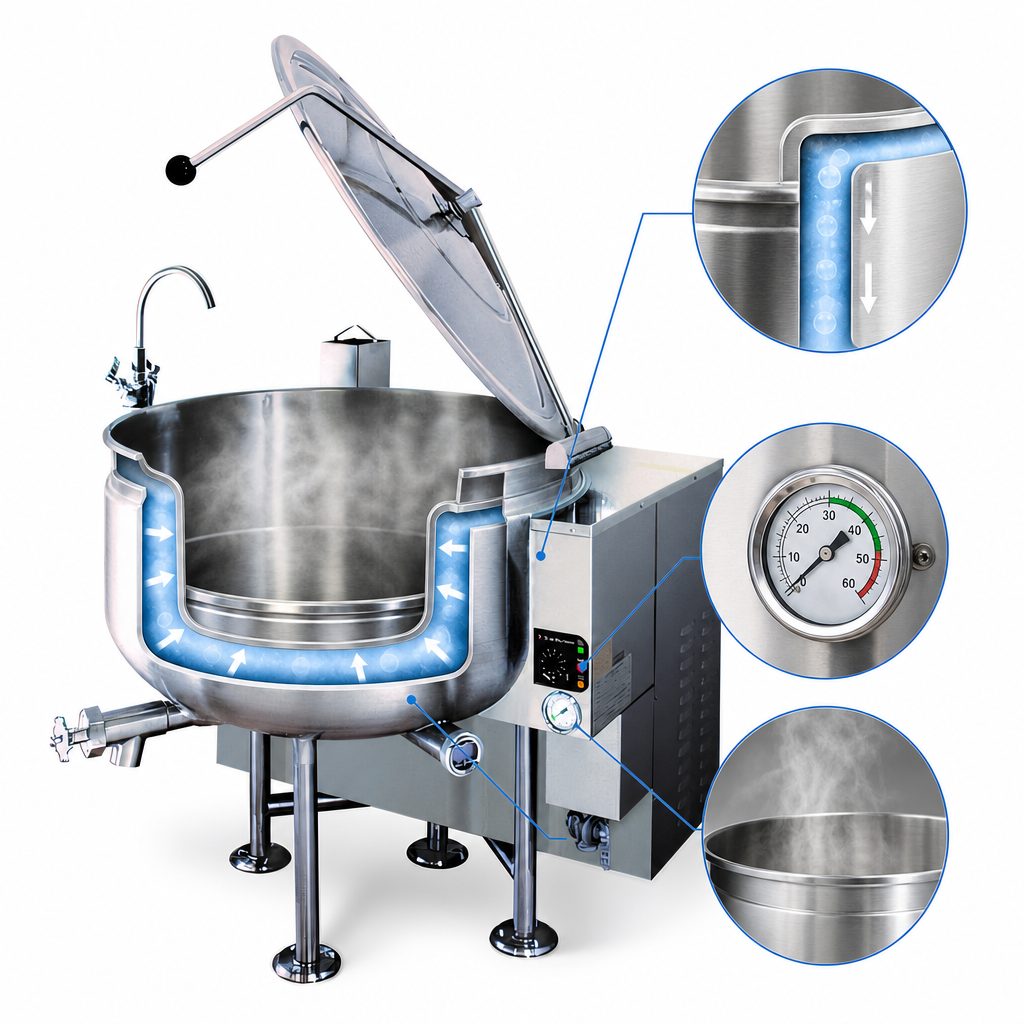

- Sealed 50 psi steam jacket—no boiler maintenance required
Operator-Focused Design
- Comfort-easy 37.5" rim height meets most ADA reach guidelines
- Spring-assisted domed cover—single-hand lift, stay-open rotation
- 2" tangent draw-off valve with stainless drain strainer (included)
- Integrated faucet mounting bracket for optional hot/cold water tap
- Quad-leg base with adjustable flanged feet for secure floor anchoring
- Splash-proof control enclosure wipes clean in seconds
Capacities & Utilities
| Usable Volume | 60 gal / 225 L |
|---|---|
| Servings (8 oz) | ≈ 960 per batch |
| BTU Input | 190,000 BTU/hr (natural gas) |
| Gas Connection | 3/4" NPT – 4"–14" W.C. supply pressure |
| Electrical | 115 V, 1-ph, 60 Hz, 10 A (controls only; cord & plug supplied) |
| Steam Jacket | Full, 50 psi rated, ASME-stamped |
| Draw-off | 2" tangent, stainless-steel |
| Footprint (W×D) | 44" × 43.5" (1 118 mm × 1 105 mm) |
| Service Clearances | 3" each side & rear (6" if near combustibles) |
| Certifications | NSF, CE, CSA, AGA, ASME |
What’s Included
- Splash-proof control panel with power switch & temperature dial
- Recessed pressure/vacuum gauge
- Spring-assisted stainless cover with vent port
- Drain strainer & faucet mounting bracket
- Level-adjustable flanged feet and floor-bolt hardware
- 1-year parts & labor warranty + 4-year prorated jacket coverage
- Complimentary factory start-up and water quality test
Popular Options & Accessories
- 3" tangent draw-off valve (TD3) or 3" butterfly valve (BV3)
- Hot & Cold water faucet kit (DPK)
- Kettle Accessory Kit (KAK) – paddles, brushes & more
- Tri-Basket strainer support system (TBS)
- Propane gas configuration (PG)
- Heat deflector shield (HS001)
Looking for other capacities? Ask about the 40-gallon Short Series or Cleveland’s full line of mixer kettles and tilt skillets.
