Cleveland Range KGL40TSH Short Series Steam Kettles
Description

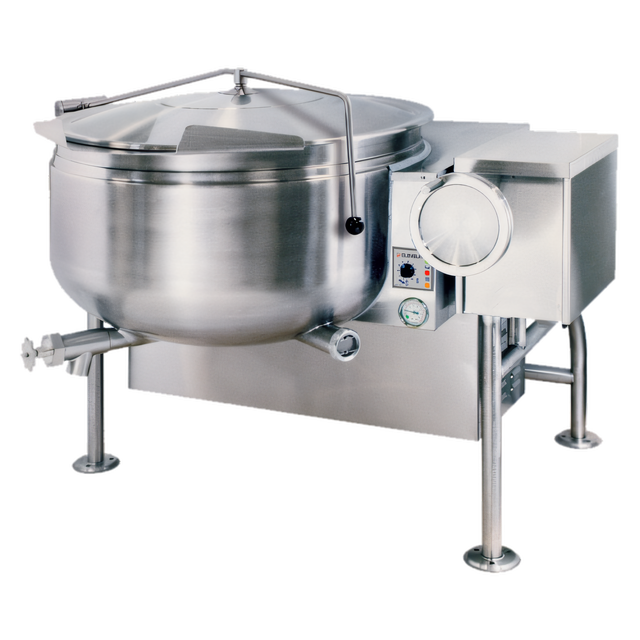

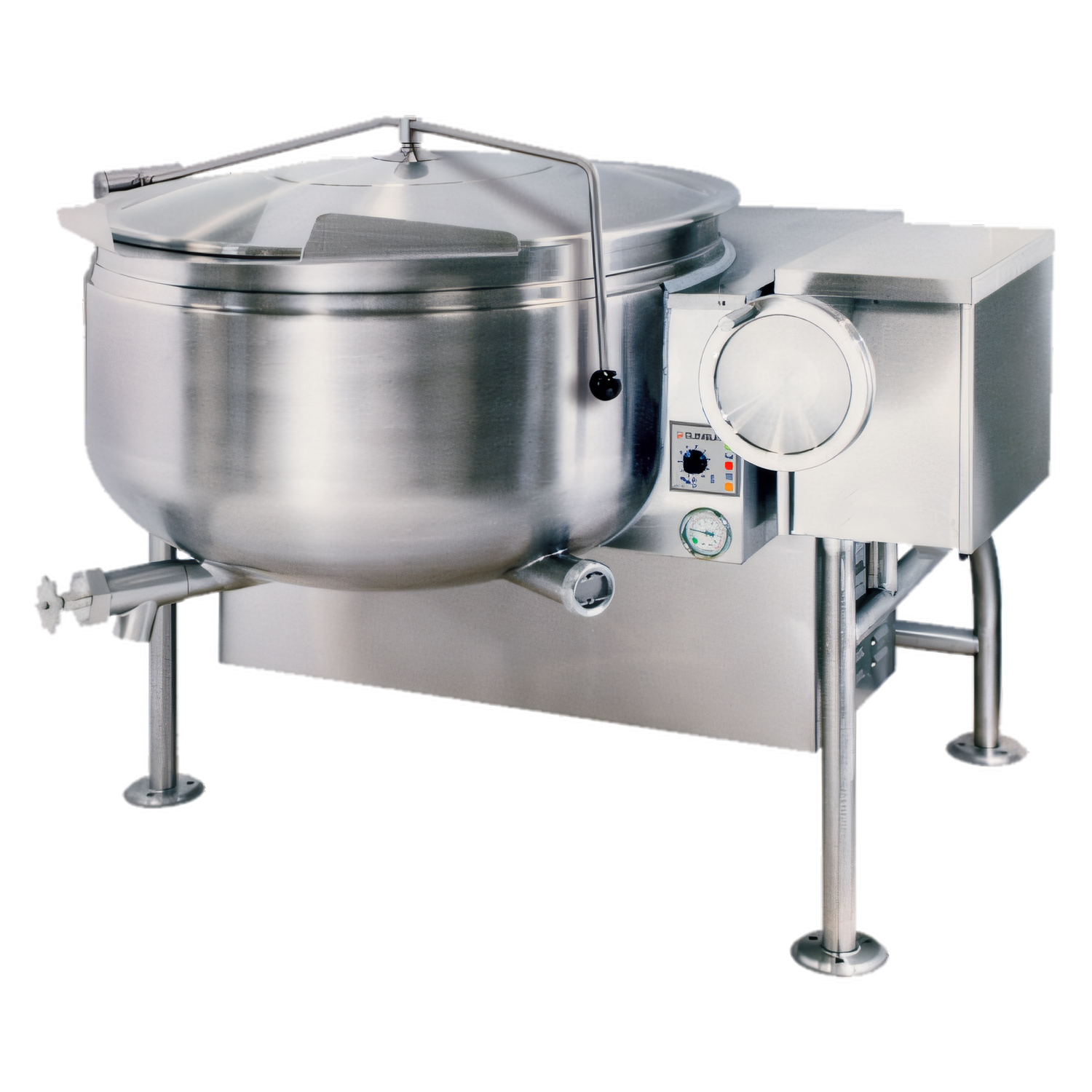

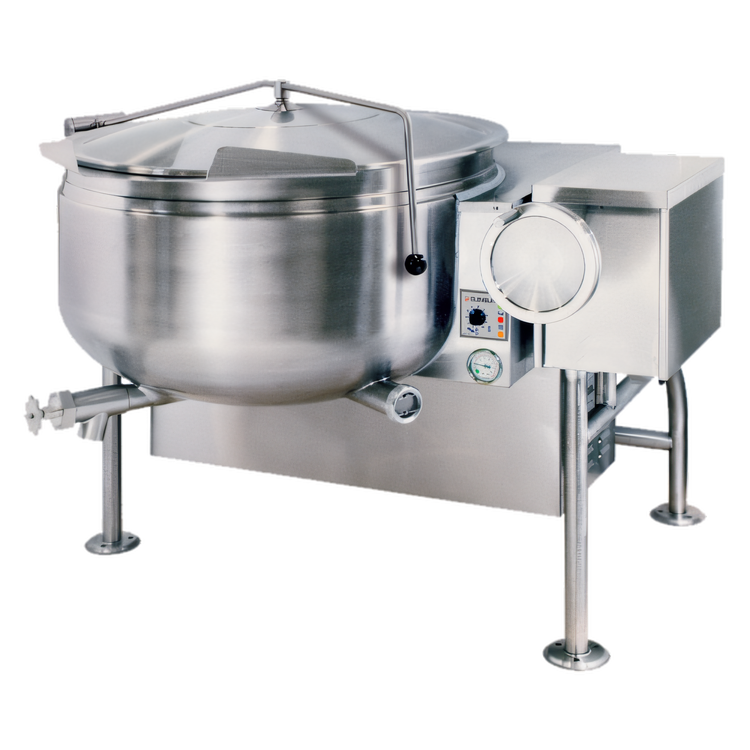

Short Series™ 40-Gallon Gas Tilting Steam Jacketed Kettle
Model KGL-40-T • 38 in (965 mm) rim height • Natural Gas 140,000 BTUTurn out batch after batch of perfectly cooked soups, sauces, stocks and more with the Cleveland Range Short Series™ kettle. Its full 50 psi steam jacket and high-efficiency power burner bring 40 gallons (150 L) of product to temperature fast, then hold it there within ±1 °C for flawless results shift after shift.
Why Kitchens Choose the Short Series™

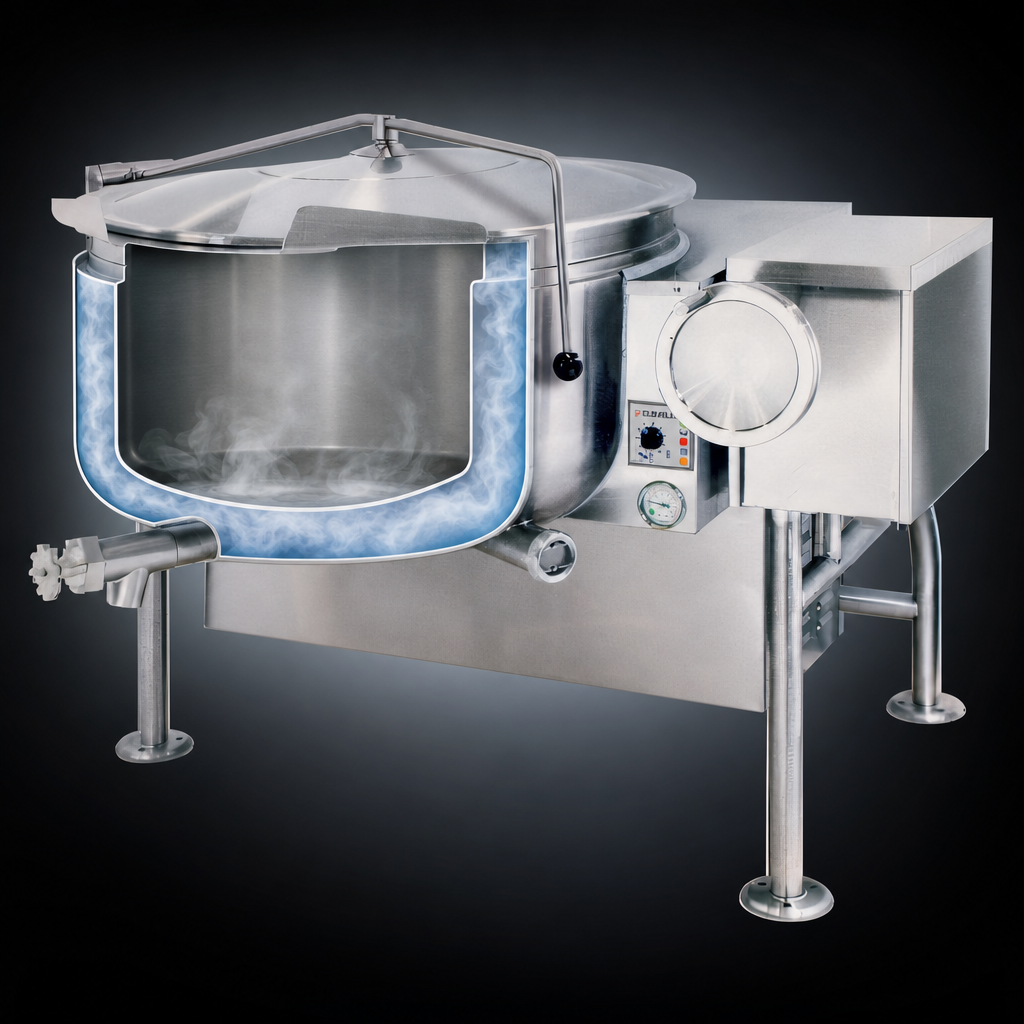

- Full steam jacket design delivers even 360° heating—no hot spots, no scorching.
- 140 k BTU power burner (62-65 % efficient) cuts heat-up and recovery times.
- Solid-state controls with 1–10 dial keep temperatures from 145 – 260 °F (63 – 127 °C) within ±1 °C.
- Automatic electronic spark ignition—no pilot to light, instant startup every time.
- 316 stainless interior & 304 stainless exterior resist corrosion and clean up fast.
- Manual self-locking tilt with roller bearings provides smooth, precise pouring through an extra-wide rolled lip.
- Sealed, permanently filled jacket—no venting, refilling or water treatment needed.
- Compact 38″ working height keeps operators comfortable without step platforms.
- Flanged, adjustable feet bolt to the floor for rock-solid stability.
- CE, NSF, ASME & CSA certified for worldwide code compliance.
At-a-Glance Specifications

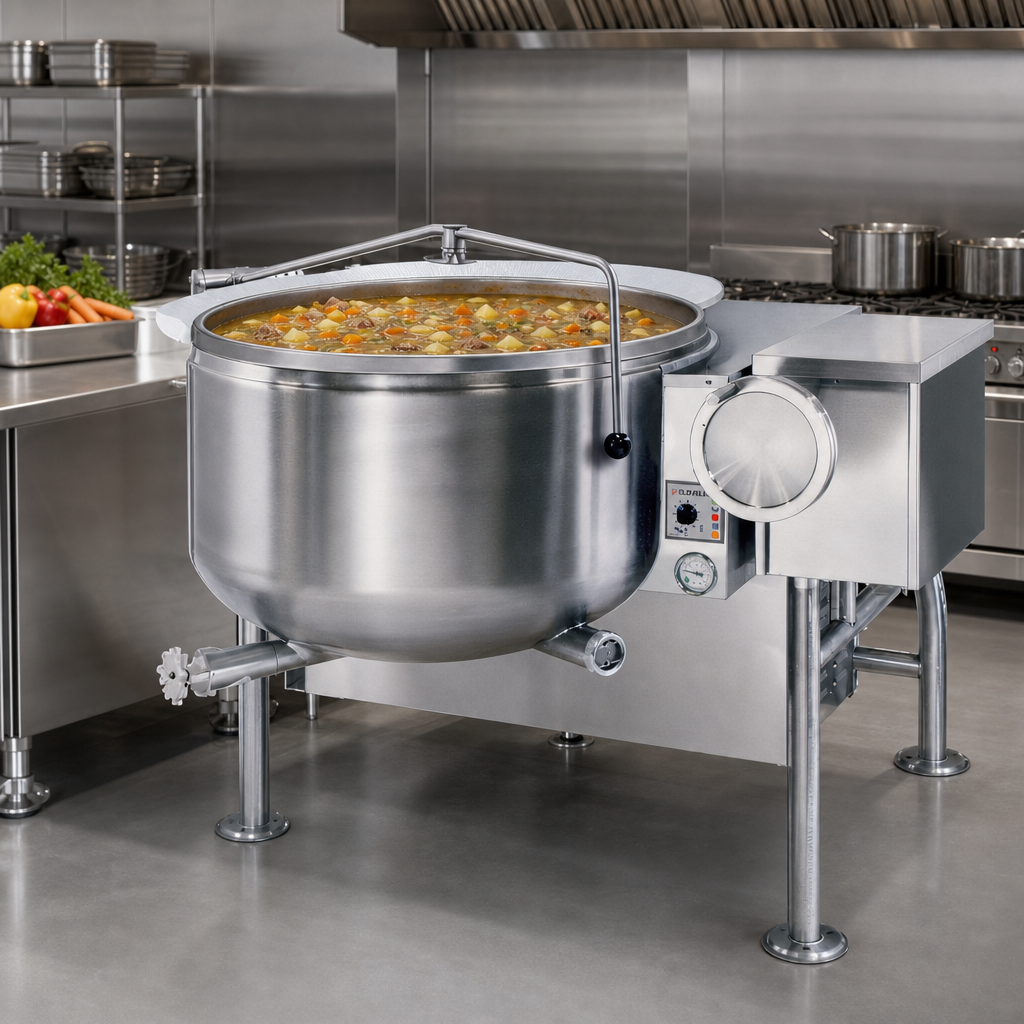

| Capacity | 40 gal / 150 L (≈ 640 8 oz servings) |
|---|---|
| Jacket Type & Rating | Full steam jacket, 50 psi ASME |
| Heat Source | Natural gas, 140,000 BTU/hr (LP kit available) |
| Ignition | Electronic spark / automatic hot-surface |
| Temperature Range | 145 – 260 °F (63 – 127 °C), ±1 °C control accuracy |
| Construction | 316 SS kettle liner, 304 SS exterior with #4 finish |
| Rim Height | 38 in (965 mm) |
| Tilt Mechanism | Manual, self-locking worm gear with roller bearings |
| Utilities | Gas 3⁄4″ NPT @ 4–14″ W.C. • 115 V, 1 ph, 6 ft cord & plug |
| Clearances | 3″ rear; 12″ right side for service |
| Shipping Weight | ≈ 500 lb (227 kg) |
| Certifications | CE, NSF, ASME, CSA/AGA |
Popular Options & Accessories (sold separately)
- easyDial™ advanced control panel with 99-minute timer & diagnostics
- 2″ or 3″ tangent draw-off or 3″ butterfly valve
- Spring-assisted stainless steel cover
- Hot/Cold water faucet with swing spout
- Food strainers, flow diverters, pan carrier & cooking baskets
- Core temperature probe, automatic water meter & measuring strip
- Kettle Accessory Kit: paddle, whip, ladle, brushes & more
- Propane (LP) gas configuration
Warranty Coverage
• 1-year parts & labor warranty (18 months from shipment if uninstalled)
• Additional 4-year prorated parts warranty on the pressure jacket (total 5 years)
Extended coverage available—ask your Cleveland representative.
