Cleveland Range

Cleveland Range 40-Gallon Gas Tilting Steam Kettle, 2/3 Steam-Jacketed, Floor Model

SKU: KGL40T
$37,589.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steam Kettle Steam Kettles

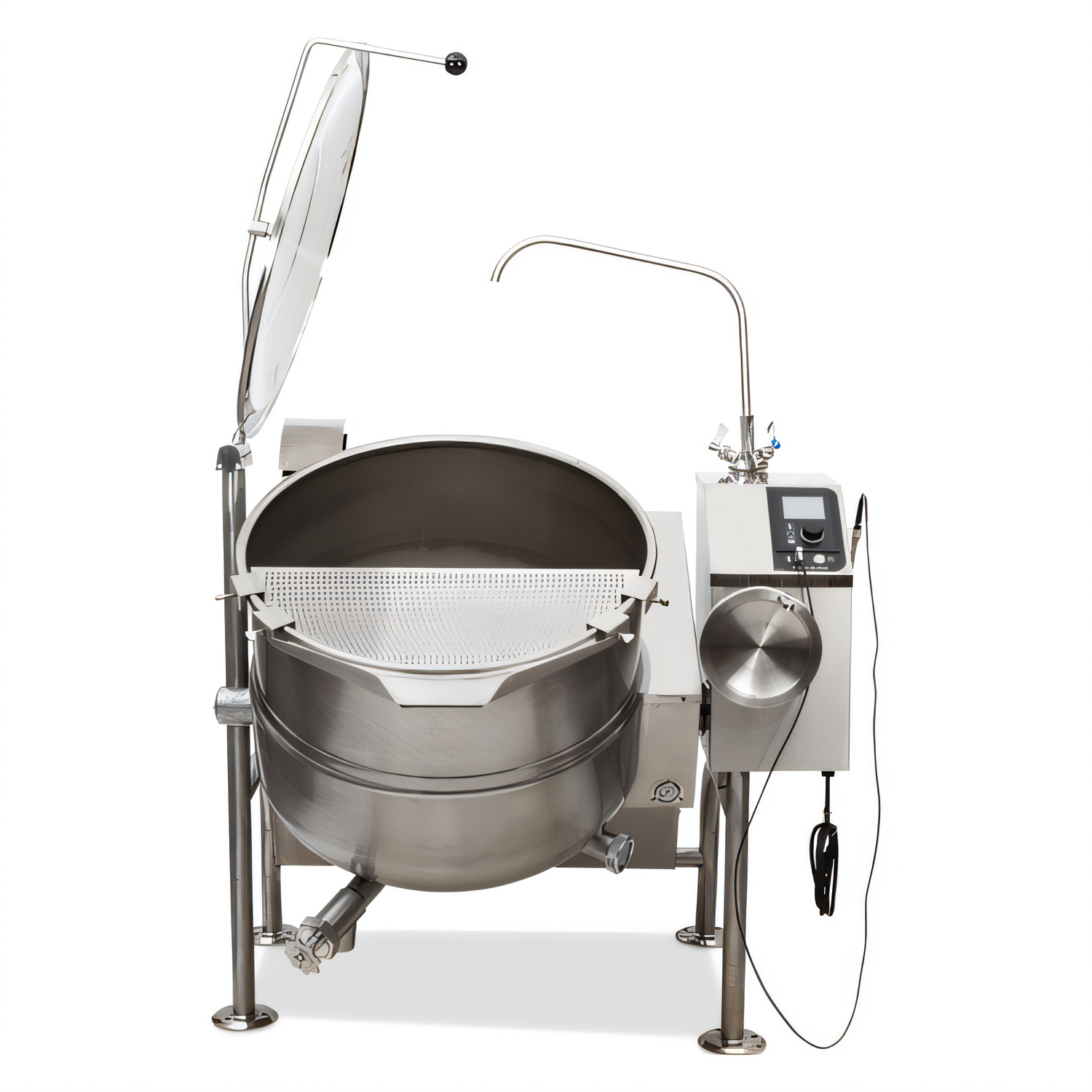

Cleveland Range 40-Gallon Gas Tilting Steam Kettle, 2/3 Steam-Jacketed, Floor Model

316 Stainless Steel Interior, 304 Stainless Steel Construction, 140,000 BTU

Built for high-volume kitchens, this 40-gallon tilting kettle delivers fast, even heating with durable stainless steel construction and optional cover and draw-off accessories.

  • 40-gallon capacity is ideal for batch cooking, soups, sauces, and large-volume simmering.
  • 2/3 steam-jacketed design promotes even heat distribution and reliable recovery.
  • 140,000 BTU power burner helps speed up heat-up times on this 40-gallon model.
  • 304 stainless steel construction and a 316 stainless steel interior support durability and sanitation.
  • Floor-mounted design with flanged feet is built for secure bolting and stable operation.
  • Optional spring-assisted cover, draw-off valve, and accessory packages let you tailor the kettle to your operation.

Overall Dimensions:

45.75"W x 42.25"D x 45.58"H

Product Weight:

527.0 lb

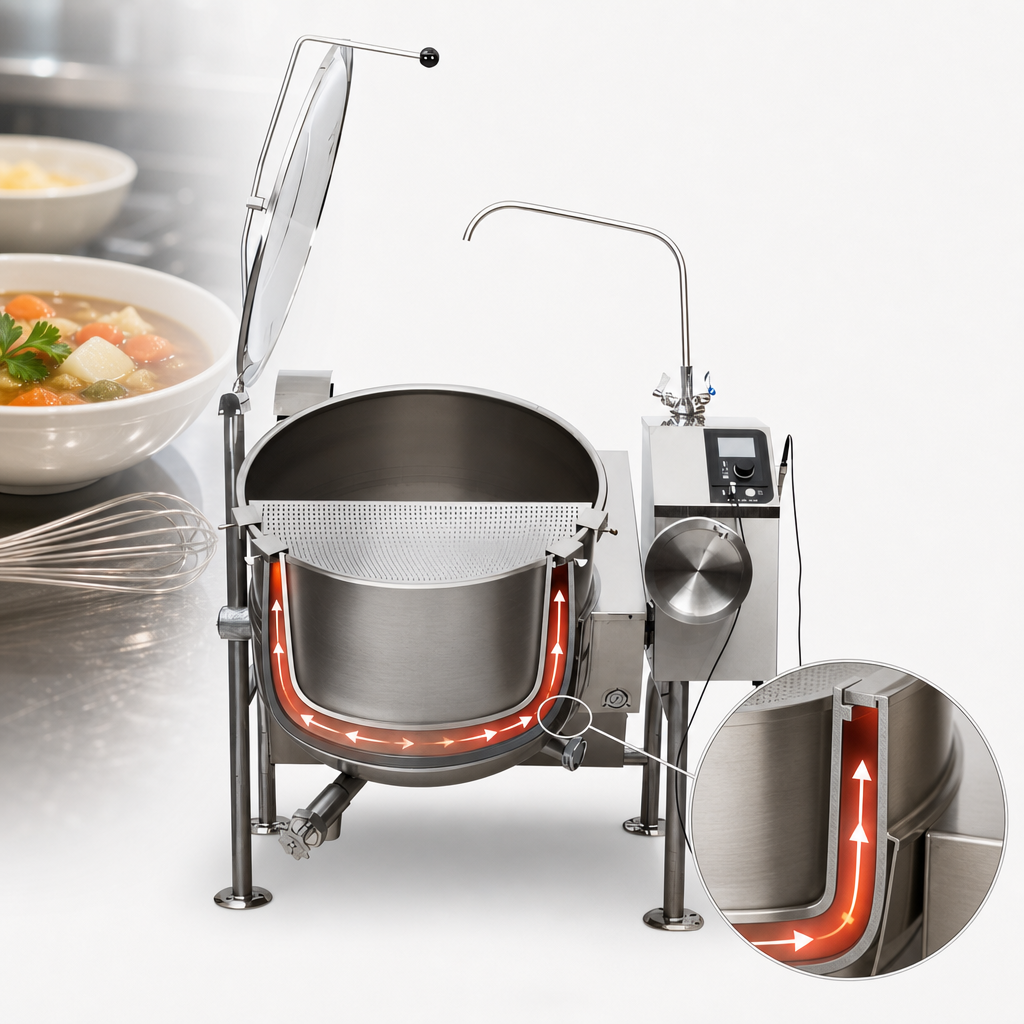

2/3 Steam-Jacketed Construction

Helps deliver even, gentle heating across the kettle for simmering and batch cooking.

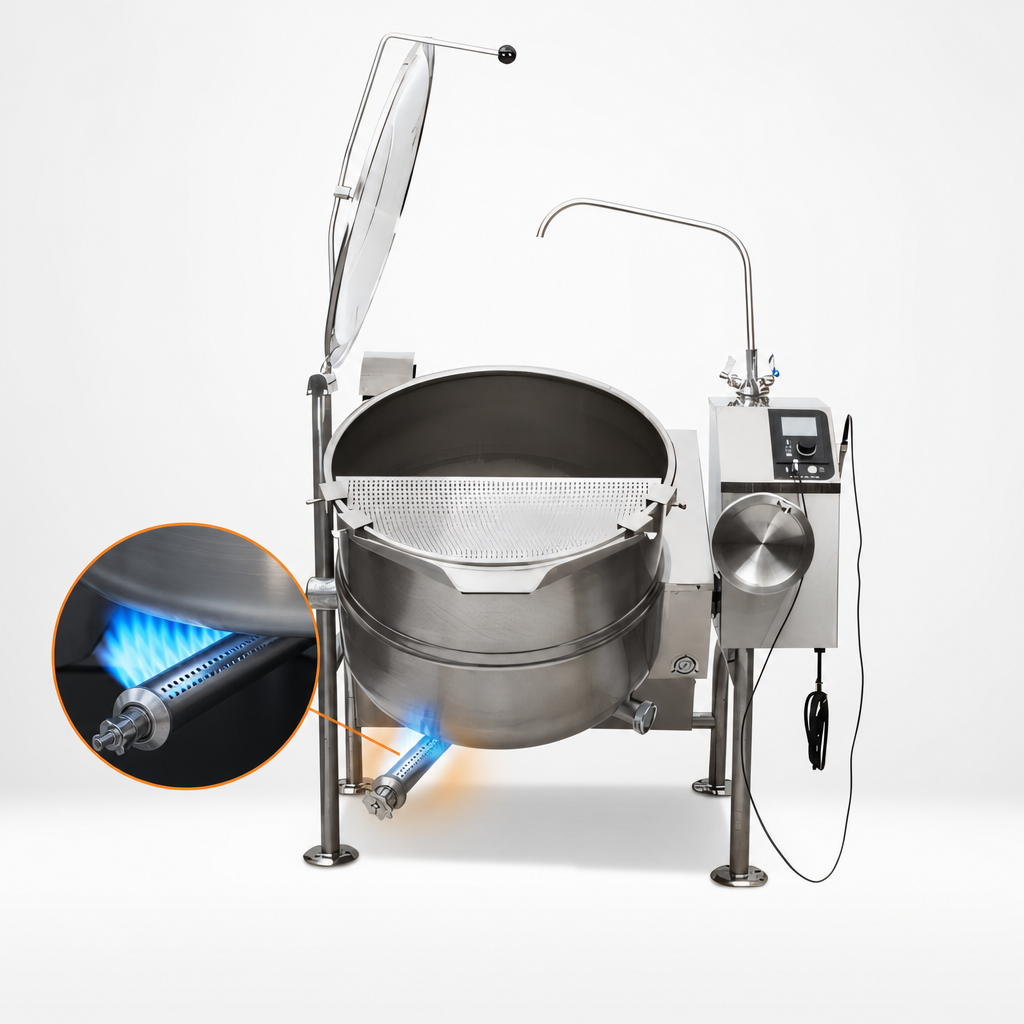

140,000 BTU Power Burner

High-output gas heating system provides fast heat-up and recovery on 40-gallon models.

316 Stainless Steel Interior

Sanitary, corrosion-resistant cooking surface designed for demanding commercial use.

304 Stainless Steel Construction

Durable stainless steel build supports long-term performance in busy kitchens.

50 PSI Steam Jacket Rating

Heavy-duty jacket rating with safety valve for reliable operation.

Electronic Spark Ignition

Provides dependable ignition for quick, efficient startup.

Floor-Mounted Tilting Base

Support legs with level-adjustable, flanged feet are designed for floor bolting, and the tilt mechanism simplifies pouring.

Optional Accessories Available

Spring-assisted cover, tangent draw-off valve, faucets, strainers, and accessory kits are available separately.

Type Steam Kettle
Style Tilting
Installation Type Floor Model
Capacity 40 Gallons
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Controls Solid State
Temperature Range 145°F to 260°F
BTU 140,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 NPT
Gas Inlet Pressure 4 Inches W.C. to 14 Inches W.C.
Voltage 120 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Cord and Plug
Cord Length 6 Feet
Shipping Width 46 Inches
Shipping Depth 43 Inches
Shipping Height 46 Inches
Shipping Weight 527 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The kettle has a 40-gallon capacity, which is listed as about 640 8-ounce servings.
Standard operation is natural gas, and propane gas operation is available as an option.
The standard electrical supply is 120 Volts, 1-Phase, 10 Amps, 60 Hz, with cord and plug. A 220 Volts, 1-Phase, 5 Amps, 50 Hz option is also shown.
The spring-assisted cover and tangent draw-off valve are optional accessories, not standard included items.
Yes. The unit has support legs with flanged feet and must be bolted to the floor.
The gas supply piping size is 3/4 NPT.
