Cleveland Range KGL40SH Short Series Steam Kettles
Description

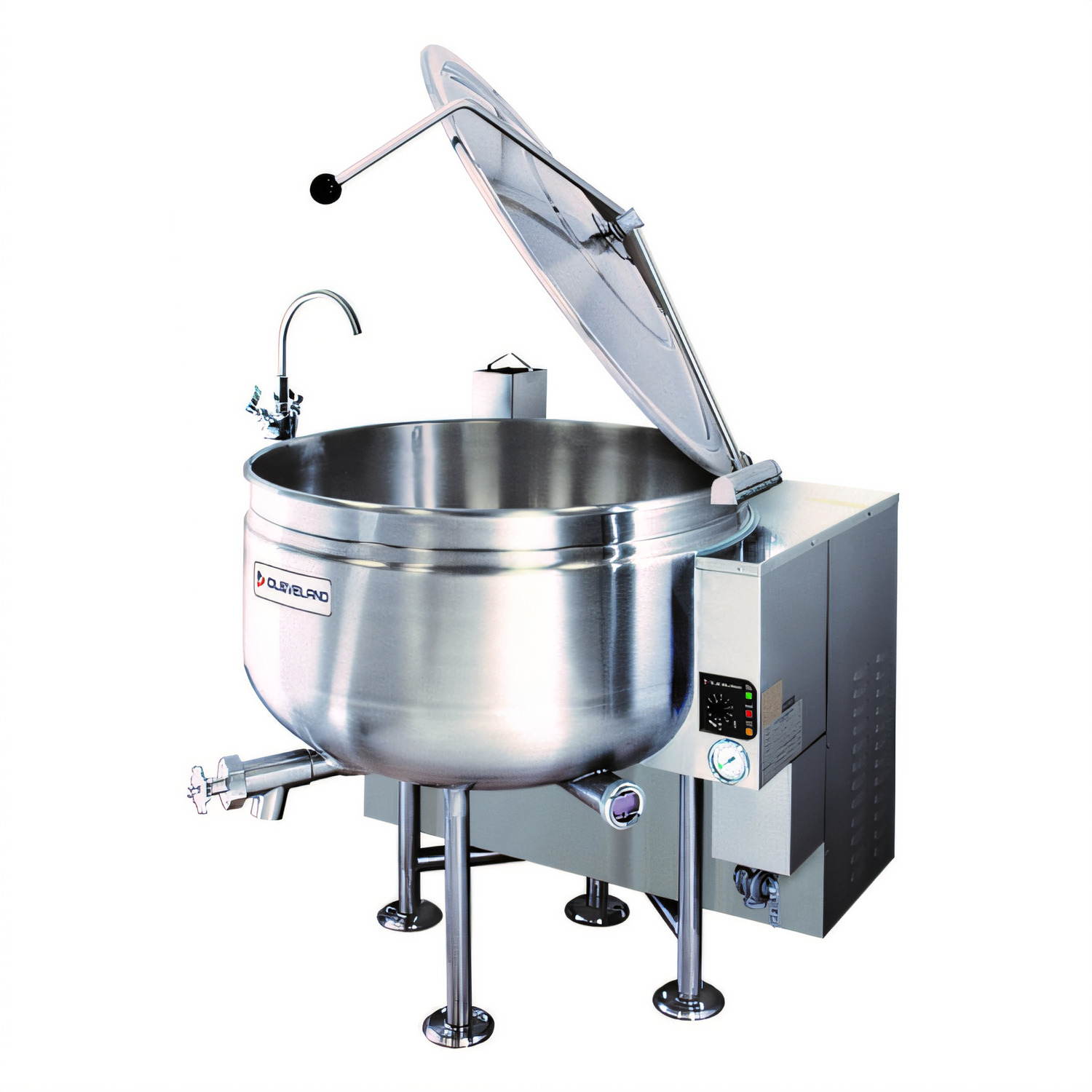

Short Series™ 40-Gallon Gas Steam Jacketed Kettle | Model KGL-40-SH
High-efficiency, full-jacket design with 37.5 in (953 mm) rim heightBuilt for demanding commercial kitchens that need high volume in a compact footprint, the Cleveland Short Series™ kettle delivers lightning-fast heat-up, precise temperature control and rock-solid durability—everything you expect from the category leader, all at a comfortable 37.5" working height.
Why You’ll Love It
- High-efficiency (65 %) forced-air, double-pass burner rated at 190,000 BTU for rapid heat-up & recovery.

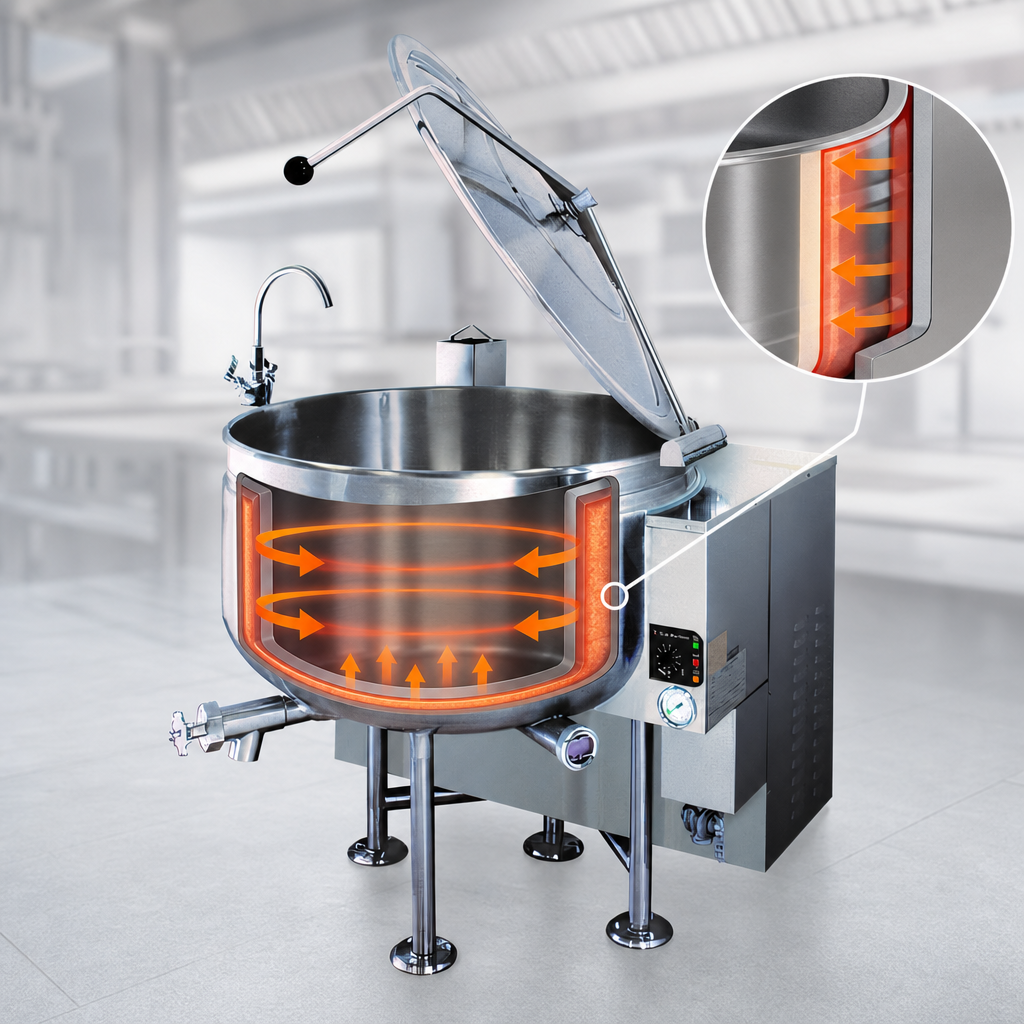

- Full 50 psi steam jacket permanently charged with treated distilled water—no boiler maintenance required.
- Rugged 316 SS interior & 304 SS exterior/support arms for maximum corrosion resistance.
- Splash-proof solid-state controls hold set-point within ±1 °C and include:
• Power ON/OFF switch • Adjustable temperature dial • Heat-cycle LED • Low-water LED - Spring-assisted, domed stainless cover—easy lift, stays put, and swings clear for loading & cleaning.
- 2" tangent draw-off with drain strainer speeds product transfer & wash-down.
- Faucet mounting bracket pre-installed—add a water fill faucet without drilling.
- Quad-leg base with level-adjustable flanged feet for code-compliant floor bolting.
- Automatic hot-surface ignition; natural gas standard, propane (LP) optional.
- Certified to AGA, CSA, CE, NSF & ASME standards for safety and sanitation.
Technical Specifications
| Capacity | 40 gal / 150 L (≈640 8 oz servings) |
|---|---|
| Model | KGL-40-SH (Short Series™) |
| Rim Height | 37.5 in (953 mm) |
| Overall Dimensions (W × D × H) | 49 in × 49 in × 54 in (1 245 mm × 1 245 mm × 1 372 mm) |
| Steam Jacket Rating | 50 psi (345 kPa) with safety valve |
| BTU Input | 190,000 BTU/hr |
| Burner Efficiency | 65 % |
| Gas Connection | ¾ in NPT | Natural gas 4-14" W.C. LP gas 11-14" W.C. (option) |
| Electrical | 115 V, 60 Hz, 1-ph, 10 A — cord & plug supplied |
| Interior Material | 316 stainless steel, #4 finish |
| Cover | Hinged, spring-assisted, rotatable stainless steel |
| Draw-Off | 2 in tangent valve with removable strainer |
| Shipping Weight | ≈ 552 lb (250 kg) |
Popular Factory Options & Accessories
- 3 in tangent draw-off valve (TD3) or 3 in butterfly valve (BV3)
- Deck-mount hot & cold water faucet kit (DPK)
- Kettle accessory kit (paddles, brushes & cleaning tools)
- Tri-basket strainer support system (TBS)
- Heat-deflector shield (HS001)
- Propane (LP) gas configuration
Peace-of-Mind Warranty
Includes Cleveland’s 1-year parts & labor warranty (18 months from shipment) plus an additional 4-year prorated parts warranty on the steam generator. Complimentary start-up by a Factory-Authorized Servicer is available upon request.
Need longer coverage? Add a 1-year Extended Warranty at checkout.
