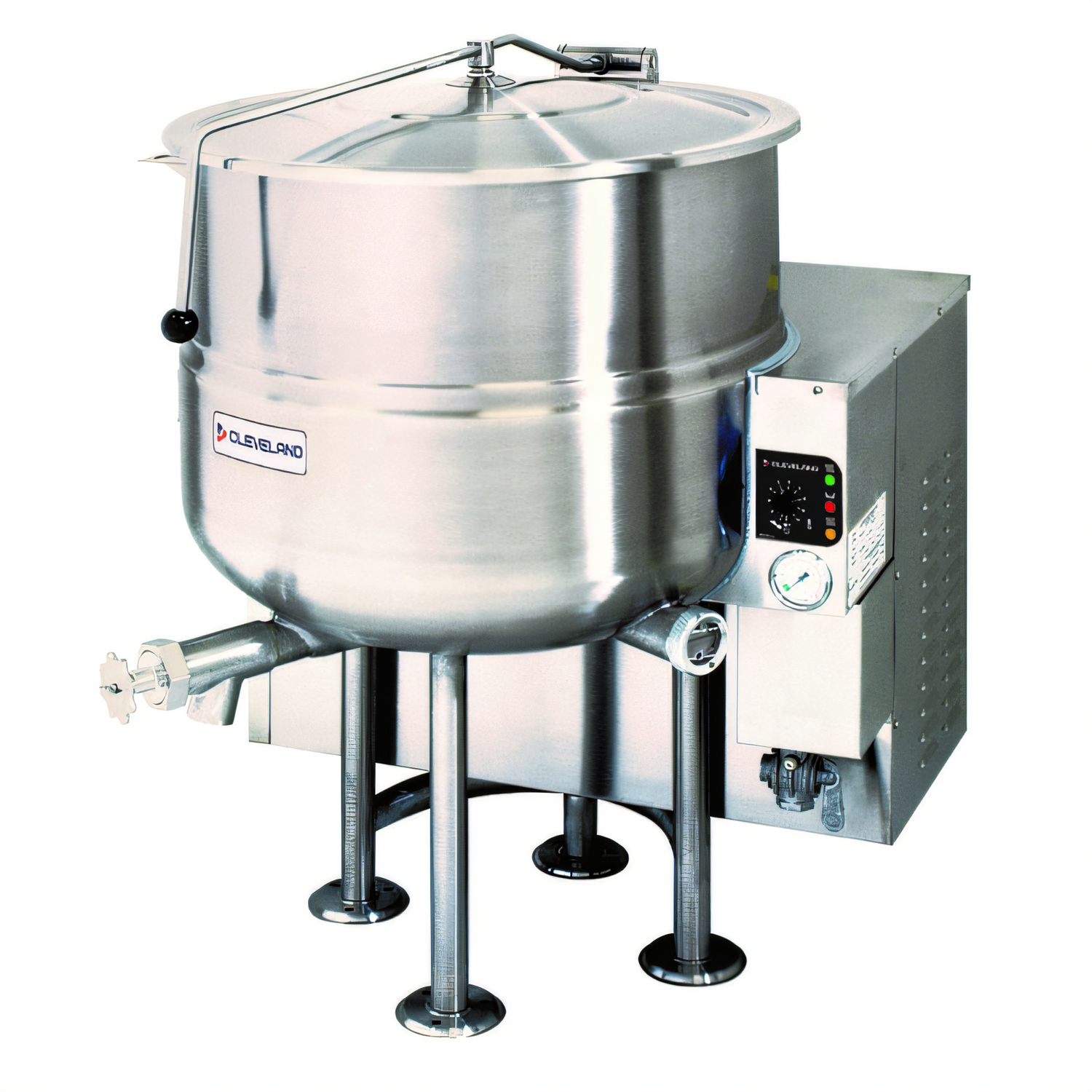

Cleveland Range KGL40PQS 40-Gallon Natural Gas Stationary 2/3 Steam-Jacketed Kettle

316 Stainless Steel Interior, Spring-Assisted Cover, 120V Controls

Built for high-volume batch cooking, this 40-gallon natural gas kettle heats quickly, holds temperature consistently, and drains easily from a rugged floor-mounted design.

  • 40-gallon stationary kettle is sized for large batch cooking and high-volume production.
  • 2/3 steam-jacketed design with a high-efficiency power burner supports fast heat-up and recovery.
  • 316 stainless steel interior and stainless steel construction are built for demanding kitchen use.
  • Spring-assisted, hinged, rotatable domed cover helps simplify operation and access.
  • 2-inch tangent draw-off valve with drain strainer makes draining and cleanup easier.
  • Solid-state controls, automatic ignition, and low-water safety features support reliable performance.

Overall Dimensions:

35.13"W x 37.0"D x 40.5"H

Product Weight:

520.0 lb

High-Efficiency Power Burner

Delivers 62% to 65% efficiency for rapid heat-up and recovery.

Permanently Filled Steam Jacket

The steam jacket is filled with treated, distilled water, so venting and refilling are not required.

Solid State Controls

Provides temperature control and low-water safety protection with LED indicators.

Automatic Ignition

Supports dependable start-up without manual lighting.

316 Stainless Steel Interior

Durable, corrosion-resistant interior designed for heavy-use cooking environments.

2-Inch Tangent Draw-Off Valve

Includes a drain strainer for controlled draining.

Spring-Assisted Cover

Hinged, rotatable domed stainless steel cover opens and closes easily.

Floor-Bolting Support Legs

Level-adjustable feet with flanged feet help secure the kettle to the floor.

Pressure/Vacuum Gauge

Front-mounted gauge lets operators monitor jacket conditions.

Faucet Mounting Bracket

Standard bracket supports optional hot and cold water faucet installation.

50 PSI Steam Jacket Rating

Built with a 50 psi steam jacket rating and safety valve for added protection.

Type Kettle
Style Stationary, 2/3 Steam Jacketed
Installation Type Floor Model
Capacity 40 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Controls Solid State
BTU 140,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch N.P.T.
Gas Inlet Pressure 4.00 Inches W.C. Minimum / 14.00 Inches W.C. Maximum
Voltage 120 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 41 Inches
Shipping Weight 520 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon capacity, which the documents rate at about 640 servings in 8-ounce portions.
Natural gas is standard, and propane operation is listed as an available option.
The documents list 120V, 60 Hz, single-phase power at 10 amps.
Yes. It comes with a 2-inch tangent draw-off valve with a drain strainer.
It includes solid-state controls, automatic ignition, LED indicators, low-water warning, and a safety valve.
Yes. The kettle has a spring-assisted, hinged, rotatable domed stainless steel cover.
