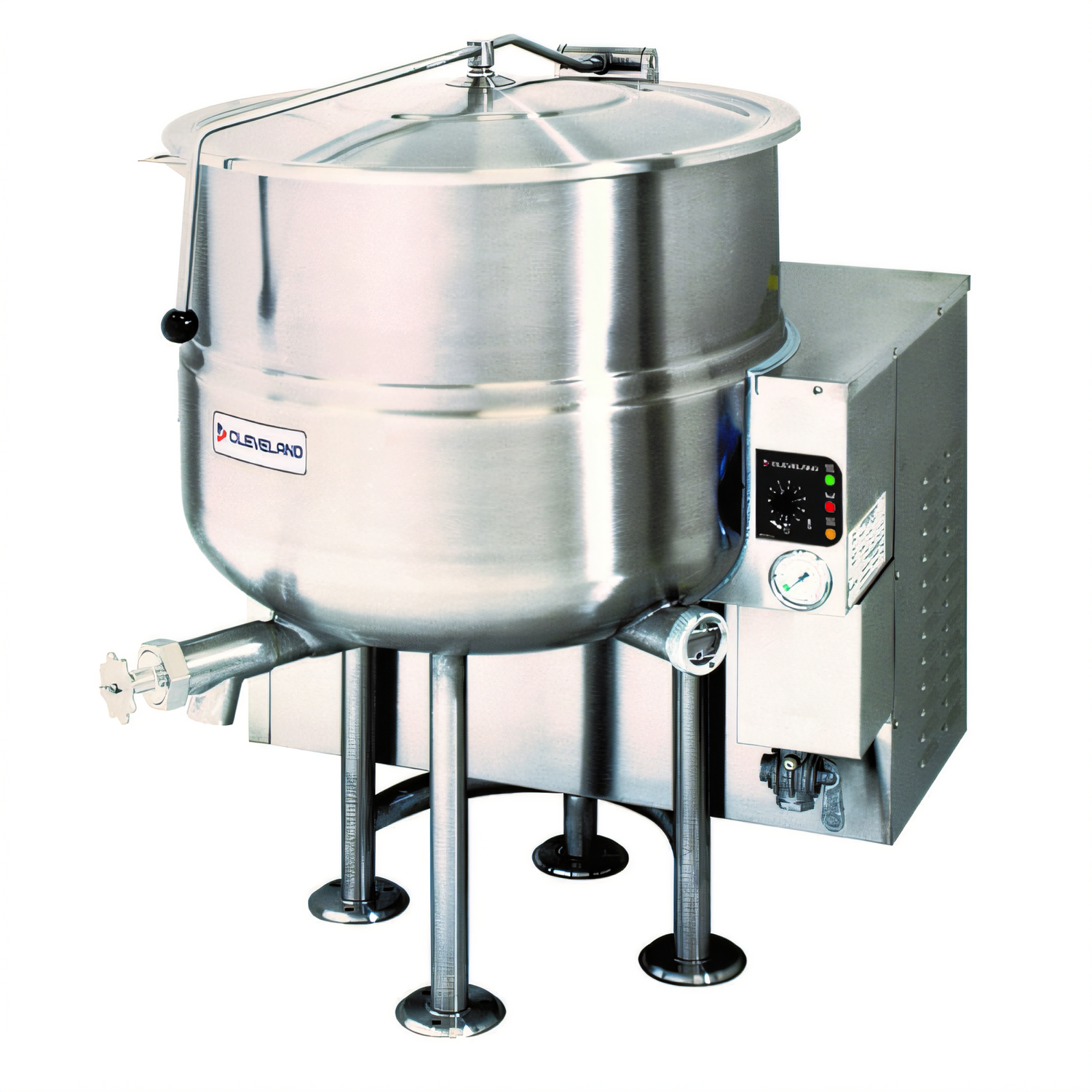

Cleveland Range KGL-40 40-Gallon Gas-Fired Stationary Kettle, 2/3 Steam Jacketed, Floor Model

Self-Contained, 316 Stainless Steel Interior, Natural Gas Standard

Built for high-volume prep, this 40-gallon stationary gas kettle delivers fast, even heating with a 2/3 steam jacket, high-efficiency burner, and easy-drain draw-off.

  • 40-gallon stationary gas kettle designed for heavy-duty batch cooking and holding.
  • High-efficiency power burner provides fast heat-up and 140,000 BTU output on the 40-gallon model.
  • Self-contained steam jacket is permanently filled with treated, distilled water for low-maintenance operation.
  • 316 stainless steel interior and 304 stainless steel finish help stand up to commercial kitchen use.
  • Automatic ignition, solid-state controls, and LED indicators support safe, precise operation.
  • Includes a 2-inch tangent draw-off valve with strainer, spring-assisted cover, and flanged feet for floor bolting.

Overall Dimensions:

35.13"W x 37.0"D x 40.5"H

Product Weight:

454.0 lb

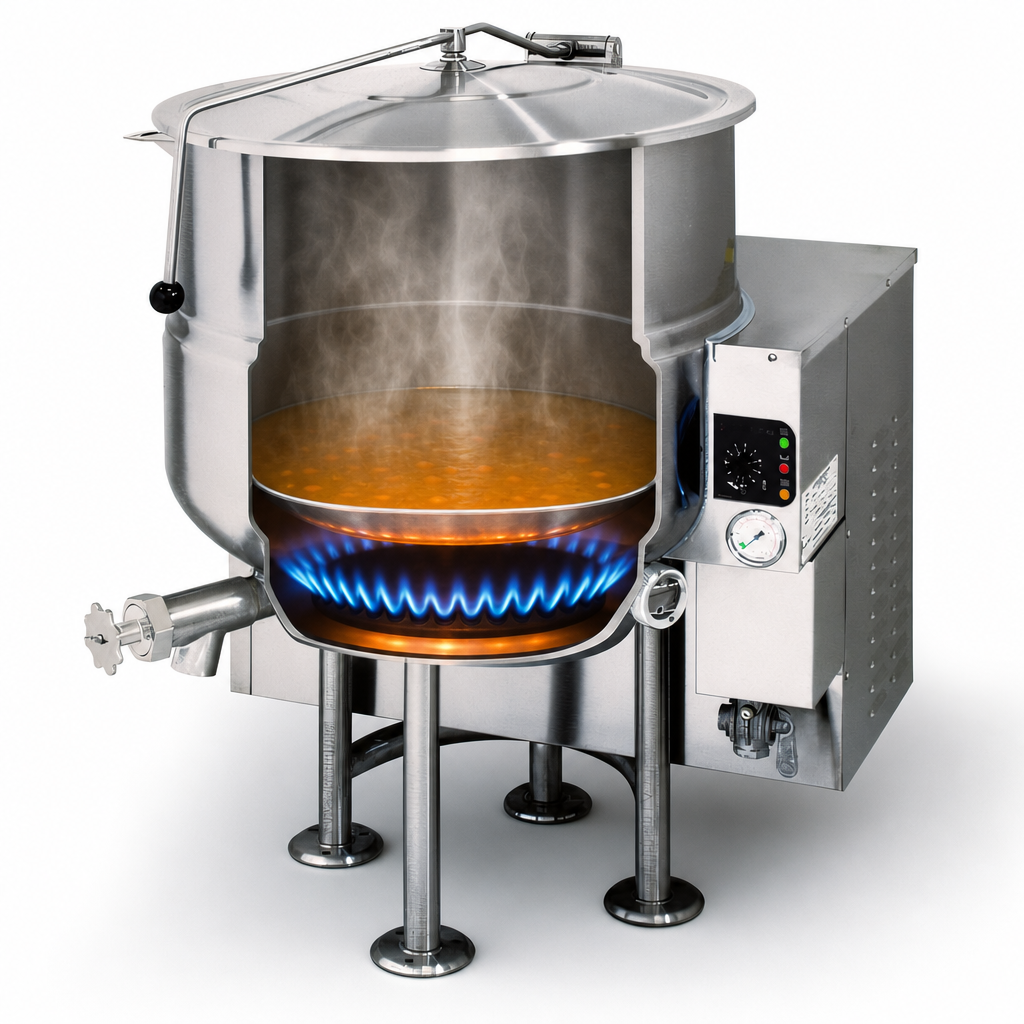

High-Efficiency Power Burner

Delivers rapid heat-up and recovery for demanding batch-cooking applications.

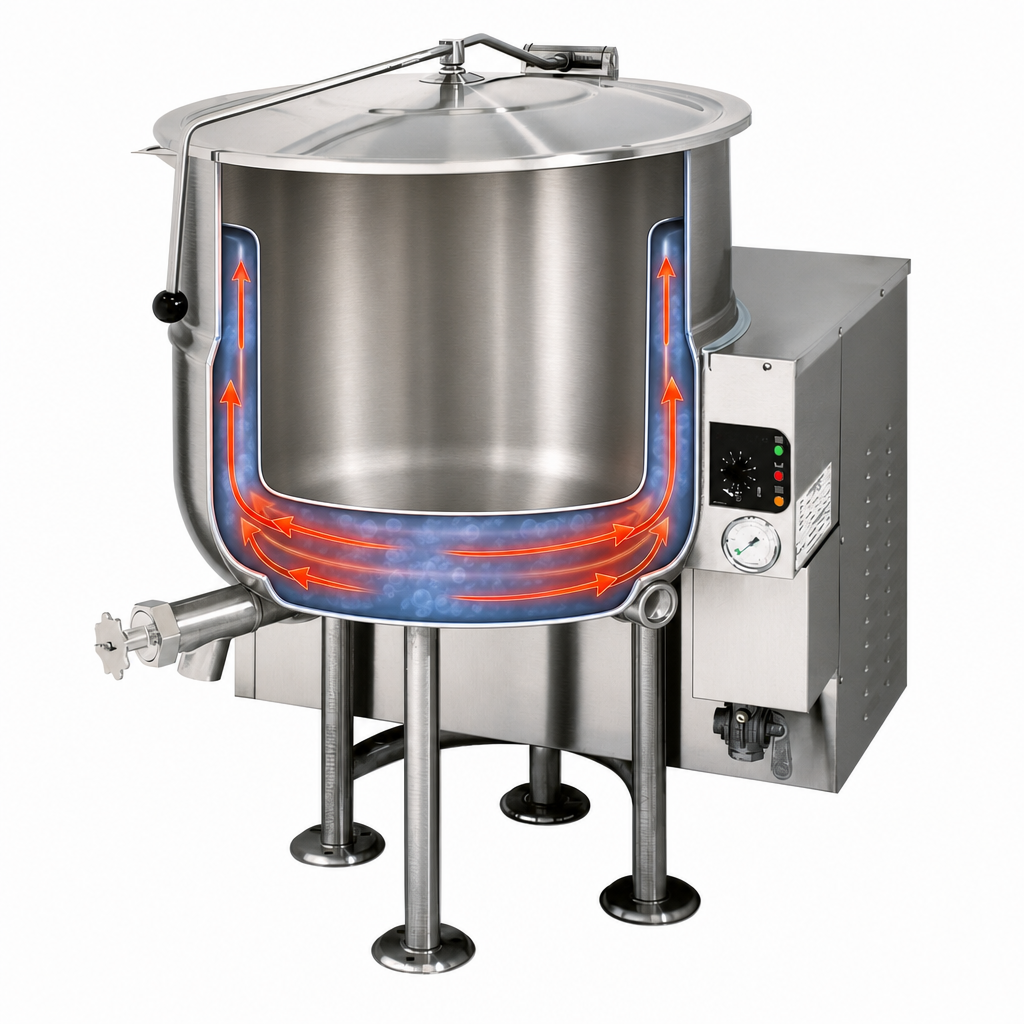

2/3 Steam Jacket

Provides even heat distribution across the kettle for consistent cooking results.

Self-Contained Steam Jacket

Steam jacket is permanently filled with treated, distilled water, so venting and refilling are not required.

Solid-State Controls

Provides precise temperature control along with low-water safety functions and LED indicators.

Automatic Ignition System

Electronic ignition helps simplify startup and improve day-to-day operation.

316 Stainless Steel Interior

Durable kettle liner designed for long-term commercial use.

Spring-Assisted Domed Cover

Hinged, rotatable cover supports safer handling and easier access to the kettle.

2-Inch Tangent Draw-Off Valve

Includes a drain strainer for controlled draining and cleanup.

Floor-Mount Base

Support legs with level-adjustable, flanged feet are designed for floor bolting.

Faucet Mounting Bracket

Provides a mounting point for an optional hot and cold water faucet.

50 PSI Steam Jacket Rating

Steam jacket is rated for commercial-duty operation and includes a safety valve.

Type Gas-Fired Kettle
Style Stationary
Installation Type Floor Model
Capacity 40 Gallons
Controls Solid State
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish 304 Stainless Steel
BTU 140,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch N.P.T.
Gas Inlet Pressure 4.00 Inches W.C. Minimum - 14.00 Inches W.C. Maximum
Voltage 115 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Cord and Plug
Shipping Width 44 Inches
Shipping Depth 44 Inches
Shipping Height 54 Inches
Shipping Weight 454 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Standard operation is natural gas. Propane gas operation is available as an option. The unit uses 3/4" N.P.T. gas piping.
The kettle uses 115 Volts, 60 Hz, single-phase power and is supplied with a cord and plug.
Yes. The kettle includes a 2" tangent draw-off valve with a drain strainer.
No. The kettle includes a faucet mounting bracket, and the hot and cold water faucet with swing spout is an optional accessory.
The steam jacket is rated at 50 psi.
The 40-gallon model is listed at approximately 640 servings based on 8-ounce portions.
