Cleveland Range KGL25T Steam Kettles
Description

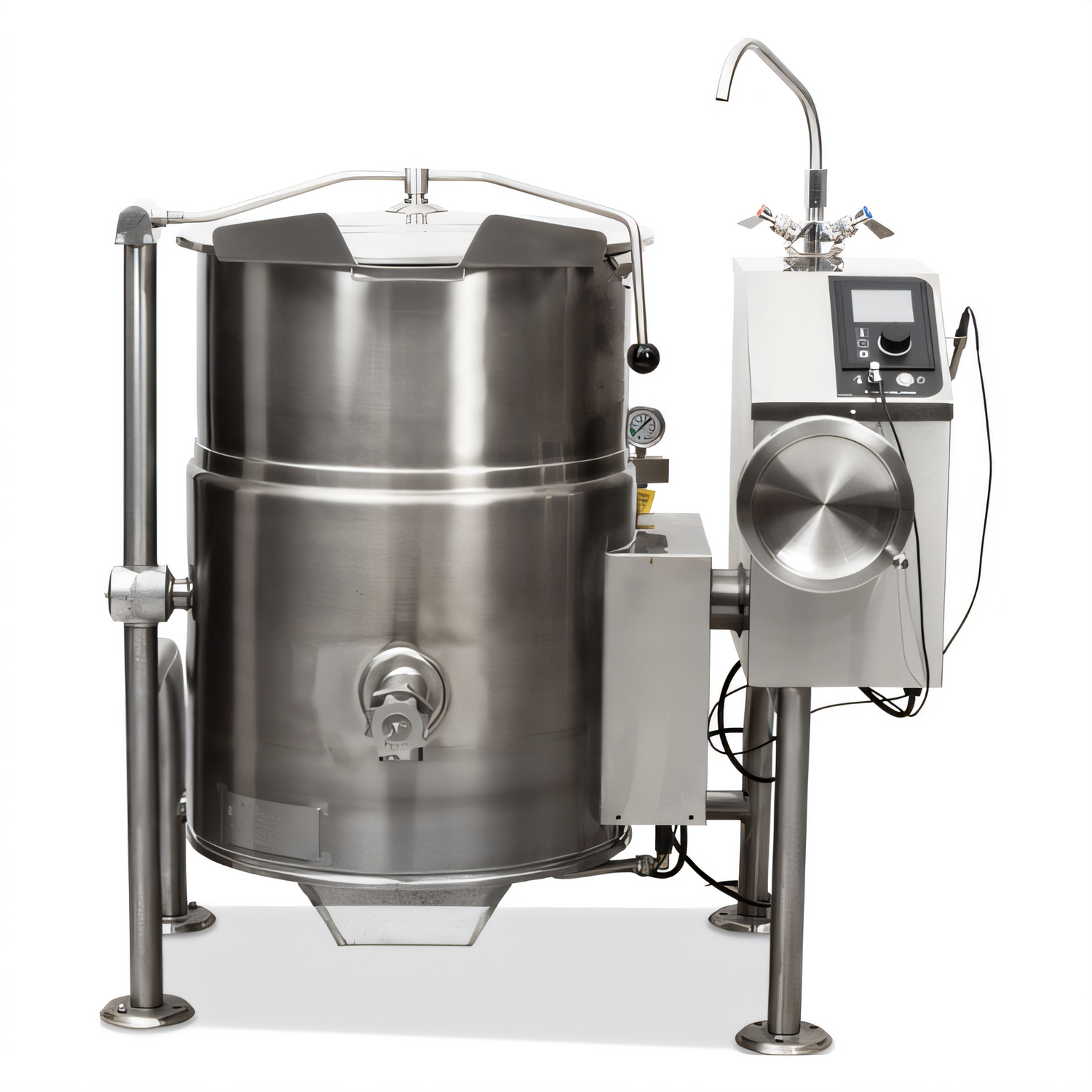

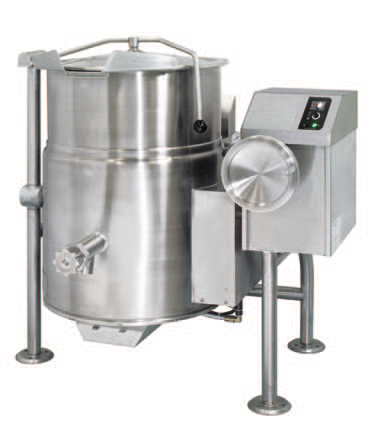

Cleveland Range KGL-25-T | 25-Gallon Gas Tilting Kettle
2⁄3-Steam Jacket • Manual Tilt • 90,000 BTU • CE CertifiedEngineered for high-volume kitchens that refuse to compromise on speed, accuracy, or durability, the Cleveland KGL-25-T delivers 25 gallons (100 L) of perfectly controlled cooking capacity in a compact, floor-mounted footprint. Its self-contained, gas-fired jacket reaches operating temperature fast and holds it within ±1 °C—ideal for soups, sauces, stews, pasta, poaching, and more.
Performance & Convenience Highlights
- High-output burner delivers 90,000 BTU (65 % efficiency) for rapid heat-up & recovery.
- 2⁄3 steam jacket surrounds product zone for even, gentle heating—no hot spots.
- Electronic spark ignition with solid-state controls in a splash-proof housing.
- Temperature range 145 – 260 °F (63 – 127 °C) maintained within ±1 °C.

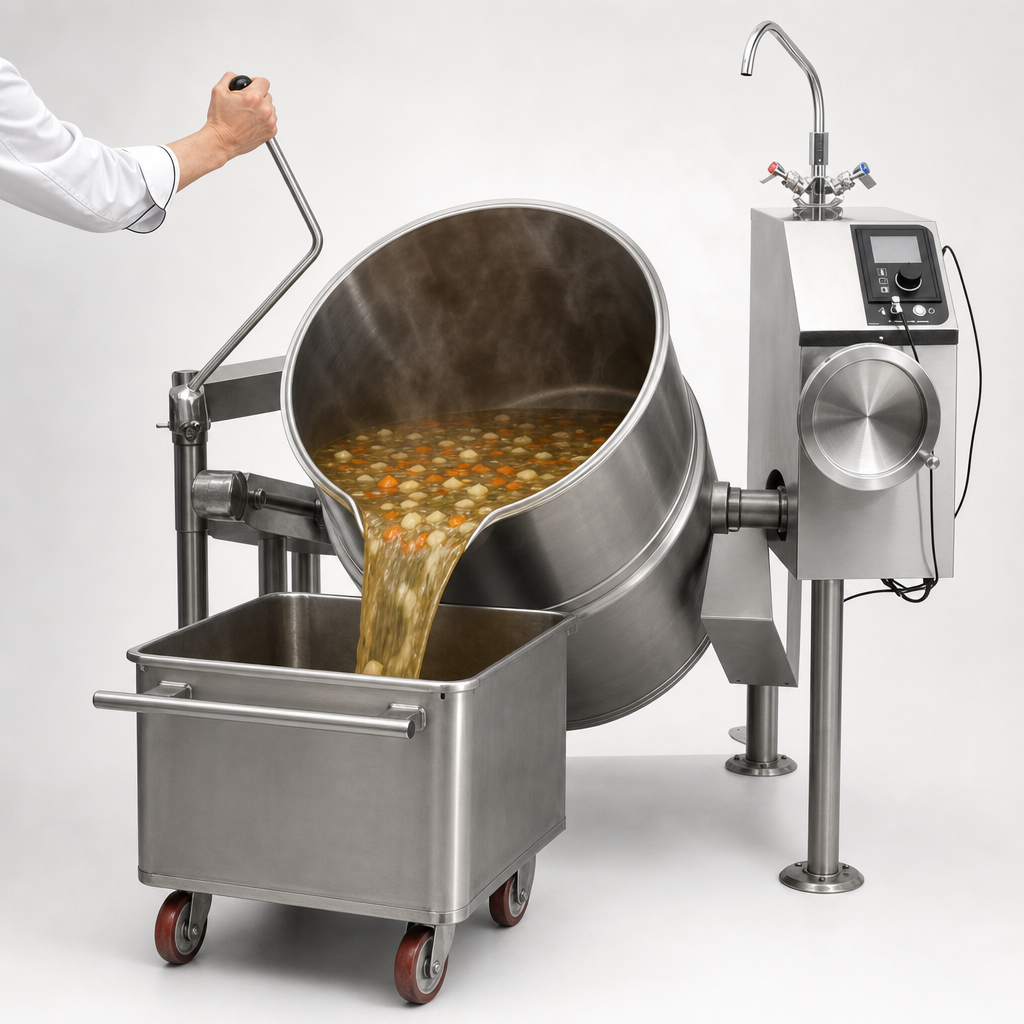

- Manual tilting mechanism uses roller bearings & self-locking worm gear for smooth, balanced pouring.
- Large rolled-rim lip resists denting and directs product cleanly into pans or hotel pans.
- Sealed, maintenance-free jacket is factory-charged with treated distilled water—no venting or refilling.
- Built-in safety & diagnostics: low-water cut-off, heat cycle indicator, rear-mounted pressure/vacuum gauge, 50 psi ASME safety valve.
- All-stainless build—304 SS exterior with 316 SS liner—for maximum corrosion resistance.
- Flanged, adjustable feet bolt to the floor for rock-solid stability.
- Plug-and-play controls: 115 V cord & plug supplied (220 V option available).
- Natural gas standard; easily field-convertible to propane (LP) with optional kit.

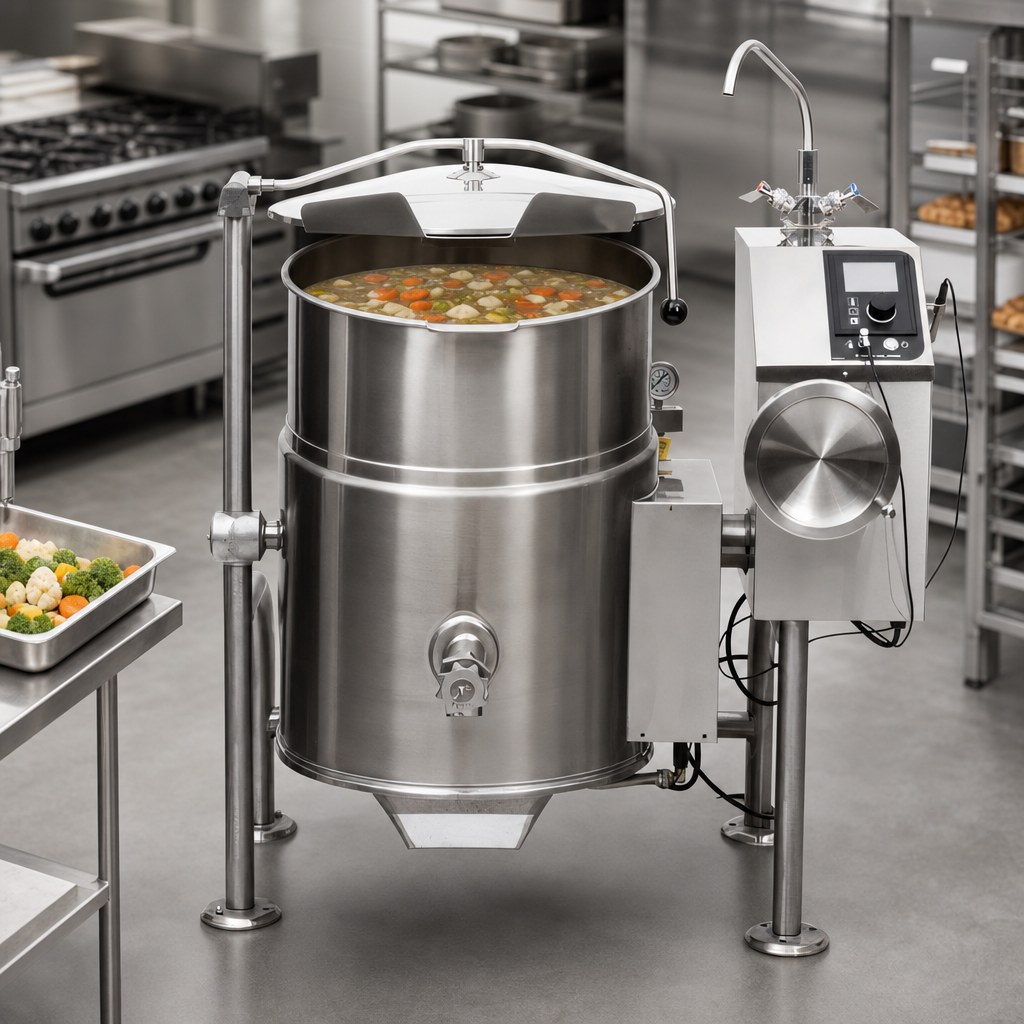

25 gallons = approximately 426 four-ounce servings per batch.
Technical Specifications
| Model | KGL-25-T |
|---|---|
| Capacity | 25 gal / 100 L |
| Heat Input | 90,000 BTU/hr |
| Energy Transfer | 58,500 BTU directly to product (≈65 % efficient) |
| Jacket Pressure | 50 psi (ASME stamped) |
| Construction | 304 SS exterior, 316 SS food contact liner, #4 finish |
| Ignition | Automatic electronic spark |
| Controls | Splash-proof solid-state temperature dial (1–10), LED heat & low-water indicators |
| Gas Connection | ¾" NPT, 4"–14" W.C. (Nat or LP) |
| Electrical | 115 V / 1 ph / 5 A (cord & plug) – 220 V / 1 ph / 3 A option |
| Approx. Dimensions (W×D×H) | 38 ⅝″ × 32 ½″ × 42″ |
| Shipping Weight | ≈ 320 lb (145 kg) |
| Certifications | CE, CSA, NSF, ASME, AGA |
| Warranty | 1-year parts & labor (extended options available) |
Popular Options & Accessories
- Spring-assist or lift-off cover
- 2″ Tangent draw-off valve (TD2)
- Single or double pantry faucets (cold or hot/cold)
- Basket & food strainers, measuring strip, paddle, whip, brushes, ladle (Kettle Accessory Kit)
- easyDial™ advanced control panel with timer & cooking modes
- Core-temperature probe for HACCP accuracy
- LP conversion kit (factory-approved)
Cleveland Range provides a standard 1-year parts & labor warranty with optional extended coverage. Performance start-up by a Factory Authorized Service agent is included upon request.
