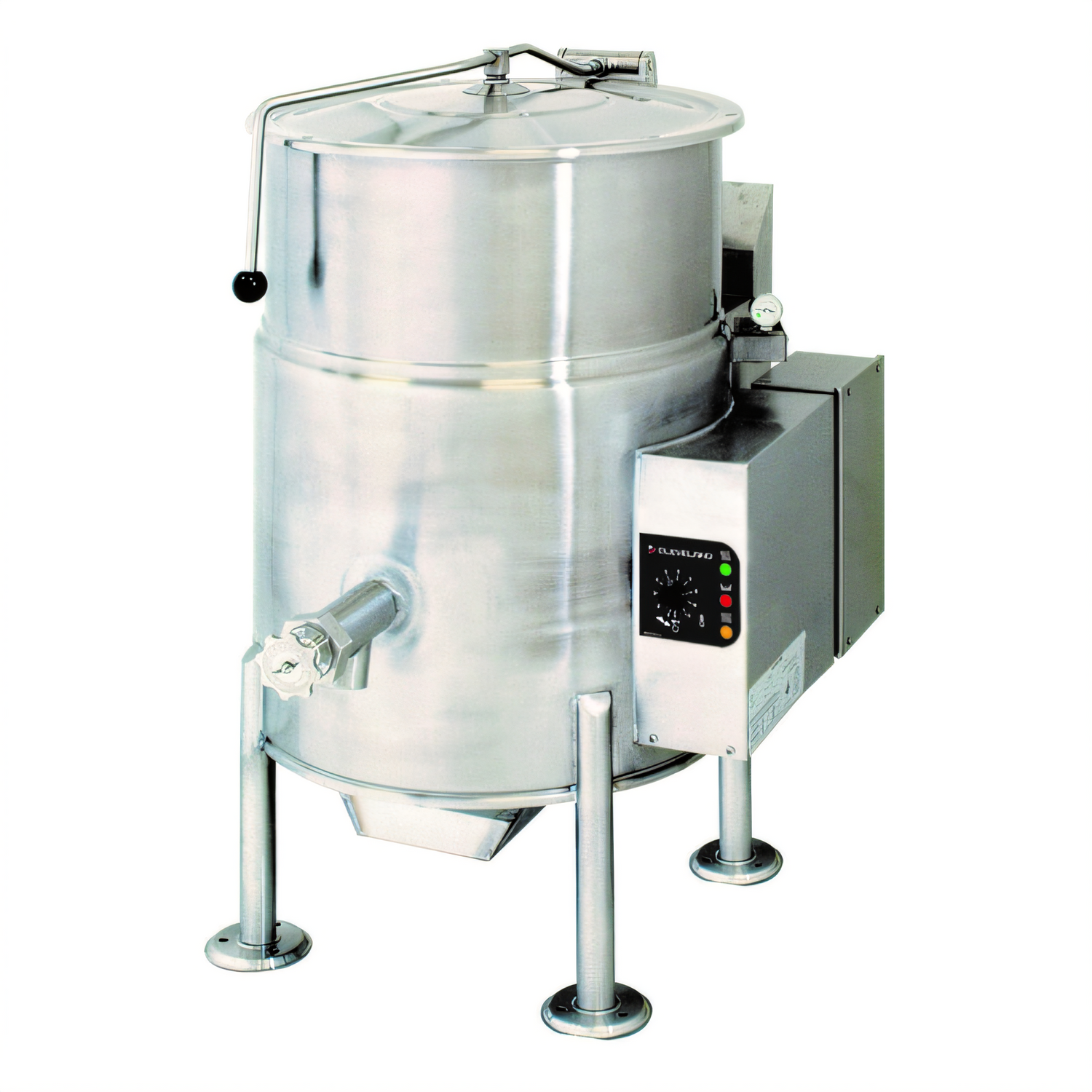

Cleveland Range KGL25 Steam Kettles
Cleveland Range KGL25 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KGL25 Steam Kettles
Description
Cleveland KGL-25 Gas Stationary Kettle — 25 Gal / 90,000 BTU
2⁄3-jacketed • 316 SS interior • Spring-assist cover • CE approvedBuilt for high-volume, scratch-production kitchens, the Cleveland KGL-25 combines fast heat-up, precise temperature control, and rugged 316 stainless steel construction in a self-contained, floor-mounted package. With 25 gallons of usable capacity (up to 426 four-ounce portions per batch) and a powerful 90,000 BTU gas-fired heating system, it lets you simmer, poach, braise, or boil with unbeatable speed and consistency.
Key features & benefits

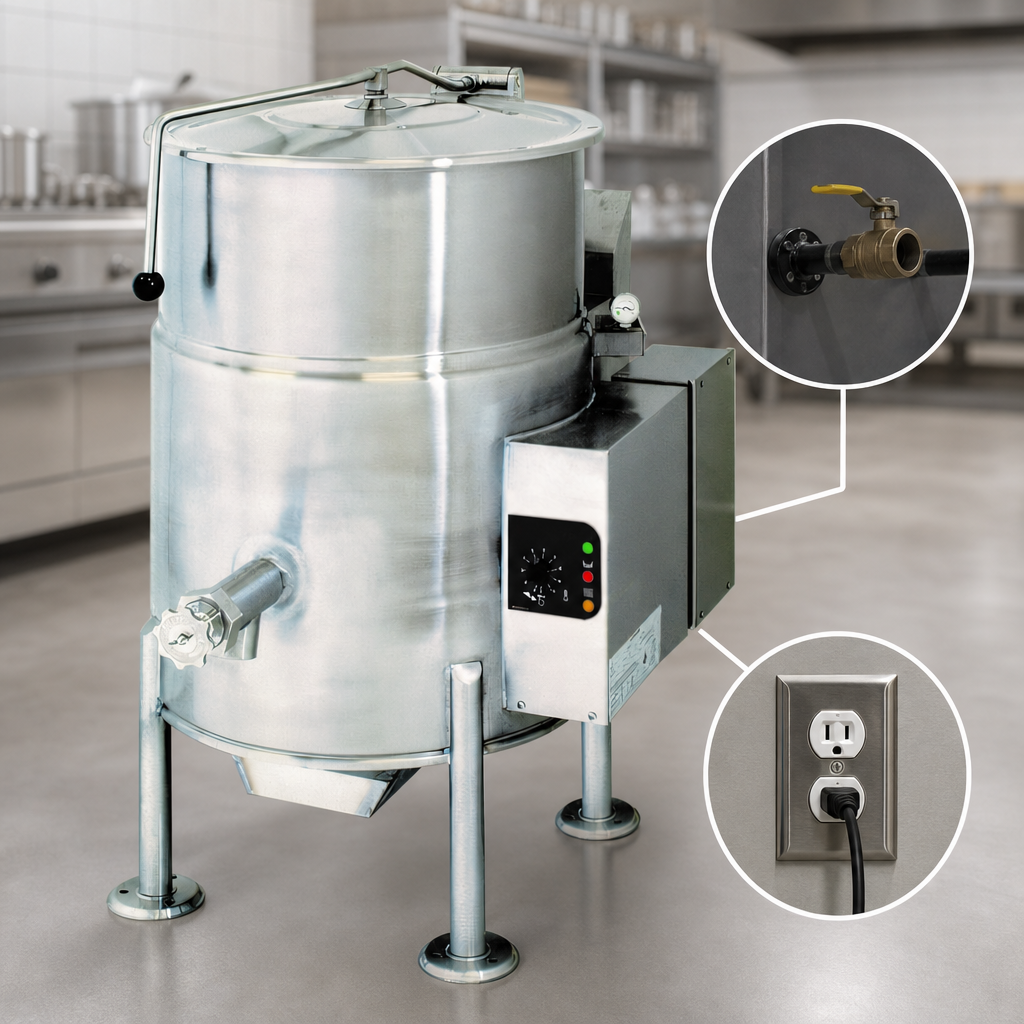

- Self-contained design — requires only a gas supply and 115 V outlet for controls.
- High-performance 65 % efficient burner delivers rapid heat-up and recovery.
- Electronic spark ignition and rear-mounted pressure/vacuum gauge for safe, reliable starts.
- Solid-state “Splash-Proof” control panel maintains temperature within ±1 °C (145–260 °F range).
- 316 series stainless steel kettle liner resists acidic foods and heavy salt use.
- 304 SS exterior with heavy-duty rolled rim stands up to daily abuse.
- 2 inch tangent draw-off valve with removable strainer speeds portioning and clean-out.
- Spring-assisted, stay-open cover reduces operator fatigue and improves safety.

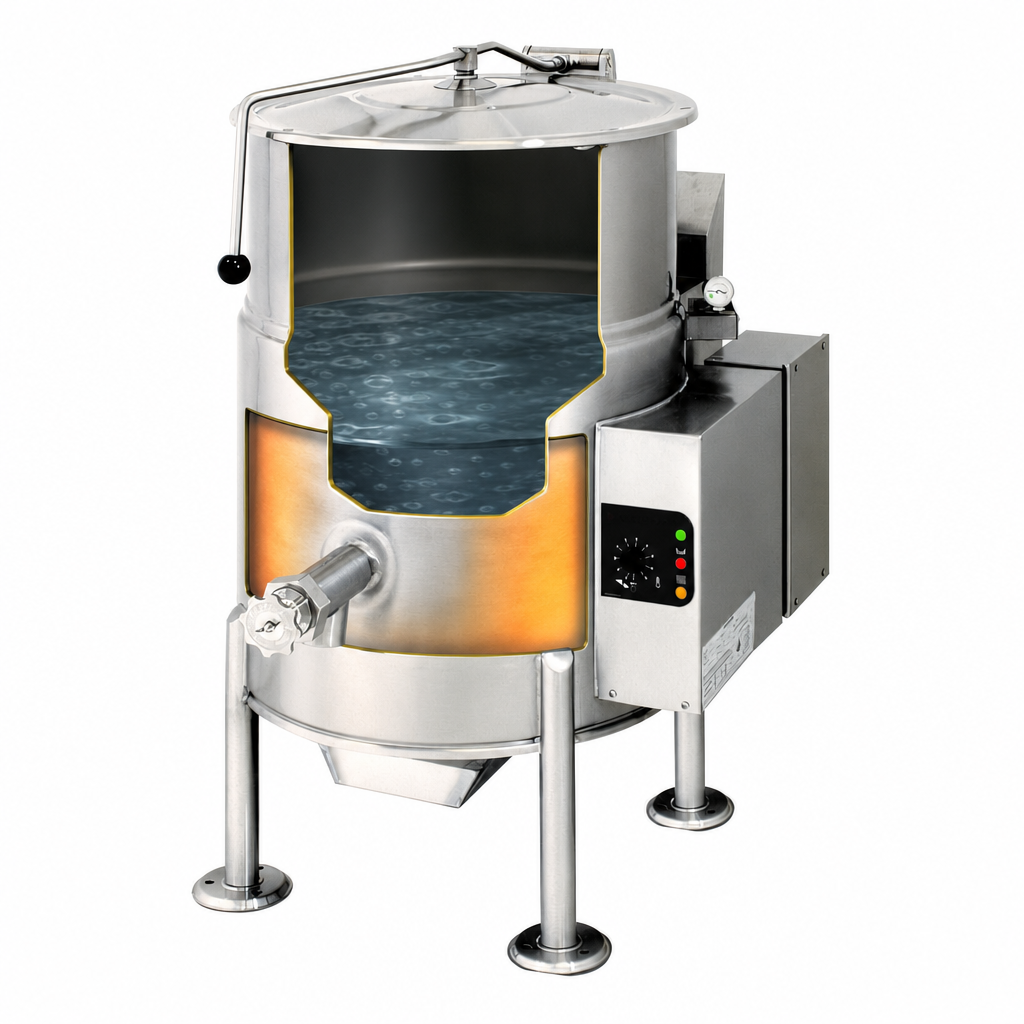

- Permanent, treated water fill — no venting or refilling of the 2⁄3-steam jacket required.
- Support legs with level-adjustable, flanged feet for rock-solid anchoring to the floor.
- Factory-installed faucet mounting bracket simplifies adding a single or double pantry faucet (optional).
- Complies with CE, AGA, CSA, NSF 4 and ASME code requirements.
Technical specifications
| Capacity | 25 gal / 100 L (≈426 × 4 oz servings) |
|---|---|
| Operating pressure | 50 psi steam jacket rating with rear-mounted safety valve |
| Heat input | 90,000 BTU (58,500 BTU directly to product) |
| Efficiency | ≈65 % |
| Temperature range | 145 – 260 °F (63 – 127 °C) |
| Controls power | 115 V, single cord & plug supplied |
| Gas connection | ¾ in NPT (natural gas standard, LP kit optional) • Regulator included |
| Shipping weight | ≈384 lb / 174 kg |
| Overall dimensions | 38 in W × 38 in D × 54 in H |
| Clearance (cover open) | 62 in overall height |
| Standard accessories | Spring-assist cover, 2 in tangent draw-off with strainer, faucet mounting bracket |
Popular options & accessories (sold separately)
- Propane gas configuration (LP)
- Hot & cold (DPK) or cold-only (SPK) kettle faucet kits
- Basket, food, or draw-off strainers
- Lift-off or perforated covers
- Kettle Accessory Kit (paddle, whip, brushes, ladle, more)
- Custom kettle markings or measuring strip
Warranty & support
Includes a 1-year limited parts & labor warranty (18 months from shipment, whichever occurs first) with free performance start-up by a Factory Authorized Servicer in the U.S. Extended warranty plans are available at time of purchase.
Need a different size or a tilting model? Explore the full line of Cleveland Range kettles or chat with our team for expert advice.
