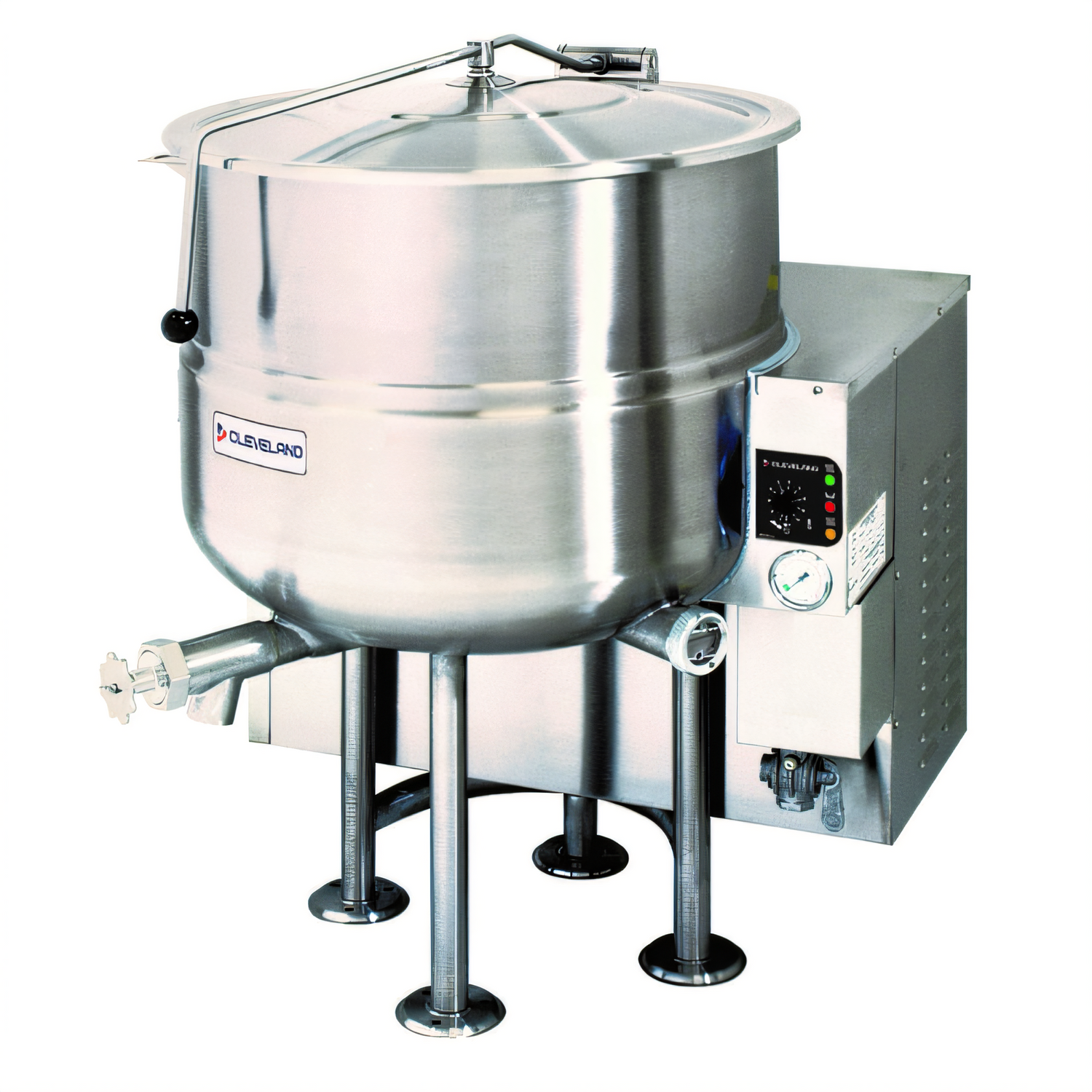

Cleveland Range KGL-100 100-Gallon Gas-Fired Stationary 2/3 Steam-Jacketed Kettle

Natural Gas Standard, 316 Stainless Steel Interior, 190,000 BTU

Built for high-volume batch cooking, this 100-gallon stationary kettle combines a 2/3 steam jacket, 190,000 BTU burner, and durable 316 stainless steel interior.

  • 100-gallon gas-fired stationary kettle designed for high-volume production.
  • 2/3 steam-jacketed construction helps deliver even heat and efficient recovery.
  • 316 stainless steel interior with #4 finish supports durability and cleanup.
  • Spring-assisted cover, 2" tangent draw-off valve, and faucet mounting bracket streamline operation.
  • Solid-state controls with automatic ignition, LED indicators, and low-water safety improve usability.
  • Natural gas is standard, with propane operation available as an option.

Overall Dimensions:

44.0"W x 43.5"D x 47.5"H

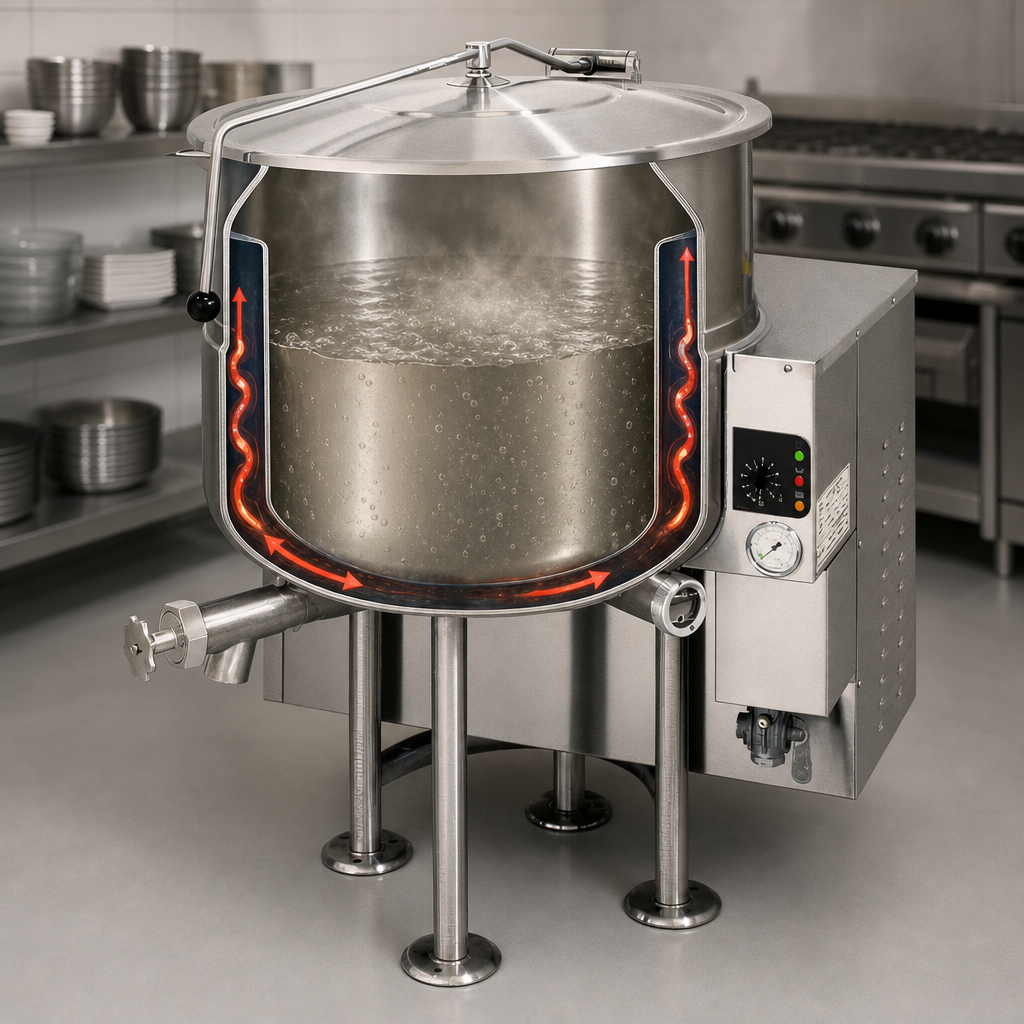

2/3 Steam-Jacketed Design

Provides even heat distribution for simmering, boiling, and large-batch cooking.

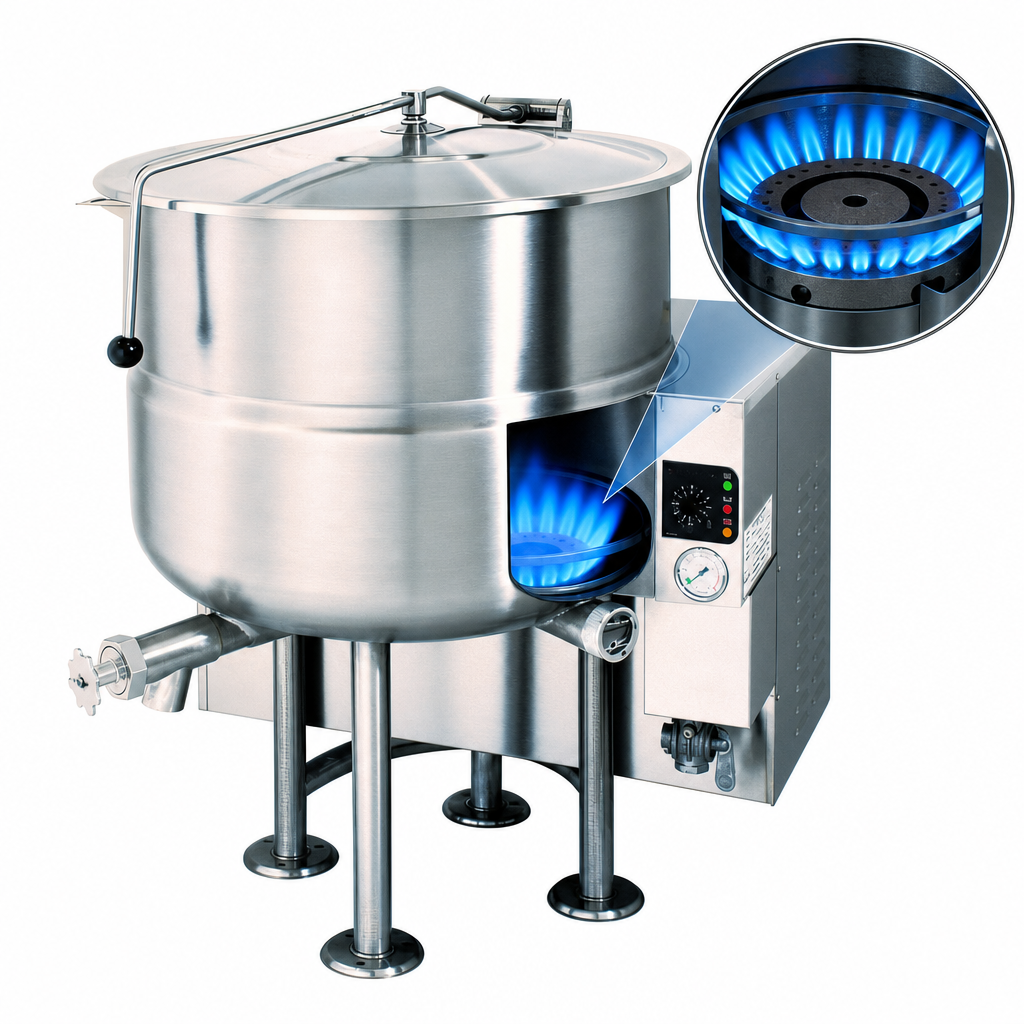

190,000 BTU Power Burner

Delivers fast heat-up and strong recovery for demanding production schedules.

316 Stainless Steel Interior

Corrosion-resistant kettle liner built for durability and easy cleanup.

Solid-State Controls

Supports precise temperature control and low-water safety monitoring.

Automatic Ignition System

Simplifies startup and helps ensure dependable burner operation.

Spring-Assisted Domed Cover

Hinged, rotatable cover makes loading, stirring, and cleaning easier.

2" Tangent Draw-Off Valve With Strainer

Standard draw-off helps control product transfer while filtering out solids.

Floor-Mount Support Legs

Adjustable feet with flanges allow secure floor bolting and stable installation.

Front-Mounted Pressure/Vacuum Gauge

Provides at-a-glance monitoring of kettle conditions.

Permanently Filled Steam Jacket

Treated distilled water in the jacket eliminates the need for venting or refilling.

Type Kettle
Style Stationary
Installation Type Floor Model
Capacity 100 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Finish #4 Finish
Controls Solid State
BTU 190,000 BTU
Steam Jacket Pressure 50 PSI
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 4.00 Inches W.C. Minimum / 14.00 Inches W.C. Maximum
Voltage 120 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Shipping Width 44 Inches
Shipping Depth 44 Inches
Shipping Height 48 Inches
Shipping Weight 620 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Natural gas is standard. Propane operation is available as an option.
It uses 120 Volts, 1-Phase, 60 Hz, and 10 Amps, with cord and plug supplied.
No. The steam jacket is permanently filled with treated distilled water, so venting and refilling are not required.
It includes a 2" tangent draw-off valve with a drain strainer.
The series is offered in 40-, 60-, 80-, and 100-gallon models.
