Cleveland Range KET20T Steam Kettles
Cleveland Range KET20T Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

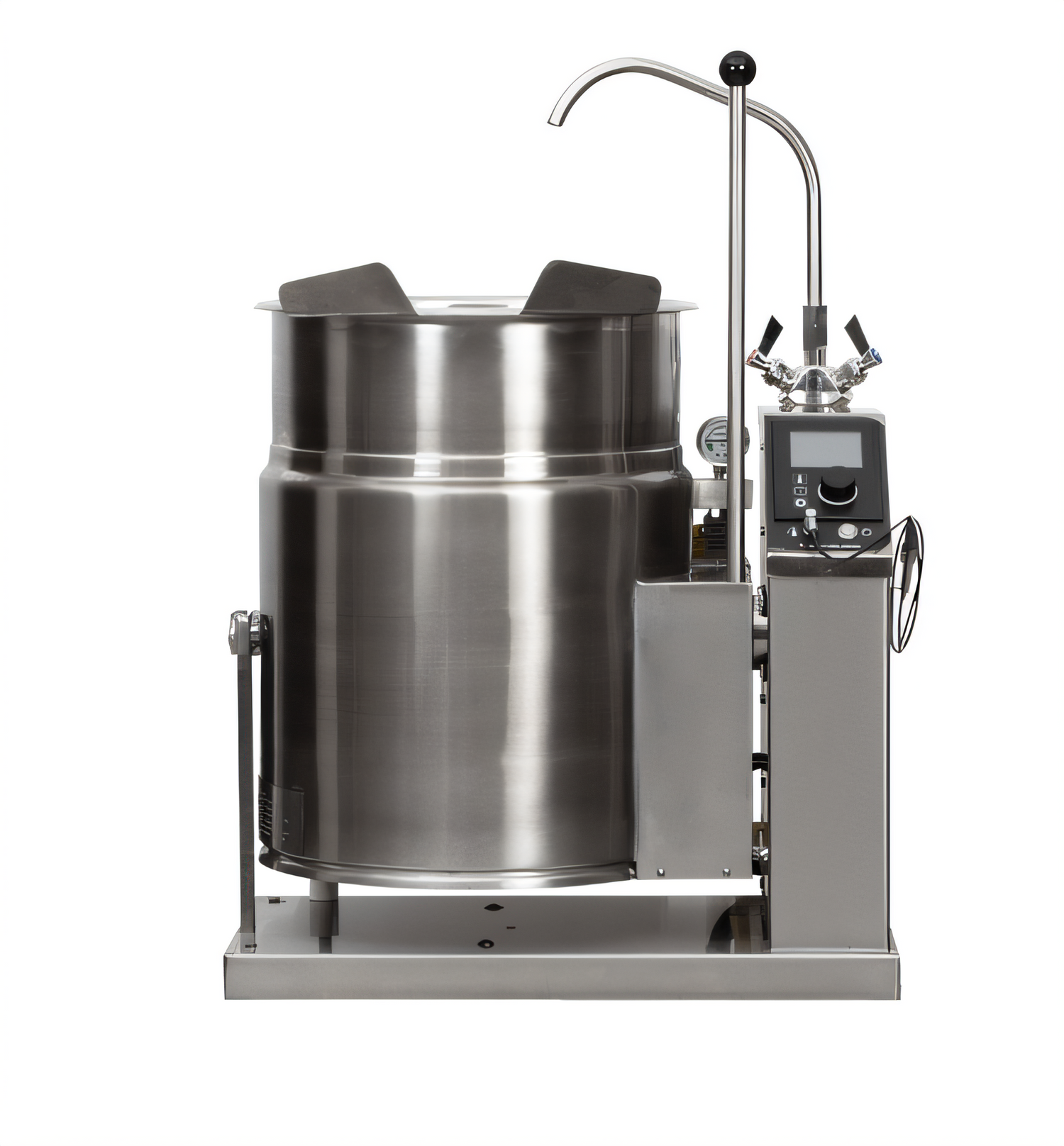

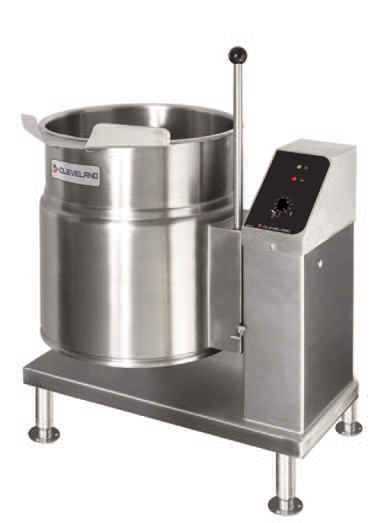

Cleveland Range KET-20-T Electric Tilting Kettle – 20 Gal
Self-Contained • Lever Tilt • 2⁄3 Steam Jacket • IPX6 Splash-Proof SeriesProduce up to 704 portions per batch without a boiler line. The Cleveland KET-20-T combines a high-pressure 50 PSI steam jacket, precision electronic controls and a smooth lever-tilt design to deliver fast, repeatable results—safely and cleanly—in any commercial kitchen.
Key Features

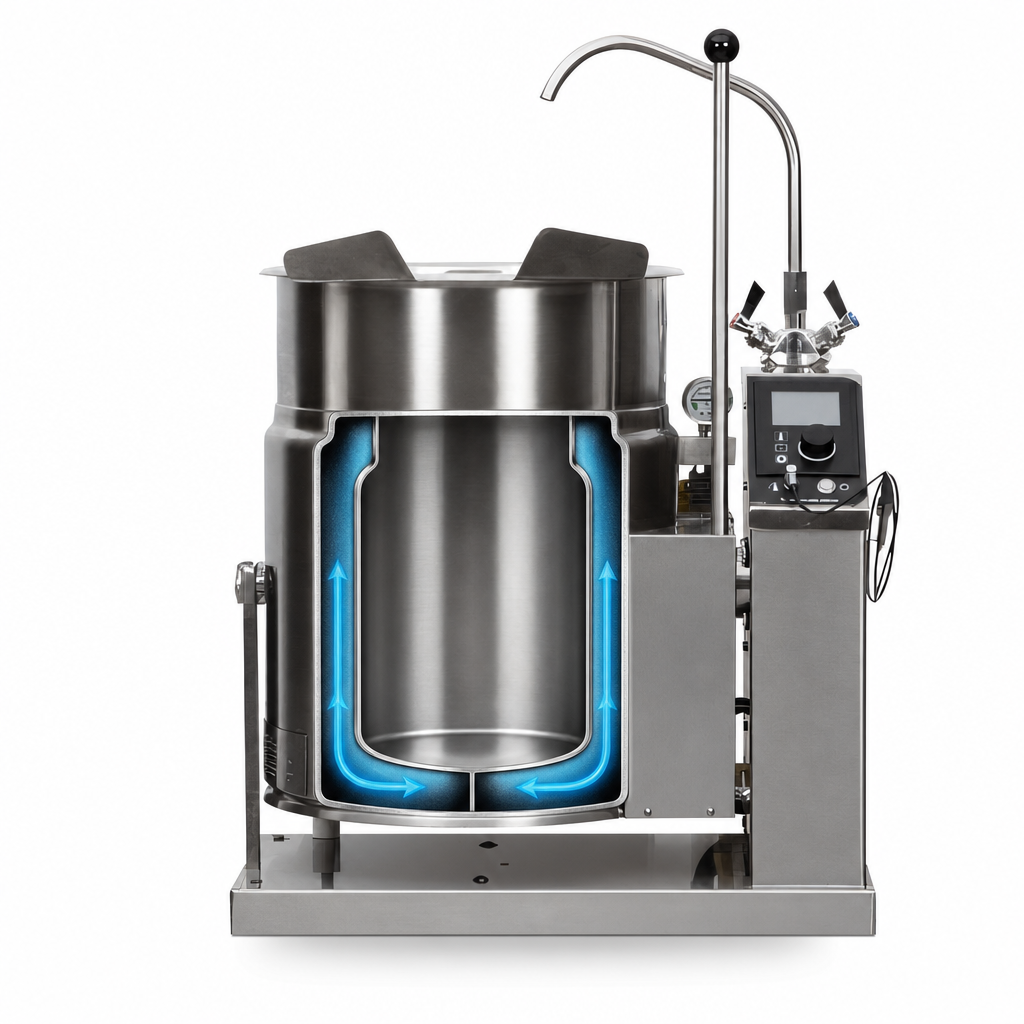

- Self-contained 2⁄3 steam jacket is factory-sealed with treated water—no venting, refilling or external boiler.
- ±1 °C solid-state thermostat maintains set temperatures from 145 °F–260 °F (63 – 127 °C) for perfect simmering or rapid boils.
- IPX6-rated splash-proof controls withstand high-pressure wash-down.
- Rugged 316 SS liner & 304 SS exterior resist acidic foods, corrosion and heavy-duty cleaning chemicals.

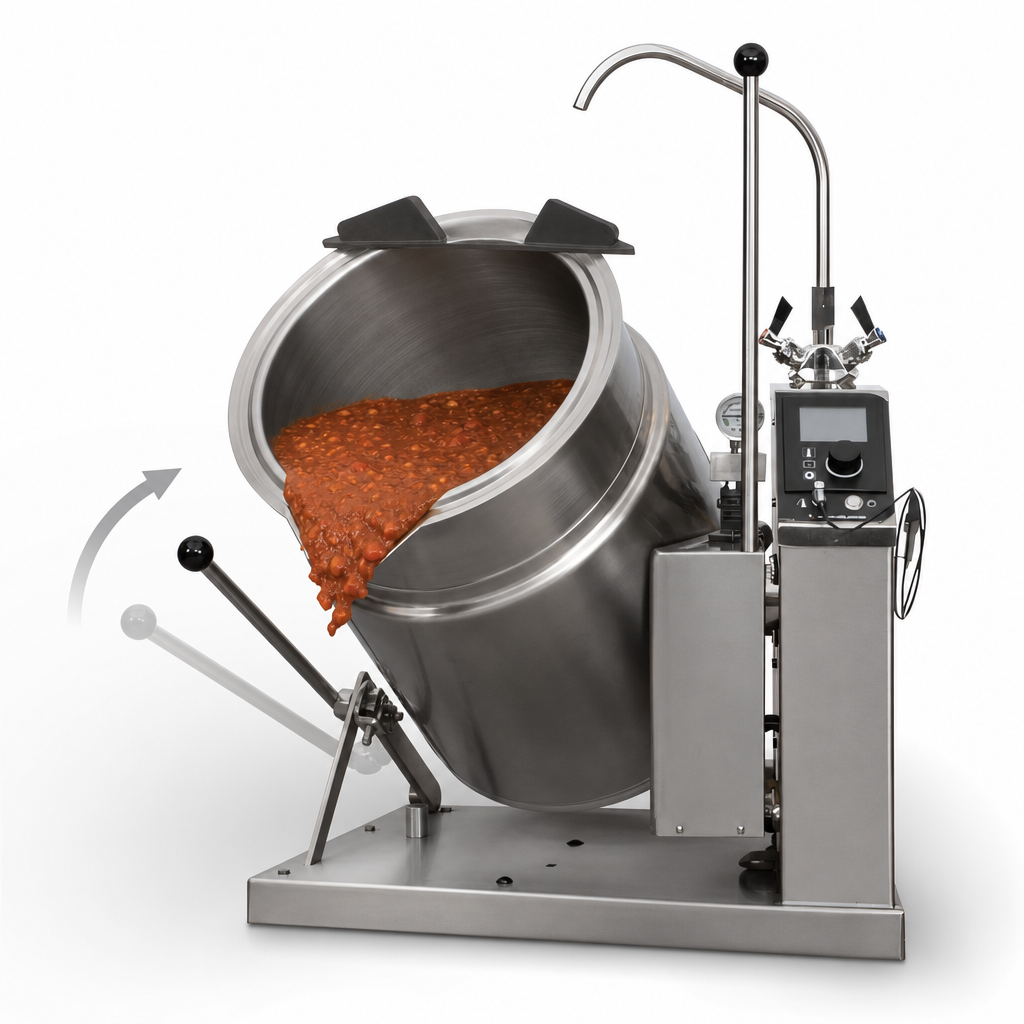

- Balanced lever tilt with self-locking marine-style latch and anti-drip pour spout allows one-hand, mess-free operation.
- Reinforced rolled rim eliminates the weak “bar rim” found on lighter kettles.
- Rear-mounted pressure gauge & relief valve discourage tampering yet stay easy to read.
- 6″ height-adjustable stainless legs with rear flanged feet level and anchor the unit securely.
- Meets or exceeds UL, CE, NSF, CSA & ASME standards for safety and sanitation.
Technical Specifications
Capacity | 20 gal (≈ 76 L) |
---|---|
Servings (@ 4 oz) | ≈ 704 per batch |
Steam Jacket | Self-contained 2⁄3 jacket, 50 PSI rating |
Temperature Range | 145 °F – 260 °F (63 – 127 °C) |
Interior Material | 316 series stainless steel |
Exterior Finish | 304 series stainless steel, #4 satin |
Tilt Mechanism | Manual lever, balanced; self-locking latch |
Controls | ON/OFF rocker, temp dial, Heat & Low-Water LED indicators |
Water Protection | IPX6 (high-pressure spray safe) |
Electrical (std) | 208–240 V, 60 Hz, 3-ph (field convertible to 1-ph) |
Other Voltages | 380-415 V & 440-480 V, single or three-phase (option) |
Dimensions (W × D × H) | 38″ × 38″ × 54″ (965 × 965 × 1372 mm) |
Shipping Weight | 273 lb (124 kg) |
Certifications | UL, CE, NSF, CSA, ASME |
Warranty | 1-yr parts & labor + 4-yr prorated parts on steam jacket |
Factory Options & Accessories
- Lift-off cover (CL20)
- Single or double pantry fill faucets with swing spout (SPK / DPK)
- Food/basket strainers (FS / BS)
- Temperature probe, paddles, whips & cleaning brushes
- High-wattage elements for quicker heat-up
- Protective control-panel cover (PCE)
- Sliding drain drawer for splash control
Operate within 55 °F–102 °F (13 °C–39 °C) ambient, 40 – 65 % RH, and 50 – 250 ppm TDS water. Follow all local codes and Cleveland Range guidelines—improper installation or poor-quality water may void warranty.
Need a custom voltage, faucet kit, or extended warranty? Contact us before ordering and we’ll configure the perfect kettle for your kitchen.
