Cleveland Range KEL80T Steam Kettles
Description

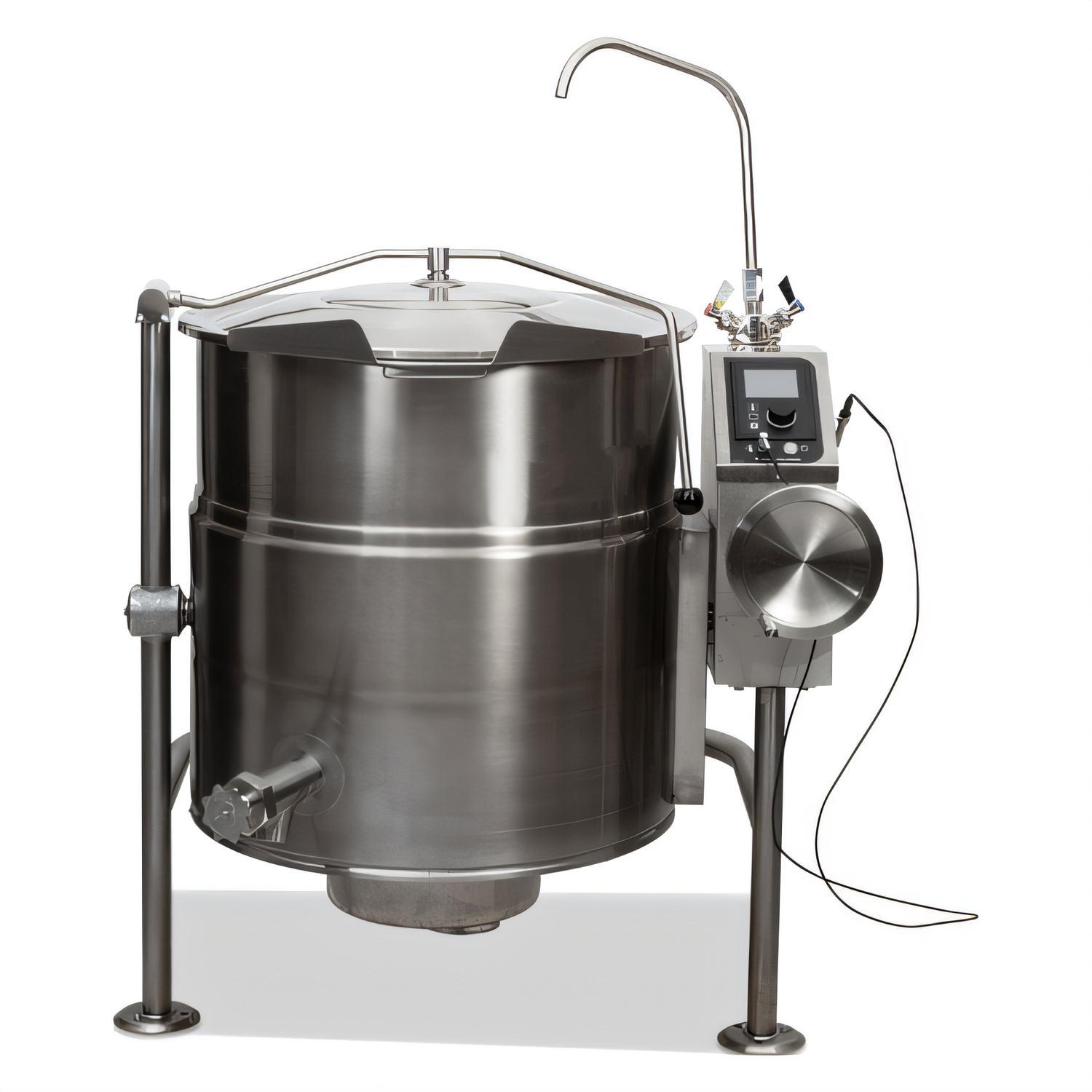

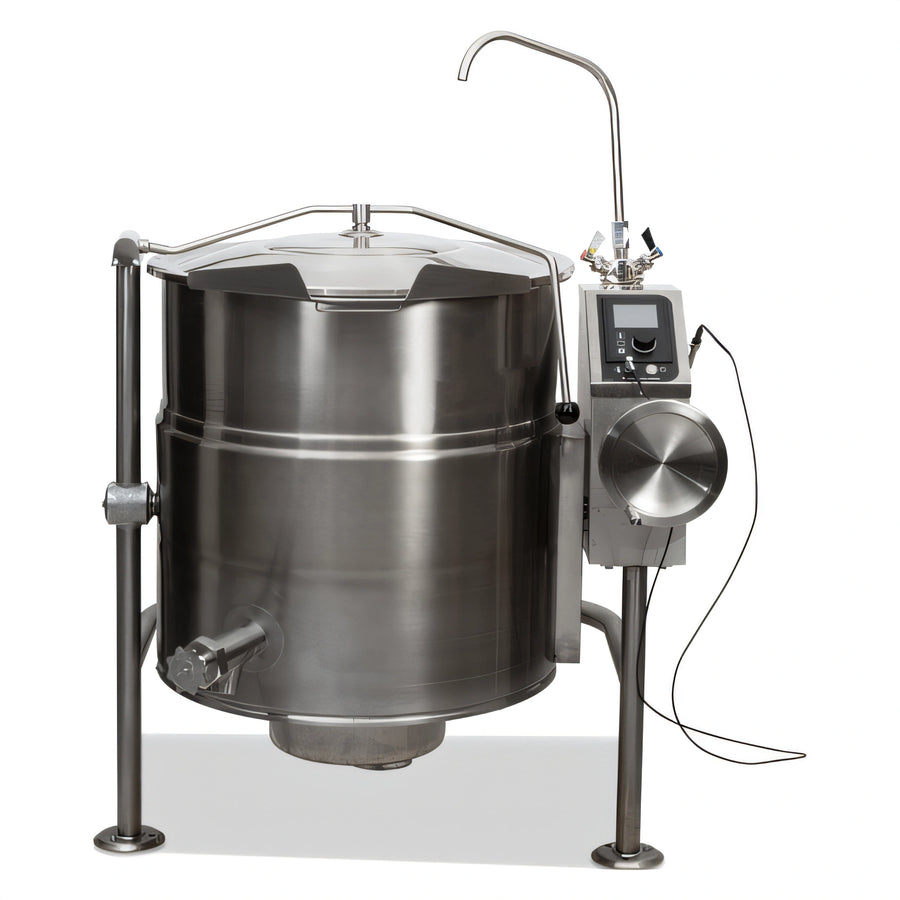

Cleveland KEL-80-T 80-Gallon Electric Tilting Kettle
Tri-Leg • 2/3 Steam Jacket • 316 Stainless Steel • 50 psiEngineered for high-volume production kitchens, the KEL-80-T cooks up to 1,280 eight-ounce servings in one batch. Its self-contained steam jacket, precision controls and rugged stainless construction provide faster heat-up, tighter temperature control and years of dependable service.
Why chefs choose the KEL-80-T
- Self-contained electric steam system — no external boiler or jacket refills.
- Solid-state temperature control holds set point within ±1 °C (145 – 260 °F).
- Premium 316 series stainless steel kettle interior resists acidic & salty foods.
- Splash-proof IPX6 control housing with low-water & heat-cycle LED indicators.
- Electronic water-level control eliminates fragile sight-glass tubes.
- Permanently welded heating elements maintain a perfect vacuum seal.
- 50 psi steam jacket rating for higher cooking temperatures & faster recovery.

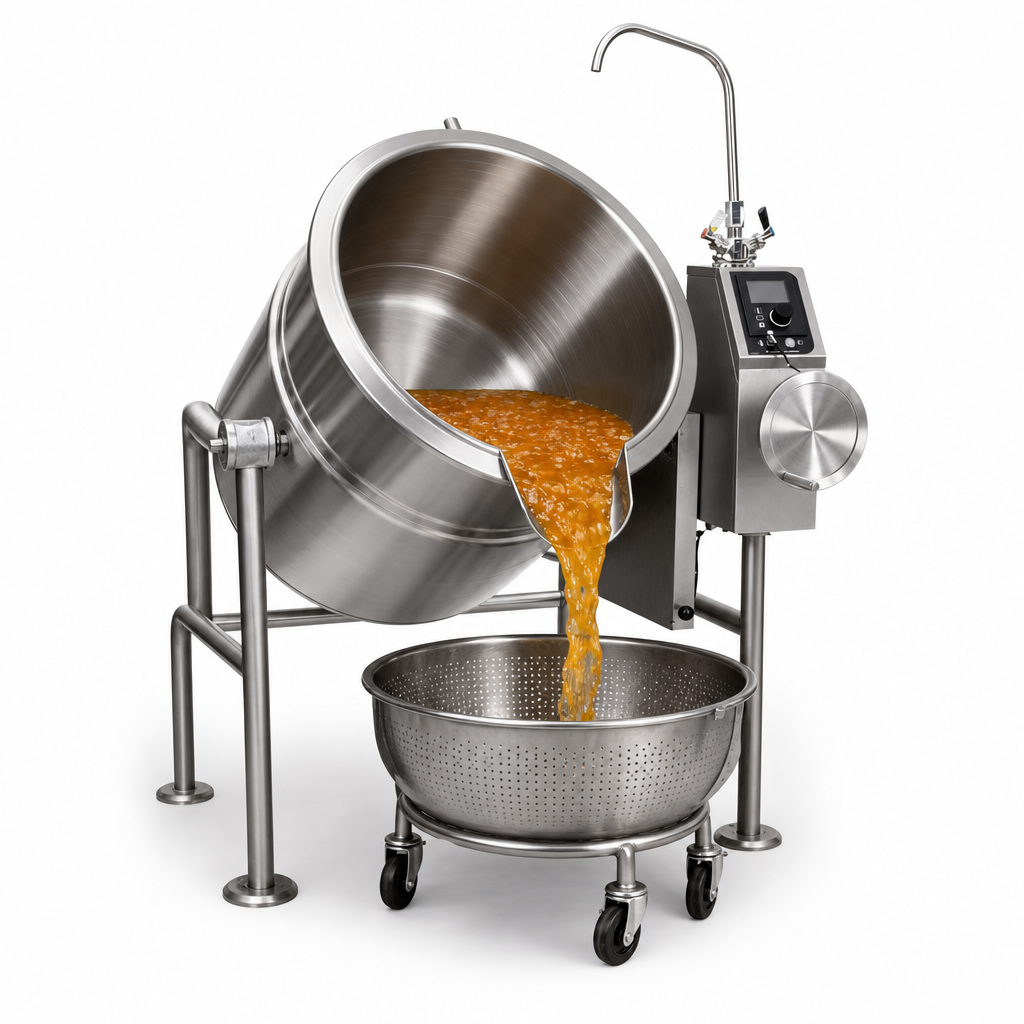

- Smooth manual tilt with roller bearings & self-locking worm/segment gear.
- Heavy-duty tri-leg frame with adjustable flanged feet for secure floor mounting.
- UL, CSA, NSF, CE & ASME certified for commercial installations worldwide.
Optional add-ons
- Spring-assisted stainless-steel cover (hinged & rotatable)
- 2" or 3" tangent draw-off valve for rapid product transfer
- easyDial™ touchscreen control with timer, cook modes & diagnostics
- Hot/Cold water faucet kit with swing spout
- Food strainers, cooking baskets, paddles, whips & cleaning brushes
Technical specifications
| Model | KEL-80-T |
|---|---|

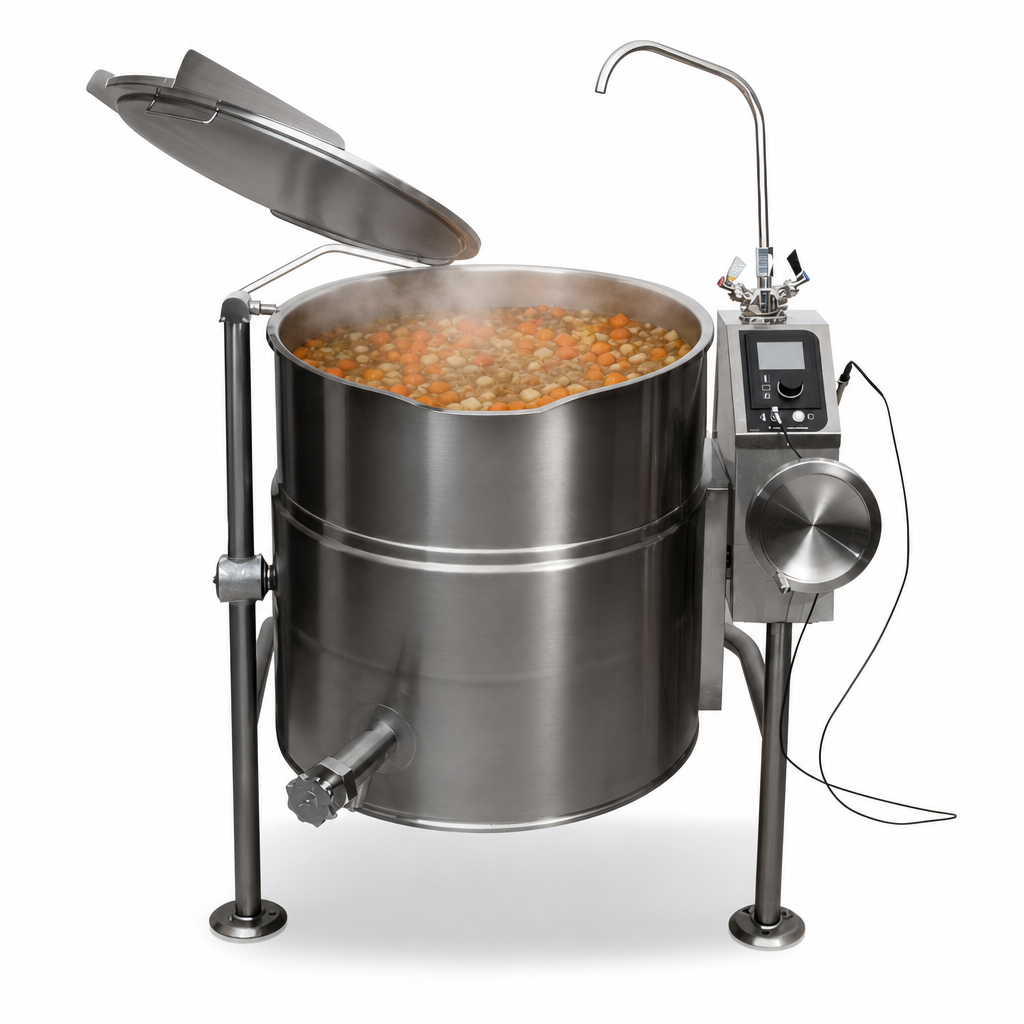

| Capacity | 80 gal / 300 L (≈1,280 servings) |
| Jacket design | 2/3 steam jacket, permanently filled |
| Jacket pressure | 50 psi (3.4 bar) with safety relief valve |
| Temperature range | 145 – 260 °F (63 – 127 °C) |
| Heating power | 14.7 kW, 208–240 V, 60 Hz, 3-phase (other voltages available) |
| Controls | Power dial (1-10), heat & low-water LEDs (easyDial upgrade available) |
| Ingress rating | IPX6 — hose-down capable |
| Tilt mechanism | Manual worm & segment gear, roller-bearing assisted |
| Base / mounting | 1 5/8" O.D. tri-leg with bolt-down flanged feet |
| Service clearance | Right side: 12" • Left/Rear: 0" |
| Shipping weight | ≈470 lb (213 kg) |
| Certifications | UL, CSA, NSF, CE, ASME |
| Warranty | 1-yr parts & labor + 4-yr prorated jacket warranty |
Looking for a different capacity or control package? Explore the full Cleveland Splash-Proof Series or contact us for a custom configuration.
