Cleveland Range KEL60T Steam Kettles
Description

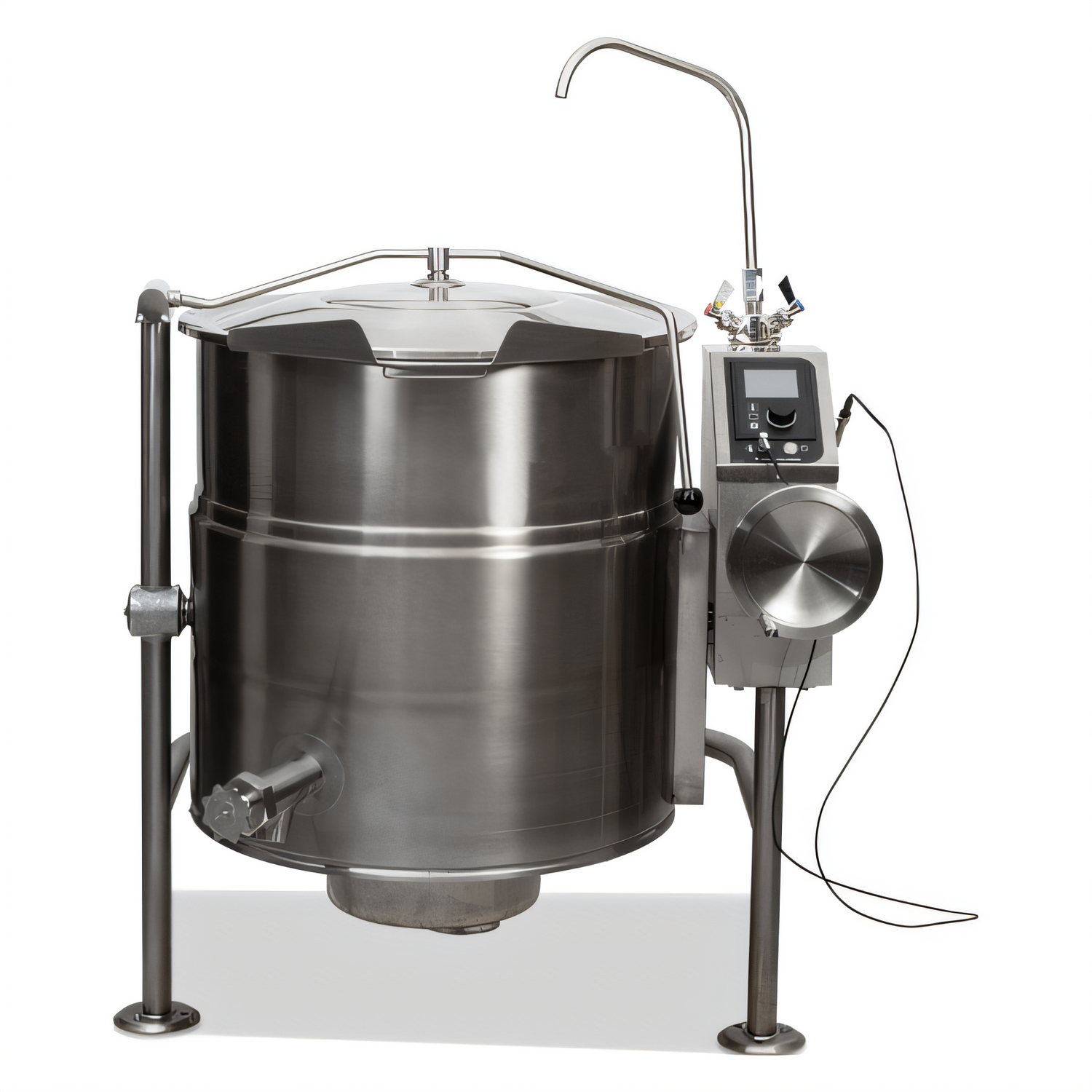

Cleveland Range KEL-60-T Tri-Leg Electric Tilting Kettle
60 Gallon / 225 Liter • Self-Contained Splash-Proof SeriesProduce up to 960 portions in a single, perfectly controlled batch. The Cleveland KEL-60-T is a 60-gallon electric tilting kettle with a factory-sealed 2⁄3 steam jacket, delivering boiler-free convenience, rapid heat-up and ±1 °C accuracy for flawless soups, sauces, stocks, pasta and more.
Key advantages
- Self-contained design needs only an electrical hook-up—no venting or refilling the jacket.
- 50 psi steam jacket rating delivers higher cooking temperatures and faster batch times.
- Solid-state temperature control keeps set-point within ±1 °C from 145 – 260 °F (63 – 127 °C).
- Solid-state water-level system eliminates fragile sight glasses.
- IPX6 water-resistant controls and splash-proof construction stand up to the busiest kitchens.

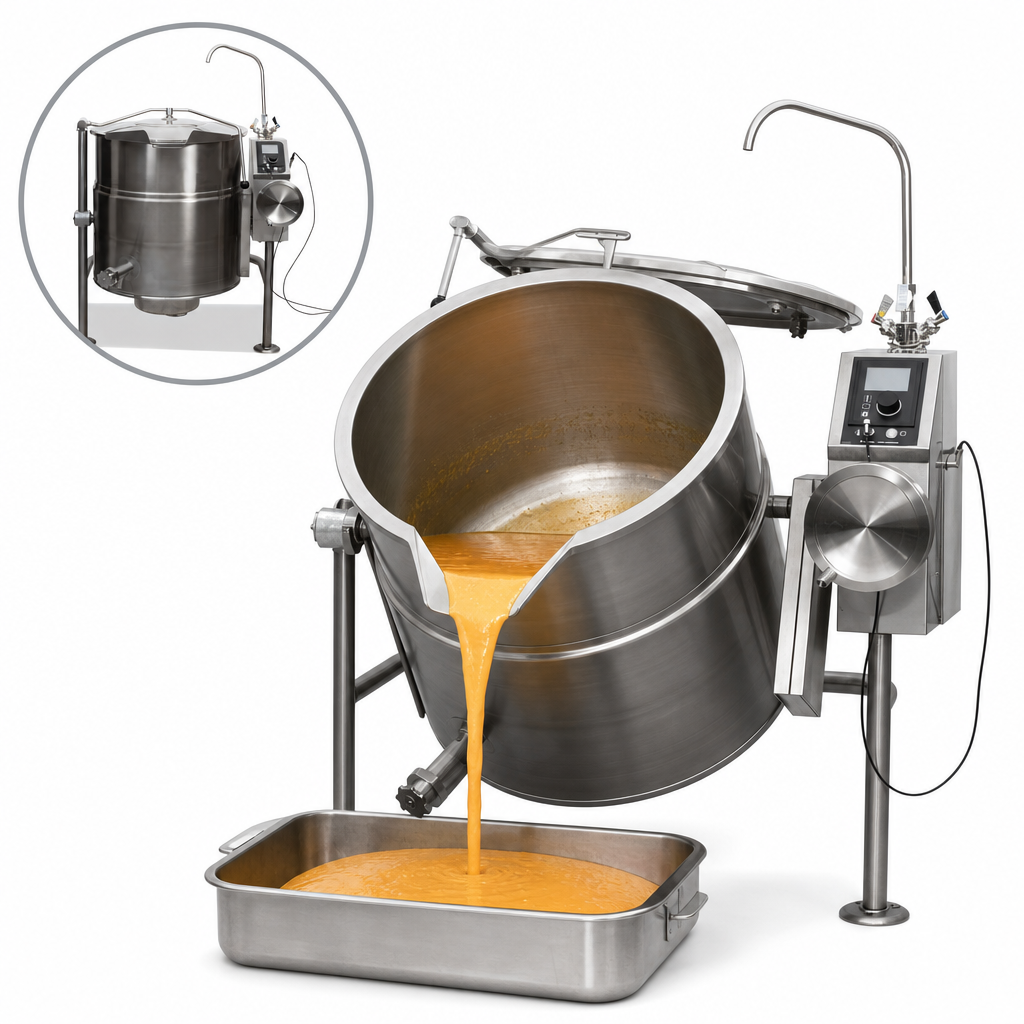

- Heavy-duty manual tilt with self-locking worm & segment gear for smooth, controlled pouring.
- 316 stainless interior resists acidic and salty foods; 304 stainless exterior wipes clean fast.
- Reinforced rolled rim and oversized pouring lip handle chunky, high-volume products.
- Open tri-leg base with flanged, level-adjustable feet for rock-solid floor mounting.
- UL, CSA, NSF, ASME & CE compliant for worry-free specification worldwide.
Smart control choices
- Standard panel: ON/OFF, 1-10 temperature dial, heat-cycle & low-water LEDs.
- easyDial panel (optional): °C/°F display, 99-min timer, three cooking modes, six self-diagnostics & optional core-temperature probe.
Technical specifications
| Capacity | 60 gal / 225 L |
|---|---|
| 8 oz Portion Yield | ≈ 960 servings |
| Steam Jacket | 2⁄3 coverage, permanently sealed |
| Jacket Pressure | 50 psi (safety valve included) |
| Temperature Range | 145 – 260 °F (63 – 127 °C) |
| Control Accuracy | ±1 °C |
| Electrical (standard) | 14.7 kW • 208–240 V • 3-phase (40.9–47.1 A) |
| Ingress Protection | IPX6 |
| Interior Material | 316 series stainless steel |
| Exterior Finish | 304 series stainless steel, #4 polish |
| Tilt System | Manual crank, roller bearings, self-locking worm & segment gear |
| Base | Open tri-leg, 1 5⁄8″ OD, flanged feet (bolt-down) |
| Overall Size* | ≈ 44.5″ W × 37.3″ D × 62.5″ H |
| Shipping Weight | 415 lb / 188 kg |
| Service Clearance | 12″ right side; 0″ left & rear |
| Certifications | CE, UL, CSA, NSF, ASME |
*Height includes 2″ tangent draw-off valve; deduct 5 5⁄8″ (143 mm) if valve is not installed.
Popular options & accessories
- Spring-assisted domed stainless cover (CHS)
- 2″ or 3″ tangent draw-off valve (TD2 / TD3)
- Hot & cold water faucet with swing spout (DPK + FBKT)
- Core temperature probe (easyDial only)
- Pan carrier, flow diverter, food strainers, cooking baskets & supports
- Kettle accessory kit: brushes, paddles, ladle, measuring strip & more
- High-wattage or special-voltage configurations
Installation & warranty
- Requires only an electrical connection—no external boiler or water line to jacket.
- Unit must be bolted to the floor; maintain 12″ right-side clearance for service.
- 1-year parts & labor warranty with Factory Authorized Start-Up included.
- Extended warranty packages available at time of purchase.
