Cleveland Range KEL60SH Short Series Steam Kettles
Description

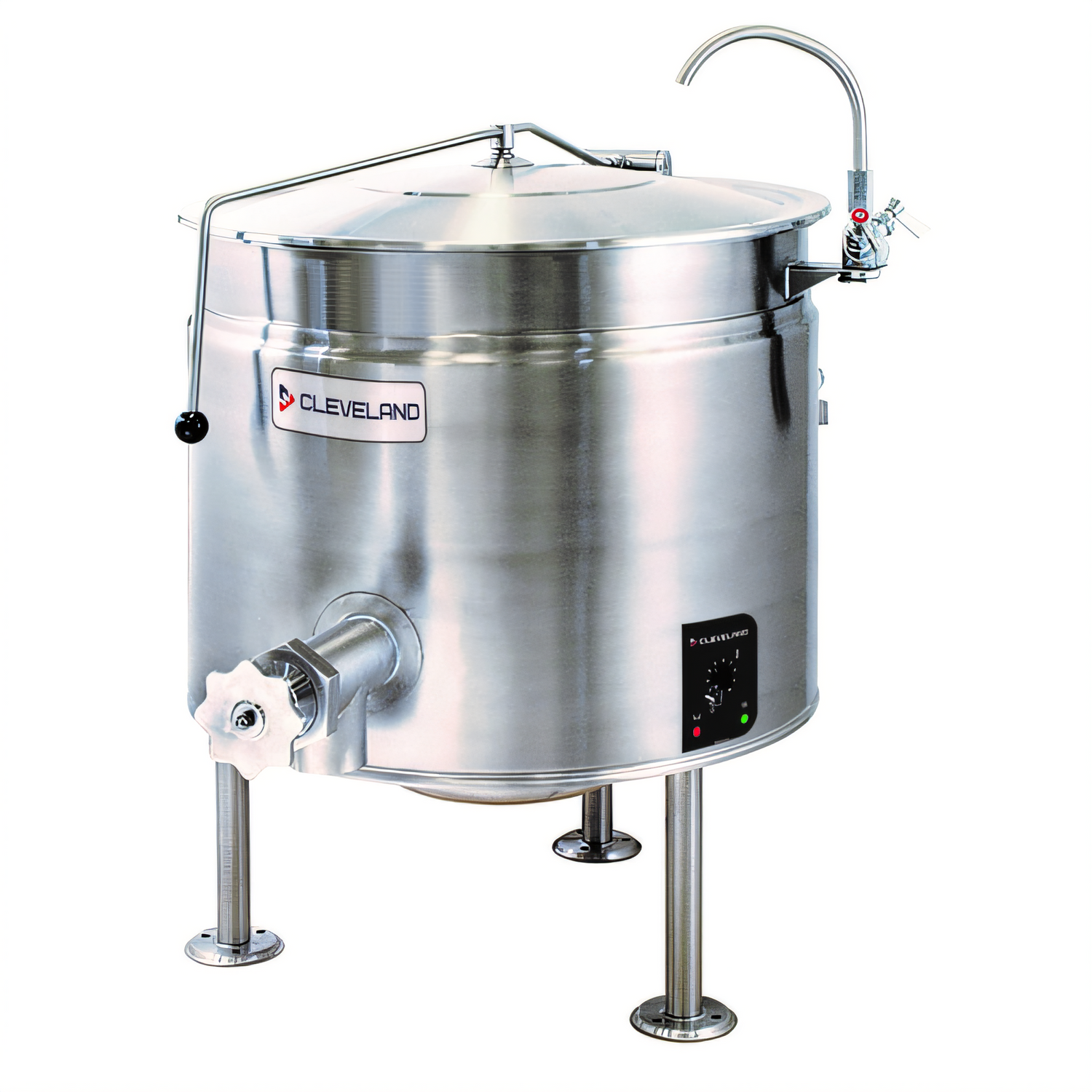

Short Series™ 60-Gallon Electric Steam Jacketed Kettle
Model KEL-60-SH | Cleveland RangeBuilt for high-volume, fuss-free production, the Cleveland Short Series™ KEL-60-SH brings 60 gallons (225 L) of consistent, even heat to your kitchen—all in a compact 34.8 in. rim height that’s easy to access and clean. A full steam jacket, solid-state controls (±1 °C accuracy) and rugged 316 stainless steel interior deliver the performance and durability demanded by today’s busiest operations.
Key Advantages

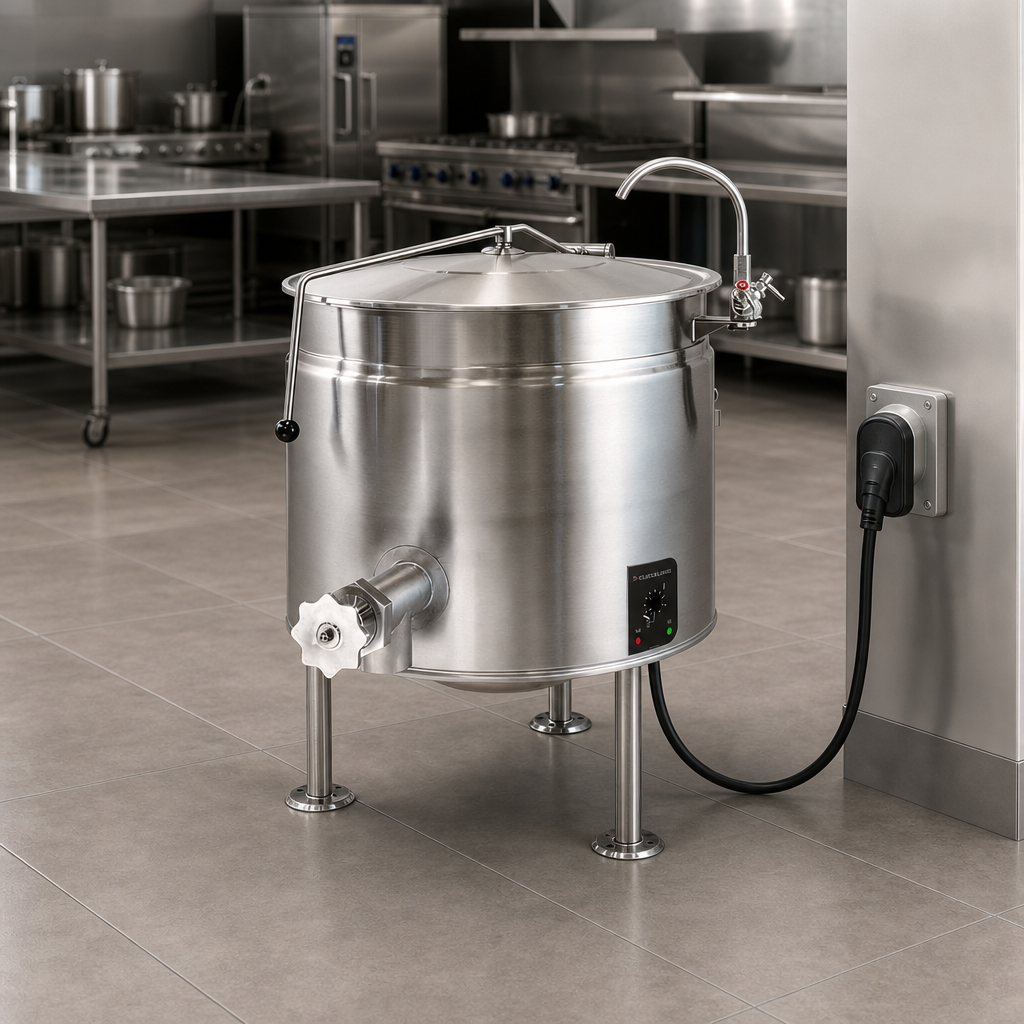

- Self-contained design—only an electrical hook-up required.
- Full 50 psi steam jacket filled at the factory; no venting or refilling needed.

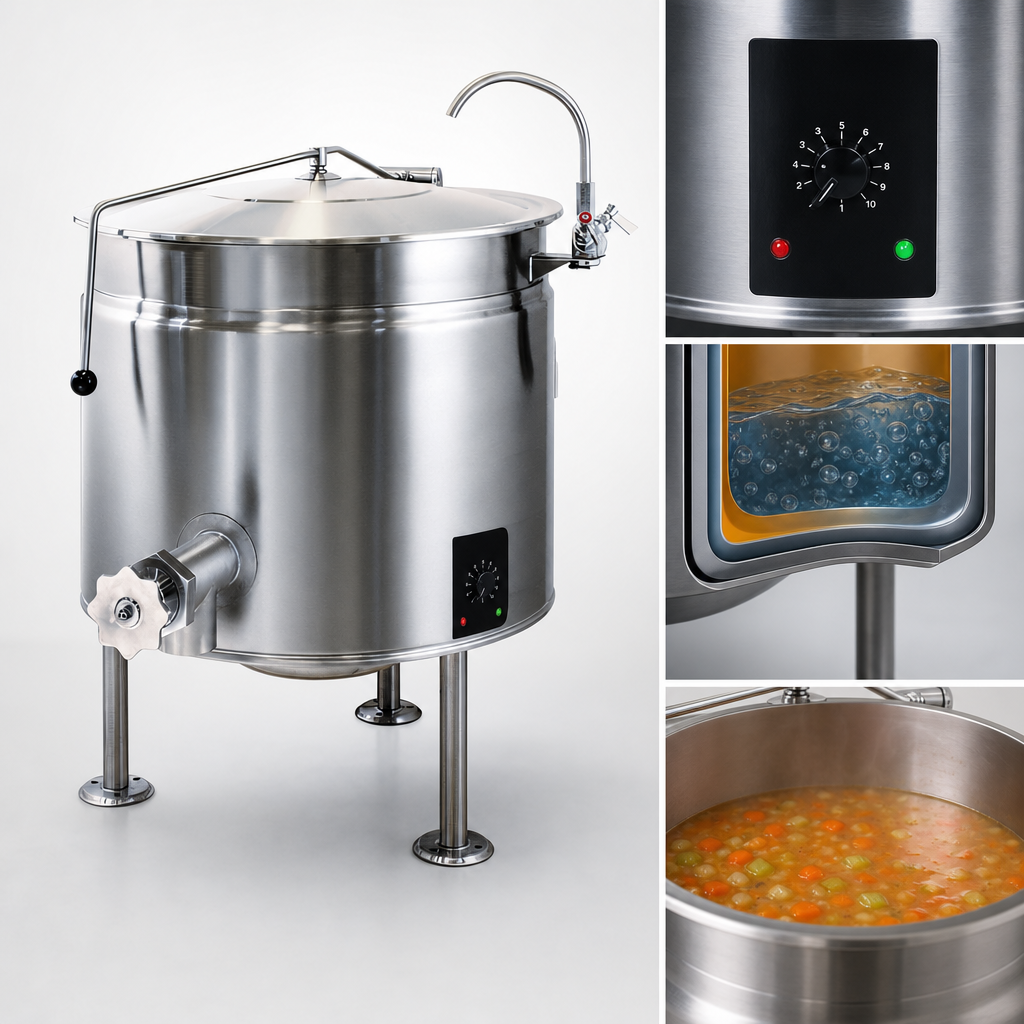

- Solid-state temperature control dial (145 – 260 °F / 63 – 127 °C) with cycle & low-water LEDs.
- Spring-assisted, hinged cover improves safety and reduces operator fatigue.
- 2 in. tangent draw-off valve with stainless steel drain strainer for fast, controlled portioning.
- Faucet mounting bracket pre-installed—just add optional hot/cold faucet kit.
- Open tri-leg base with adjustable flanged feet for easy floor bolting and cleaning access.
- Rugged 304 SS exterior and 316 SS cooking surface resist corrosion and make cleanup a breeze.
- Water-resistant, “Splash-Proof Series” control housing protects electronics.
- UL, CSA, NSF, CE & ASME stamped for broad code compliance.
Performance Specifications
| Capacity | 60 gal / 225 L | ≈ 960 servings* |
|---|---|
| Rim Height | 34.8 in. (884 mm) |
| Jacket Rating | 50 psi (345 kPa) |
| Temperature Range | 145 – 260 °F / 63 – 127 °C |
| Controls | Power ON/OFF, solid-state temp dial, heat-cycle LED, low-water LED |
| Draw-Off Valve | 2 in. diameter, tangent-mounted, with removable strainer |
| Electrical (std.) | 208–240 V, 60 Hz, 3-phase, 14.7 kW |
| Electrical (optional) | High-watt 29.4 kW & other voltages—consult factory |
| Construction | 304 SS exterior, 316 SS cooking surface, reinforced rolled rim |
| Overall Dimensions (WxDxH) | 35 ⅞ in. × 47 ¼ in. × 72 in. (911 × 1 200 × 1 829 mm, cover open) |
| Shipping Weight | ≈ 370 lb (168 kg) |
| Certifications | UL, CSA, NSF/ANSI 4, CE, ASME |
*Portion based on 8-oz. servings.
Popular Factory Options
- 3 in. draw-off valve with strainer (60 gal only)
- Hot & cold swing-spout faucet kit (DPK)
- Kettle Accessory Kit (ladle, paddle, etc.)
- Tri-Basket Strainer Support System (TBS)
- Insulated outer jacket for energy savings
- Heat deflector shield
- High-wattage elements
Standard Warranty
1-year parts & labor (18 months from shipment if not installed) with complimentary factory-authorized start-up. Pressure jacket receives an additional 4-year prorated parts warranty.
Need a different capacity or configuration? Explore the full Short Series™ line at clevelandrange.com.
