Cleveland Range KEL60 Steam Kettles
Description

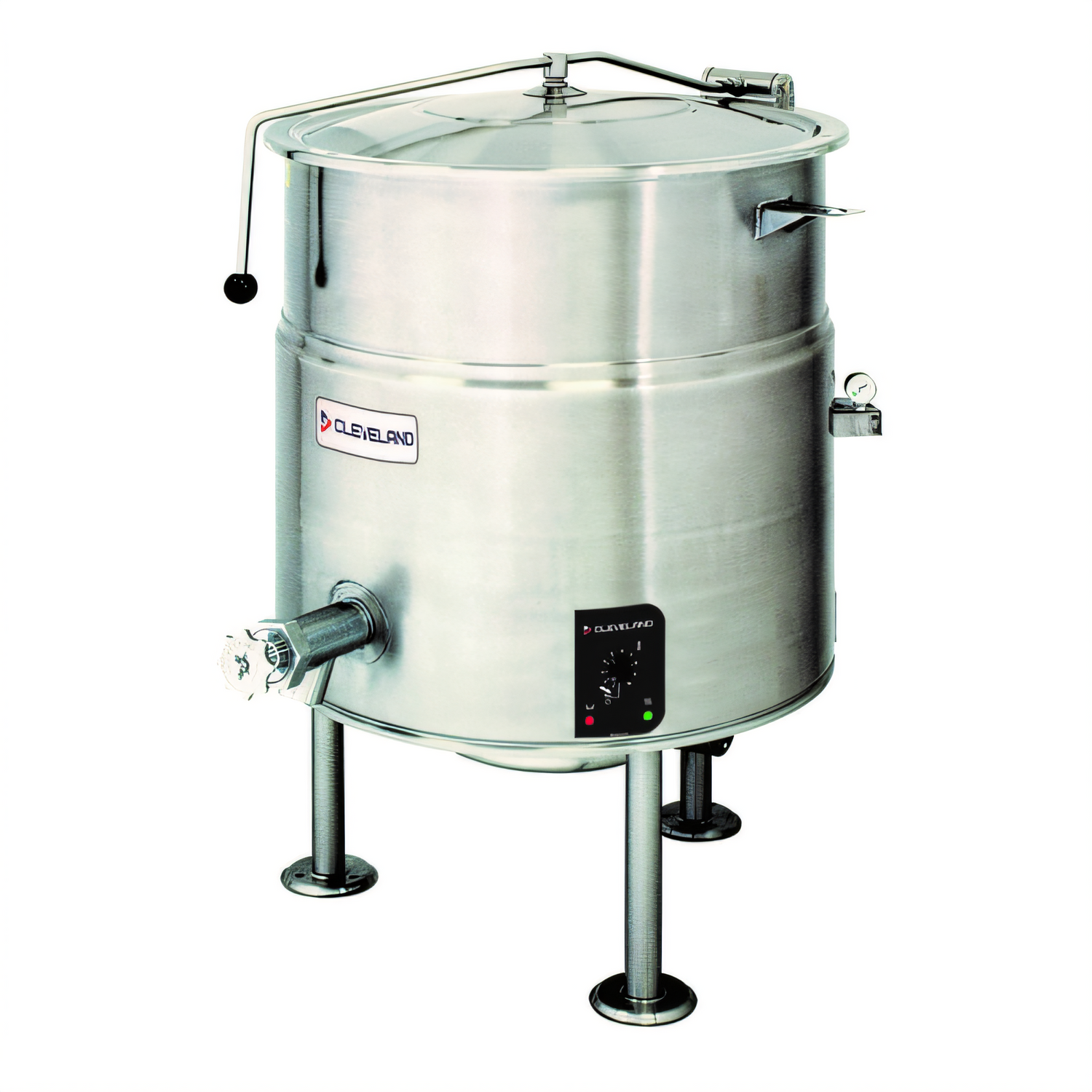

Cleveland KEL-60 60-Gallon Electric Tri-Leg Kettle
Self-Contained • 2/3 Steam Jacket • Splash-Proof SeriesProduce up to 960 eight-ounce servings in a single batch while maintaining the precision, safety, and durability that have made Cleveland Range the standard in high-volume cooking. The KEL-60 combines a rugged 60-gallon 316 stainless kettle with an IPX6-rated, solid-state control package—giving you ±1 °C temperature accuracy from 145 °F–260 °F (63 °C-127 °C) without the need for an external boiler.
Why the KEL-60 stands out
- High-capacity 60 gal / 225 L kettle with extra-wide pouring lip for chunky food service.

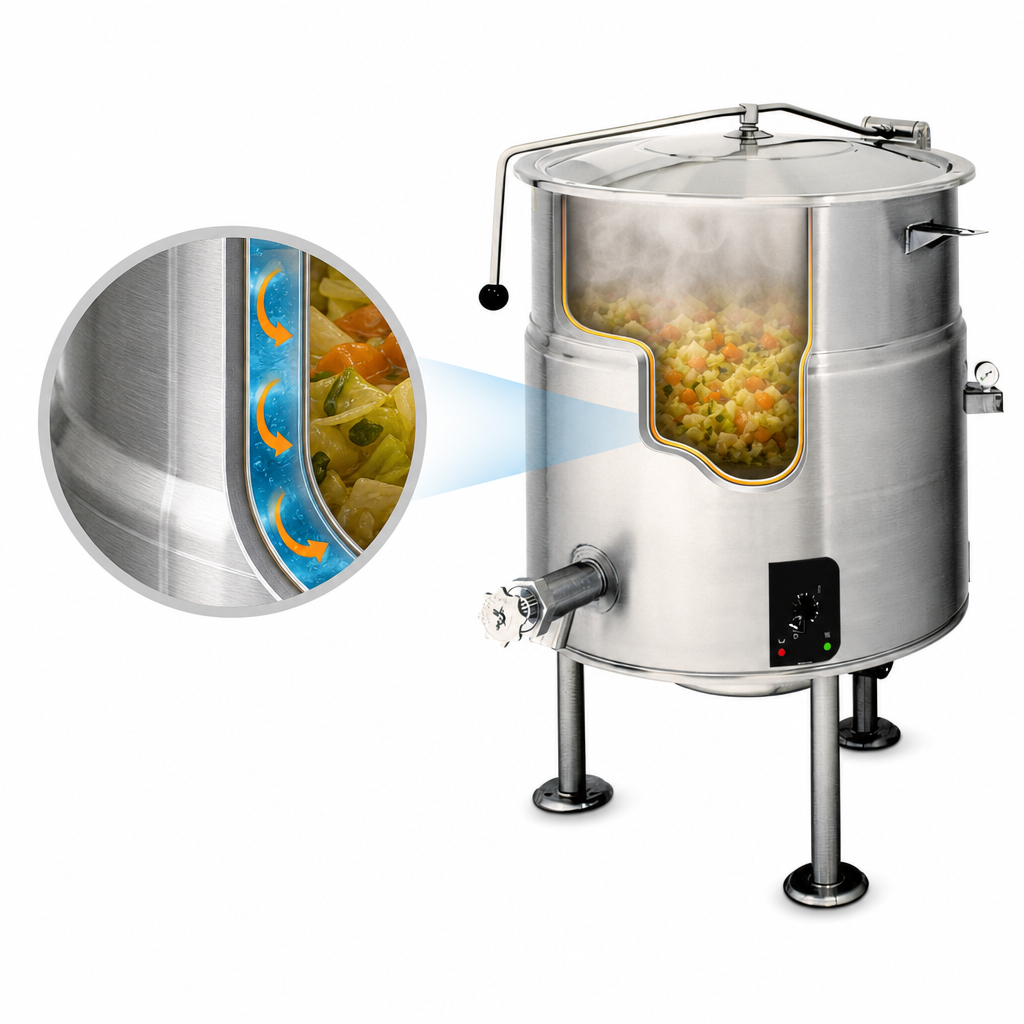

- 2/3 steam jacket delivers rapid, even heating at up to 50 psi for higher cooking temperatures.
- 316 series stainless interior resists corrosive, high-acid products and simplifies cleanup.
- IPX6 water-resistant housing with sealed controls—built for busy, wet kitchens.
- Solid-state temperature & water-level controls (no sight glass to break) with LED status lights.
- Spring-assisted, hinged domed cover stays put in any position for safer, hands-free operation.
- 2″ tangent draw-off valve & food strainer included for rapid product transfer and particulate removal.
- Factory-installed faucet bracket—just add an optional hot/cold filler to speed kettle filling.
- Open tri-leg base with flanged, level-adjustable feet for secure floor bolting and easy under-kettle cleaning.
- Welded-in heating elements maintain their vacuum seal—no gaskets to leak.
- Rear-mounted pressure gauge & relief valve are tamper-resistant yet easy to read.
- Certified to UL, CSA, NSF, ASME & CE standards.
Technical specifications
| Model | Cleveland KEL-60 |
|---|---|
| Capacity | 60 gal / 225 L |
| Interior material | 316 stainless steel (Food-grade, acid-resistant) |
| Steam jacket | 2/3 jacket, permanently filled & treated—no venting or refilling required |
| Jacket working pressure | 50 psi (Safety valve included) |
| Temperature range | 145 °F – 260 °F (63 °C – 127 °C) ±1 °C accuracy |
| Heating power | 14.7 kW @ 208–240 V, 3-phase, 60 Hz (other voltages on request) |

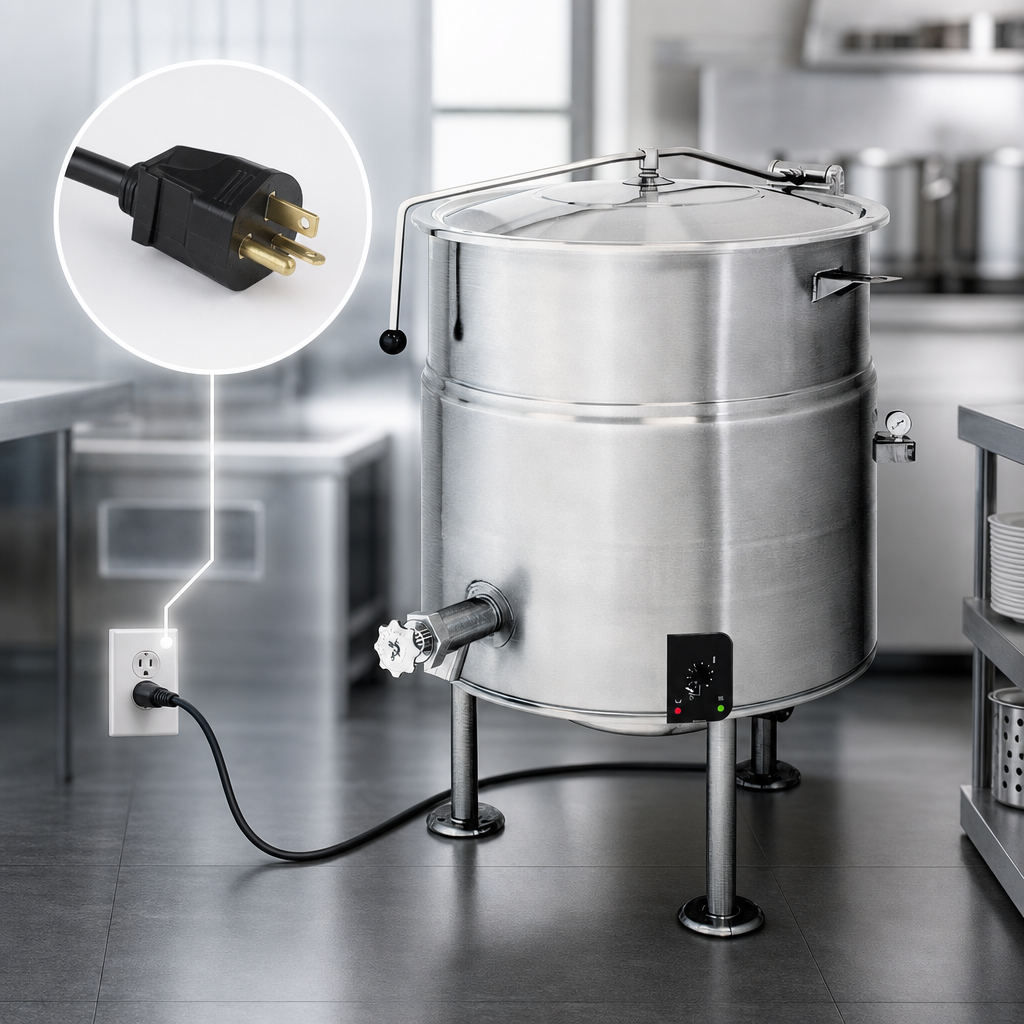

| Electrical connection | 3-wire, 3-phase (self-contained) |
| Controls | Solid-state thermostat, LED heat & low-water indicators, ON/OFF rocker |
| Draw-off | 2″ tangent valve with removable strainer basket |
| Cover | Spring-assisted, hinged, domed stainless steel |
| Base | Open tri-leg, 1 5/8″ O.D. with flanged feet (floor-boltable) |
| Ingress protection | IPX6 (high-pressure wash-down safe) |
| Overall dimensions* | W 43″ × D 44″ × H 76″ (cover raised) *See spec sheet for detailed drawing |
| Shipping weight | Approx. 420 lb (190 kg) |
| Warranty | 1-year parts & labor + 4-year prorated jacket warranty (standard) |
What’s in the box
- KEL-60 stationary kettle with tri-leg base
- Spring-assisted hinged cover
- 2″ tangent draw-off valve & food strainer
- Factory-mounted faucet bracket
- Pressure gauge & safety relief valve (installed)
- Owner’s & installation manuals
Popular add-ons (sold separately)
- Hot/Cold kettle filler with 60″ hose (DKF-K)
- Pan carrier & flow diverter for drawoff service
- Tri-basket supports & cooking baskets
- Automatic water meter & measuring strip
- Kettle accessory kit (brushes, paddle, whip, ladle)
Proper installation on a level, non-drained floor with 35-80 psi potable water and compliance with local codes is required. Cleveland Range recommends routine water-quality checks and preventive maintenance to protect your investment and preserve warranty coverage.
