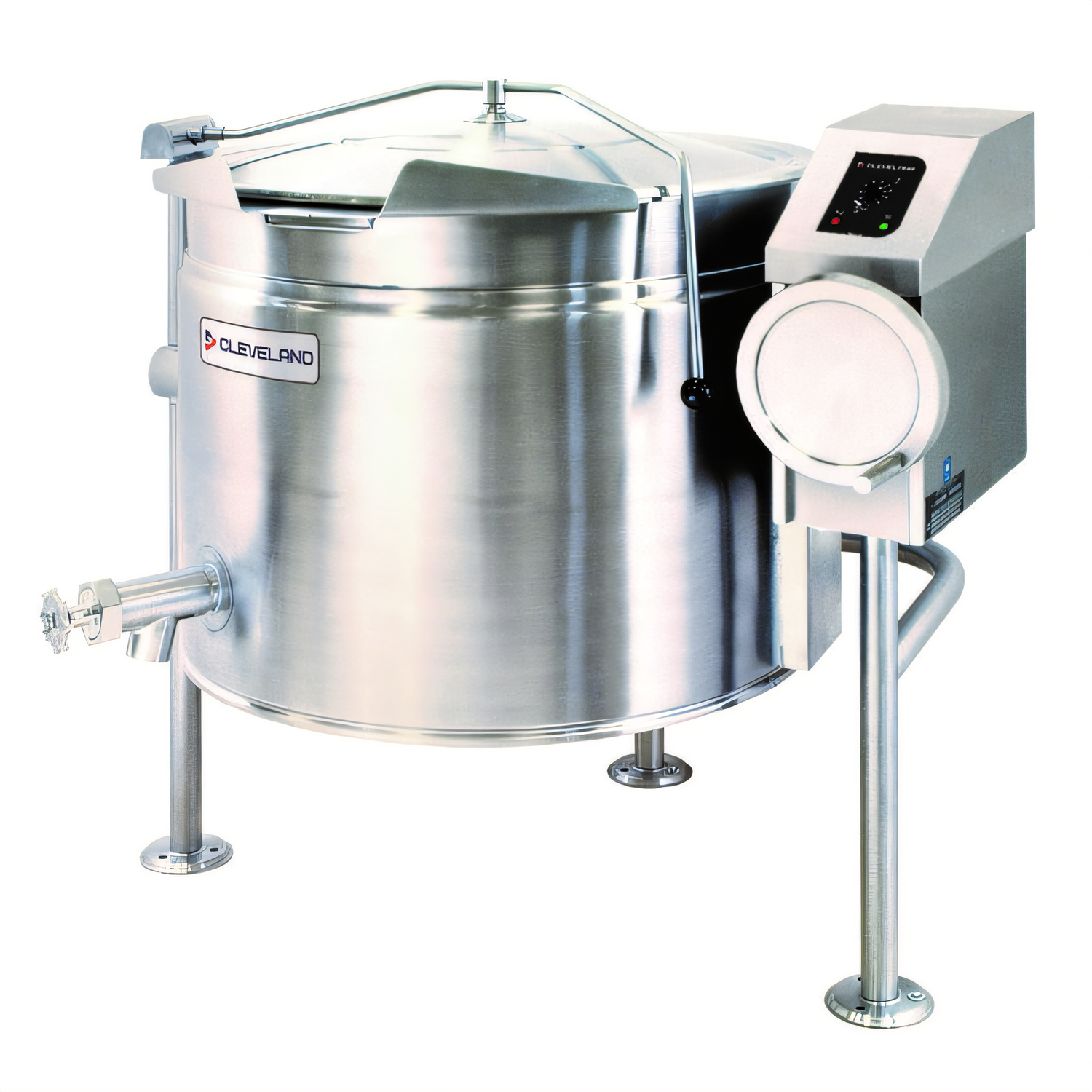

Cleveland Range KEL40TSH Short Series Steam Kettles
Description
Short Series™ 40-Gallon Electric Tilting Kettle
Model KEL-40-TSH | Cleveland RangePut 640 servings of perfectly simmered soup, chili, sauce or stock within easy reach of your cook line. With its ergonomic 35 inch rim height, rock-solid tri-leg base and ultra-precise solid-state controls, the Short Series™ kettle turns high-volume production into a one-person job—while using nothing more than an electrical hook-up.
Why Operators Love It
- 40 gal / 150 L capacity – up to 640 eight-ounce portions per batch.

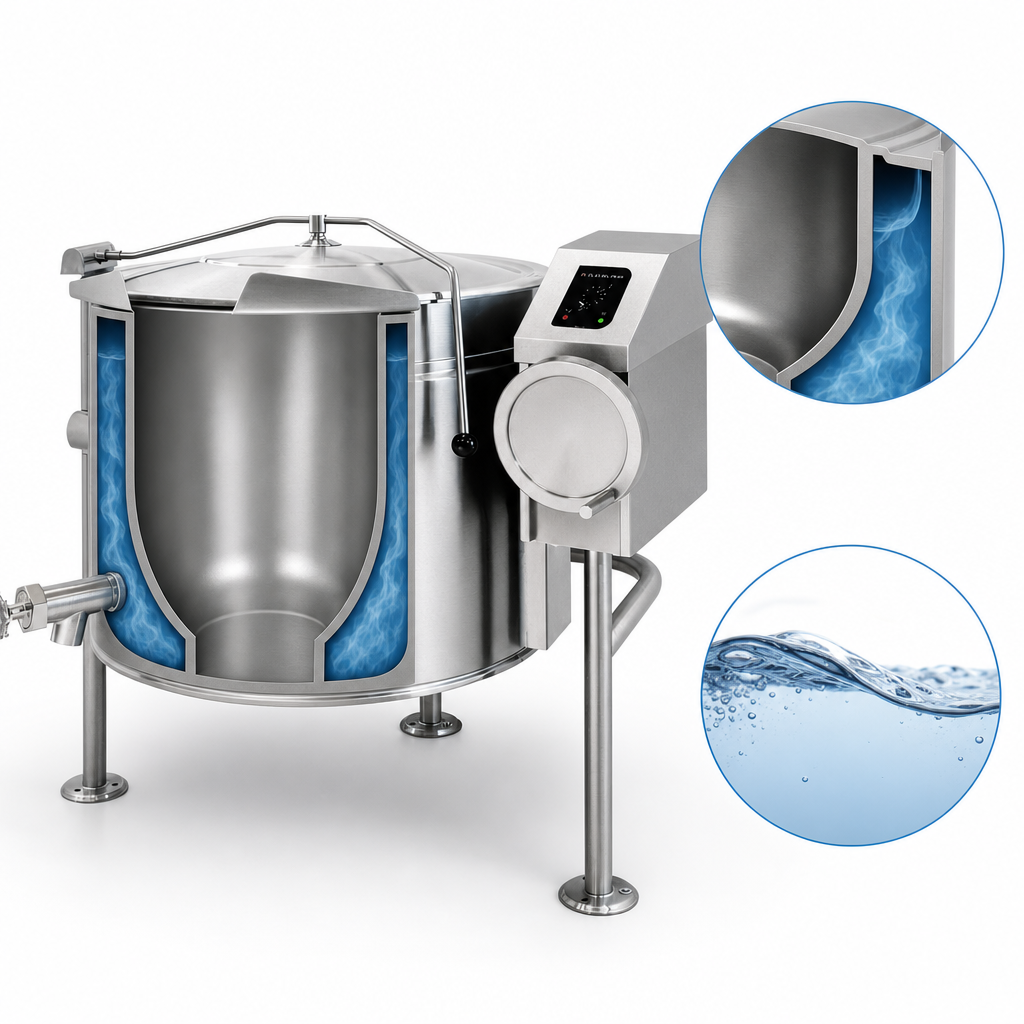

- Full 316 SS steam jacket (50 psi) permanently filled with treated water—no boiler, venting or refills.

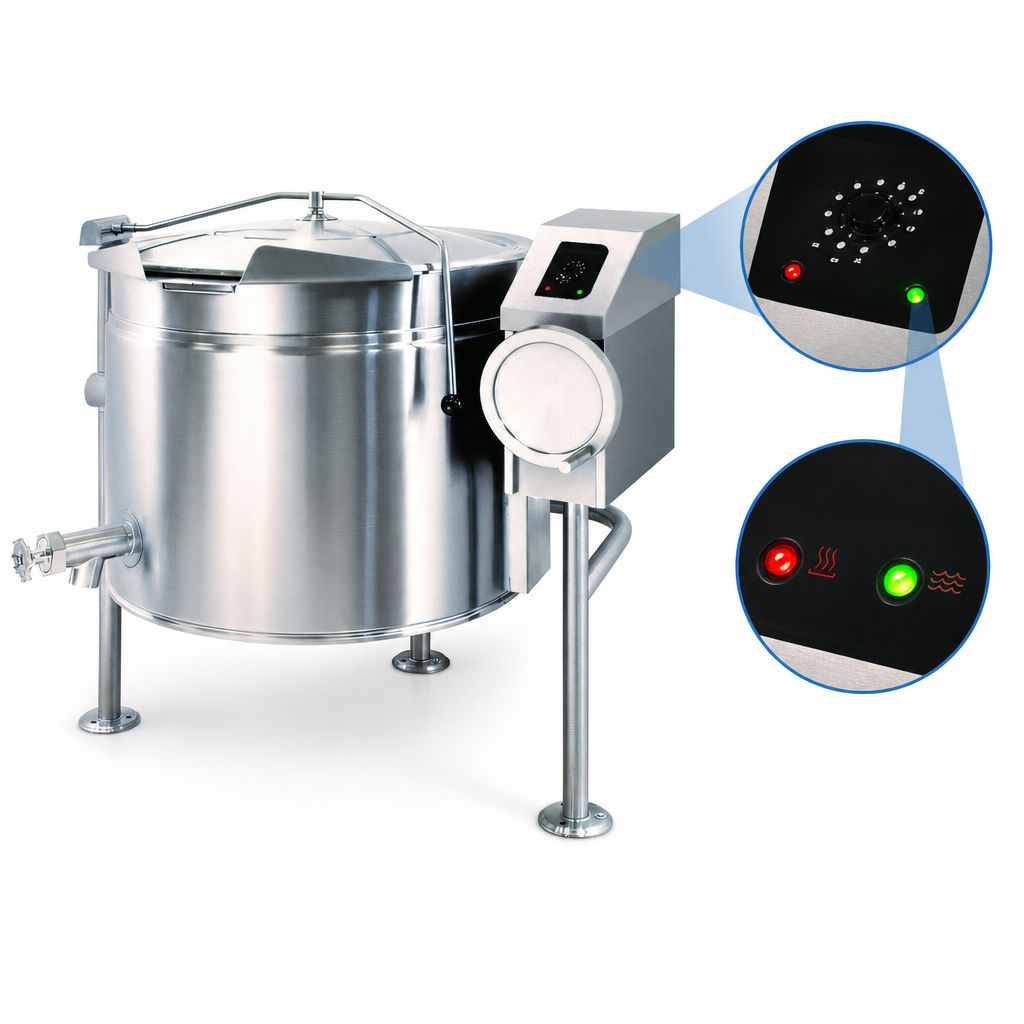

- ±1 °C solid-state temperature control (145-260 °F / 63-127 °C) with LED heat-cycle & low-water indicators.
- Splash-proof IPX6 construction with water-resistant control panel for rugged kitchen environments.
- Manual tilt on roller-bearing worm & segment gear—smooth, self-locking and maintenance-free.
- 35 in. rim height – comfortable access without a step stool.
- Reinforced rolled rim & oversized pouring lip for drip-free transfer of even the chunkiest products.
- Open 304 SS tri-leg base (1 5⁄8 in Ø) with flanged, adjustable feet for secure floor bolting and easy cleaning underneath.
- Rear-mounted pressure gauge & relief valve protected from tampering, color-coded for quick checks.
- UL, CSA, NSF, ASME, CE listed for worldwide compliance.
At-a-Glance Specs
| Capacity | 40 gal / 150 L (≈640 8-oz servings) |
|---|---|
| Rim Height | 35 in (889 mm) |
| Interior Jacket | 316 stainless steel, full jacket, 50 psi rating |
| Exterior | 304 stainless steel, #4 sanitary finish |
| Temperature Range | 145 – 260 °F (63 – 127 °C) |
| Controls | Solid-state thermostat, ON/OFF rocker, temp dial, heat & low-water LEDs |
| Water Level Management | Electronic (no sight-glass) |
| Tilt Mechanism | Manual, roller-bearing worm & segment gear, self-locking |
| Base / Mounting | Open tri-leg with adjustable flanged feet (floor bolting) |
| Standard Electrical | 14.7 kW, 208–240 V, 60 Hz, 3-phase (40.9–47.1 A) |
| Options | 29.4 kW high-wattage, 240 V 1-phase, core temp probe, 2 in tangent draw-off, covers, strainers & more |
| Ingress Protection | IPX6 (splash-proof) |
| Certifications | UL, CSA, NSF, ASME, CE |
| Shipping Weight | 455 lb (206 kg) — crate 44 in W × 44 in D × 54 in H |
| Service Clearance | 12 in (305 mm) on right side; 0 in elsewhere |
Popular Accessories
- 2 in. tangent draw-off valve (40 gal only)
- Spring-assist or lift-off covers
- Basket & tri-basket strainers
- Food & drain strainers, flow diverter
- Hot/Cold or Cold-only water faucet kits
- easyDial™ programmable electronic control upgrade
Accessories ship loose unless factory-installed. Contact us for configuration help.
Peace-of-Mind Warranty
Covered by Cleveland Range’s 1-year parts & labor warranty (extendable). Pressure vessel carries an additional 4-year prorated parts warranty.
