Cleveland Range KEL40T Steam Kettles
Description
Cleveland KEL-40-T Tri-Leg Electric Tilting Kettle – 40 Gal
Self-Contained • 2/3 Steam Jacketed • CE | IPX6 Splash-Proof ConstructionProduce up to 640 eight-ounce servings in a single batch with the industry-leading accuracy, durability, and efficiency of Cleveland Range. The KEL-40-T is a plug-and-play, self-contained solution that needs nothing more than an electrical hook-up to deliver fast, even heating for soups, sauces, pasta, chili, custards, and more.
Why You’ll Love It
- 316 SS kettle interior resists acidic foods and heavy-duty cleaning chemicals.
- Precise solid-state temperature control (145 – 260 °F / 63 – 127 °C) holds set points within ±1 °C—perfect for delicate simmering.
- 50 psi steam jacket (permanently filled & vent-free) delivers higher cooking temperatures without external boilers.
- Splash-proof, IPX6-rated controls & housing stand up to the wash-down environment of busy kitchens.
- Open tri-leg base with 1 5/8" O.D. flanged, adjustable feet for rock-solid floor anchoring and easy cleaning underneath.

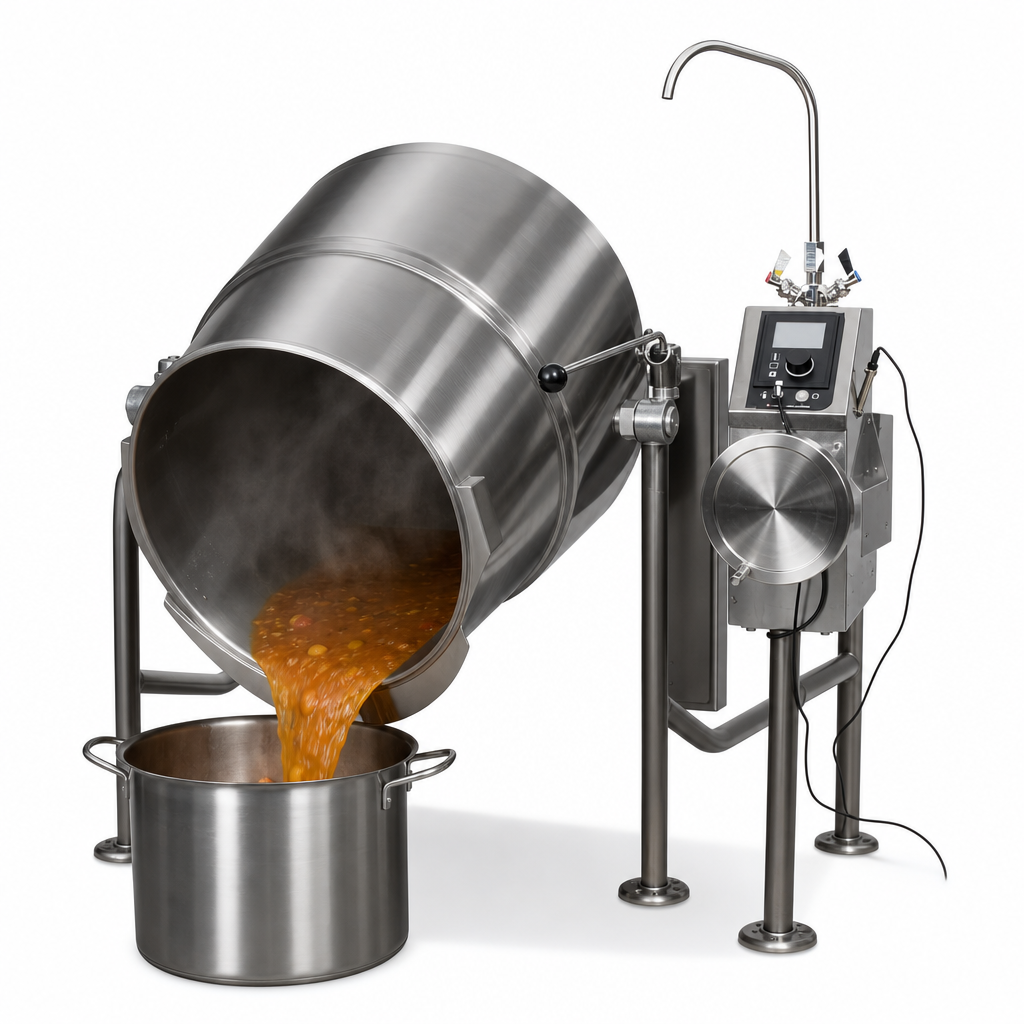

- Easy, controlled tilting via roller bearings and a self-locking worm & segment gear—smooth, 90° pour every time.
- Large, reinforced pouring lip handles thick or chunky products without drips.
- Welded-in heating elements hold vacuum better than bolted designs and will not leak.
- Solid-state water-level control—no sight glass to break or leak.
Control the Way You Cook
- Standard panel – On/Off & 1-10 temperature dial, LED heat cycle & low-water indicators.
- easyDial™ upgrade (optional) – Digital °F/°C display, 99-minute timer, Cook/Simmer programs, 6 built-in diagnostics, optional core-temp probe.
Popular Accessories (Sold Separately)
- 2" Tangent draw-off valve (TD-2) for fast, bottom-of-kettle draining.
- Spring-assisted, domed stainless-steel cover (CHS).
- Hot & cold water faucet with swing spout (DPK + FBKT).
- Basket & strainer kits, flow diverter, pan carrier, heat deflector shield, and more.
Technical Specifications
| Model | KEL-40-T |
|---|---|
| Cook Tank Capacity | 40 gal / 150 L (≈640 servings, 8 oz) |
| Jacket Design | 2/3 steam jacket, 50 psi, permanently sealed |
| Interior/Exterior | 316 SS interior, 304 SS exterior with #4 finish |
| Temperature Range | 145 – 260 °F (63 – 127 °C) |
| Standard Power | 14.7 kW, 208–240 V, 60 Hz, 3-phase (other voltages & high-wattage packages available) |
| Amps @ 208 V / 240 V | 40.9 A / 47.1 A (3-phase) |
| Ingress Protection | IPX6 (water-jet proof) |
| Certifications | UL, CSA, NSF, ASME, CE |
| Shipping Weight | ≈360 lb / 163 kg |
| Floor Clearance | Right side: 12" for service; rear & left: 0" |
| Warranty | 1-year parts & labor + 4-year prorated jacket coverage |
A complimentary factory start-up & water quality check is available upon request. Extended warranties and easyDial™ control upgrades can be added at purchase.
