Cleveland Range KEL40SH Short Series Steam Kettles
Description

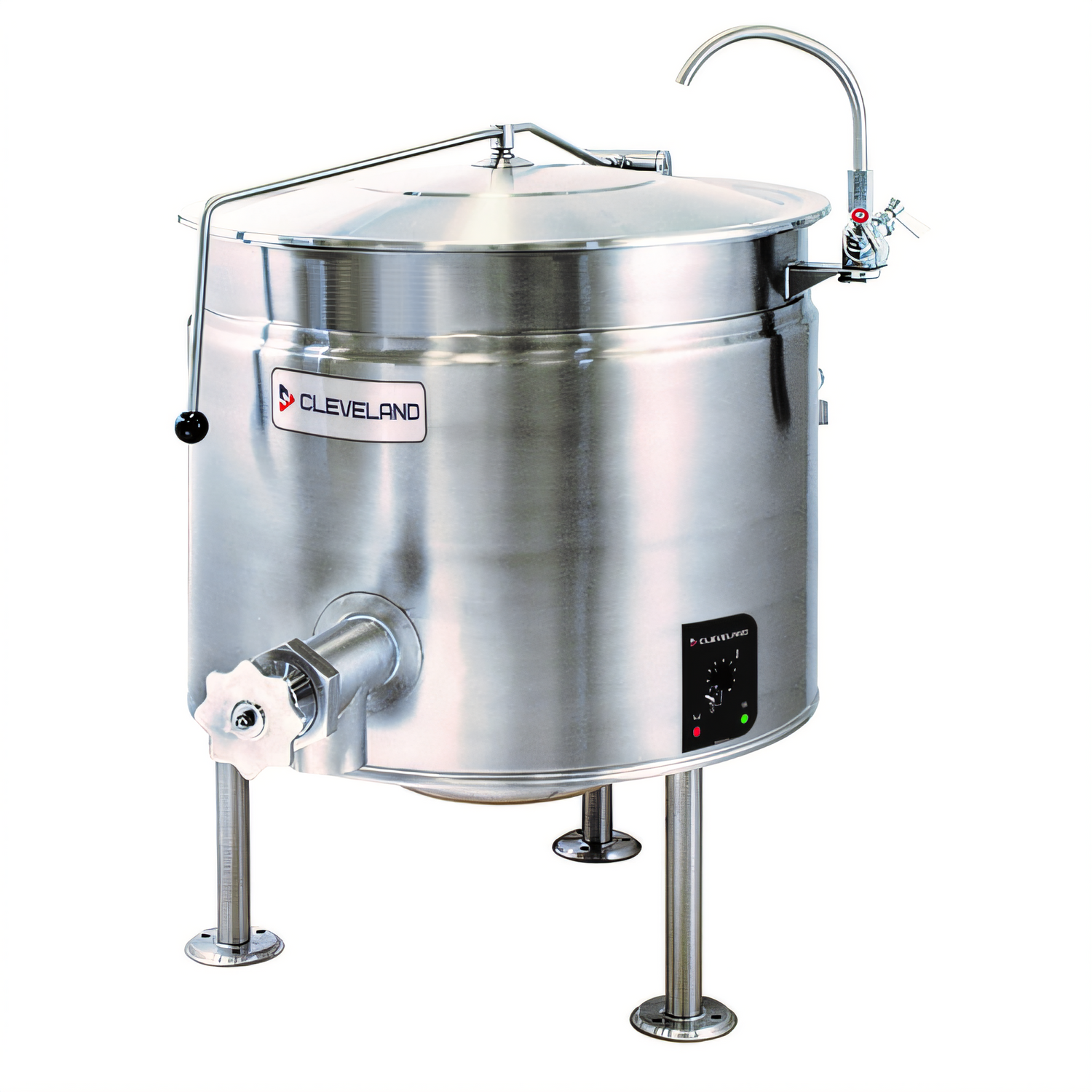

Cleveland Short Series™ 40-Gallon Electric Steam Jacketed Kettle
Model KEL-40-SH • 34.8 in Rim Height • CE CertifiedBring high-volume, precision simmering, braising, and holding to your production line with the Cleveland Short Series™ KEL-40-SH. This self-contained, splash-proof kettle combines a rugged 316 SS steam jacket, ±1 °C solid-state controls, and an operator-friendly 34.8 inch rim height—all in a compact unit that requires nothing more than an electrical hook-up.
Key Features
- 40 gal (150 L) batch size—up to 640 eight-ounce servings per cook.

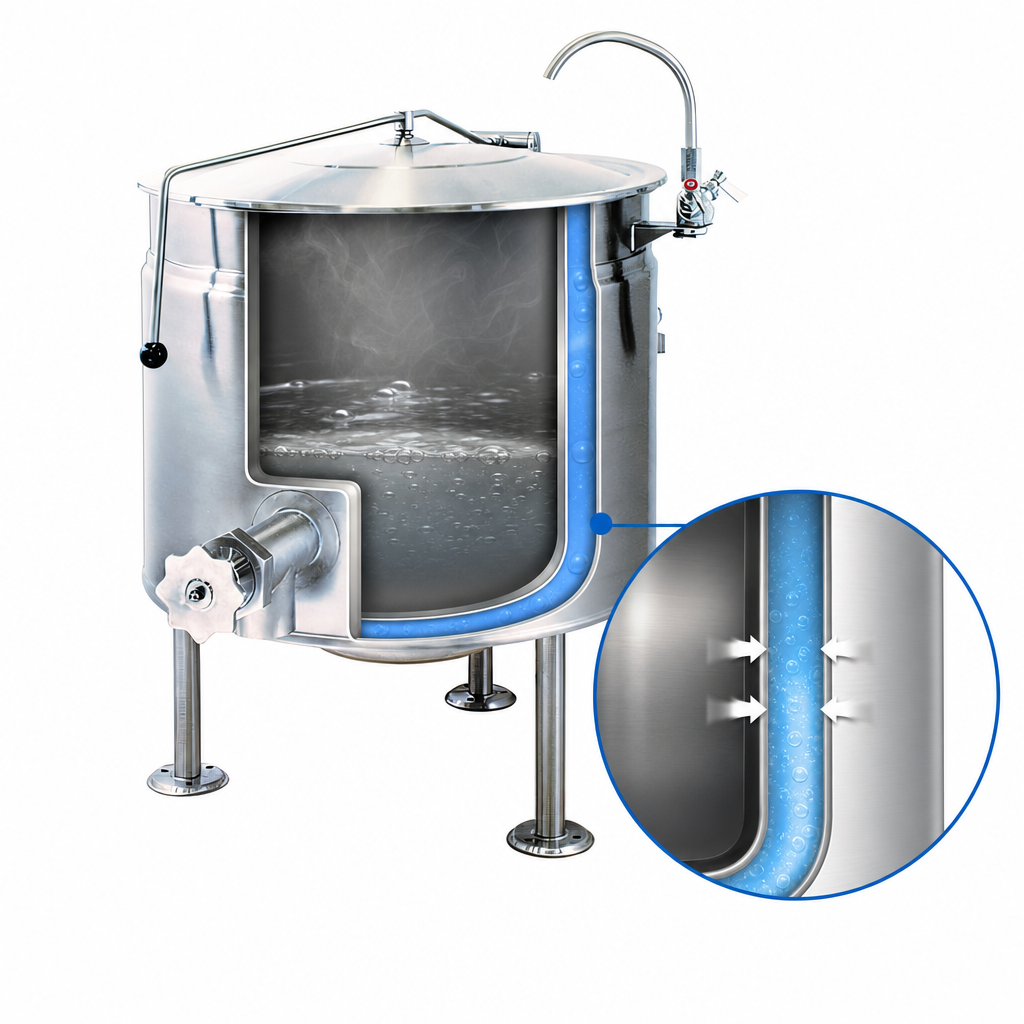

- Full, permanently sealed steam jacket filled with treated water—no boiler, venting, or refilling.
- 316 SS kettle interior resists acids & salt; 304 SS exterior with easy-clean #4 finish.
- Solid-state temperature control (145°–260 °F) keeps set points within ±1 °C—perfect for gentle simmering or rapid boil.
- Splash-proof control panel with:
- Power ON/OFF switch
- Low-water & heat-cycle LED indicators
- Large, glove-friendly temperature dial
- 50 psi jacket & safety valve—reach higher cooking temperatures for faster batch times.
- Spring-assisted, hinged domed cover opens effortlessly and stays put.
- 2 in tangent draw-off valve with removable drain strainer for quick, clog-free product transfer.
- Faucet mounting bracket ready for optional hot/cold water faucet.
- Open tri-leg base (1 5⁄8 in O.D.) with adjustable flanged feet for secure floor bolting and easy wash-down.
- Rear-mounted pressure gauge & relief valve to deter tampering.
- UL, CSA, NSF, ASME & CE approvals for worry-free code compliance.
Technical Specifications
| Capacity | 40 gal / 150 L |
|---|---|
| Typical yield | Approx. 640 × 8 oz portions |
| Interior material | 316 Stainless Steel (full steam jacket) |
| Exterior finish | 304 Stainless Steel, #4 polish |
| Jacket rating | 50 psi (345 kPa) with safety valve |
| Heating power | 14.7 kW (standard) |
| Electrical | 208–240 V, 60 Hz, 3-phase • other voltages available |
| Temperature range | 145°–260 °F (63°–127 °C) |
| Control type | Splash-proof solid-state module |
| Rim height | 34.8 in (884 mm) |
| Overall (W × D × H) | 35.9 in × 38 in × 44 in (913 mm × 965 mm × 1118 mm) – cover closed |
| Draw-off valve | 2 in tangent with removable strainer |
| Shipping weight | 330 lb (150 kg) |
| Certifications | UL, CSA, NSF, ASME, CE |
| Warranty | 1-year parts & labor + 4-year prorated jacket parts (factory start-up included) |
Popular Accessories
- Hot & cold deck-mount faucet kit
- Tri-basket strainer support system
- Complete kettle accessory kit (paddles, measuring strips, etc.)
- Heat deflector shield
- Insulated outer jacket
- High-wattage element package
Looking for a different voltage, factory installation, or extended warranty coverage? Reach out—our team will configure the perfect Short Series™ kettle for your kitchen.
