Cleveland Range | SKU:
KEL30
Cleveland Range KEL30 Steam Kettles
$19,863.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Cleveland Range KEL30 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KEL30 Steam Kettles
$19,863.00
Unit price
/
Unavailable
Description

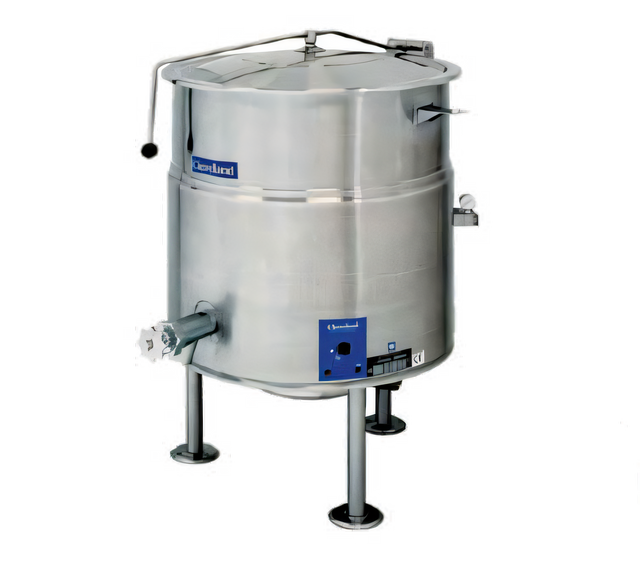

KEL-30 Tri-Leg Electric Steam Kettle — 30 gal / 115 L

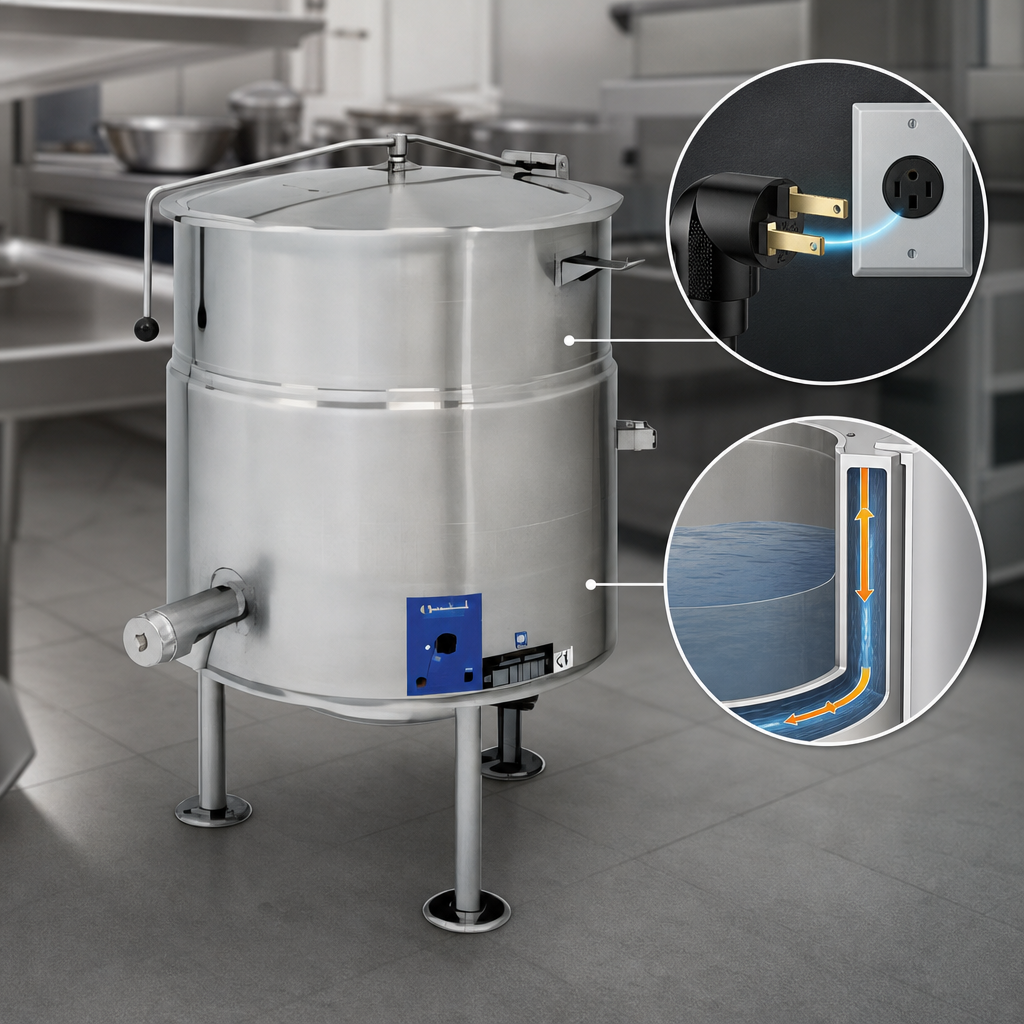

Self-contained • 2⁄3 steam-jacketed • Stationary Splash-Proof SeriesEngineered for high-volume, high-precision production, the Cleveland KEL-30 brings unbeatable speed, accuracy and durability to soups, sauces, stocks and more. Just bolt it down, power it up and start cooking—no external steam source or water feed required.
Key advantages
- 30-gallon (115 L) batch size — up to 480 eight-ounce servings at once.

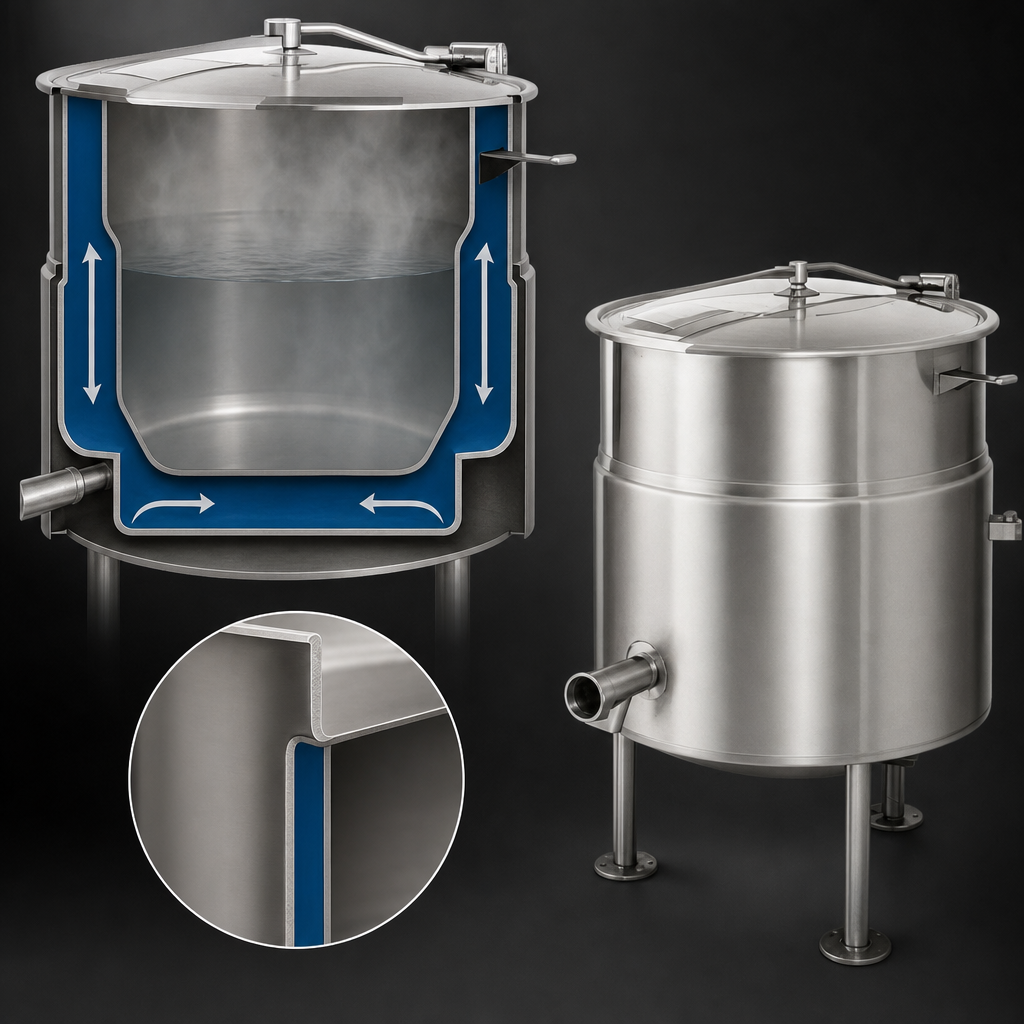

- 2⁄3 steam jacket rated 50 psi reaches 260 °F (127 °C) for lightning-fast heat-up.
- ±1 °C solid-state temperature control; LED indicators for Power, Heat Cycle & Low Water.
- IPX6 water-resistant control housing built for the toughest clean-downs.
- Welded-in heating elements — zero gaskets, zero leaks, superior vacuum retention.
- 316 stainless-steel cooking liner resists acidic foods; 304 stainless exterior with #4 finish wipes clean fast.
- Re-inforced rolled rim and spring-assisted domed cover stand up to daily knocks.
- 2″ tangent draw-off valve with stay-cool handle for effortless product transfer or cleaning.
- Open tri-leg base with flanged, height-adjustable feet—rock-solid stability and easy floor access.
- Rear-mounted gauge & safety relief valve protect settings from accidental tampering.
Factory-installed extras
- Faucet mounting bracket (ready for optional hot/cold kettle filler).
- Removable stainless-steel food strainer.
At-a-glance specs
| Model | Cleveland KEL-30 |
|---|---|
| Capacity | 30 gal / 115 L |
| Type | Stationary, self-contained electric kettle |
| Steam jacket | 2⁄3 jacket, permanently sealed & treated (no refilling required) |
| Jacket pressure | 50 psi (ASME certified) |
| Temperature range | 145 – 260 °F (63 – 127 °C) |
| Construction | 304 SS exterior, 316 SS liner, welded heating elements |
| Cover | Spring-assisted, hinged, domed 304 SS |
| Draw-off | 2″ tangent valve, sanitary design |
| Controls | Solid-state temp & water-level, LED status lights |
| Power | 208-240 V, 60 Hz, 3-phase standard (other voltages available) |
| IP rating | IPX6 splash-proof |
| Dimensions (W × D × H) | 38″ × 38″ × 55″ *shipping envelope |
| Approx. ship weight | ≈ 289 lb / 131 kg |
| Certifications | UL, CE, NSF, ASME |
| Warranty | 1-year parts & labor; optional extended & prorated jacket coverage |
*Dimensions and weight include pallet/crating. Verify clearances and floor drain location per installation manual.
Installation reminder: Unit must be bolted to a level floor and connected to a suitable 3-phase
electrical supply by a qualified technician. Provide adequate ventilation and a floor drain as required by
local code.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Certifications
CE, IPX6
Height
38.0in
Width
28.75in
Depth
37.0in
Shipping Weight
283.0lbs
Kettle Jacket
partial jacket
Base
tri-leg
Capacity
30 - 45 gallon
Kettle Liner
316 stainless steel
Specifications
Kettle, electric, 30-gallon capacity, 2/3 steam jacket design, open tri-leg base, faucet bracket, strainer, 50 psi rating, solid state water level control, 2" tangent draw-off, spring-assisted cover, 304 stainless steel construction with 316 series stainless steel liner, flanged feet, IPX6, CE
