Cleveland Range KEL25T Steam Kettles
Description

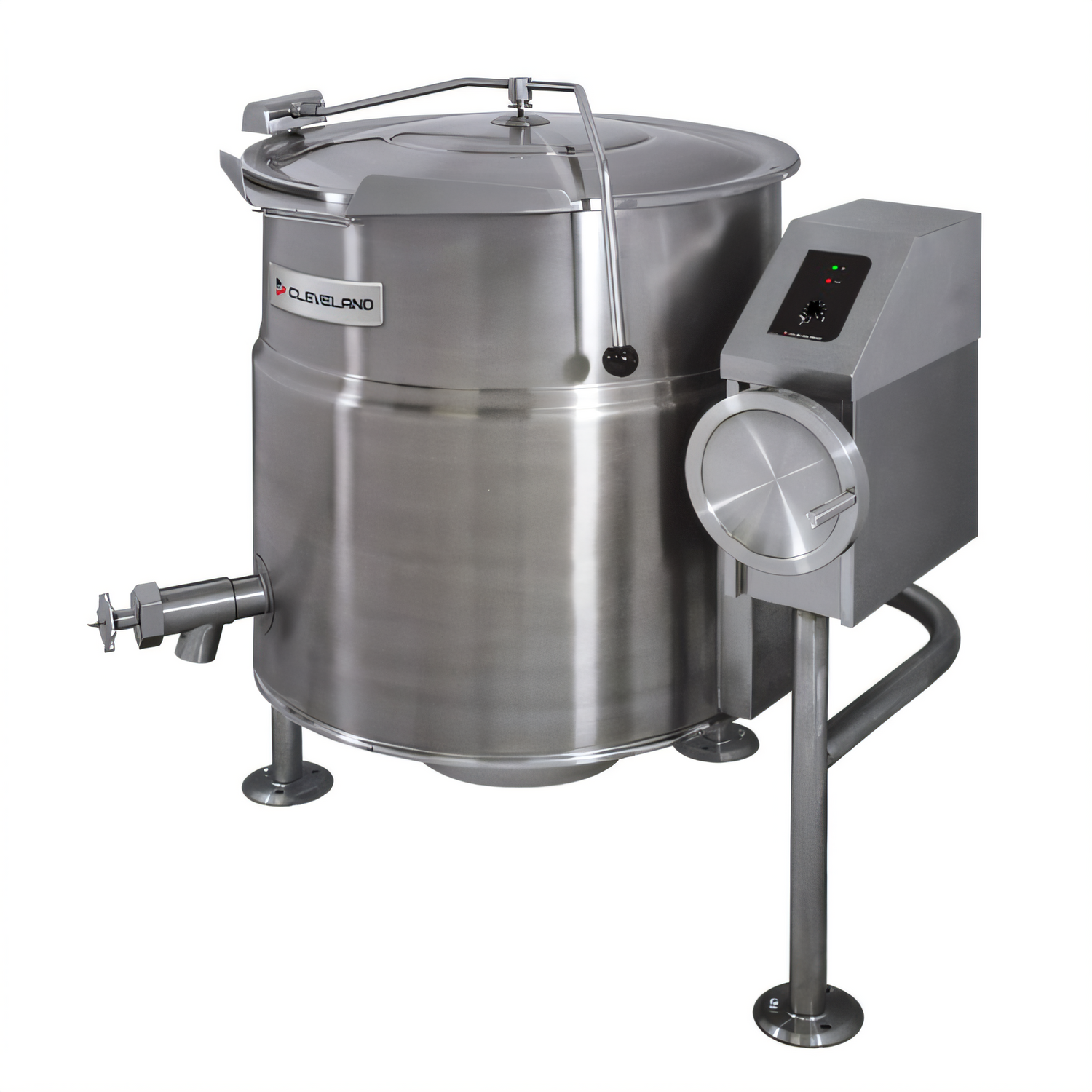

Cleveland Range KEL-25-T Tilting Electric Steam Kettle
25 Gallon / 100 L • Splash-Proof Series • Tri-Leg, 2⁄3-JacketedBuilt for kitchens that refuse to compromise on speed, consistency, or sanitation, the KEL-25-T from Cleveland Range delivers 25 gallons of precise, self-contained steam power in a space-saving tilting design. With rugged 304/316 stainless steel construction and an IPX6 splash-proof control housing, this CE-listed kettle is the dependable workhorse your high-volume soups, stocks, sauces, and stews deserve.
Why You’ll Love It

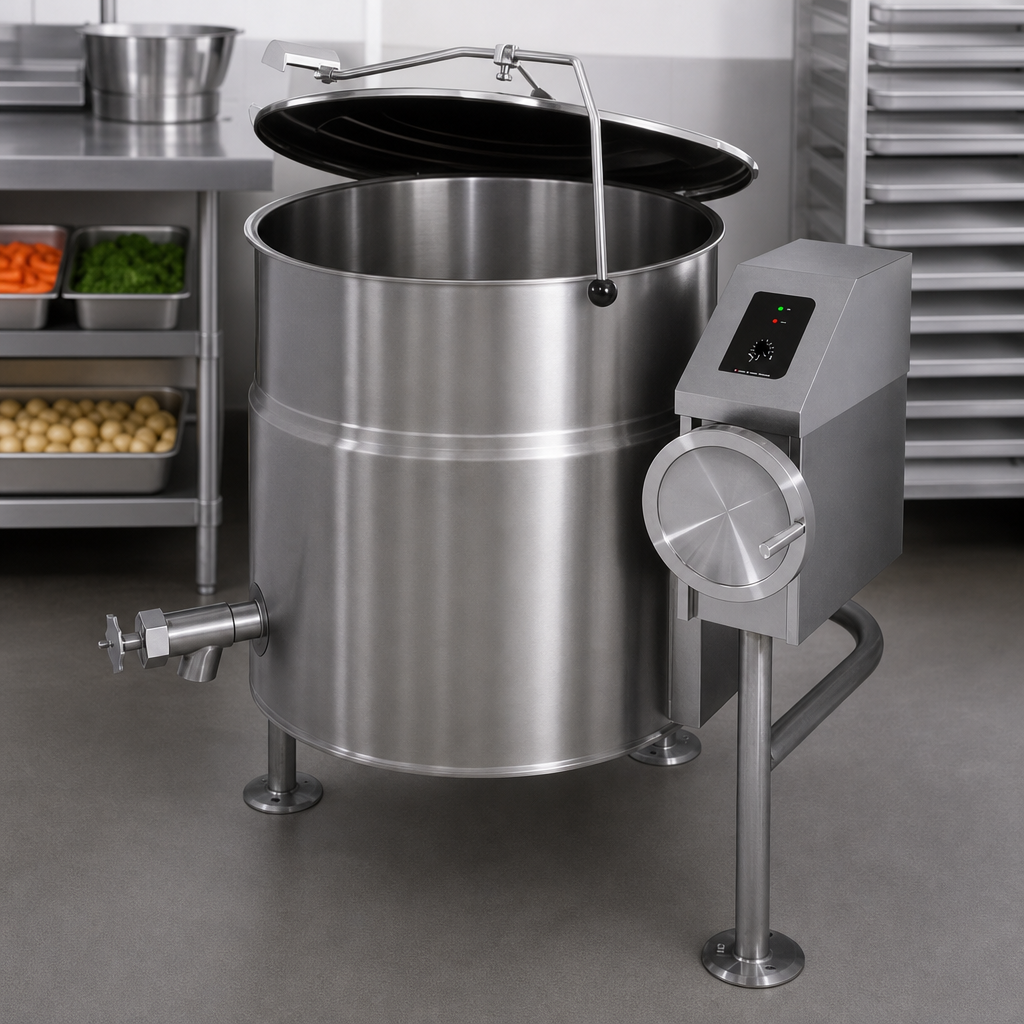

- 25 gal (400 × 8 oz) batch capacity keeps up with busy production lines.

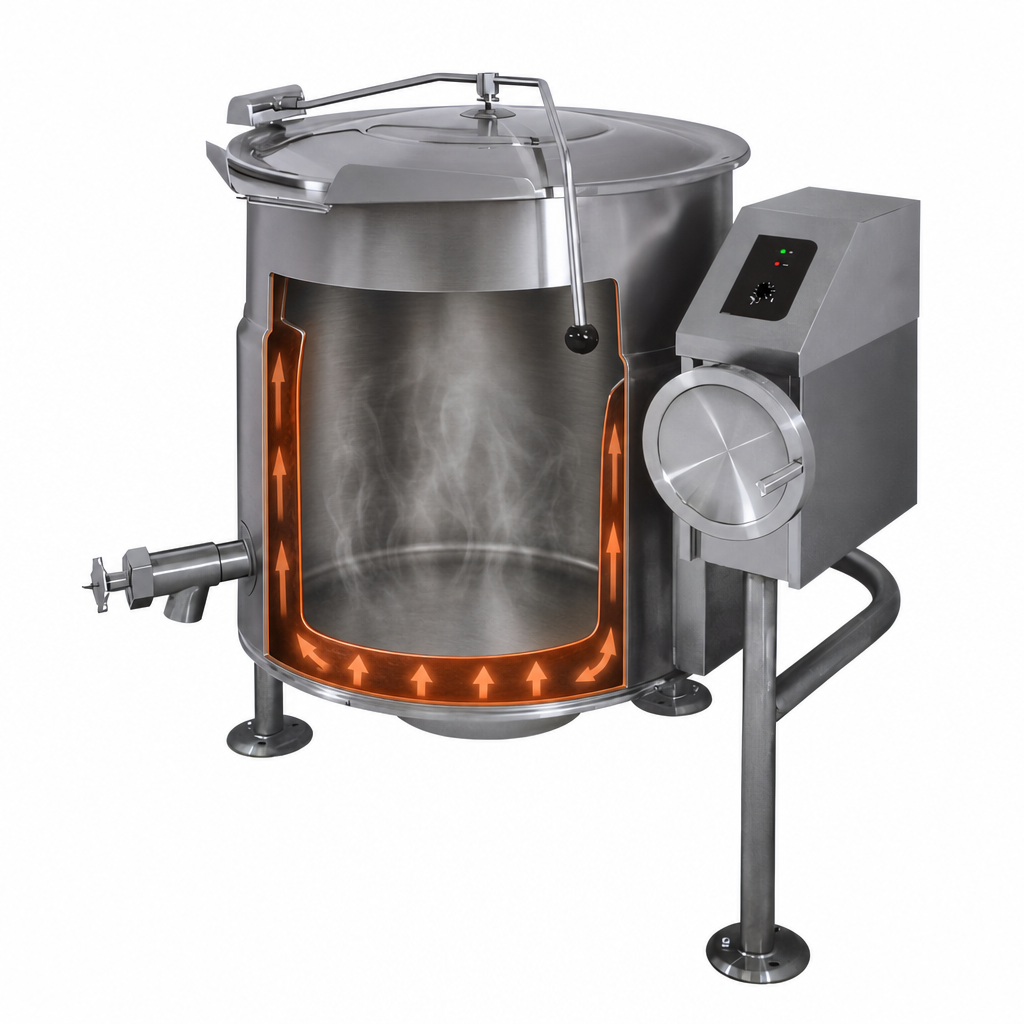

- 2⁄3 jacket permanently filled with treated water—no boiler hook-up, venting, or refilling.
- Solid-state temperature control holds set point within ±1 °C from 145 °F – 260 °F (63 °C – 127 °C).
- 316 SS kettle liner resists acids & salts; 304 SS exterior with #4 finish wipes clean fast.
- IPX6-rated, water-resistant controls with LED heat & low-water indicators.
- Manual tilt with self-locking worm & segment gear for smooth, splash-free pouring.
- Open 1 5⁄8″ Ø tri-leg base with flanged, height-adjustable feet for rock-solid floor anchoring.
- 50 psi jacket rating gives you faster heat-up and higher cooking temperatures.
- Rear-mounted pressure gauge & ASME relief valve are protected from operator tampering.
- Sealed, welded-in heating elements improve vacuum integrity and eliminate leaks.
Technical Specs
| Capacity | 25 gal / 100 L (≈ 400 servings @ 8 oz) |
|---|---|
| Construction | 304 SS exterior, 316 SS liner, reinforced rolled rim |
| Jacket Design | Self-contained 2⁄3 steam jacket, permanently filled |
| Steam Jacket Pressure | 50 psi (3.4 bar) |
| Temperature Range | 145 °F – 260 °F / 63 °C – 127 °C |
| Controls | Power on/off, 1-10 temp dial, LED heat & low-water status |
| Water Level Control | Solid-state (no sight glass to break or leak) |
| Standard Power | 9.8 kW, 208–240 V, 60 Hz, 3-phase (1-phase available) |
| Amps @ 208 V | 27.2 A (3 ph) / 47.2 A (1 ph) |
| Amps @ 240 V | 31.4 A (3 ph) / 54.4 A (1 ph) |
| Ingress Protection | IPX6 (high-pressure jet-proof) |
| Certifications | UL, NSF, ASME, CE |
| Shipping Weight | 290 lb / 132 kg |
| Service Clearance | 12″ (305 mm) right side; 0″ left & rear |
Factory-Fit Options & Accessories
- Spring-assisted, hinged stainless-steel cover (CHS)
- 2″ tangent draw-off valve (TD-2) or 3″ for larger kettles
- easyDial™ control panel with 99-min timer & cook/simmer modes
- Core-temperature probe for HACCP-ready monitoring
- Hot/cold water faucet with swing spout (DPK + FBKT)
- Kettle accessory kit: paddles, whips, brushes, ladle, measuring strip & more
- Pan carrier, food strainers, flow diverter, basket supports, correctional packages
Peace-of-Mind Warranty
One-year parts & labor warranty (18 months from shipment) with factory-authorized start-up. Extended coverage available at time of purchase.
