Cleveland Range KEL100T Steam Kettles
Description

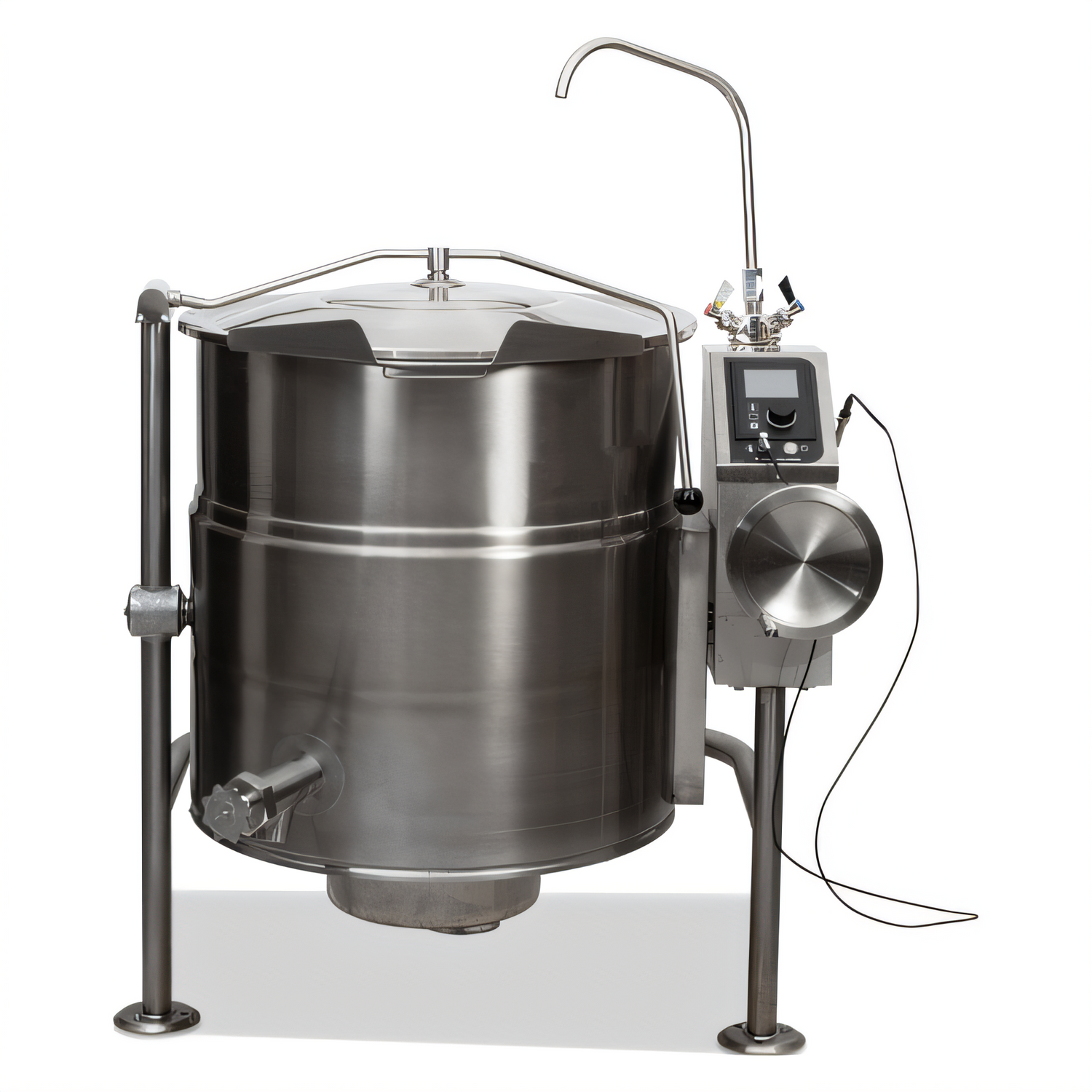

Cleveland KEL-100-T 100-Gallon Electric Tilting Kettle
Tri-Leg • Self-Contained 2/3 Steam Jacket • 50 psi • IPX6 • CEProduce up to 1,600 eight-ounce servings in a single, easy-to-pour batch. Cleveland Range’s Splash Proof Series kettles combine rugged 304/316 stainless-steel construction, solid-state precision and a smooth tilting action that lets one person handle your heaviest soups, sauces, chowders and braises with confidence.
Why you’ll love it

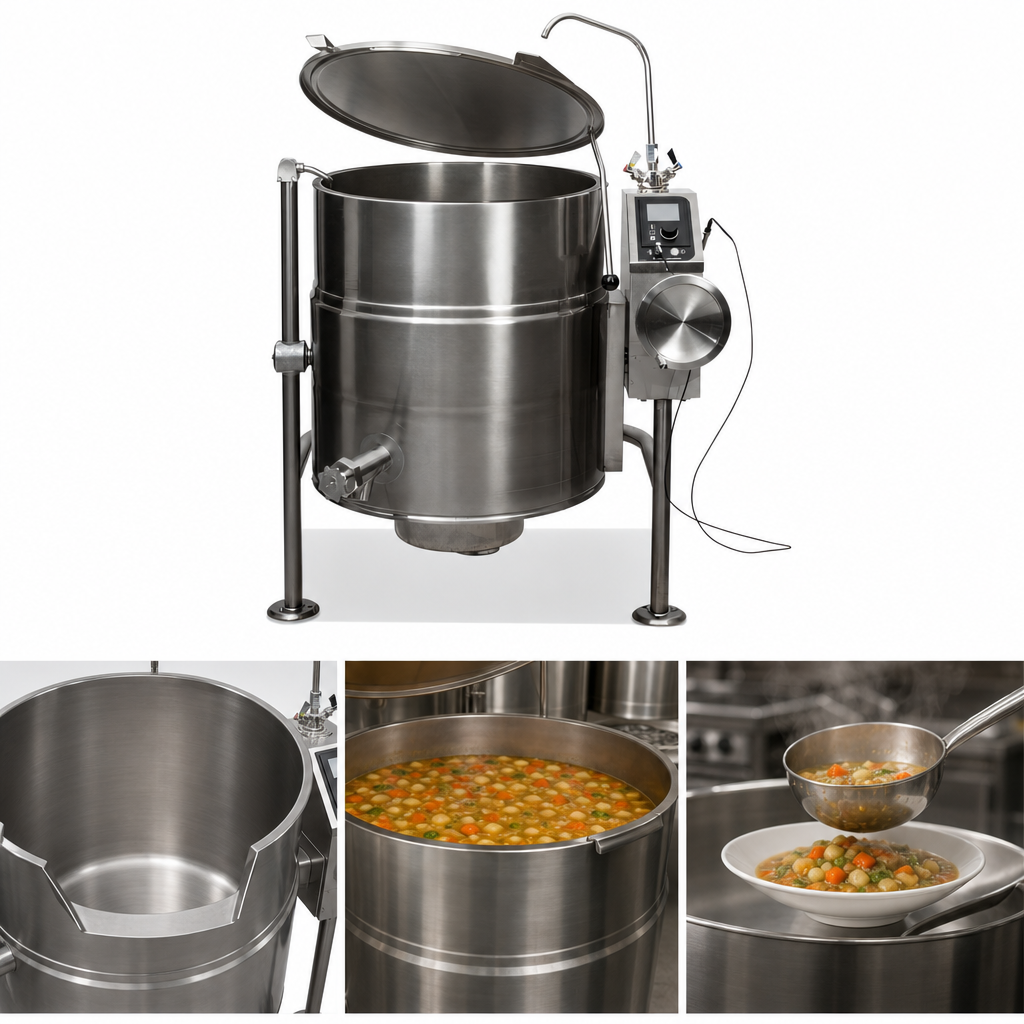

- Massive capacity: 100 gal / 375 L (1,600 × 8 oz servings).
- Self-contained 2/3 steam jacket is permanently filled—no boiler, venting or refilling required.
- 316 stainless-steel liner resists acidic foods; exterior is easy-to-clean 304 SS with #4 finish.
- Splash-proof solid-state controls (IPX6) hold set point within ±1 °C from 145 – 260 °F (63 – 127 °C).
- LED indicators for power, heat cycle and low-water keep operators informed at a glance.
- Solid-state water-level control—no sight glass to break or leak.

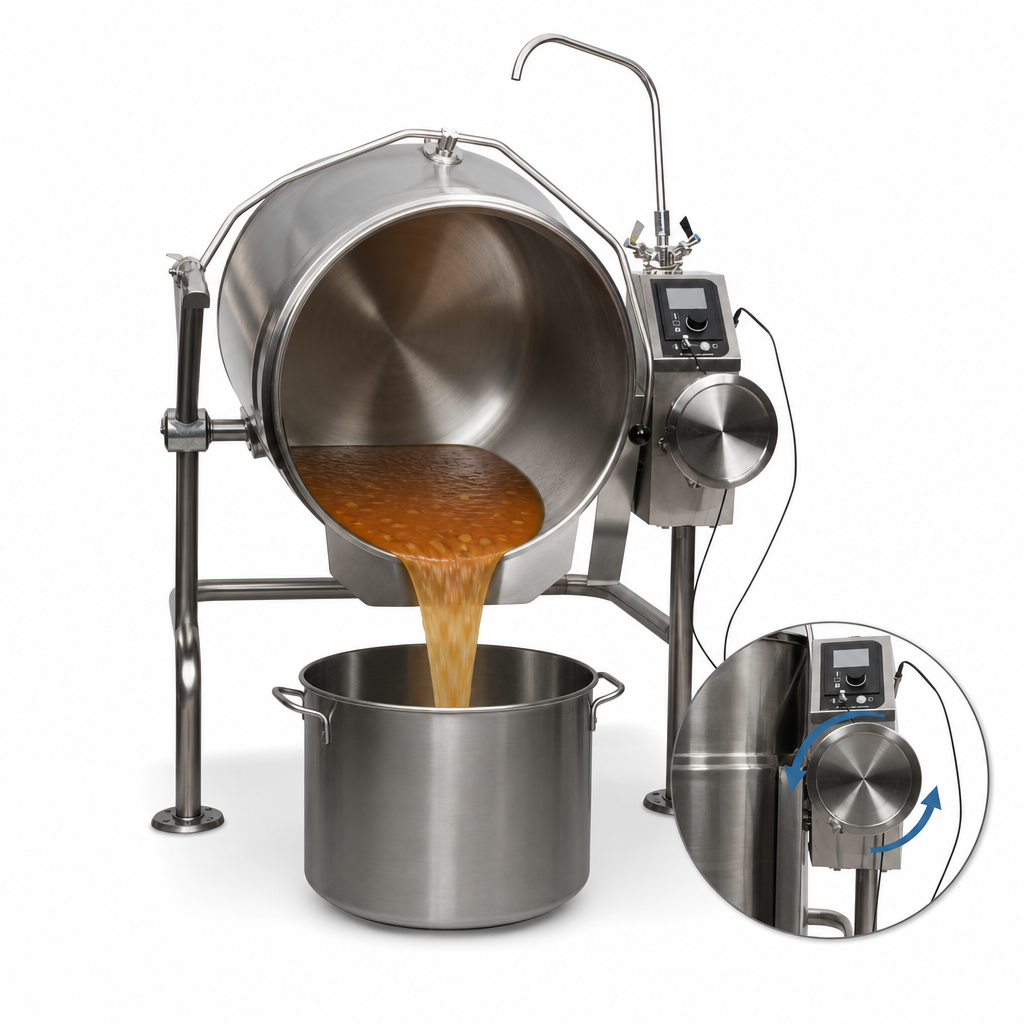

- Smooth, balanced tilt on roller bearings with self-locking worm & segment gear.
- Open tri-leg base (1 5/8" Ø) with flanged, bolt-down feet for rock-solid stability.
- 50 psi jacket rating allows higher cooking temperatures for faster throughput.
- Welded-in elements retain vacuum better—no gaskets to leak.
- UL, CSA, NSF, ASME & CE listed for peace of mind worldwide.
Technical specifications
| Capacity | 100 gal / 375 L |
|---|---|
| Construction | 304 SS exterior, 316 SS liner (food zone) |
| Jacket design | Self-contained 2/3 jacket, 50 psi |
| Controls | Solid-state thermostat (1-10 dial), LEDs for heat & low water |
| Temperature range | 145 – 260 °F / 63 – 127 °C |
| Electrical (standard) | 208–240 V, 60 Hz, 3 Φ, 29.4 kW (81.7 A @ 208 V) |
| Ingress rating | IPX6 (high-pressure water-jet safe) |
| Tilt | Manual crank, worm & gear, 100 ° pour angle |
| Overall dimensions* | W 51" × D 48.9" × H 71.3" |
| Shipping weight | 520 lb / 236 kg |
| Service clearance | 12" on right side |
| Certifications | UL, CSA, NSF, ASME, CE |
*Dimensions shown without optional draw-off valve or cover.
Popular options (sold separately)
- Spring-assisted, domed stainless-steel cover (CHS)
- 2" or 3" tangent draw-off valve (TD2 / TD3)
- easyDial™ programmable control panel
- Hot & cold water faucet with swing spout
- Core temperature probe, food strainers, basket supports & more
Warranty
Backed by Cleveland Range’s 1-year parts & labor warranty with optional extended coverage available.
