Cleveland Range KEL100 Steam Kettles

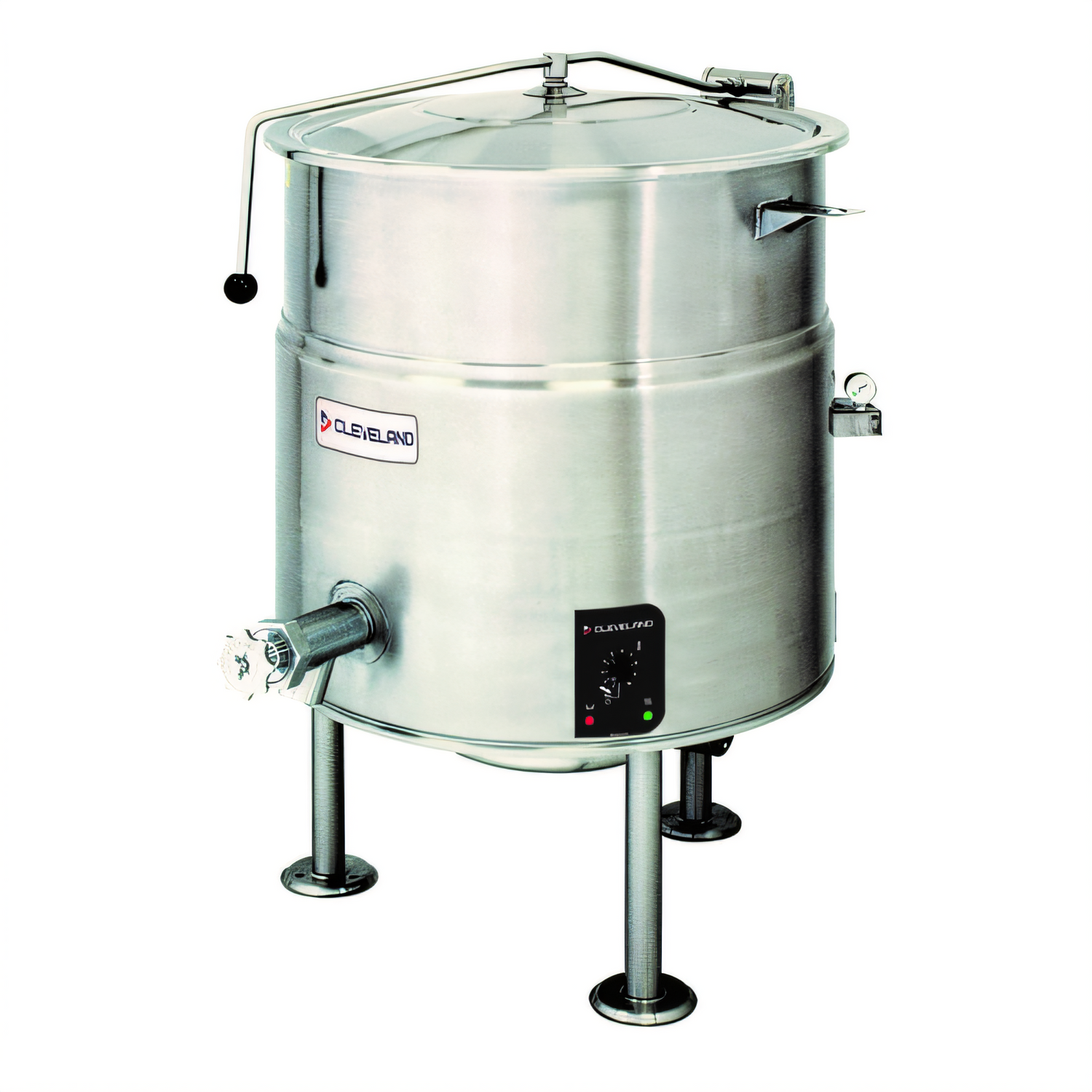

Cleveland Range KEL-100 | 100-Gallon Electric Tri-Leg Kettle

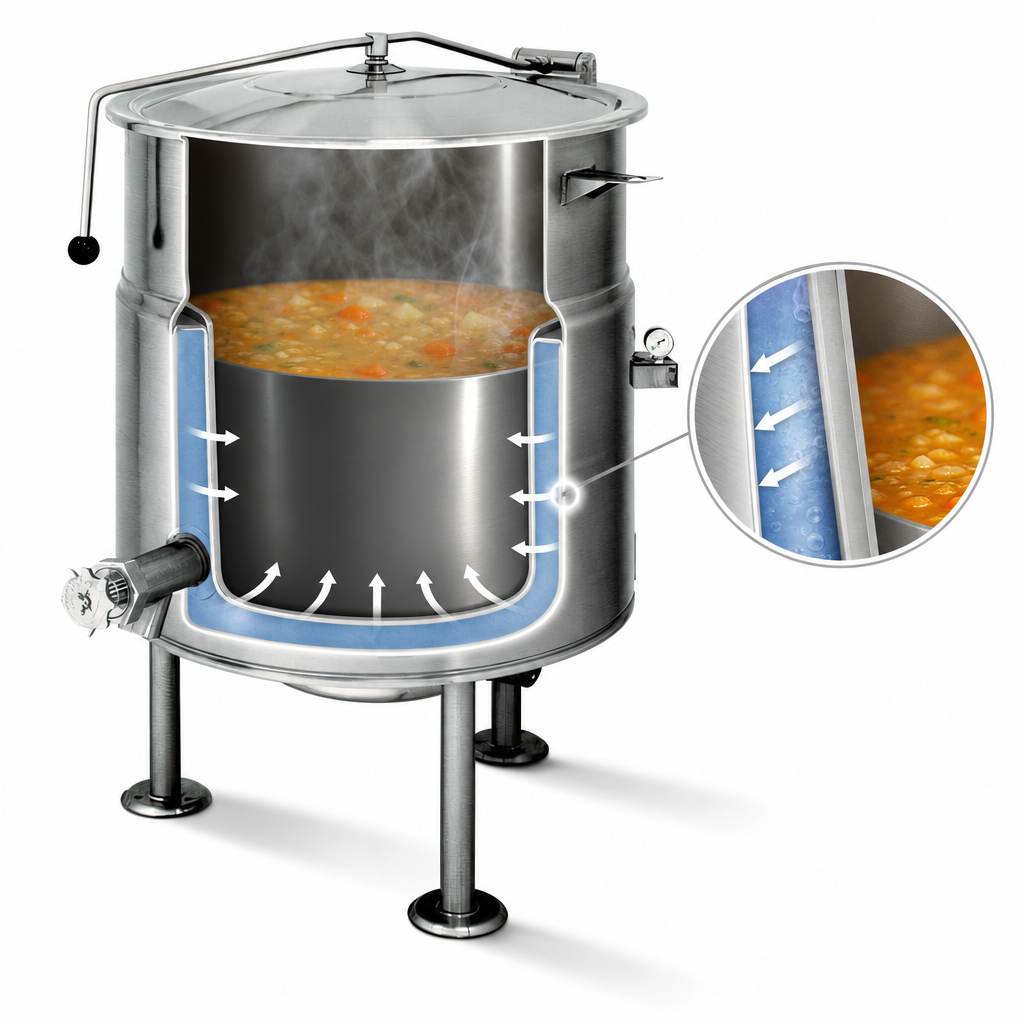

Engineered for high-volume kitchens that refuse to compromise on precision or durability, the Cleveland KEL-100 delivers up to 1,600 eight-ounce servings in a single batch. Its rugged 2/3 steam-jacketed design, solid-state controls and 316 stainless-steel liner guarantee consistent results—from delicate sauces to hearty stews—shift after shift.

Key Performance Features

• 100 gal / 375 L working capacity with extra-wide pouring lip for chunky foods.

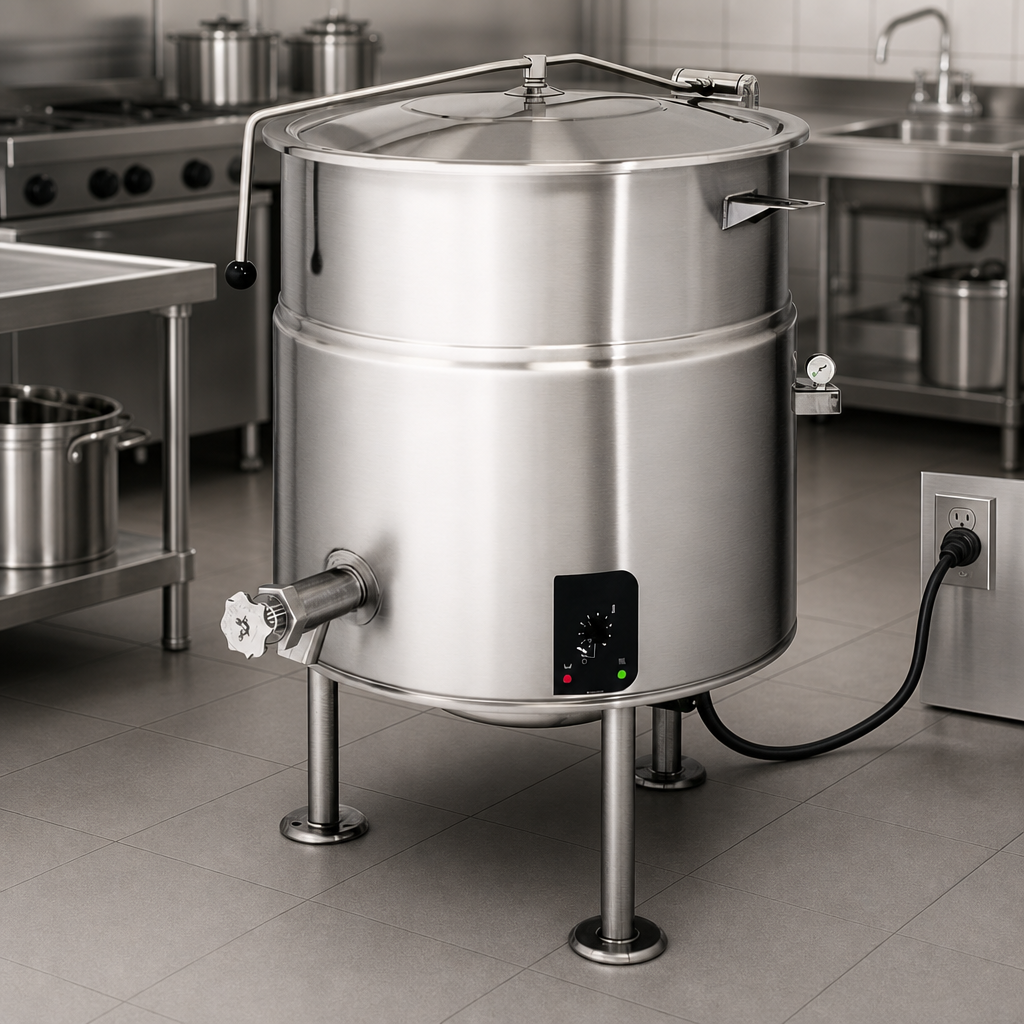

• Self-contained electric heating—no external boiler or water connections required.
• 50 psi steam jacket allows higher cooking temperatures for faster throughput.
• Precision solid-state temperature control (145 – 260 °F / 63 – 127 °C) with ±1 °C accuracy.
• Solid-state water-level monitoring—no sight glass to clean or break.
• Welded-in heating elements maintain vacuum seal and eliminate jacket leaks.
• IPX6 splash-proof control housing with heat-cycle & low-water LED indicators.
• Factory-sealed, treated jacket fluid—never needs venting or refilling.

Built for Heavy-Duty Use

• 304 stainless-steel exterior with #4 sanitary finish; 316 SS liner resists acidic foods.
• Re-enforced rolled rim prevents the dents common with “bar-rim” kettles.
• Tri-leg open base with 1 5/8″ OD tubular legs, flanged feet and height adjustment for secure floor bolting.
• Rear-mounted pressure gauge & ASME relief valve deter operator tampering.
• Hinged, spring-assisted domed cover for safe one-hand operation.

Sanitation & Safety

• 2″ tangent draw-off valve with included food strainer speeds draining and cleaning.
• Water-resistant IPX6 construction stands up to routine wash-downs.
• NSF, UL, CSA, ASME & CE listings meet the toughest code requirements.

What’s Included

• Spring-assisted hinged stainless-steel cover (factory installed)
• 2″ tangent draw-off valve with removable strainer
• Faucet mounting bracket (ready for hot/cold filler or rinse nozzle)
• Operator’s manual & performance start-up by a Factory Authorized Servicer

Technical Specifications

*Dimensions and weight are nominal. Refer to the installation manual for exact clearances and anchoring requirements.

Warranty & Support

• 1-year parts & labor warranty (18 months from shipment, whichever occurs first)
• Factory Authorized start-up included with water-quality check
• Additional 4-year prorated parts coverage on the steam jacket
• Extended warranties available at time of purchase
