Cleveland Range KDT6T Steam Kettles
Description

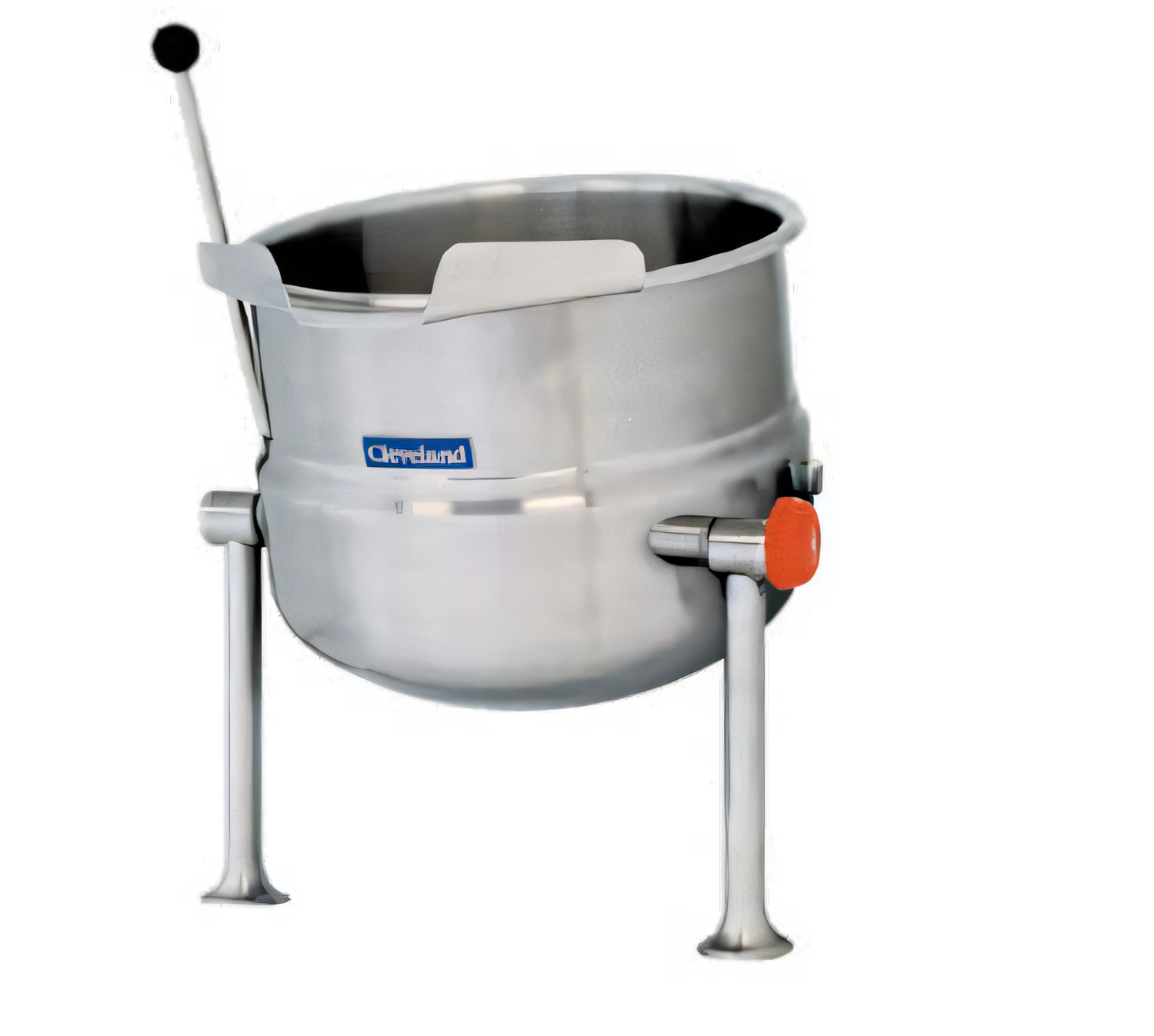

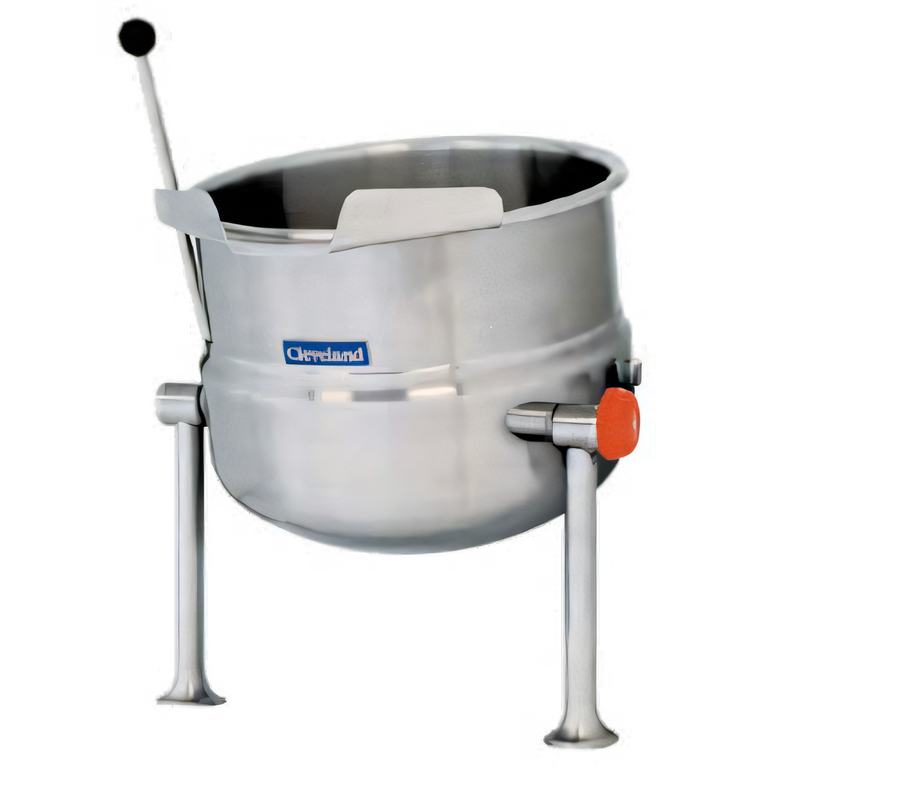

Cleveland KDT-6-T Direct-Steam Tilting Kettle – 6 Gallon

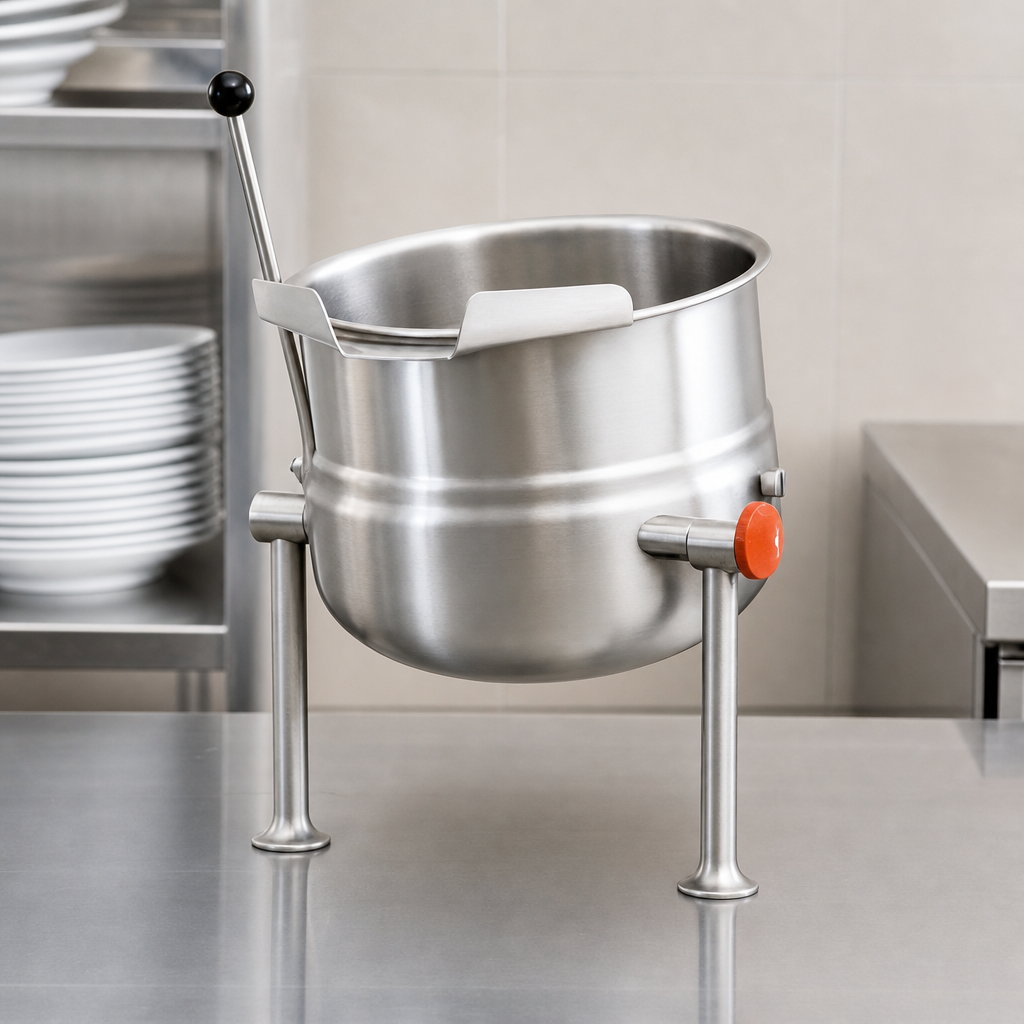

Countertop • 2/3-Jacket • Right-Hand Steam & Tilt ControlsProduce up to 160 four-ounce servings of soup, sauce, stock or stew from a compact footprint that slides neatly onto any worktable. The Cleveland KDT-6-T couples heavy-duty 304 stainless steel construction with a 316 stainless liner for superior corrosion resistance when cooking acidic products. Balanced manual tilting, direct steam efficiency and NSF/ASME compliance make it a smart, reliable solution for high-volume, small-batch production.
Why this kettle rocks
- 6 gal / 23 L capacity – ideal for restaurants, schools and commissaries.

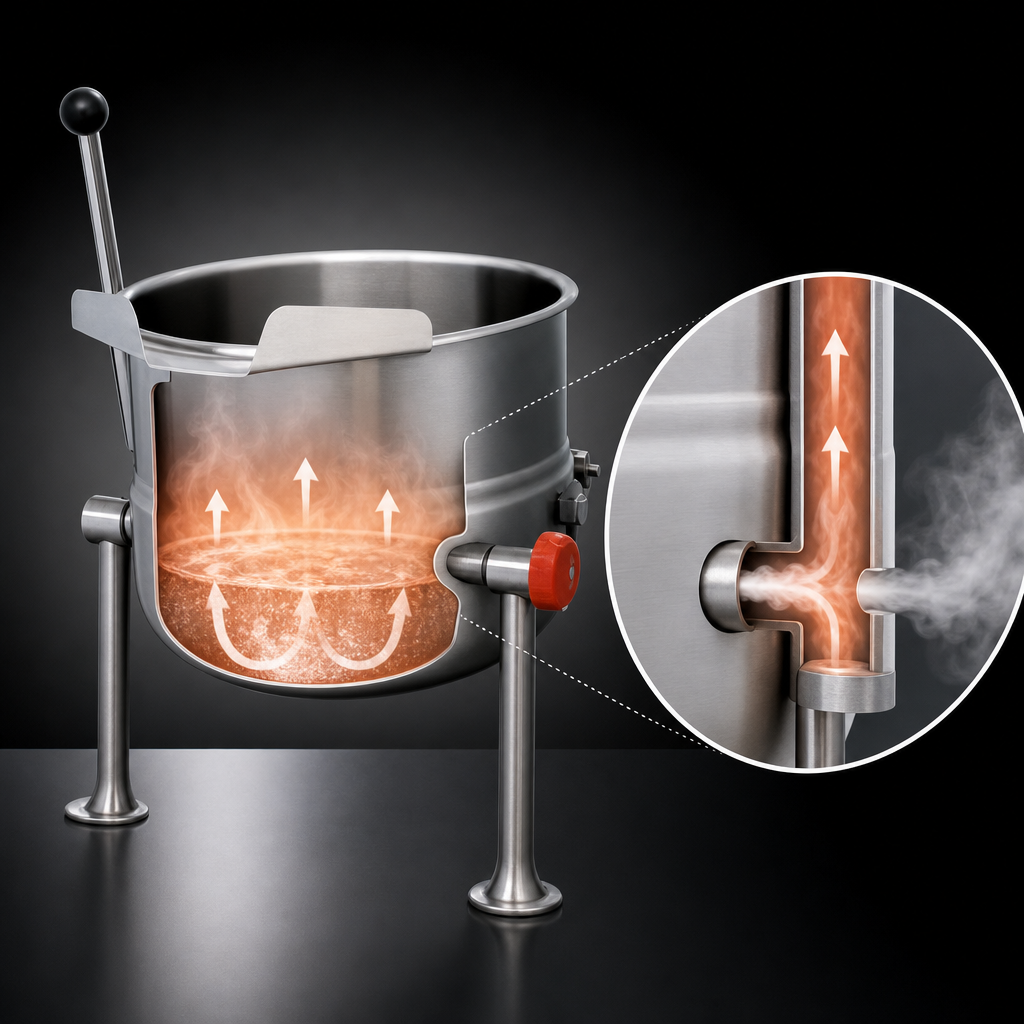

- 2/3 steam jacket surrounds product for even heating and quicker recovery.
- Manual tilt with single support arm – smooth, balanced pour controlled from the right-hand handle.
- 304 SS exterior + 316 SS liner – resists pitting from tomato-based and other acidic foods.
- 50 psi jacket rating with chrome-plated safety valve for built-in protection.
- High-capacity pouring lip – minimizes drips and speeds pan filling.
- Steam control valve included; ¾″ NPT steam inlet simplifies hook-up.
- Meets NSF and ASME sanitation and pressure vessel standards.
Perfect for
- Soups, chowders & chilis
- Sauce and gravy production
- Pasta, rice & grain cook-off
- Custards, puddings & oatmeals
- Re-thermalizing bagged or canned product
Technical specifications
| Model | KDT-6-T |
|---|---|
| Capacity | 6 gal | 23 L | ≈160 (4 oz) servings |
| Construction | 304 SS exterior, #4 finish 316 SS cooking surface |
| Heating method | Direct external steam, 5-45 psi supply |
| Jacket rating | 50 psi (steam) |
| Steam connection | ¾″ NPT (minimum) |
| Controls | Right-hand mounted steam control valve & tilt handle |
| Tilting | Manual, balanced, 120° dump angle |
| Dimensions (W×D×H) | 23″ × 26″ × 27″ (584 × 660 × 686 mm) |
| Shipping weight | 48 lb / 22 kg |
| Certifications | NSF, ASME |
What’s included
- Factory-installed steam control valve
- Chrome-plated 50 psi safety valve
- Right-hand tilt & steam lever assembly
- Owner’s manual & 1-year parts & labor warranty*
Popular accessories (sold separately)
- ST-28 stainless kettle stand or table
- Food strainers (FS series)
- Steam pressure-reducing valve (PRV) for supplies >45 psi
- Steam control kit (SCK-2) – trap, strainer & check valve bundle
- Single or double pantry faucets with swing spouts
- One-piece lift-off cover (CL- series)
*Standard limited warranty: 1 year parts & labor (18 months from shipment if sooner). Extended coverage available at time of purchase.
