Cleveland Range KDT20T Steam Kettles
Cleveland Range KDT20T Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KDT20T Steam Kettles
Description

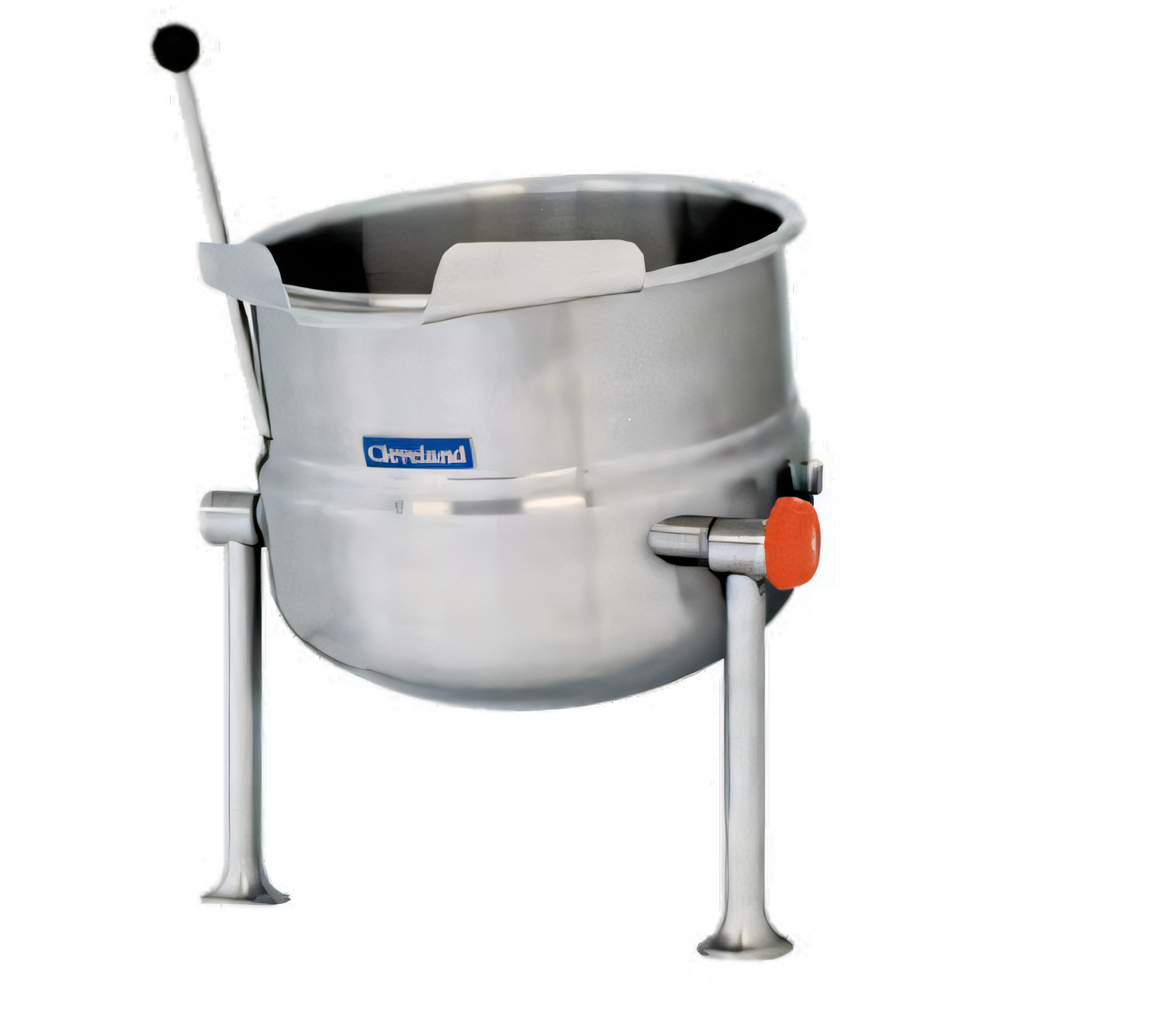

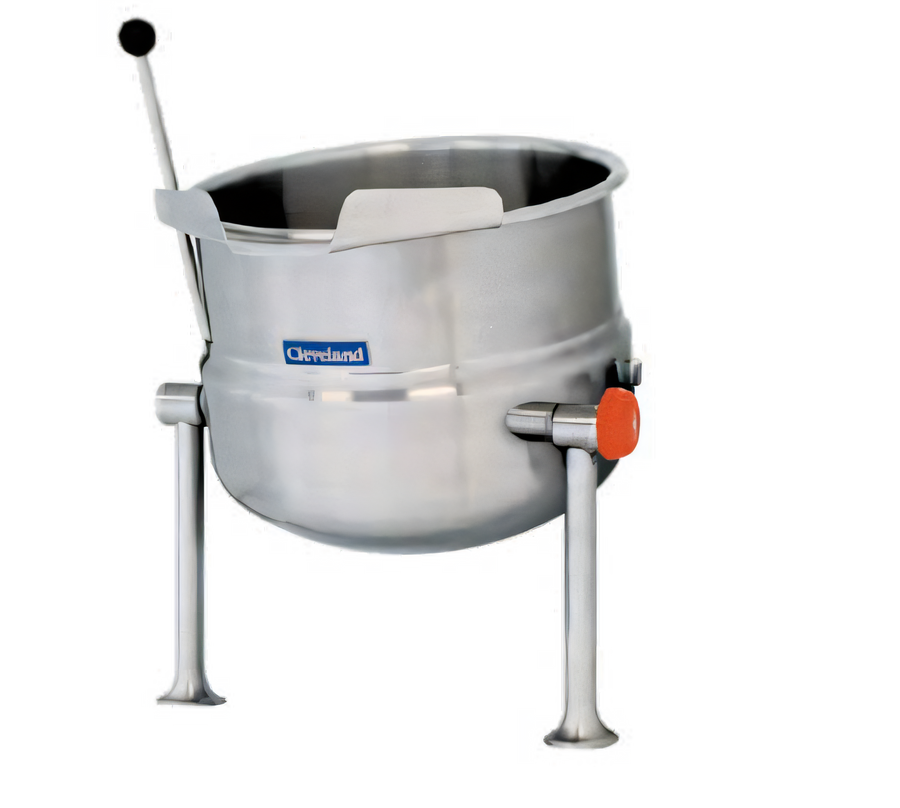

Cleveland KDT-20-T 20 Gallon Countertop Tilting Direct-Steam Kettle
2⁄3 Steam Jacket • 316 SS Liner • Right-Hand Steam Valve & Tilt HandleEngineered for demanding commercial kitchens, the Cleveland KDT-20-T delivers fast, even heating and effortless portioning in a compact, countertop footprint. Its 20 gallon (80 L) capacity, rugged stainless-steel construction and balanced manual tilt make it the perfect workhorse for soups, sauces, pastas and more.
Why You’ll Love It

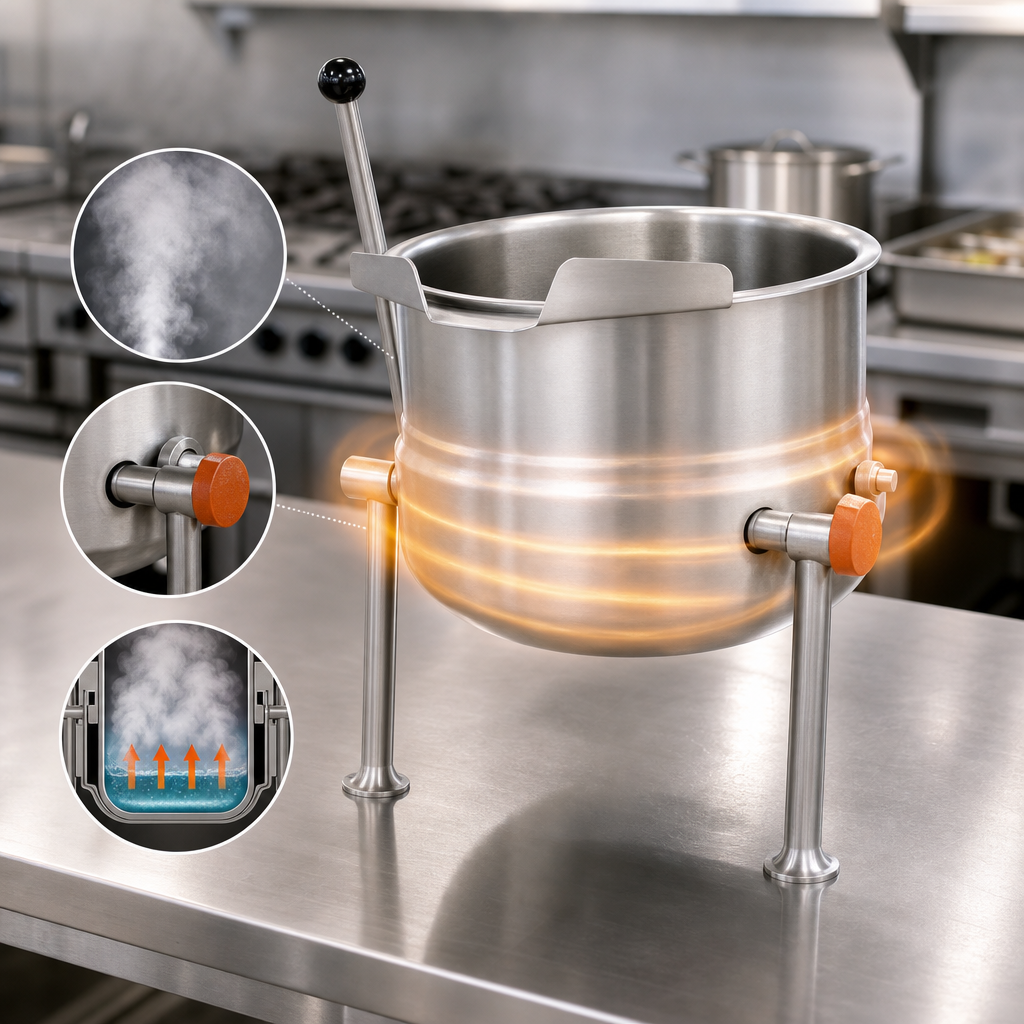

- Direct-steam design reaches cooking temperature in seconds—no internal boiler to maintain.
- 2⁄3 steam jacket surrounds product zone for uniform heat with 50 psi jacket rating.
- 316 series stainless-steel liner resists acidic or salty recipes for a longer service life.
- Integrated, compact steam control valve built into the trunnion (right-hand standard).
- Easy, balanced manual tilt with large pouring lip—ideal for chunky products.
- Single support arm keeps the countertop clear and simplifies cleaning.
- All exterior surfaces are stainless steel for lasting durability and a professional look.
- 50 psi chrome-plated safety valve for peace of mind.
- Tilt handle and valve can be switched to left-hand orientation in the field if required.
- NSF & ASME compliant.
Production Capacity
Up to 704 portions per batch (4 oz / 118 ml servings). Perfect for high-volume batch cooking, commissary work or school nutrition programs.
Technical Specs
| Model | KDT-20-T |
|---|---|

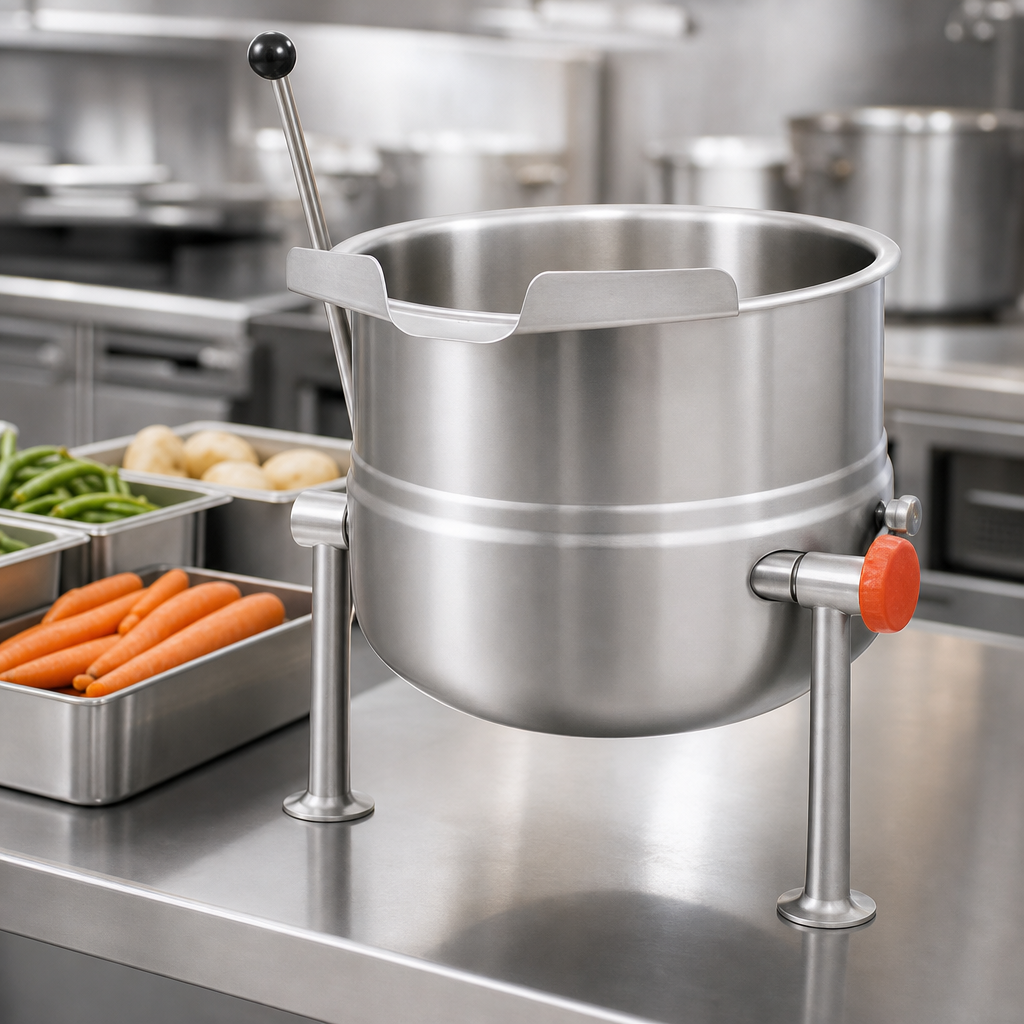

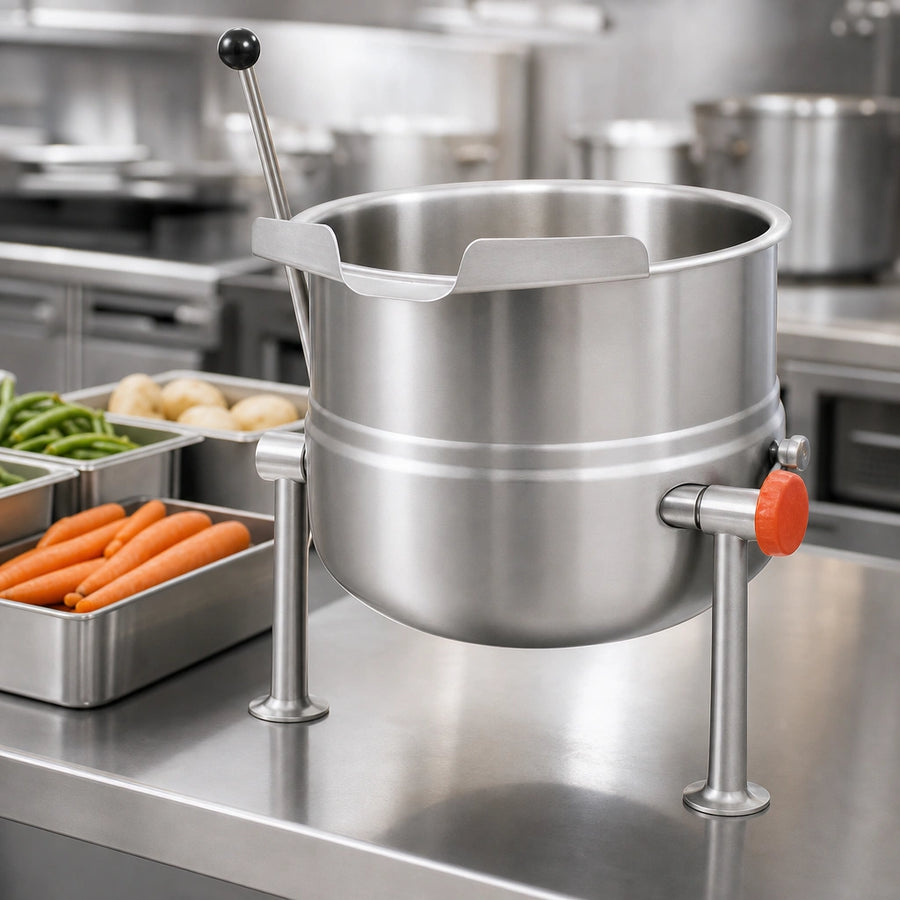

| Capacity | 20 gal / 80 L |
| Steam Source | External (direct steam connection required) |
| Jacket Coverage | 2⁄3 of kettle body |
| Jacket Working Pressure | 50 psi (3.4 bar) |
| Interior Liner | 316 stainless steel |
| Exterior Finish | All stainless steel |
| Controls | Built-in steam control valve, right-hand |
| Tilting Mechanism | Manual, balanced; right-hand handle |
| Shipping Weight | 90 lb / 41 kg |
| Shipping Dimensions | 24" W × 24" D × 24" H (610 × 610 × 610 mm) |
| Certifications | NSF, ASME |
Popular Accessories (Sold Separately)
- ST28 stainless-steel equipment stand (adapter top AK required).
- SCK2 chrome-plated remote steam control kit.
- Lift-off cover (model CL-20) for faster heating and reduced evaporation.
- Cooking baskets (BS series) and food strainers (FS series).
- PRV-K pressure-reducing valve for incoming steam above 45 psi.
- Self-locking hand-tilt kit (HTK) for added operator control.
Warranty
Backed by Cleveland’s 1-year limited parts & labor warranty, with optional extended coverage available at time of purchase.
Stand/table, direct-steam supply line, and all plumbing connections are required but not included. Installation must comply with local codes.
