Cleveland Range KDT12T Steam Kettles
Description

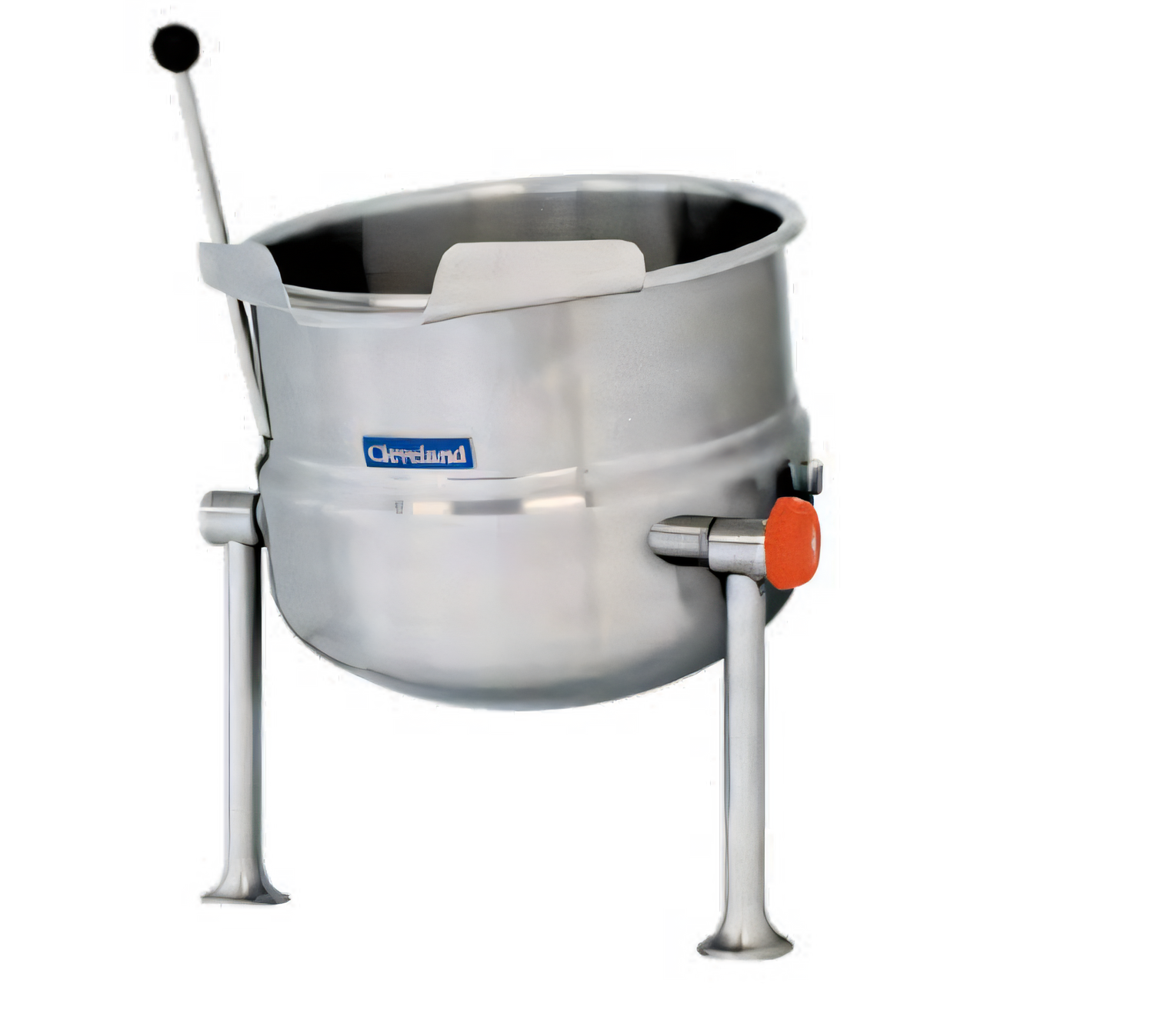

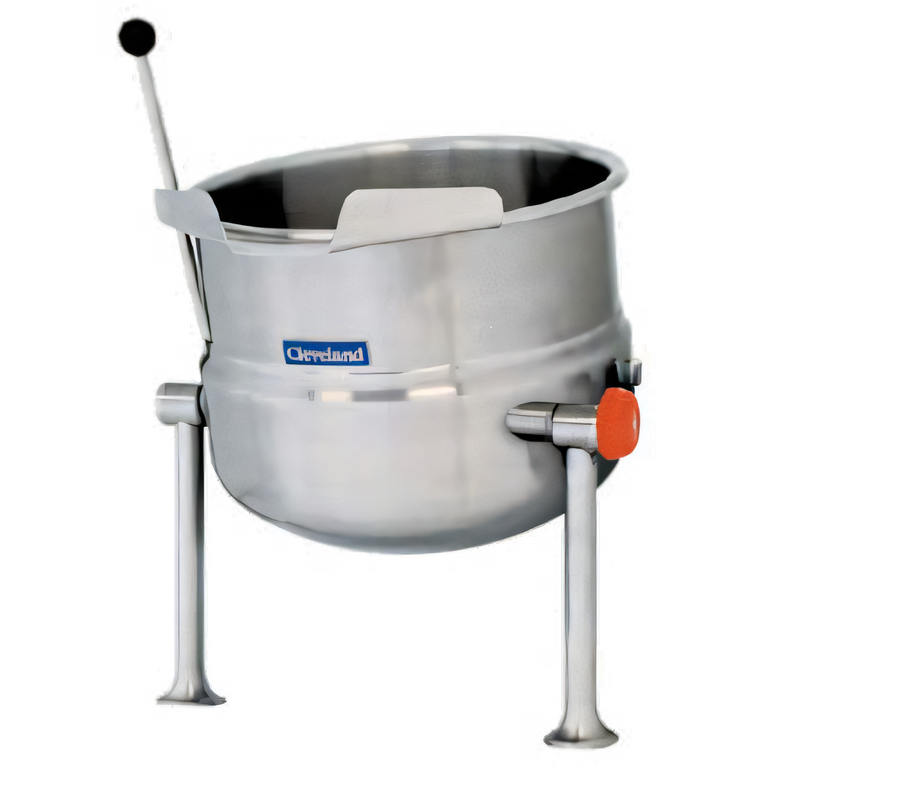

Cleveland KDT-12-T 12-Gallon Direct Steam Tilting Kettle
Countertop • 2/3 Jacket • 316 Stainless Liner • Right-Hand ControlsBring high-volume production to your work table without sacrificing space. The Cleveland KDT-12-T is a compact, direct-steam kettle that delivers 12 gallons of fast, even cooking—perfect for soups, sauces, pastas and more. Its balanced manual tilt, integrated steam control valve and rugged 316 stainless interior make it the go-to choice for demanding commercial kitchens.
Key Advantages

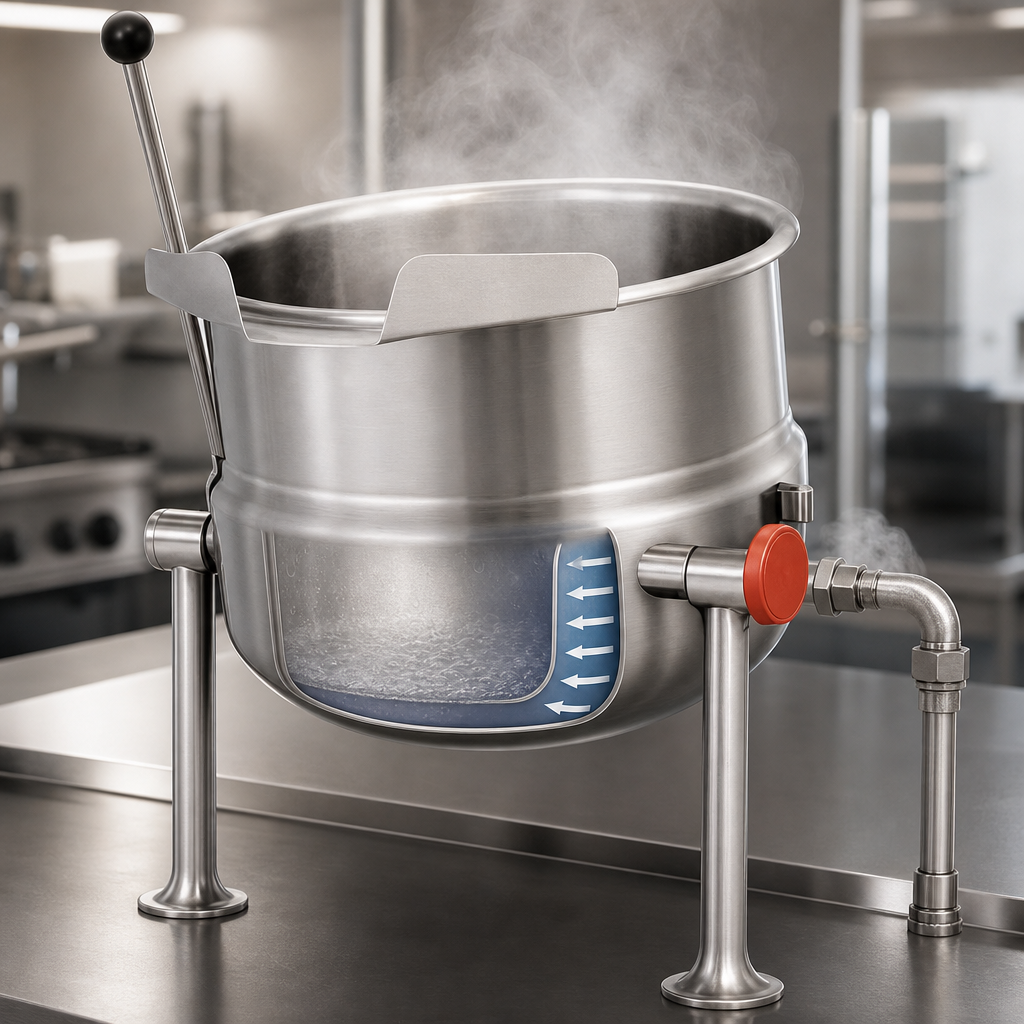

- 2/3 steam jacket envelops the side and bottom for rapid, uniform heat distribution.
- Durable 316 series stainless steel liner resists corrosion from acidic foods.
- Right-hand, trunnion-mounted steam control valve keeps adjustments within easy reach.
- Balanced single-arm tilt with oversized handle lets one person pour safely and smoothly.
- Large, formed pouring lip handles thick or chunky products without splatter.
- 50 psi jacket rating with chrome-plated safety valve for high-pressure systems.
- All-stainless exterior cleans quickly and maintains a polished, professional look.
- NSF & ASME certified for code-compliant installation.
Ideal For
- Batch cooking up to 352 four-ounce servings of soups, stews or chili.
- Par-cooking pasta, rice or grains for banquet service.
- Finishing or holding sauces, gravies, custards and reductions.
- Heating or re-thermalizing bagged or canned product in bulk.
Specifications
| Model | KDT-12-T |
|---|---|

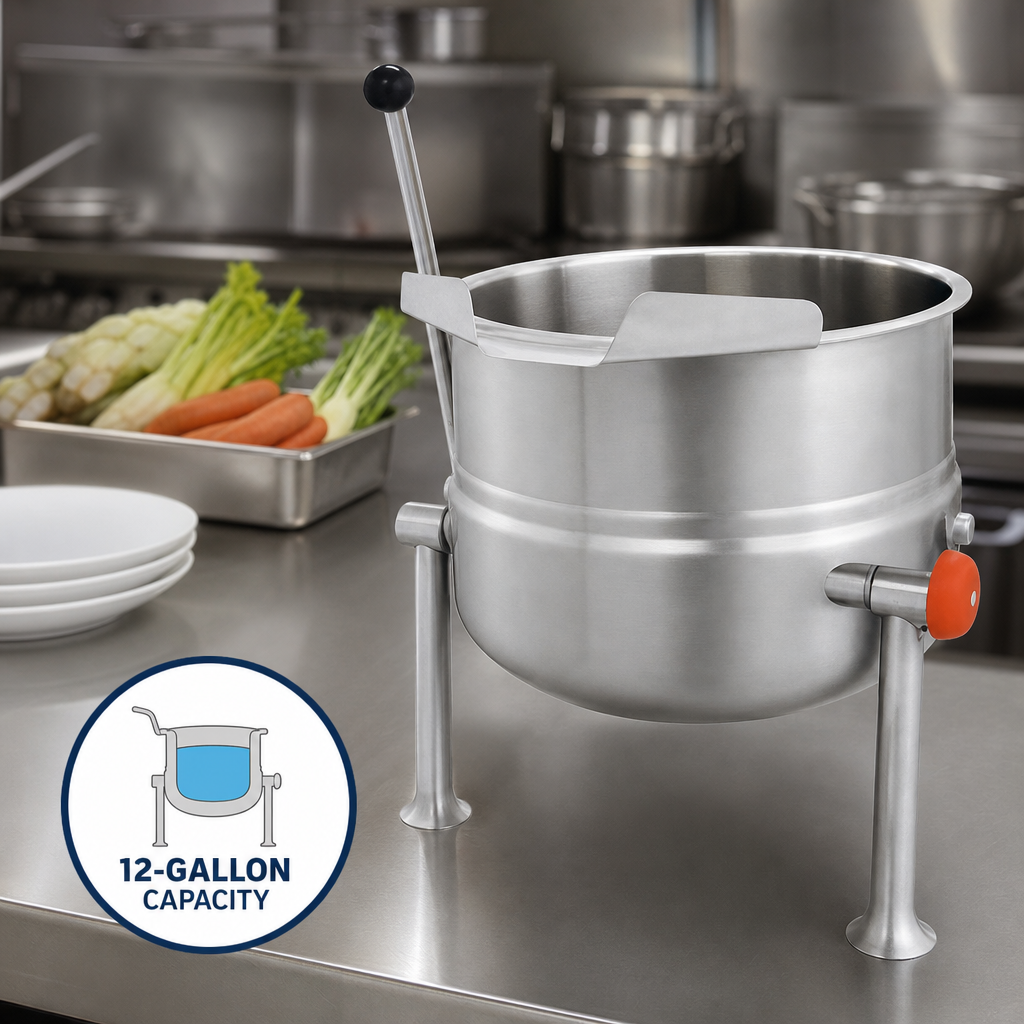

| Capacity | 12 gal / 45 L (≈352 4 oz servings) |
| Jacket Coverage | 2/3 steam jacket |
| Operating Pressure | 50 psi maximum |
| Steam Inlet | 3/8" NPT (right side) |
| Tilt Mechanism | Manual hand wheel, balanced (right-hand – field reversible) |
| Liner Material | 316 stainless steel |
| Exterior | All stainless steel |
| Dimensions (W × D × H) | 23" × 26" × 27" (584 × 660 × 686 mm) |
| Shipping Weight | 74 lb / 34 kg |
| Certifications | NSF, ASME |
| Warranty | 1-year parts & labor + 4-year prorated kettle body parts |
Popular Options & Accessories
- ST28 stainless equipment stand (required for freestanding installation)
- Left-hand steam control valve & tilt handle (no charge)
- Self-locking hand tilt kit (HTK)
- Chrome-plated steam control kit (SCK2)
- Water faucet kits: hot/cold (DPK) or cold-only (SPK)
- Lift-off cover (CL- series), cooking baskets (BS) and food strainers (FS)
- Pressure reducing valve for incoming steam > 45 psi (PRV-K)
Table or stand sold separately. Unit requires a regulated direct steam supply.
