Cleveland Range KDL80TSH Short Series Steam Kettles
Description

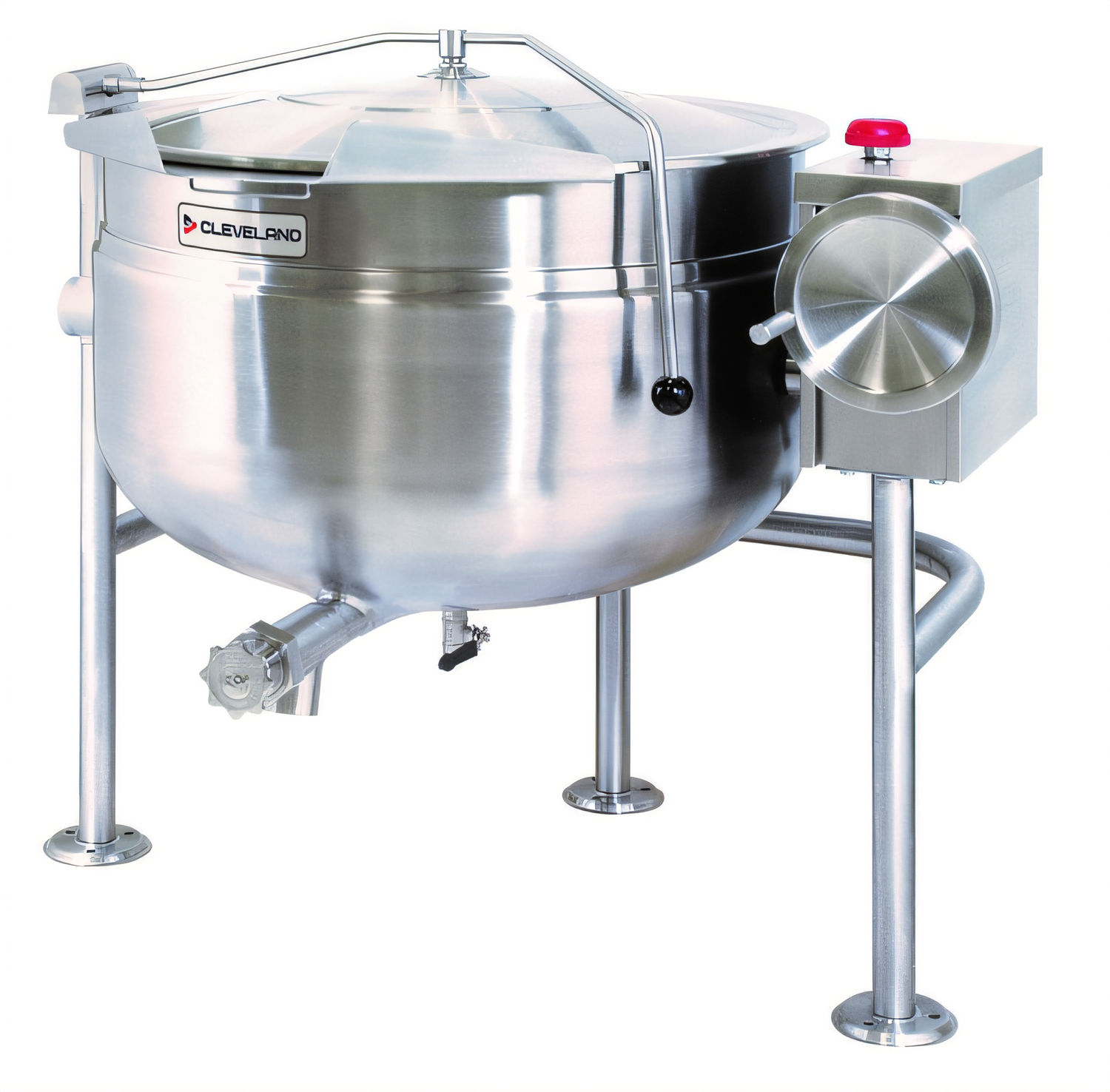

Short Series™ 80-Gallon Tilting Steam Jacketed Kettle

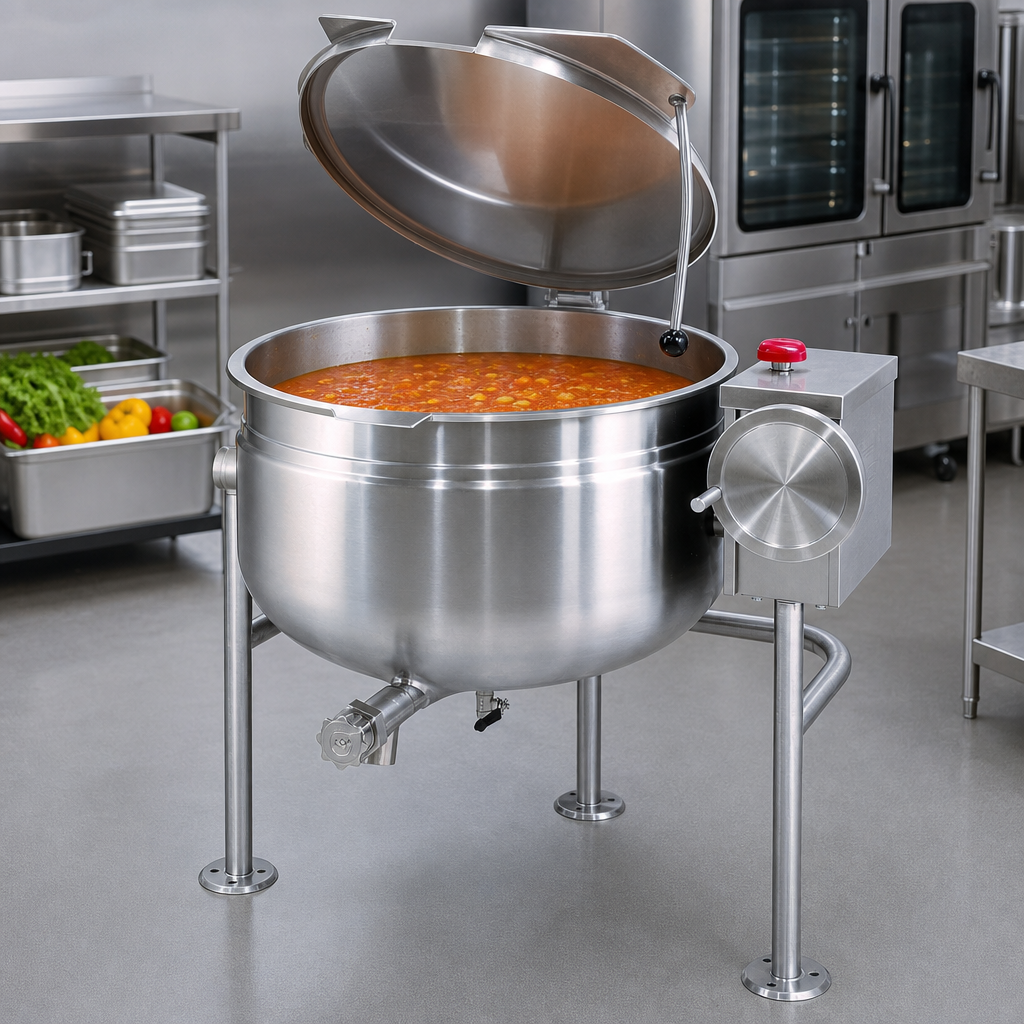

Model KDL-80-TSH | 35" rim height | Direct-Steam HeatedBuilt for the rigors of institutional and high-volume food production, the Cleveland Range Short Series™ KDL-80-TSH delivers reliable, high-efficiency batch cooking with the operator-friendly ergonomics of a 35-inch rim height. Its fully steam-jacketed, 316 stainless-steel kettle body tilts effortlessly to pour up to 80 gallons / 300 litres of product—equal to 1,280 eight-ounce servings—while the open tri-leg base keeps the floor clear for easy cleaning.
Key Performance Features

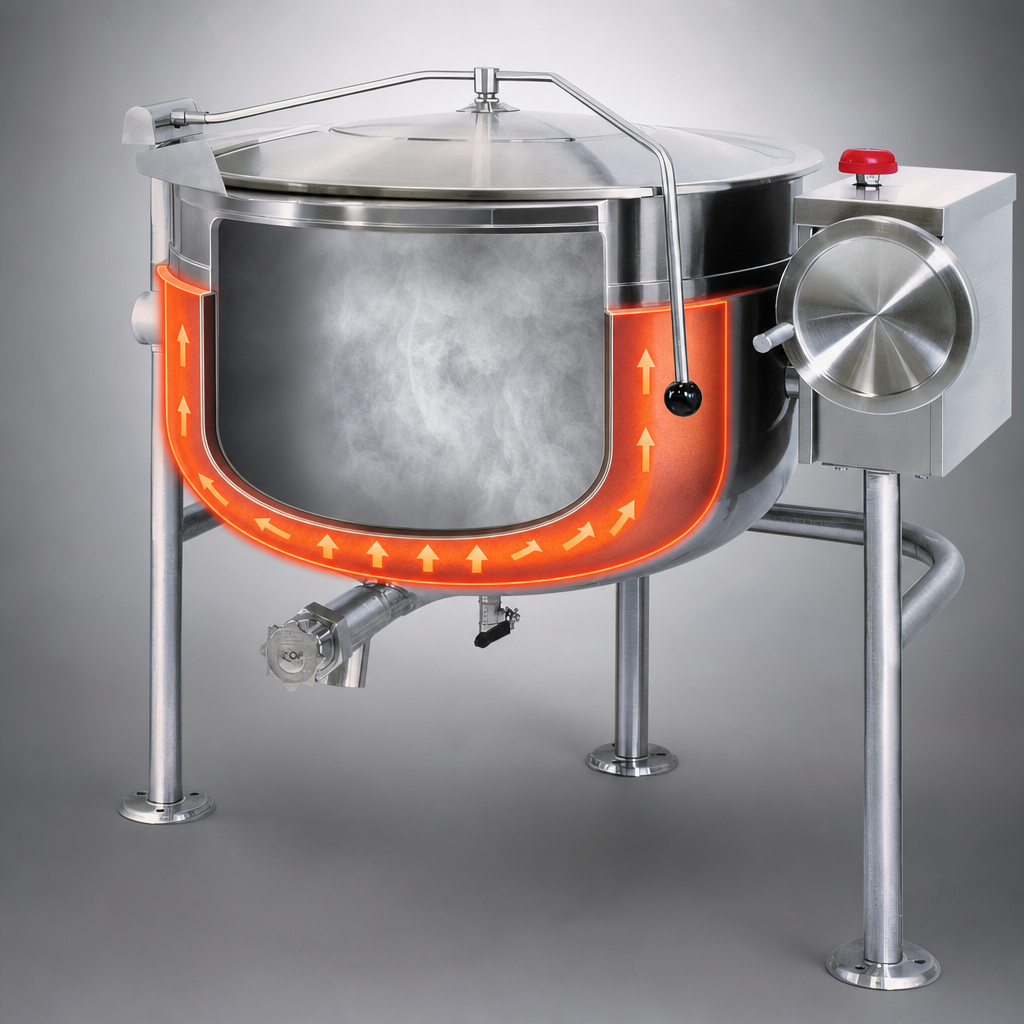

- Full 2/3 steam jacket surrounds the kettle for fast, even heating and maximum thermal efficiency.
- Direct-steam connection eliminates on-board boilers—perfect for central-plant steam kitchens.
- 316 stainless-steel liner resists corrosion from acidic foods such as tomato sauces and fruit fillings.
- Self-locking worm-gear tilt holds position securely and is permanently lubricated for life-long service.
- Low 35" cooking rim reduces lifting and improves operator safety and visibility.
- Rolled-edge pouring lip offers drip-free transfer and heavy-duty reinforcement against impact damage.
- Chrome-plated 50 psi ASME safety valve and steam control inlet valve factory-installed.
- Condensate drain valve with insulated handle speeds clean-up and protects hands from heat.
- Open tri-leg base with flanged, height-adjustable feet bolts securely to the floor for rock-solid stability.
- NSF & ASME certified; proudly manufactured in the USA.
At-a-Glance Specifications
| Capacity | 80 gal / 300 L (≈1,280 8-oz servings) |
|---|---|
| Heating Source | Direct external steam (customer-supplied) |
| Jacket Rating | 50 psi (3.45 bar) working pressure |
| Kettle Interior | 316 series stainless steel, polished |
| Exterior & Supports | 304 series stainless, #4 finish |
| Rim Height | 35 in / 889 mm |
| Tilt Mechanism | Manual, self-locking, worm-gear drive |
| Base Style | Open tri-leg with flanged, adjustable feet |
| Controls & Valves | Steam inlet control valve, chrome safety valve, condensate drain valve |
| Certifications | NSF, ASME |
| Standard Warranty | 1-year parts & labor (see Warranty tab for details) |
Popular Options & Accessories (sold separately)
- 2" tangent draw-off valve (TD2)
- Spring-assist cover (CHS) or lift-off cover (CL)
- Basket or tri-basket strainer systems (BS, TBS)
- Measuring strip (MS) or etched kettle markings (KM)
- Factory steam-control kit with trap, strainer & check valve (SCK1)
- Water faucet kits – cold (SPK) or hot & cold (DPK) with bracket (FBKT)
- Pan carriers, accessory kits, correctional packages & more
Cleveland Range provides a standard 1-year parts & labor warranty and offers extended coverage plans for added peace of mind. Performance start-up by a Factory Authorized Servicer is available at no extra charge when requested at installation.
