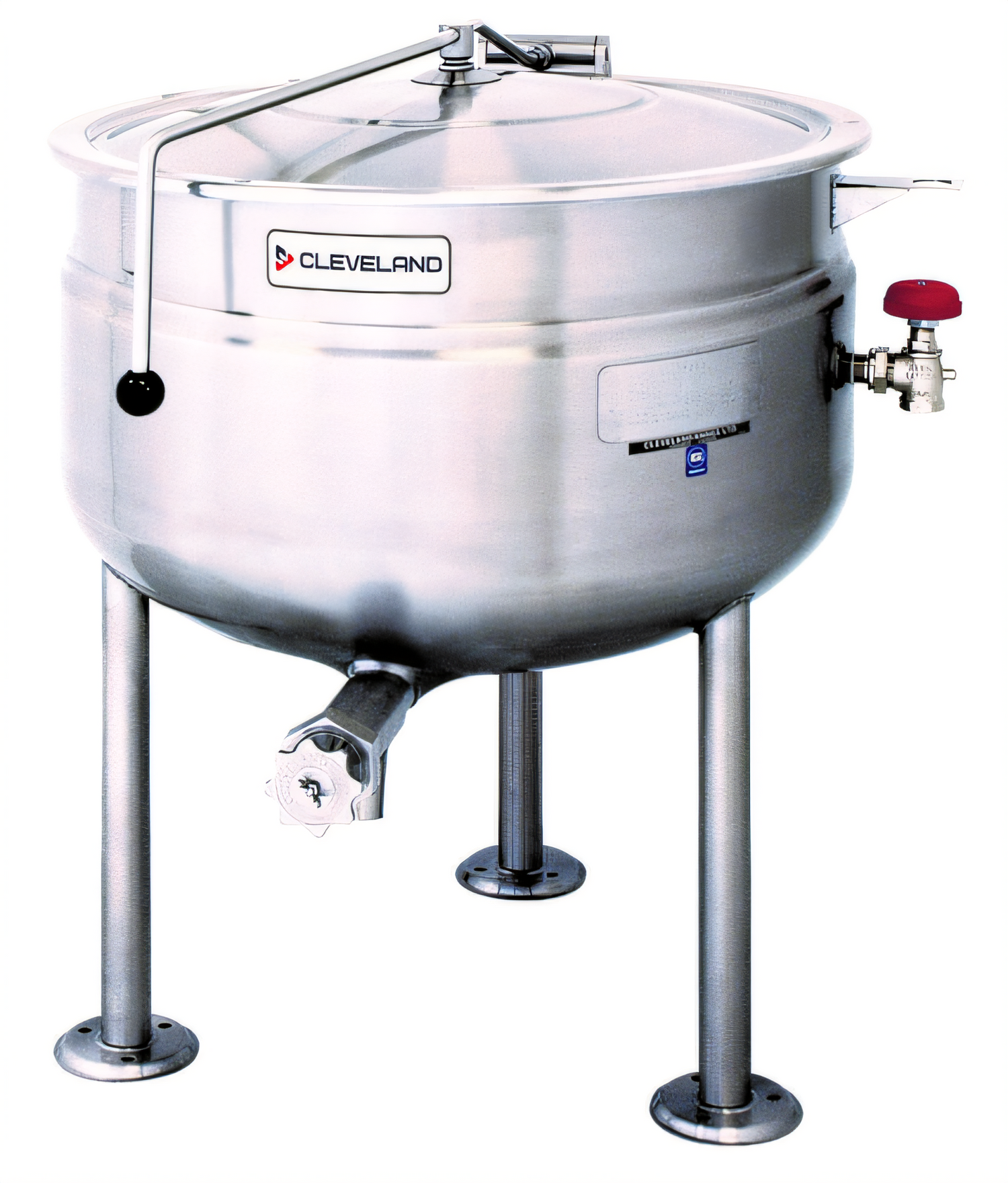

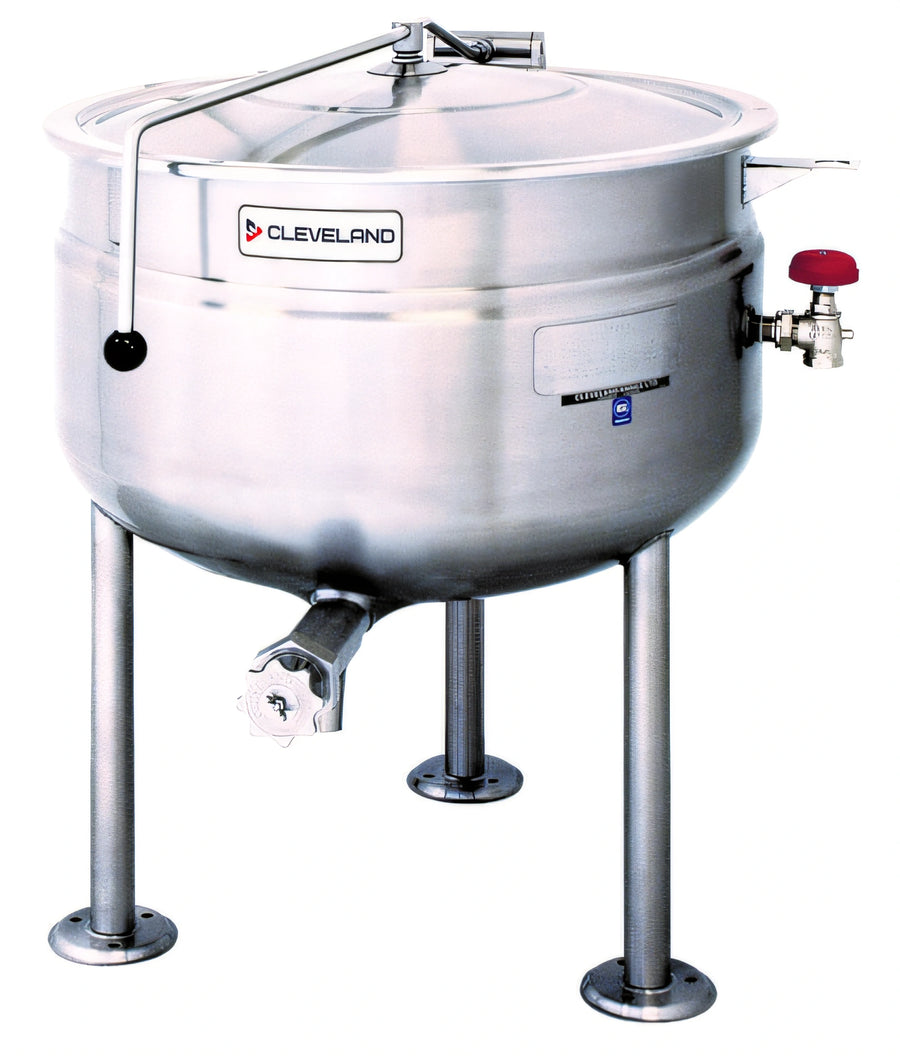

Cleveland Range KDL80SH Short Series Steam Kettles
Description
Short Series™ 80-Gallon Direct-Steam Jacketed Kettle
Model KDL-80-SH | by Cleveland RangeEngineered for high-volume commercial kitchens that rely on uncompromising consistency and speed, the Short Series™ KDL-80-SH delivers 80 gallons (300 L) of evenly heated capacity in a compact, 34.8 in. rim height footprint. Its full steam jacket, 50 psi rating, and rugged 316 series stainless interior let you simmer, poach, braise or re-therm with rapid recovery and pinpoint control—all while standing up to the harshest daily use.
Key Advantages

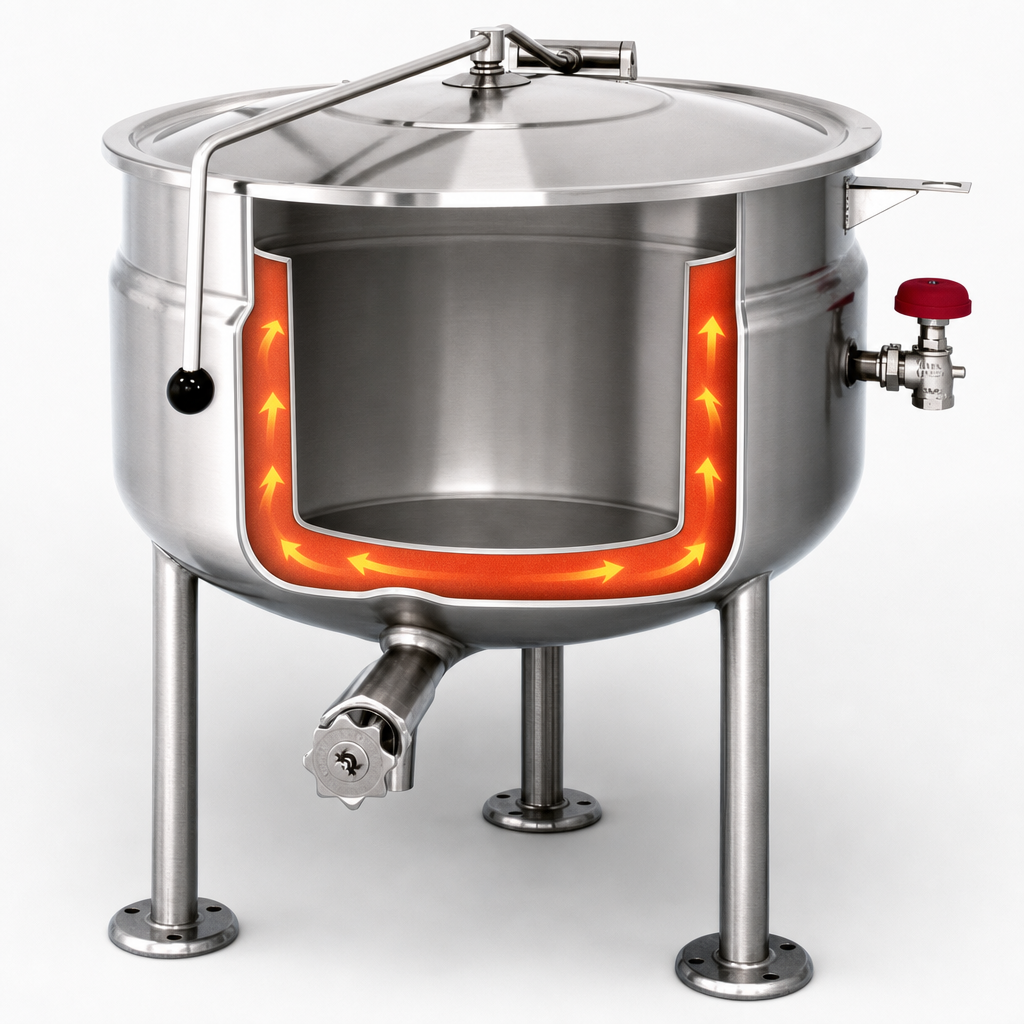

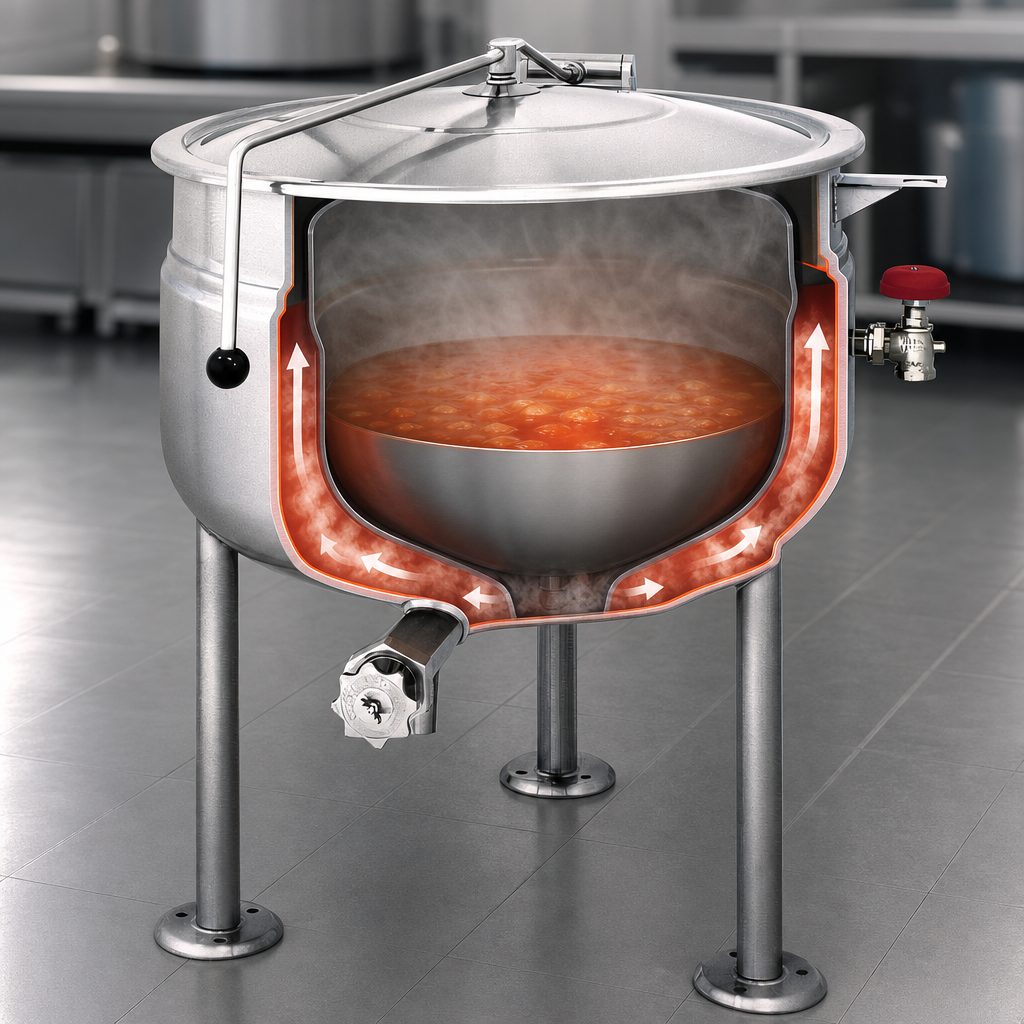

- Direct-steam, full-jacket design transfers heat across the entire side & bottom for faster, more uniform cook times.
- 80-gallon (300 L) capacity—up to 1,280 eight-ounce servings per batch.
- Durable 316 stainless steel interior resists acidic foods and aggressive cleaning chemicals.
- Open tri-leg base with flanged, height-adjustable feet for rock-solid floor anchoring.
- Spring-assisted domed cover lifts easily and stays put at any angle for hands-free operation.
- Factory-installed 2 in. tangent draw-off valve with removable drain strainer speeds portioning and clean-out.
- Solid-state temperature controls maintain precise cooking or holding temps without constant monitoring.
- Integrated steam inlet control valve plus faucet mounting bracket for convenient water fill options.
- Rated 50 psi with chrome-plated safety valve; ASME & NSF compliant.
Specifications at a Glance
| Capacity | 80 gal / 300 L |
|---|---|
| Portion Yield (8 oz) | Approx. 1,280 servings |
| Rim Height | 34.8 in. (884 mm) |
| Overall Width (A) | 35.5 in. (902 mm) |
| Overall Depth (B) | 25.3 in. (643 mm) |
| Overall Height (E) | 45.5 in. (1,156 mm) – cover closed |
| Steam Jacket Rating | 50 psi (3.4 bar) |
| Steam Supply Connection | ½ in. NPT |
| Condensate Return | ½ in. soft copper tubing with trap (installer provided) |
| Draw-off / Drain | 2 in. tangent valve with strainer |
| Construction | 316 SS interior, 304 SS exterior & supports |
| Approvals | NSF, ASME |
| Standard Warranty | 1 year parts & labor (extendable) |
Popular Factory Options
- 3 in. tangent draw-off valve or butterfly valve
- Hot & cold water deck-mount faucet kit
- Steam control kit with trap, strainer & check valve
- Pressure-reducing valve for incoming steam >45 psi
- Tri-basket strainer support, measuring strips & accessory kits
- Insulated outer jacket or heat deflector shield
Ideal Applications
- Central & commissary kitchens
- K-12 and institutional foodservice
- Batch production of soups, sauces & stocks
- Pasta, oatmeal, chili, beans & stews
- Re-thermalizing vacuum-sealed or bagged entrées
Need a smaller footprint? 40- and 60-gallon Short Series™ models are also available.
