Cleveland Range KDL80 Steam Kettles
$18,412.00
Unit price
/
Unavailable
Description

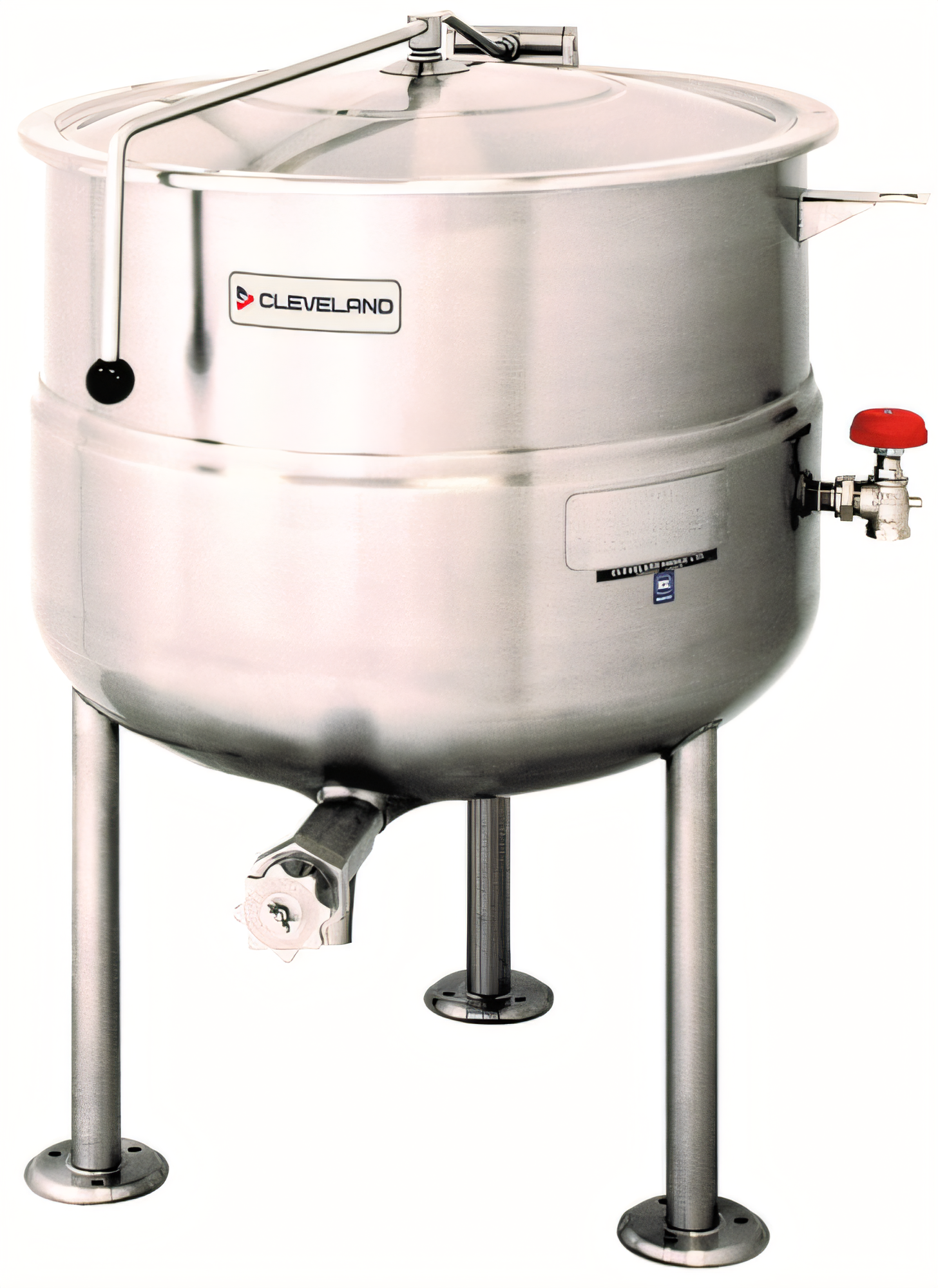

Cleveland KDL-80 80-Gallon Direct Steam Kettle
Stationary • Tri-Leg Base • 2/3 Steam JacketHandle your highest-volume soups, sauces and stocks with the unmatched consistency of direct steam. The Cleveland KDL-80 delivers 80 gallons (300 L) of even, energy-efficient cooking power in a rugged 316 stainless steel kettle that’s built to thrive on the busiest production lines.
Key Features

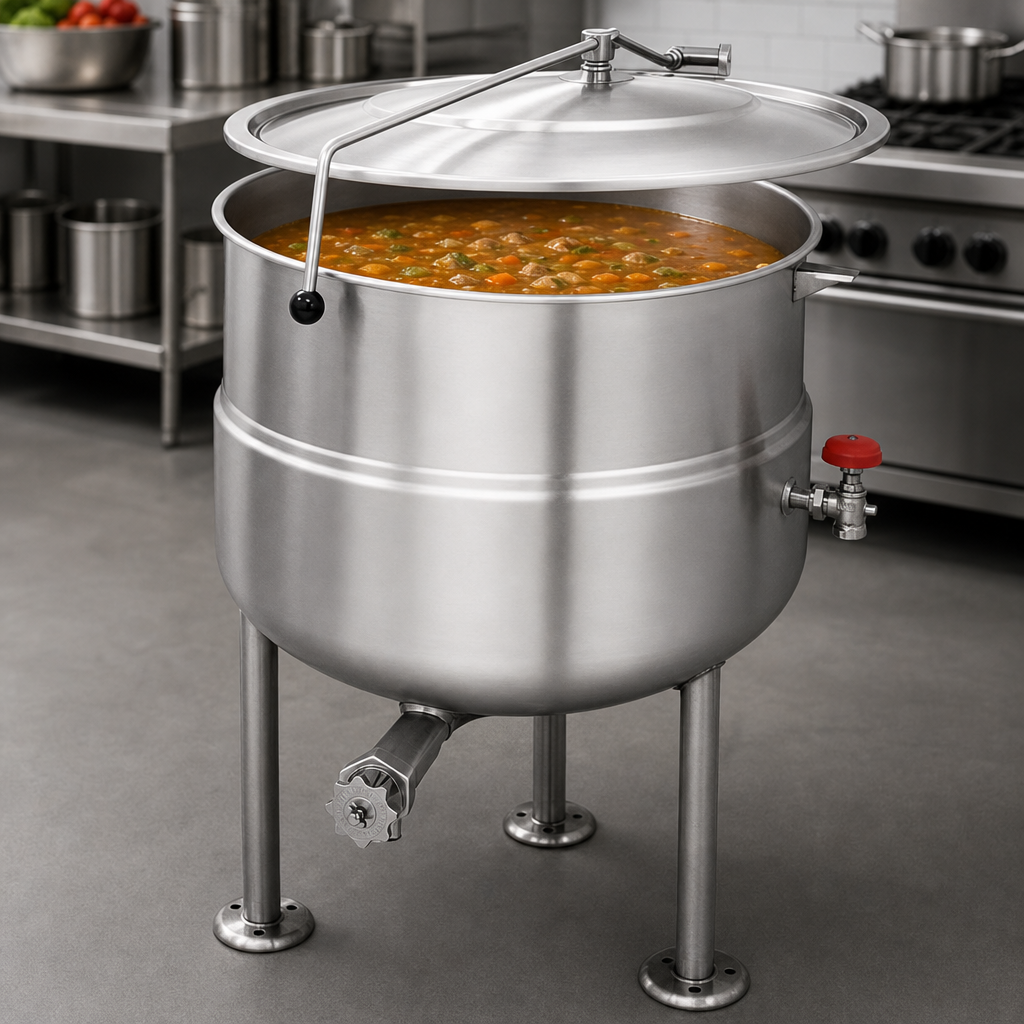

- 80-gallon (300 L) capacity – produces about 1,280 eight-ounce servings per batch

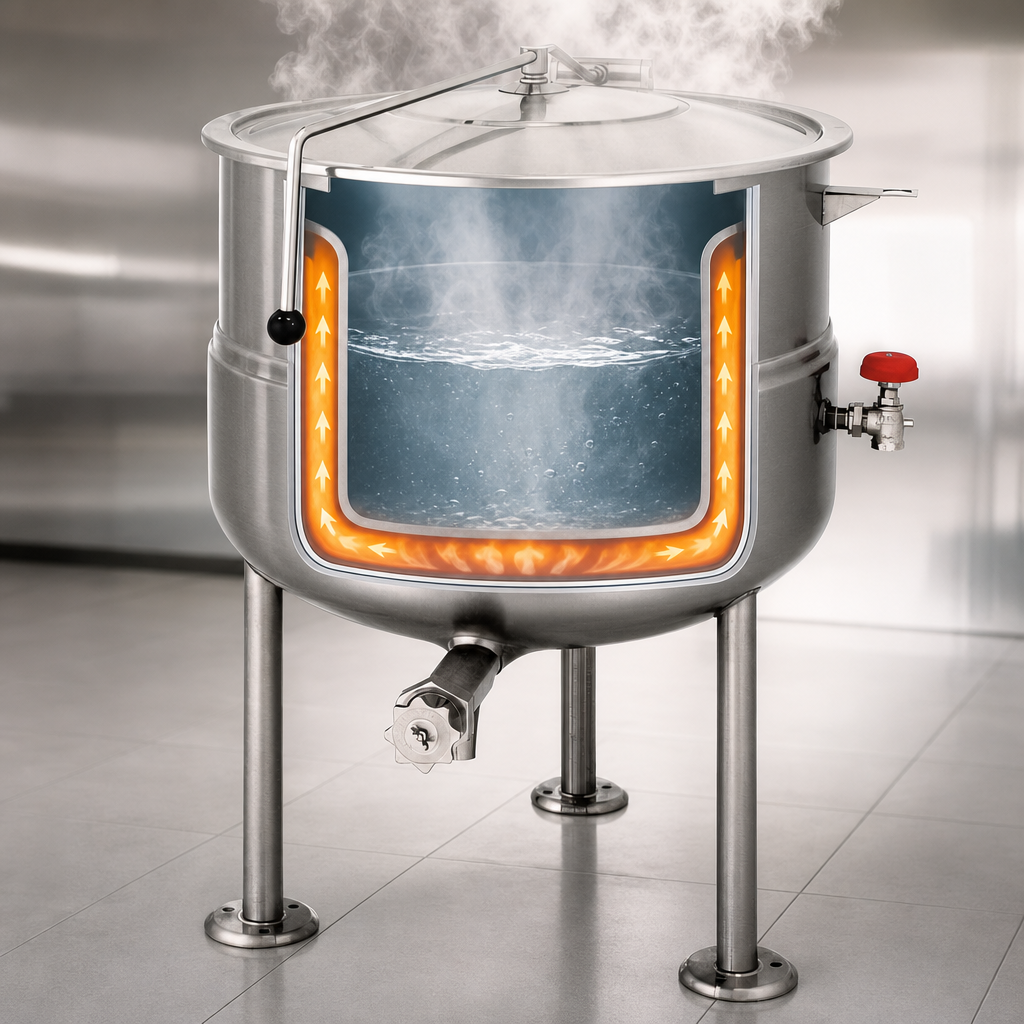

- 2/3 steam-jacketed design for rapid heat-up and uniform temperatures
- Type 316 stainless steel interior resists acidic, salty and tomato-based recipes
- Open tri-leg base with 1.63" O.D. 304 SS tubular legs & level-adjustable flanged feet
- Spring-assisted domed cover — hinged, one-hand operation, stays where you leave it
- 2" tangent draw-off valve with removable strainer for safe, controlled product transfer
- Factory-installed manual steam control inlet valve for precise regulation
- Heavy, reinforced rolled rim stands up to daily utensil contact and transport carts
- 50 psi ASME-coded jacket with chrome-plated safety valve & condensate drain valve
- NSF-listed & ASME-certified for commercial foodservice applications
At-a-Glance Specifications
| Model | KDL-80 (Direct Steam) |
|---|---|
| Capacity | 80 gal / 300 L |
| Servings (8 oz) | Approx. 1,280 |
| Steam Jacket Coverage | Two-thirds (2/3) of kettle body |
| Jacket Pressure Rating | 50 psi (3.4 bar) |
| Required Incoming Steam | 5 – 45 psi, direct connection |
| Interior Material | 316 series stainless steel |
| Exterior / Legs | 304 series stainless steel |
| Base Type | Open tri-leg with adjustable flanged feet |
| Cover | Spring-assisted, domed, hinged |
| Product Draw-Off | 2" tangent valve with strainer |
| Standard Controls | Manual steam inlet valve, condensate drain valve |
| Certifications | NSF, ASME |
| Warranty | 1-year parts & labor + 4-year prorated jacket coverage |
Popular Accessories (Sold Separately)
- Chrome-plated steam control kit with trap, strainer & check valve (SCK1)
- 3" butterfly or tangent draw-off valve assemblies
- Kettle filler with 60" hose (hot/cold or cold-only)
- Cooking baskets, tri-basket supports & measuring strips
- Automatic water meter & stand
- Insulated outer jacket for additional energy savings
Installation Note: This kettle must be connected to a customer-supplied
low-pressure steam line. A pressure-reducing valve is required if incoming steam exceeds 45 psi.
Follow all local codes and Cleveland Range installation instructions. Proper water quality,
ventilation and preventive maintenance are essential for full warranty protection.
Questions about configuration, lead times or accessories? Our foodservice specialists are ready to help.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Shipping Weight
290.0lbs
Kettle Jacket
partial jacket
Kettle Liner
316 stainless steel
Base
tri-leg
Capacity
80 - 150 gallon
Specifications
Kettle, direct steam, 80-gallon capacity, 2/3 steam jacket design, open tri-leg base, 316 series stainless steel interior, standard with flanged feet, steam control valve, 2" tangent draw-off, spring assist cover, 50 psi rating
