Cleveland Range KDL60TSH Short Series Steam Kettles
Description

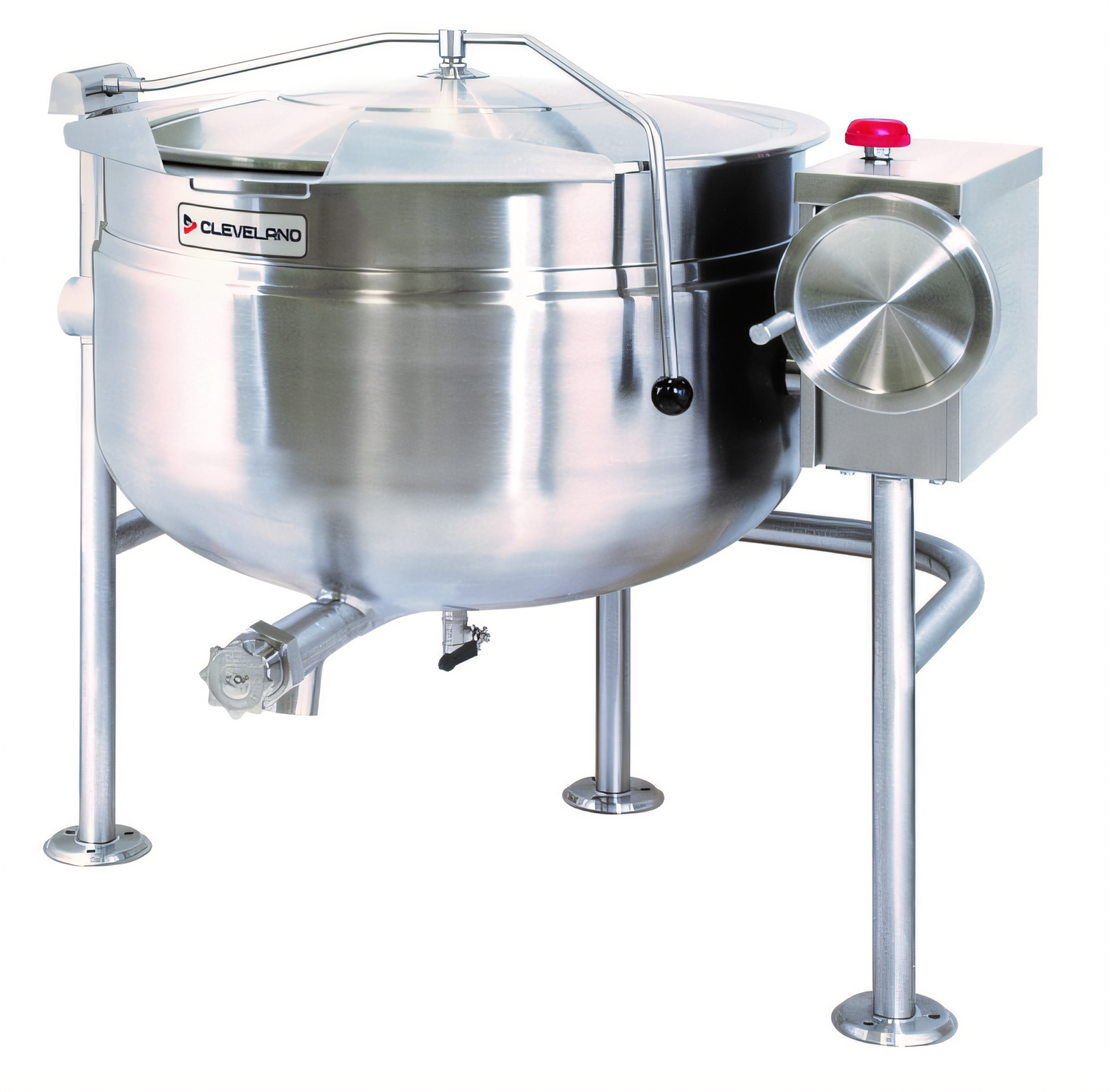

Short Series™ 60-Gallon Direct Steam Tilting Kettle
Model KDL-60-TSH • 35" rim height • Full steam jacketBuilt for volume, designed for comfort—Cleveland’s Short Series™ kettle delivers 60 gallons of perfectly even heat at an operator-friendly 35 inch working height. Whether you’re simmering sauces, blanching vegetables or turning out stock by the barrel, this rugged tri-leg kettle connects directly to your in-house steam line and produces up to 960 eight-ounce servings in a single batch.
Performance highlights

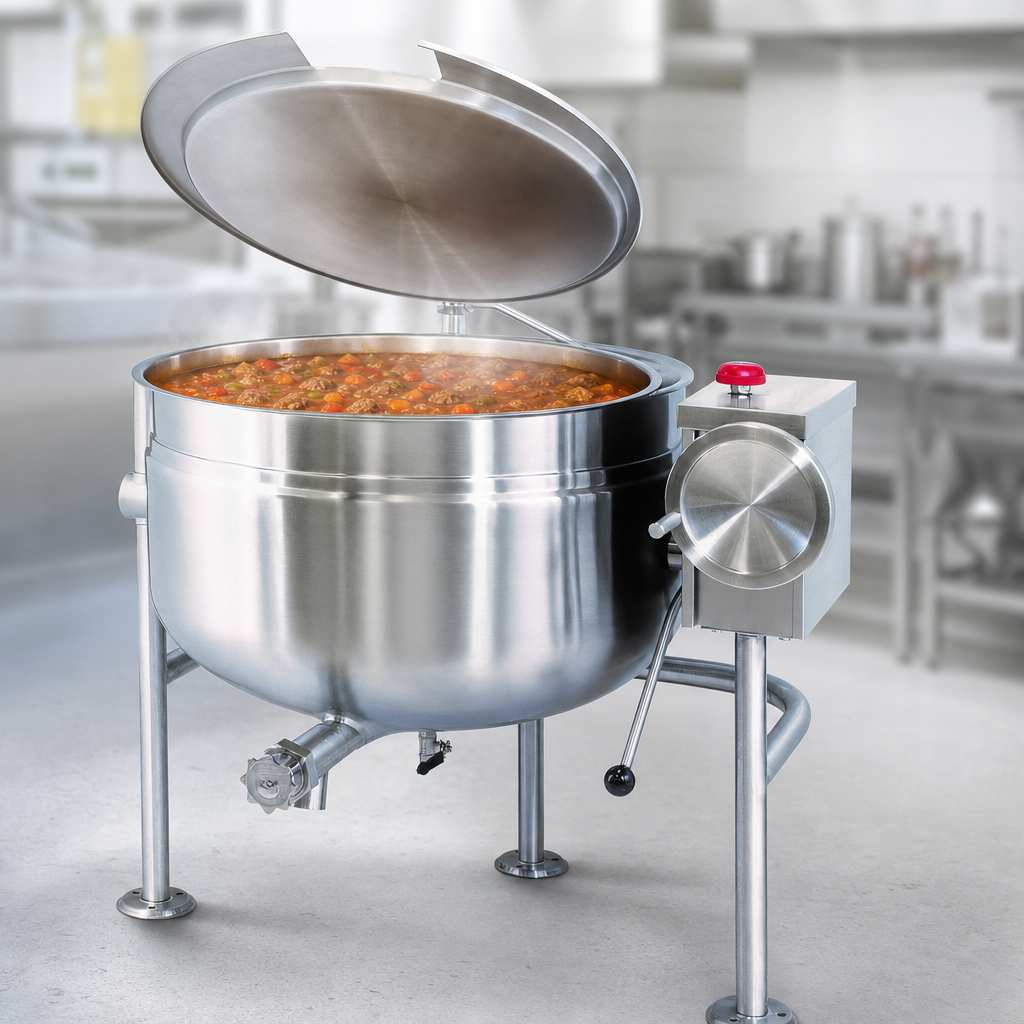

- Generous 60 gal (225 L) capacity with full 50 psi steam jacket for rapid, even cooking
- 316 series stainless steel interior resists acids, salts and abrasion
- Self-locking, permanently-lubricated worm-gear tilt—smooth, precise and maintenance-free
- Open tri-leg base with adjustable, flanged feet for secure floor mounting
- Large rolled rim and formed pouring lip for fast, drip-free transfers
- Factory-installed steam inlet control valve and chrome-plated 50 psi safety valve
- Condensate drain valve with insulated handle keeps operators protected
- NSF & ASME certified and proudly made in the USA
Technical specifications
| Capacity | 60 gal / 225 L |
|---|---|
| Portion yield | Approx. 960 × 8 oz servings |
| Rim height | 35" (889 mm) |
| Jacket rating | 50 psi (3.4 bar) working pressure |
| Steam connection | Direct steam, 3⁄4" NPT |
| Condensate return | 1⁄2" NPT |
| Interior finish | 316 stainless steel |
| Exterior finish | 304 stainless steel, #4 polish |
| Mounting | Open tri-leg base, height-adjustable, flanged feet |
| Tilt clearance | 18" (457 mm) in front of kettle when fully tilted |
| Certifications | NSF, ASME-UM |
| Standard warranty | 1-year parts & labor + 4-year prorated jacket coverage |
Factory options & accessories (sold separately)
- 2" Tangent draw-off valve (TD2)
- Spring-assist hinged cover (CHS) or removable cover (CL)
- Basket or tri-basket strainer systems (BS / TBS)
- Hot & cold water faucet kit with bracket (DPK + FBKT)
- Steam control kit with trap, strainer & check valve (SCK1)
- Pressure-reducing valve for incoming steam over 45 psi (PRVK)
- Kettle accessory kit, pan carriers, measuring strip & more
Also available in 40 gal and 80 gal capacities—contact us for details.

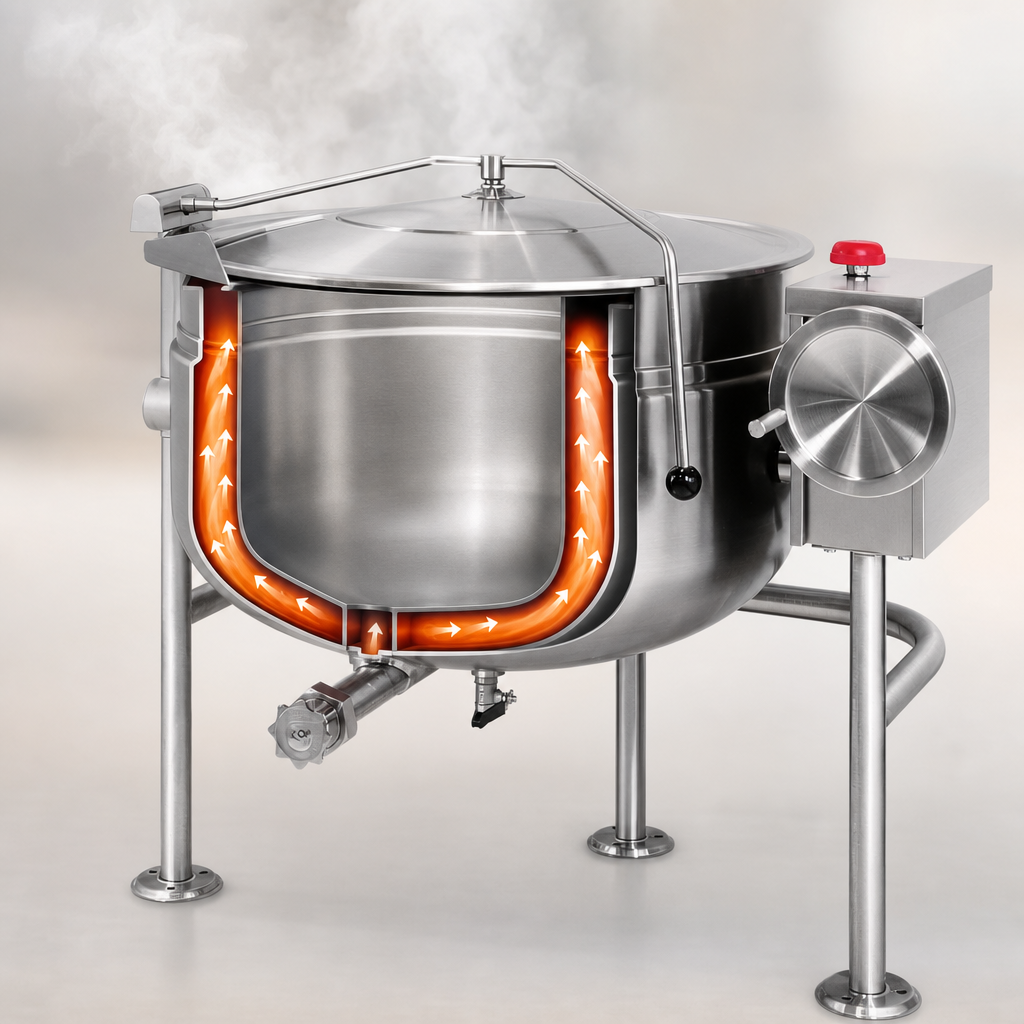

Why choose a direct-steam kettle?
Connecting to an existing boiler eliminates internal steam generators, reduces maintenance and frees up valuable cooking volume. You get instant recovery, precise temperature control and lower utility costs—ideal for commissaries, schools and high-volume kitchens already running a steam loop.
Need extra peace of mind? An optional one-year extended labor warranty is available when purchased with the kettle.
