Cleveland Range KDL60SH Short Series Steam Kettles
Cleveland Range KDL60SH Short Series Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KDL60SH Short Series Steam Kettles
Description

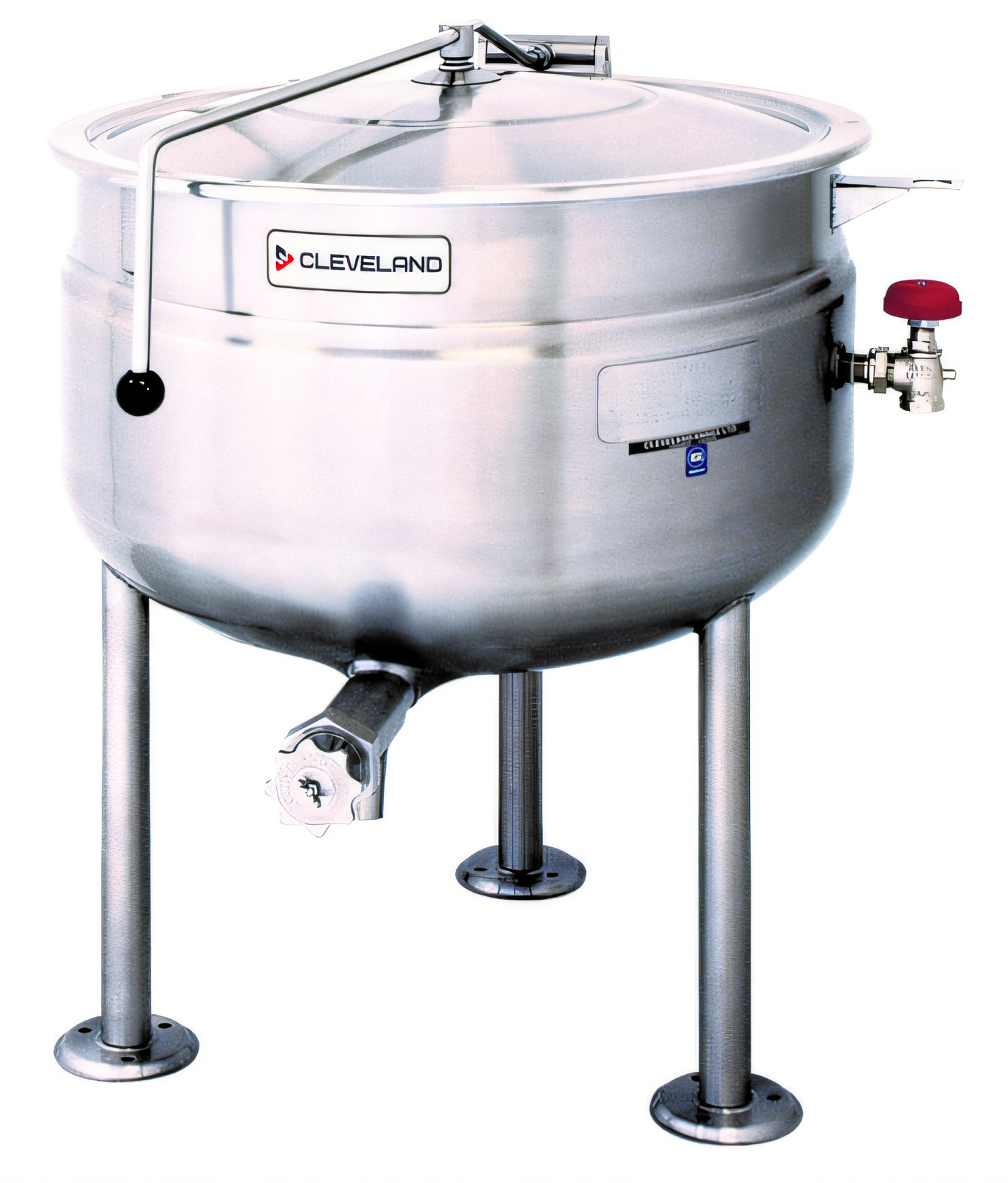

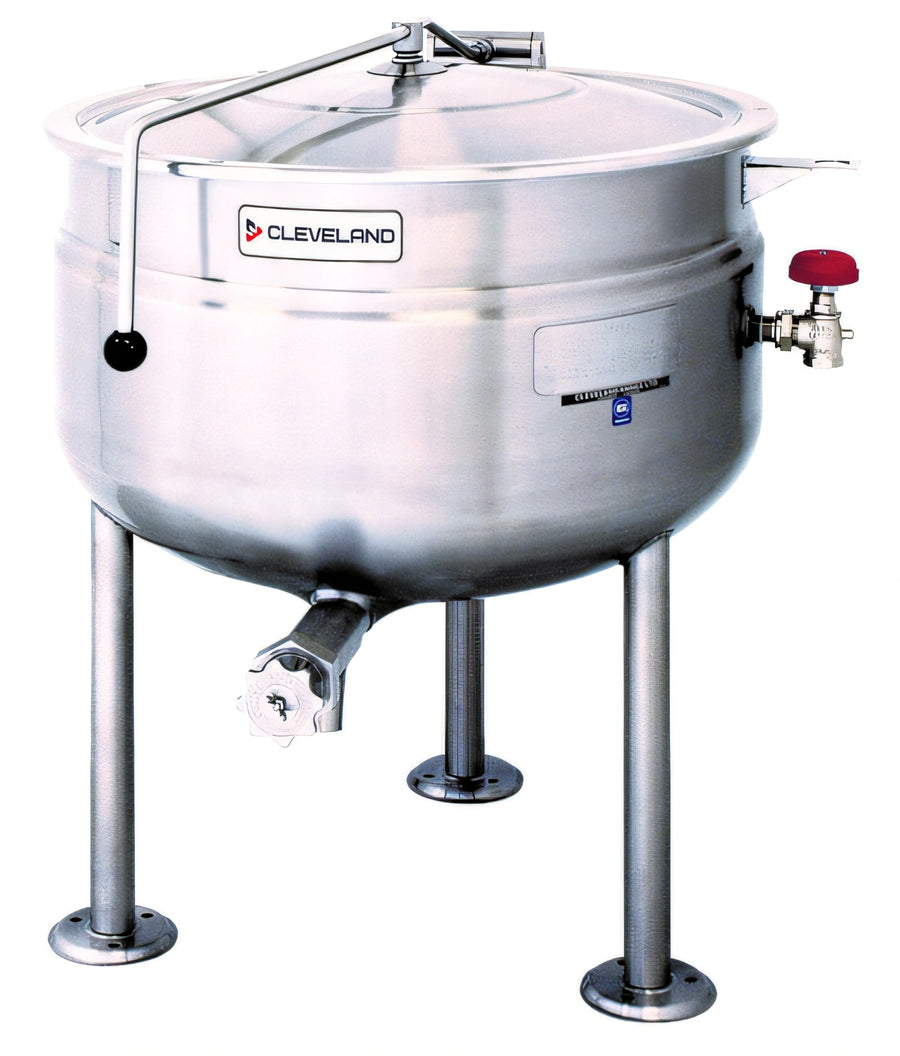

Short Series™ 60-Gallon Direct-Steam Kettle
Model KDL-60-SH | Cleveland RangeBuilt for high-volume kitchens with low hood clearance, the Cleveland Short Series™ 60-gallon (225 L) stationary kettle delivers the production of a full-size kettle in a compact 34.8" rim height. Its fully jacketed design, 316 stainless interior and 50 psi rating give you the speed, durability and food safety you need for soups, sauces, stocks and more—up to 960 eight-ounce servings per batch.
Why You’ll Love It

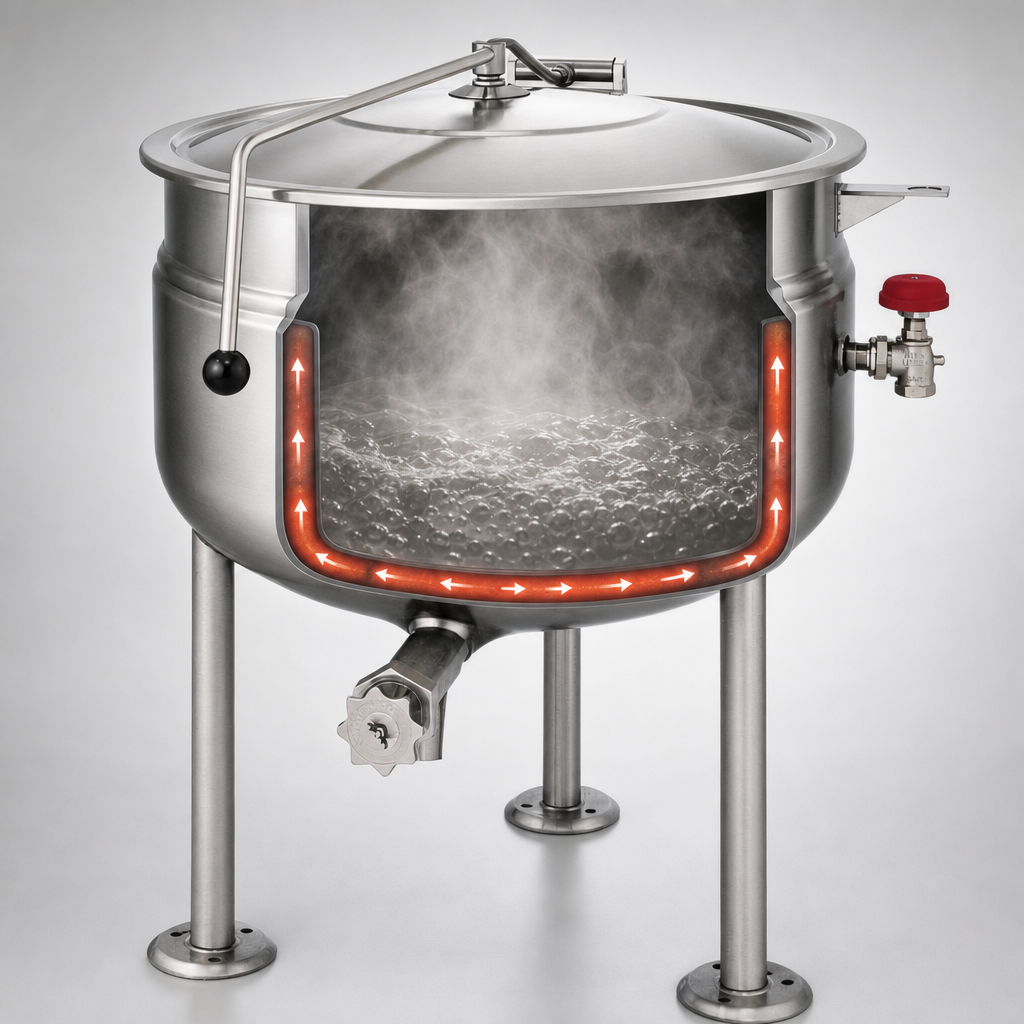

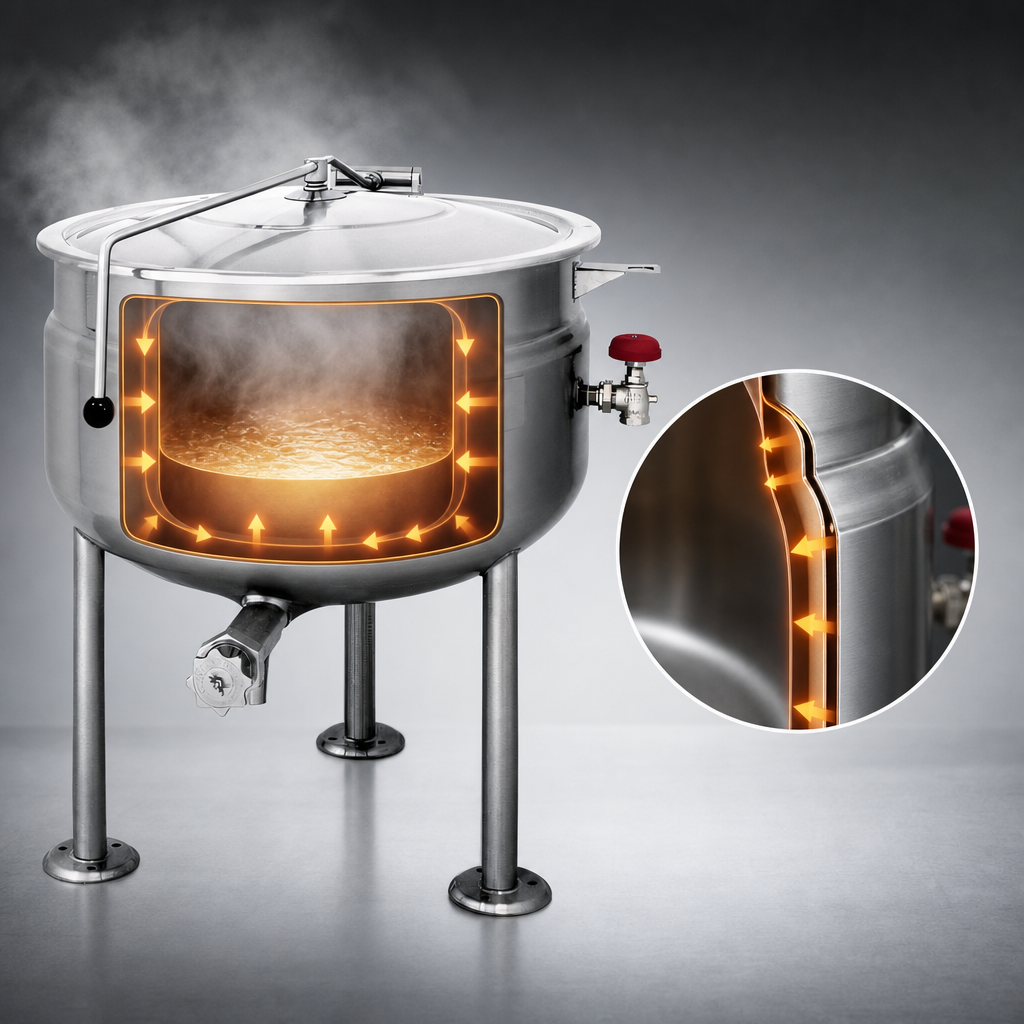

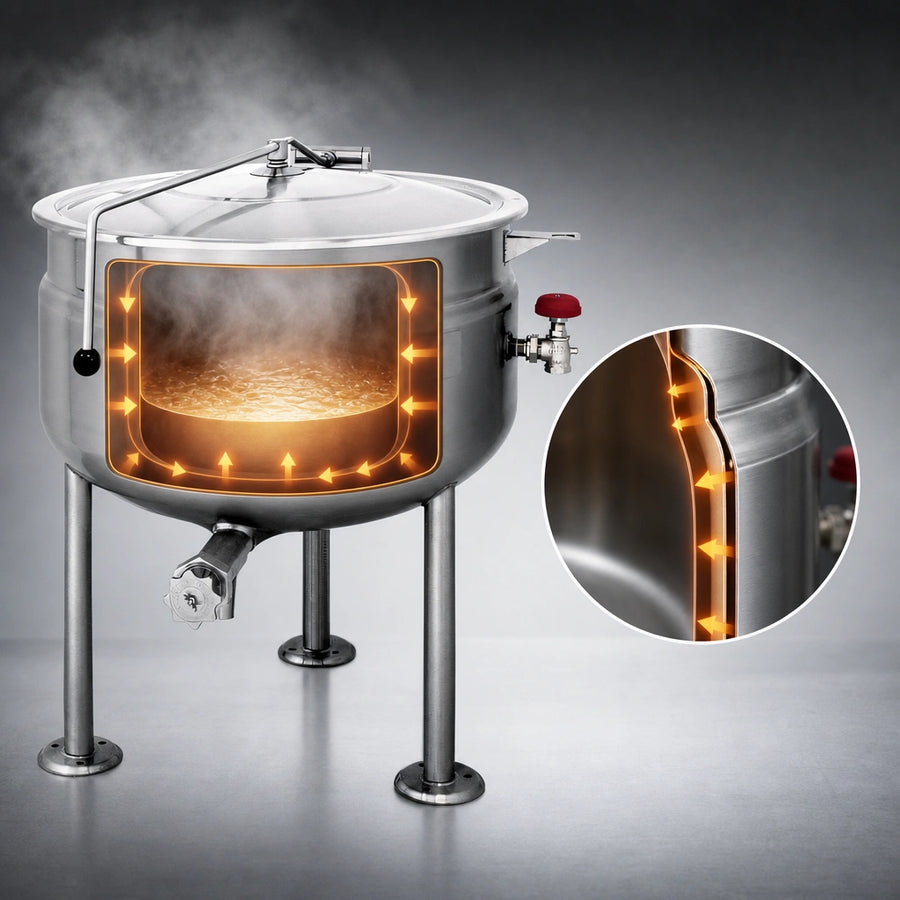

- Fast, even heating – full steam jacket surrounds 2⁄3 of the kettle for rapid, uniform cooking without hot spots.
- Acid-resistant 316 SS interior – ideal for tomato-based and other corrosive recipes.
- Space-saving 34.8" rim height – fits easily under low canopies and hood systems.
- 2" tangent draw-off valve & stainless strainer – quick, clog-free product transfer and easy clean-up.
- Spring-assisted domed cover – one-hand lift stays open at any angle.
- Solid-state temperature control – precise, dial-in control of steam flow.
- Faucet mounting bracket – accepts optional hot/cold or single-temp fill faucets.
- NSF & ASME approved – engineered and built in North America for commercial duty.
Technical Specs
| Capacity | 60 gal / 225 L (≈ 960 8 oz servings) |
|---|---|
| Steam Source | Direct steam, ½" NPT inlet Operating pressure 5–45 psi Kettle jacket rated 50 psi |
| Construction |
304 SS exterior with #4 finish 316 SS food contact surface Open tri-leg base with adjustable flanged feet (floor boltable) |
| Rim Height | 34.8" (884 mm) |
| Overall Width (A) | 33" (850 mm) |
| Overall Depth (D) | 36.6" (930 mm) |
| Overall Height (G) | 68.8" (1,748 mm) |
| Draw-Off Outlet | 2" tangent valve with insulated handle & removable perforated strainer |
| Utilities/Connections |
Steam supply: ½" NPT (left or right) Condensate return: ½" tube (customer supplied) Floor clearance needed: None (zero-clearance sides & rear) |
| Approvals | NSF, ASME, UL Sanitation |
| Warranty | 1-year parts & labor standard; optional extended coverage available |
Popular Factory Options
- 3" tangent draw-off valve (TD3)
- 3" sanitary butterfly valve (BV3)
- Hot & cold swing-spout kettle faucet (DPK)
- Steam control kit with trap, strainer & check valve (SCK1)
- Pressure-reducing valve for supply over 45 psi (PRVK)
- Tri-basket strainer system (TBS) for pasta & blanching
- Insulated outer jacket (IOJ) for energy savings & cooler surface temps
Need a custom configuration or accessories? Chat with our team and we’ll build the perfect solution for your kitchen.
