Cleveland Range KDL60 Steam Kettles
Description

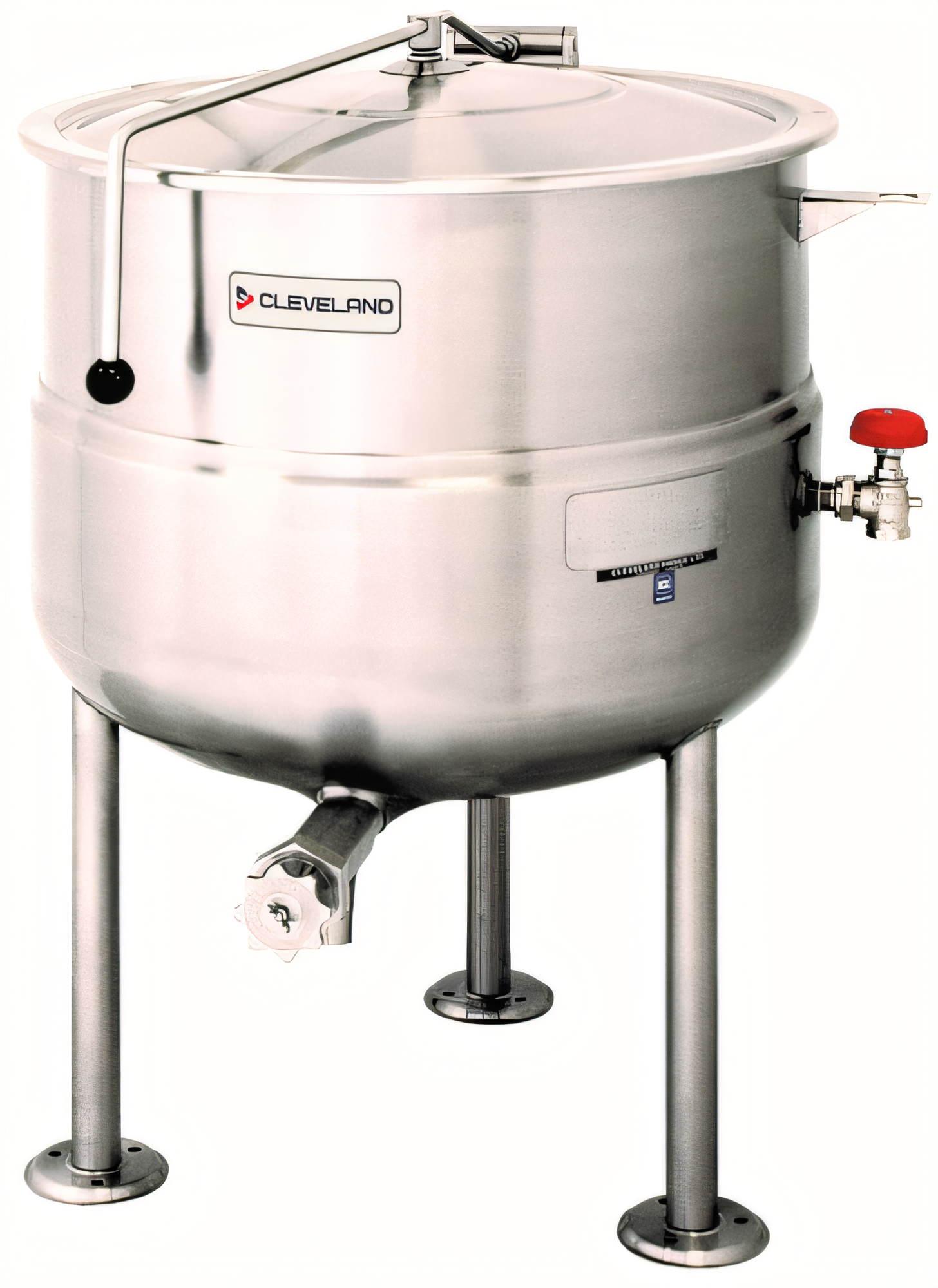

Cleveland KDL-60 | 60-Gallon Direct Steam Kettle
Tri-Leg • 2/3 Steam Jacket • 316 Stainless InteriorEngineered for high-volume kitchens, the Cleveland KDL-60 delivers fast, even, and energy-efficient cooking for soups, sauces, stocks, pasta and more. A rugged stainless steel build, generous 60-gallon capacity, and user-friendly controls make it the dependable workhorse your operation can count on day after day.
Key Features

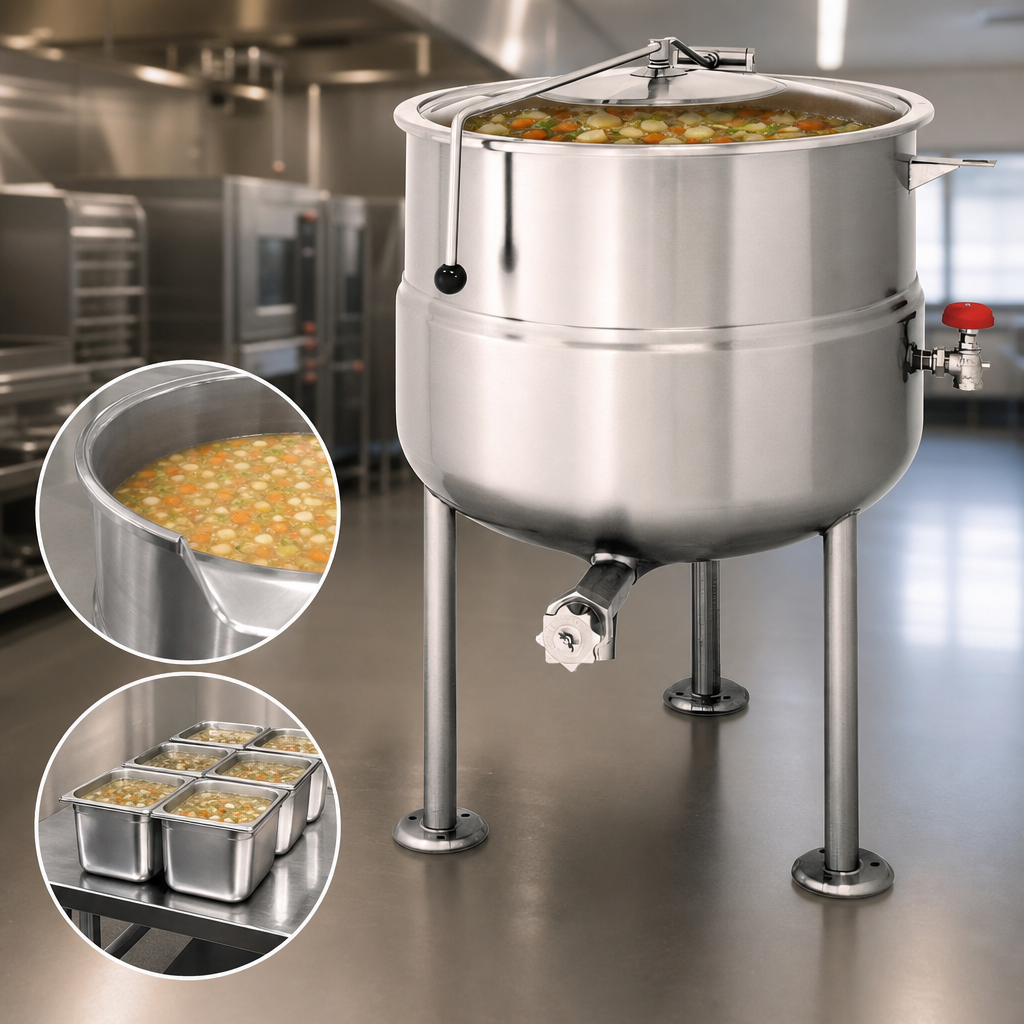

- 60 gal (225 L) batch size—yields up to 960 eight-ounce servings at once.

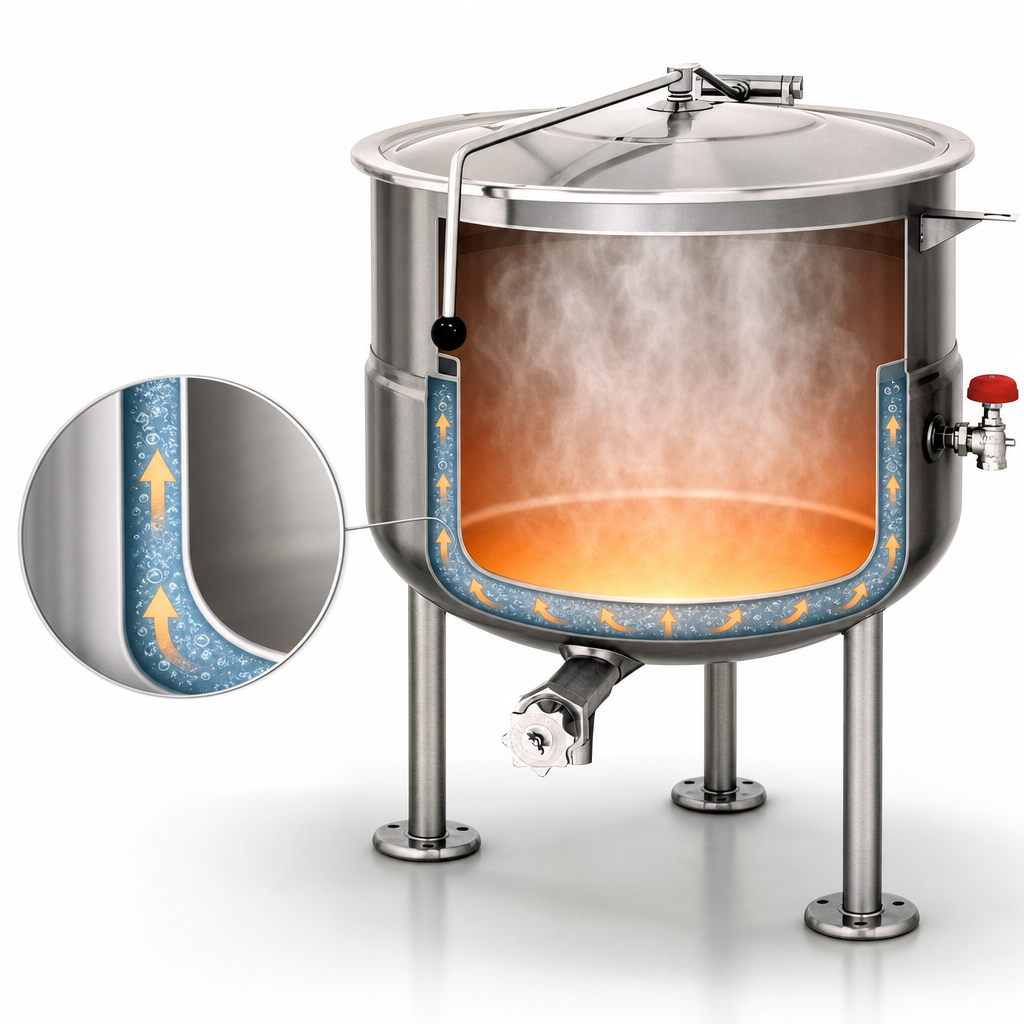

- 2/3 steam-jacket design surrounds product with gentle, uniform heat—no scorching.
- Premium 316 series stainless steel kettle interior resists acids & corrosion.
- Direct steam connection (5–45 psi) with factory-installed steam control valve for precise regulation.
- Spring-assist domed cover opens effortlessly and stays in any position.
- Heavy-duty 2" tangent draw-off valve with removable strainer speeds emptying & clean-up.
- Open tri-leg base—1.63" O.D. 304 SS legs with adjustable flanged feet for secure floor mounting.
- 50 psi jacket rating & chrome-plated safety valve for built-in pressure protection.
- NSF & ASME certified; backed by a 1-year limited parts & labor warranty.
Technical Specifications
| Model | KDL-60 (Tri-Leg, Stationary) |
|---|---|
| Capacity | 60 gal / 225 L |
| Servings (8 oz.) | ≈ 960 per batch |
| Kettle Interior | 316 SS, rolled rim |
| Steam Jacket | 2/3 coverage, 50 psi working pressure |
| Steam Supply Required | Direct steam 5–45 psi |
| Draw-Off Valve | 2" tangent with strainer |
| Cover | Spring-assist, hinged, domed |
| Base | Open tri-leg, 304 SS, flanged & adjustable feet |
| Overall Dimensions* | Approx. 48" W × 48" D × 54" H |
| Shipping Weight* | 269 lb (122 kg) |
| Certifications | NSF, ASME |
| Standard Warranty | 1-year limited parts & labor |
*Shipping dimensions & weight. Refer to installation manual for exact clearances.
Popular Accessories (Sold Separately)
- Chrome-plated steam control kit (trap, strainer, check valve, fittings)
- Lift-off cover
- Hot/cold or cold-only kettle filler with 60" hose
- 3" butterfly or tangent draw-off valves
- Cooking baskets & tri-basket supports
- Gallon/metric measuring strips
- Automatic water meter
- Insulated outer jacket
Need a different size? Cleveland direct steam kettles are available from 25- to 250-gallon capacities—ask us for details.
