Cleveland Range KDL40TSH Short Series Steam Kettles
Description

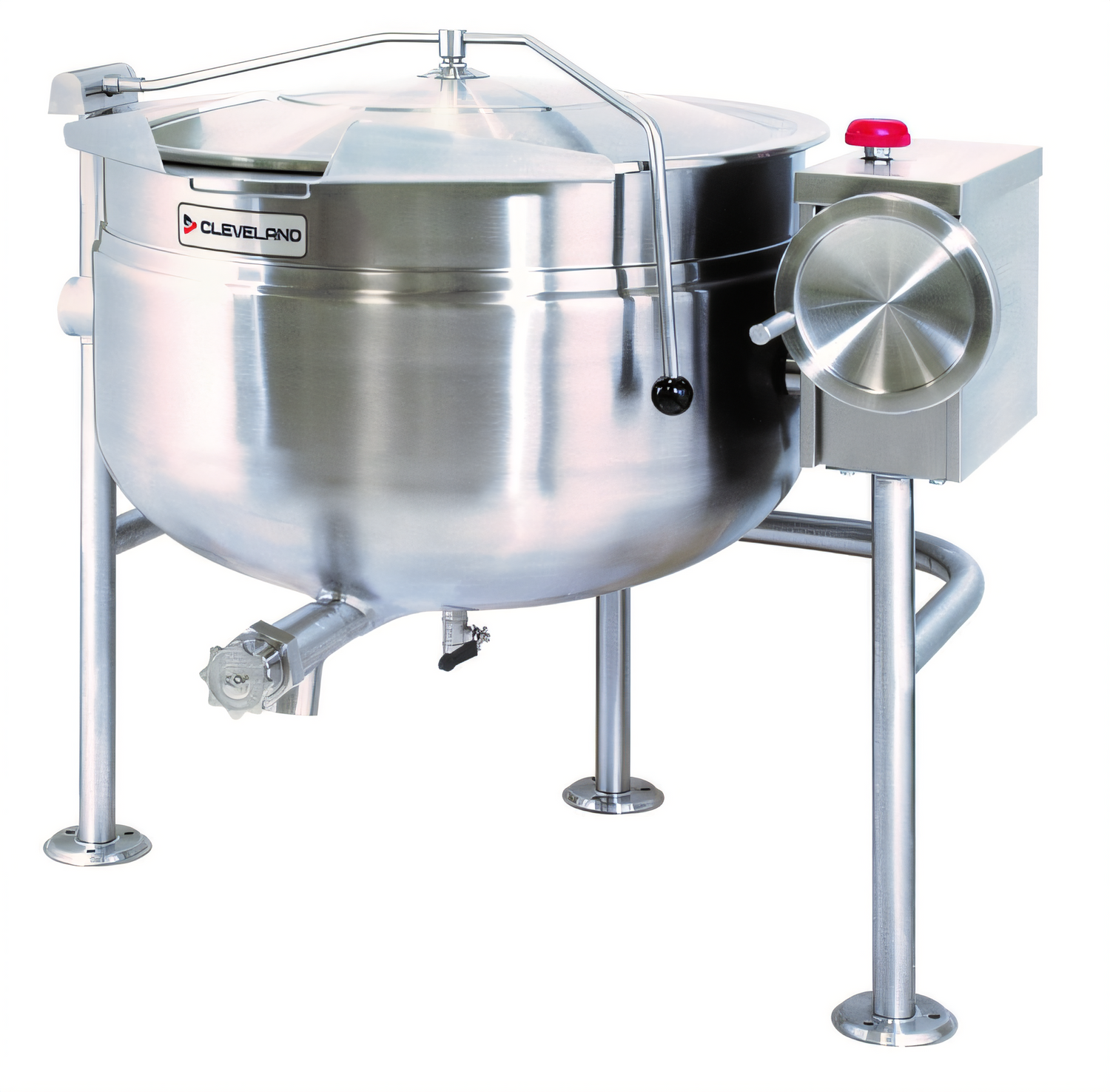

Short Series™ 40-Gallon Direct Steam Jacketed Kettle
Model KDL-40-TSH • 35" rim height • Full-jacket, tilting designBuilt for high-volume production and easy ergonomic access, the Cleveland Range Short Series™ 40-gallon kettle delivers rapid, even heating with the durability food-service operations demand. Its low 35 inch rim height fits comfortably under standard hoods while the self-locking tilt mechanism makes pour-off safe and controlled.
Why You’ll Love It
- 40 gal (150 L) capacity – up to 640 eight-ounce portions per batch.

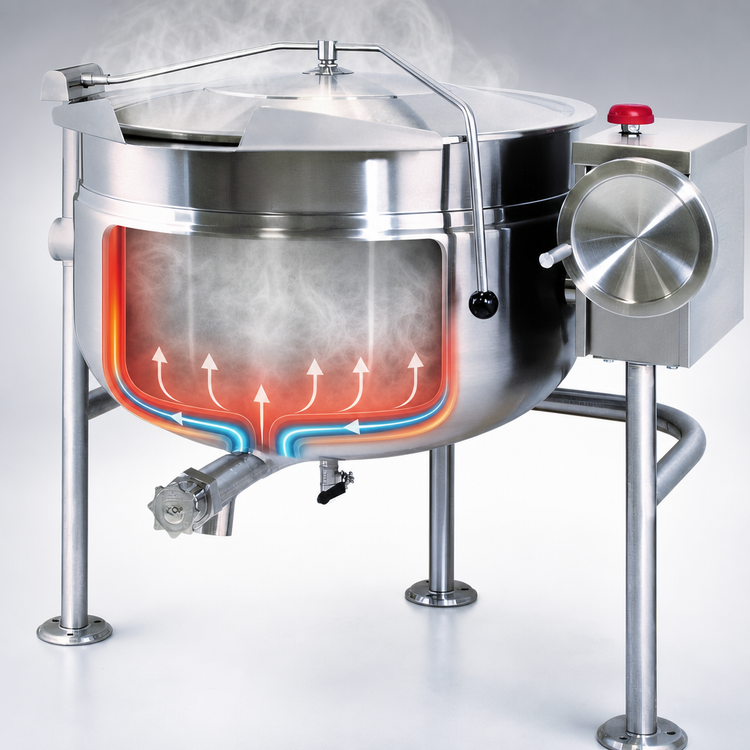

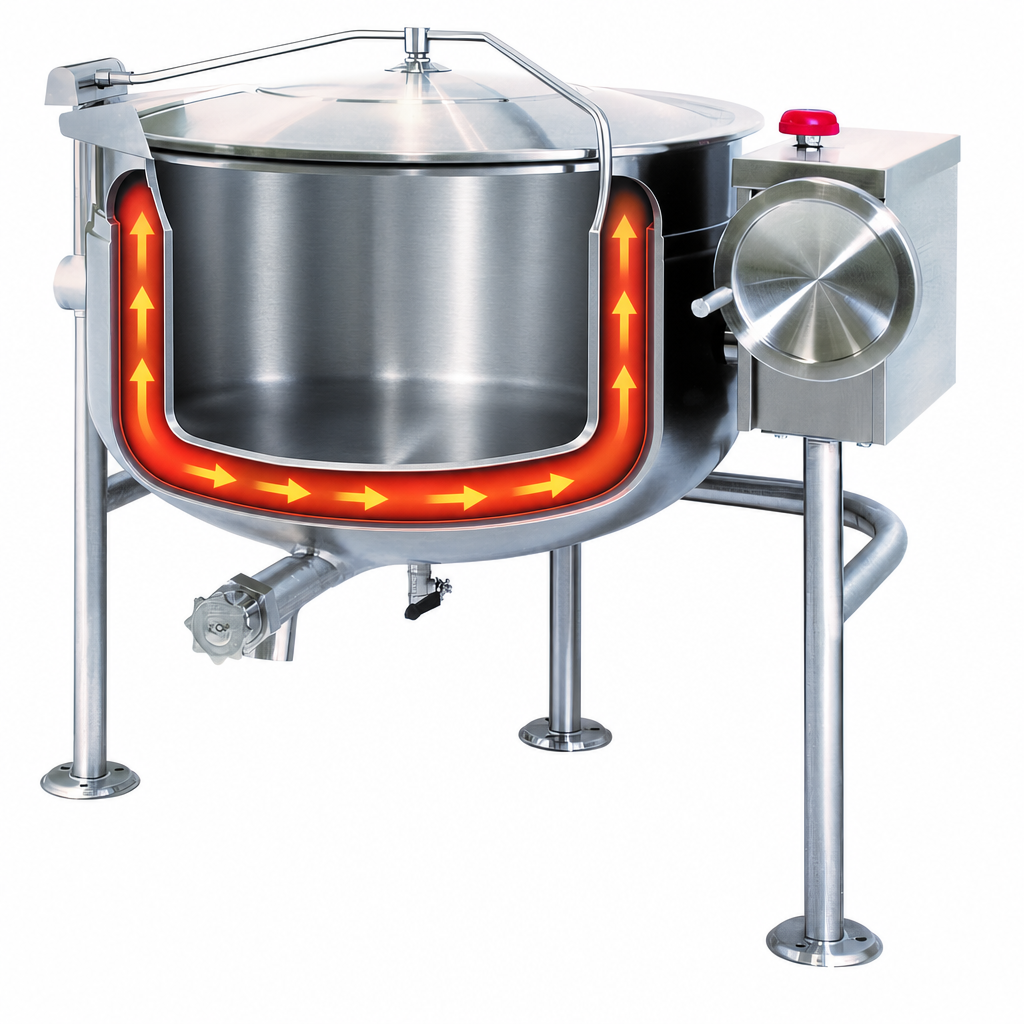

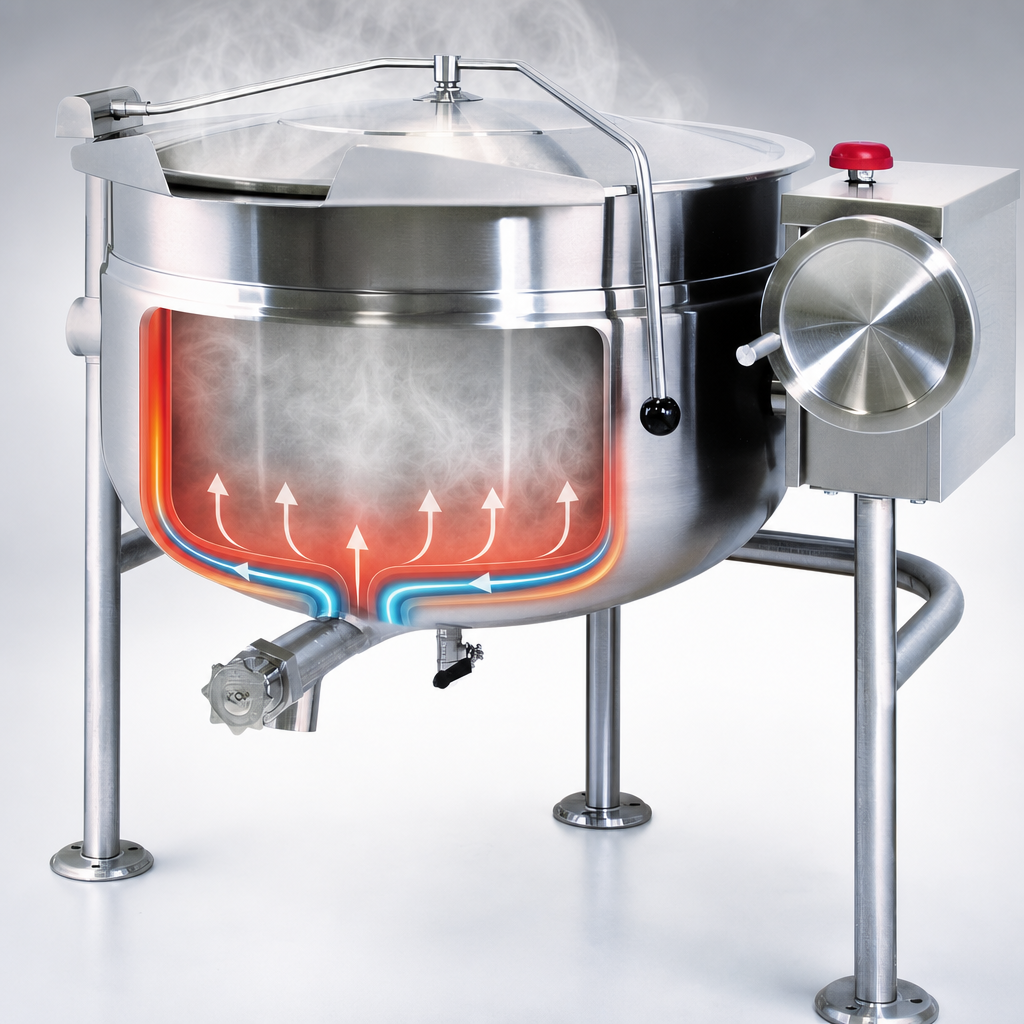

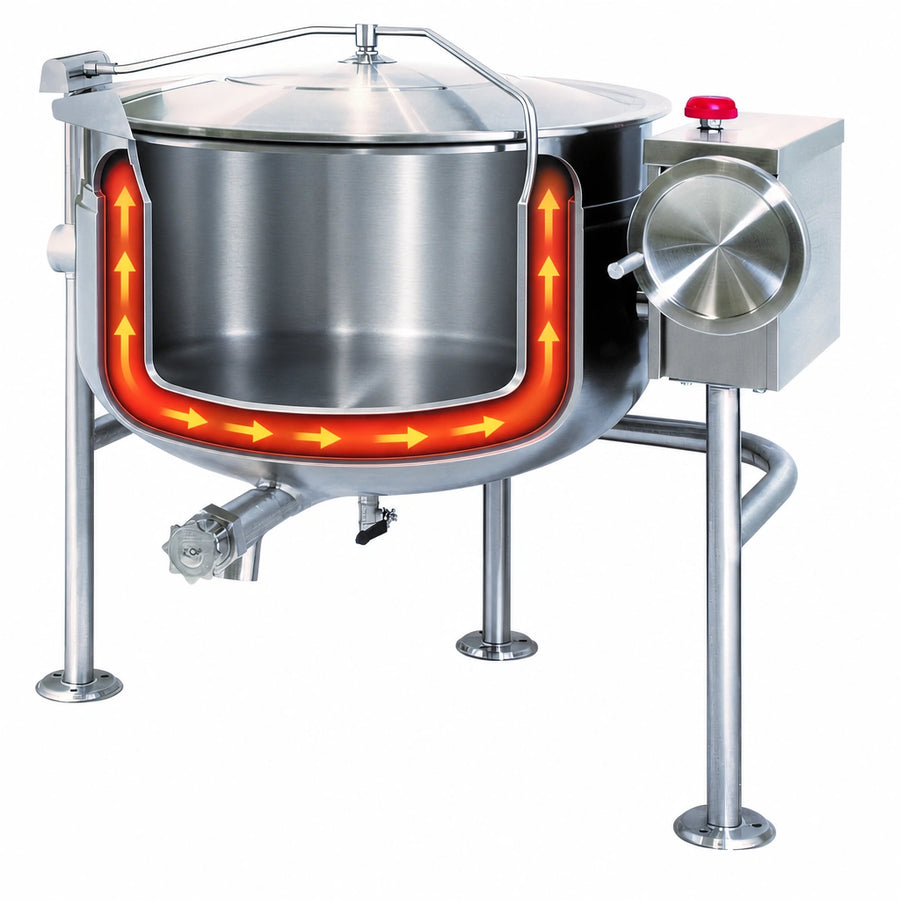

- Full 50 psi steam jacket surrounds 100 % of the kettle body for maximum heat transfer.
- 316 stainless steel liner resists acidic products such as tomato-based sauces.
- Type 304 stainless exterior with #4 sanitary finish wipes down fast and stays looking new.
- Tri-leg open base with adjustable flanged feet – level, bolt down, and clean underneath with ease.
- Self-locking, permanently lubricated worm-gear tilt for smooth, precise pouring.
- Large reinforced rolled rim and wide pouring lip minimize drips and damage.
- Factory-installed steam control inlet valve and insulated condensate drain valve included.
- NSF and ASME certified – engineered for safety, reliability, and code compliance.
Technical Specifications
| Capacity | 40 gal / 150 L |
|---|---|
| Portion Yield (8 oz) | Approx. 640 servings |
| Jacket Rating | 50 psi (3.4 bar) – chrome-plated safety valve included |
| Interior Material | 316 stainless steel |
| Exterior Material | 304 stainless steel, #4 finish |
| Rim Height | 35 in / 889 mm |
| Tilting | Manual, self-locking worm-gear with balanced handle |
| Base | Open tri-leg, adjustable flanged feet (floor-boltable) |
| Steam Inlet | ¾" NPT |
| Condensate Return | ½" NPT |
| Approvals | NSF, ASME |
| Ship Weight | Approx. 425 lb / 193 kg |
Factory Options & Accessories
- 2" Tangent draw-off valve (TD2)
- Spring-assist or lift-off stainless cover
- Basket, tri-basket, and food strainers
- Kettle markings & measuring strip
- Steam control kit with trap, strainer & check valve (SCK1)
- Cold or hot-/cold water faucet & bracket
- Pan carriers, accessory kits, and heat-deflector shield
- Pressure-reducing valve for >45 psi supply lines
Warranty & Support
1-year limited parts & labor warranty (18 months from shipment if not installed sooner). Extended coverage and free performance start-up available through Cleveland’s Factory Authorized Service network.
