Cleveland Range KDL40T Steam Kettles
Description

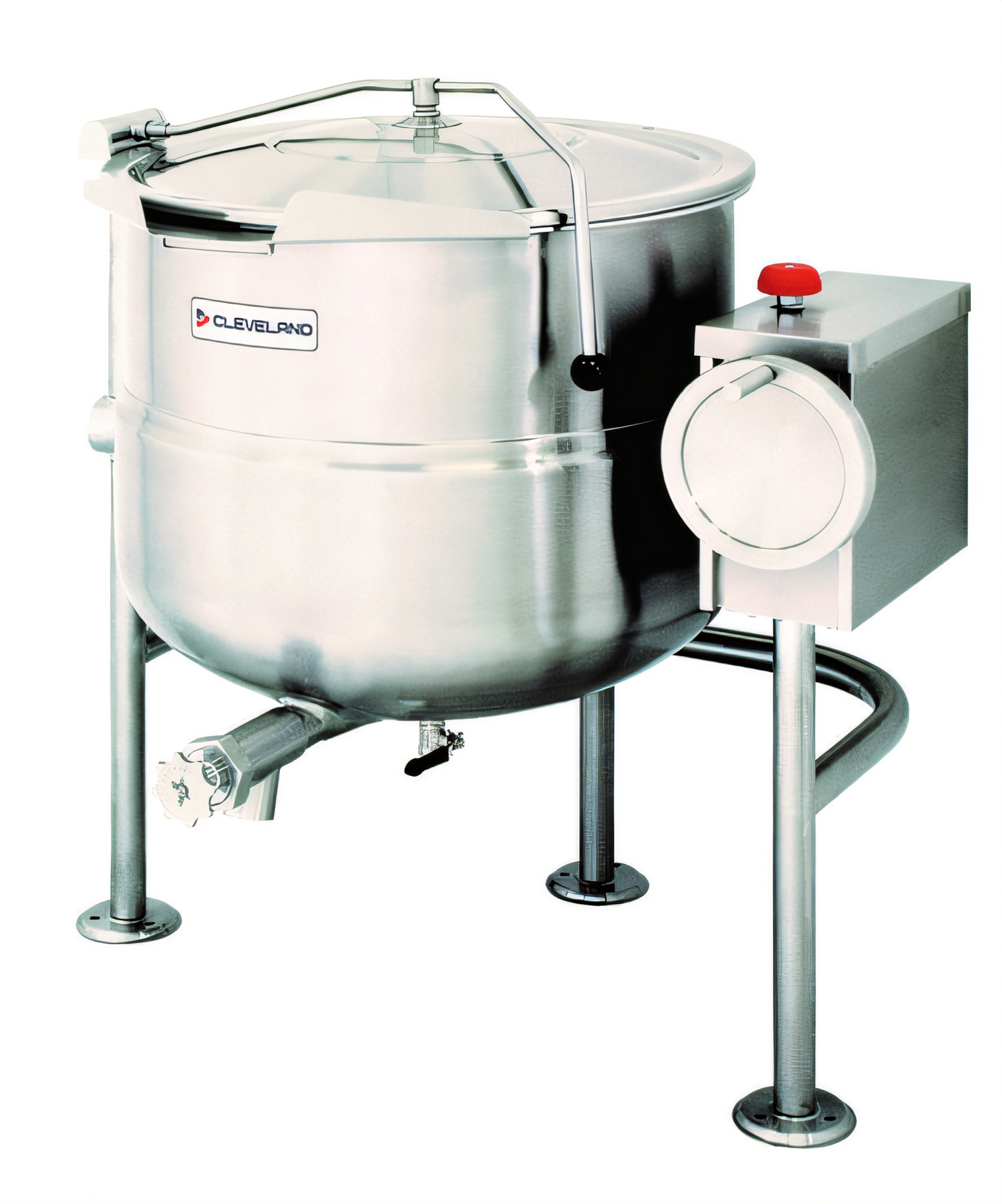

Cleveland KDL-40-T 40 Gallon Tri-Leg Direct Steam Tilting Kettle

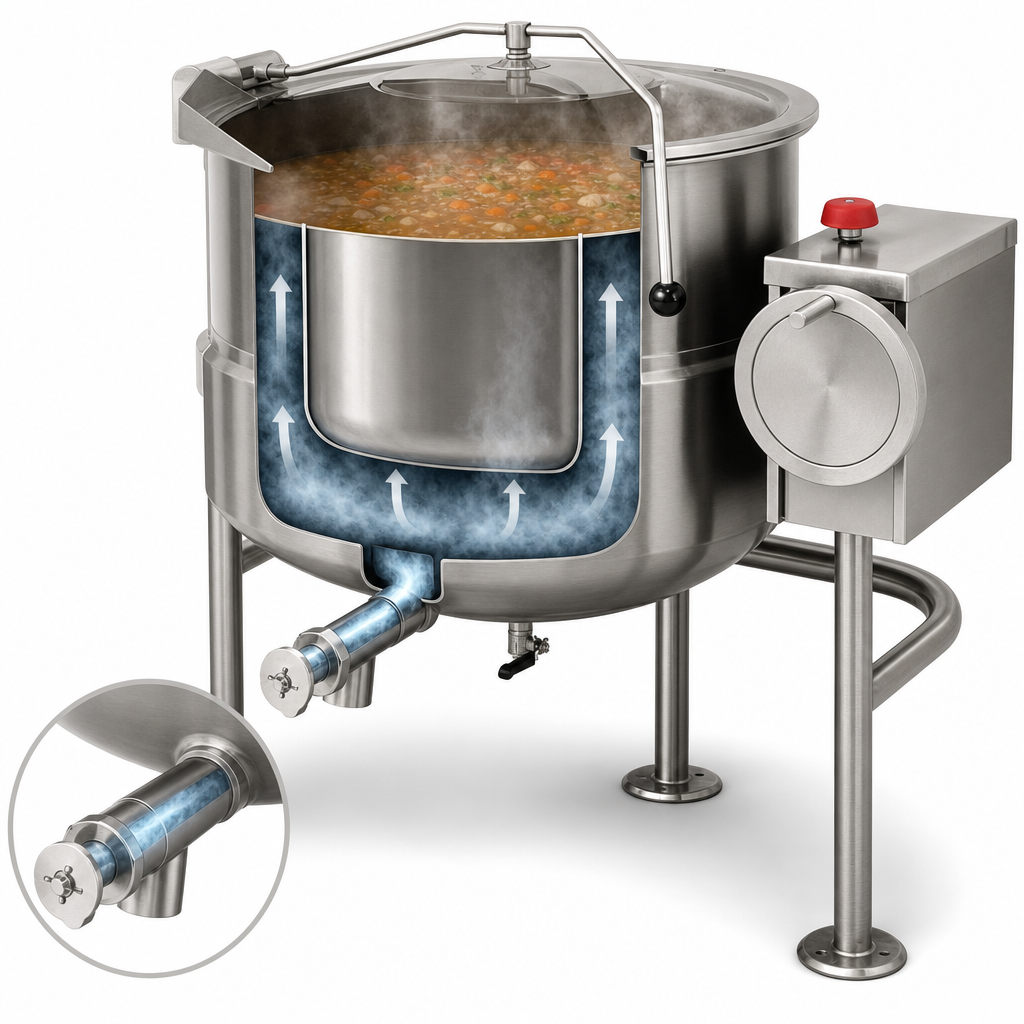

2/3-Jacketed • 316 Stainless Steel Interior • 50 psi Steam RatingEngineered for demanding, high-volume kitchens, the Cleveland KDL-40-T delivers the speed and even heat of direct steam in a space-saving, tri-leg footprint. Its 40-gallon (150 L) capacity produces up to 640 eight-ounce servings per batch—perfect for soups, sauces, stews, poaching liquids and more.
Why You’ll Love It

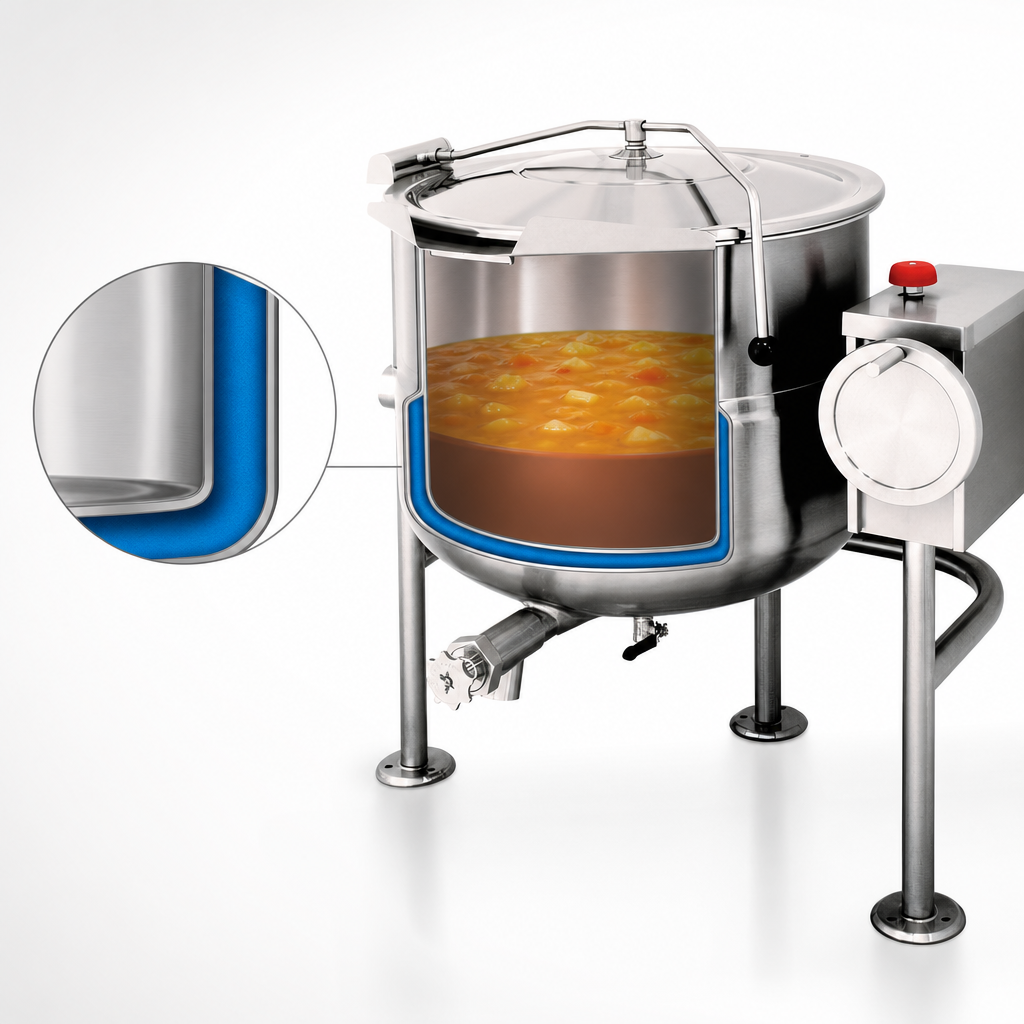

- Fast, even cooking—2/3 steam jacket surrounds product for superior heat transfer and reduced scorching.
- Corrosion-proof kettle liner—316 stainless steel stands up to acidic recipes like tomato sauce and chowders.
- Rugged tri-leg base—304 SS 1-5/8" legs with flanged, adjustable feet for rock-solid floor anchoring.
- Easy, controlled pouring—self-locking worm-gear tilt with large hand wheel and high-capacity lip.
- Precise steam modulation—factory-mounted manual steam control valve handles incoming steam from 10-45 psi.
- Safety built in—50 psi ASME-approved jacket, chrome-plated safety valve and insulated condensate drain handle.
- Sanitary & simple to clean—all-stainless exterior (#4 finish) plus rolled rim that resists dents.
- Backed by Cleveland—NSF & ASME certifications and a 1-year parts & labor warranty.
Quick Specs
| Model | KDL-40-T |
|---|---|
| Capacity | 40 gal / 150 L (≈640 8-oz servings) |
| Jacket Coverage | 2/3 steam jacket |
| Steam Jacket Rating | 50 psi (3.4 bar) |
| Required Steam Supply | 10 – 45 psi direct steam; ½" NPT connection |
| Interior Material | 316 stainless steel |
| Exterior / Base | 304 stainless steel, open tri-leg frame with flanged adjustable feet |
| Tilting Mechanism | Manual, self-locking worm-drive |
| Overall Dimensions (W × D × H) | 44" × 44" × 54" (1118 mm × 1118 mm × 1372 mm) |
| Shipping Weight | 291 lb (132 kg) |
| Certifications | NSF, ASME |
| Standard Warranty | 1-year parts & labor (see warranty section below) |
Popular Add-Ons (Sold Separately)
- Spring-assisted hinged cover
- 2" tangent draw-off valve
- Hot/cold water faucet kit with swing spout
- Cooking basket sets, pan carriers & measuring strips
- Automatic water meter or cooling systems
Ask your sales rep for a full list of Cleveland kettle accessories.
Cleveland Range provides a one-year limited parts & labor warranty from date of installation (18 months from shipment, whichever comes first). Extended coverage is available at time of purchase.
