Cleveland Range KDL40 Steam Kettles
Description

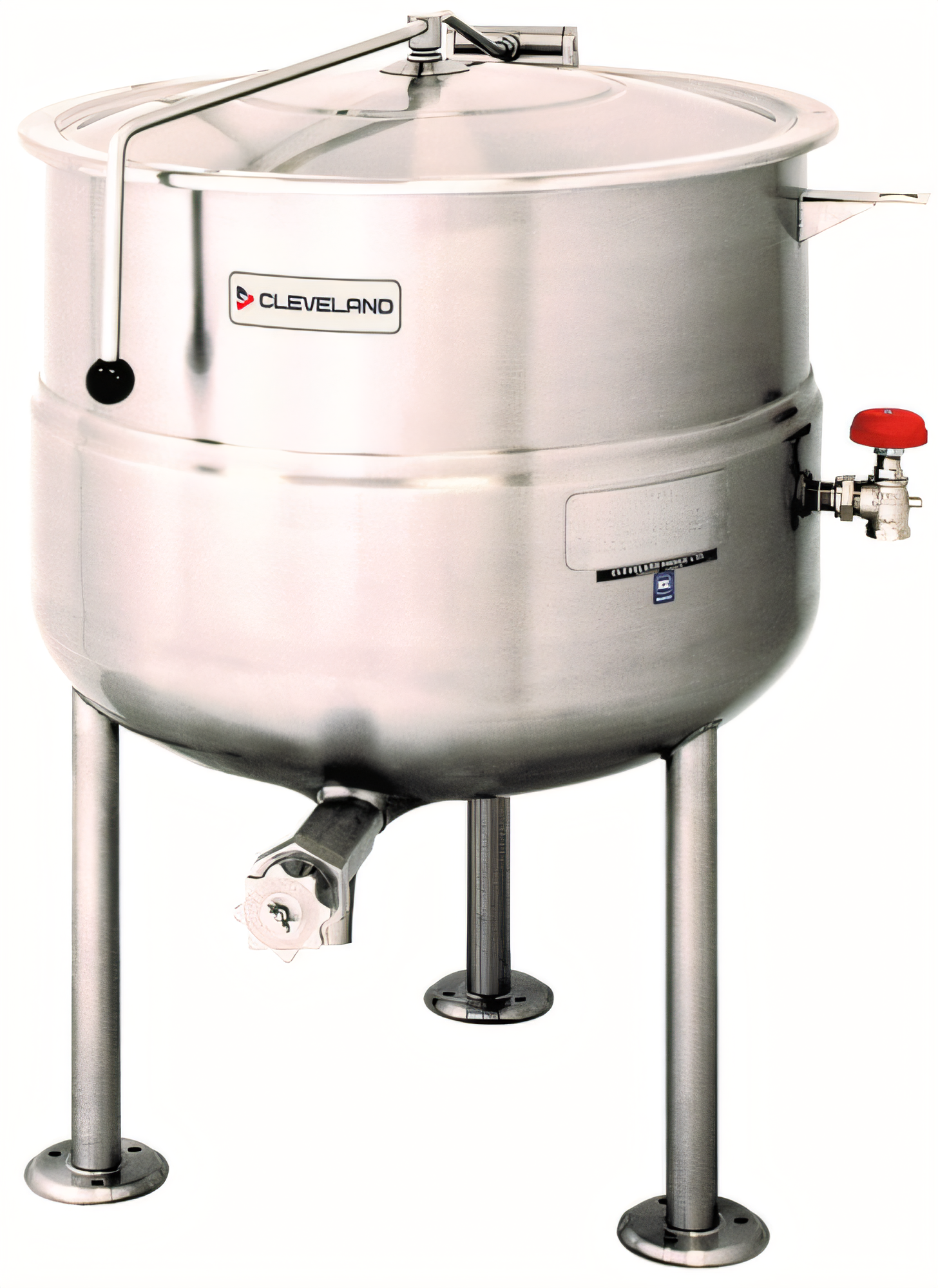

Cleveland KDL-40 Direct Steam Kettle

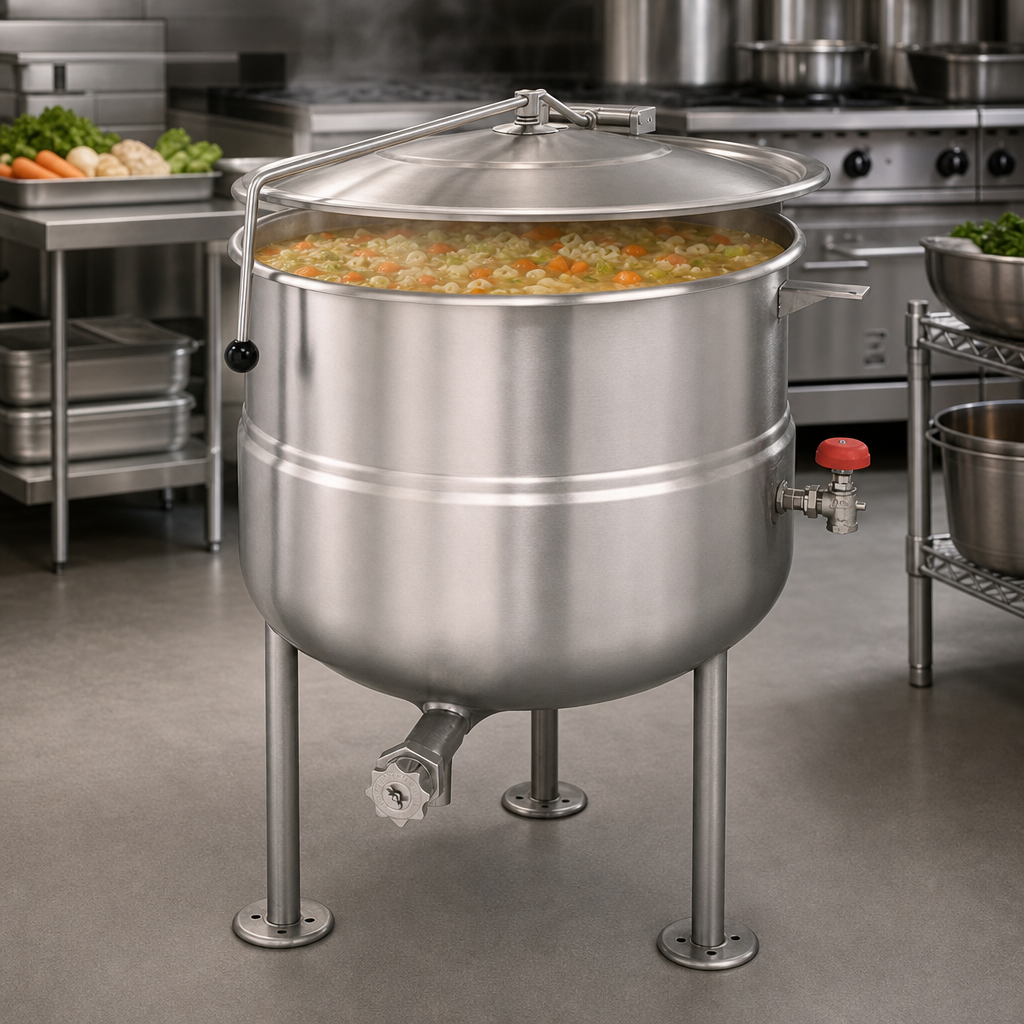

40-Gallon | 2/3 Jacket | Tri-Leg Base | 316 Stainless InteriorTurn out up to 640 eight-ounce servings every batch with Cleveland Range’s KDL-40. The 40-gallon, 2/3-jacketed design harnesses your building’s steam supply to heat evenly, recover quickly, and slash energy waste—perfect for soups, sauces, stews and more.
Why Chefs Choose the KDL-40
- Food-safe 316 stainless interior resists acid & salt for a longer service life.

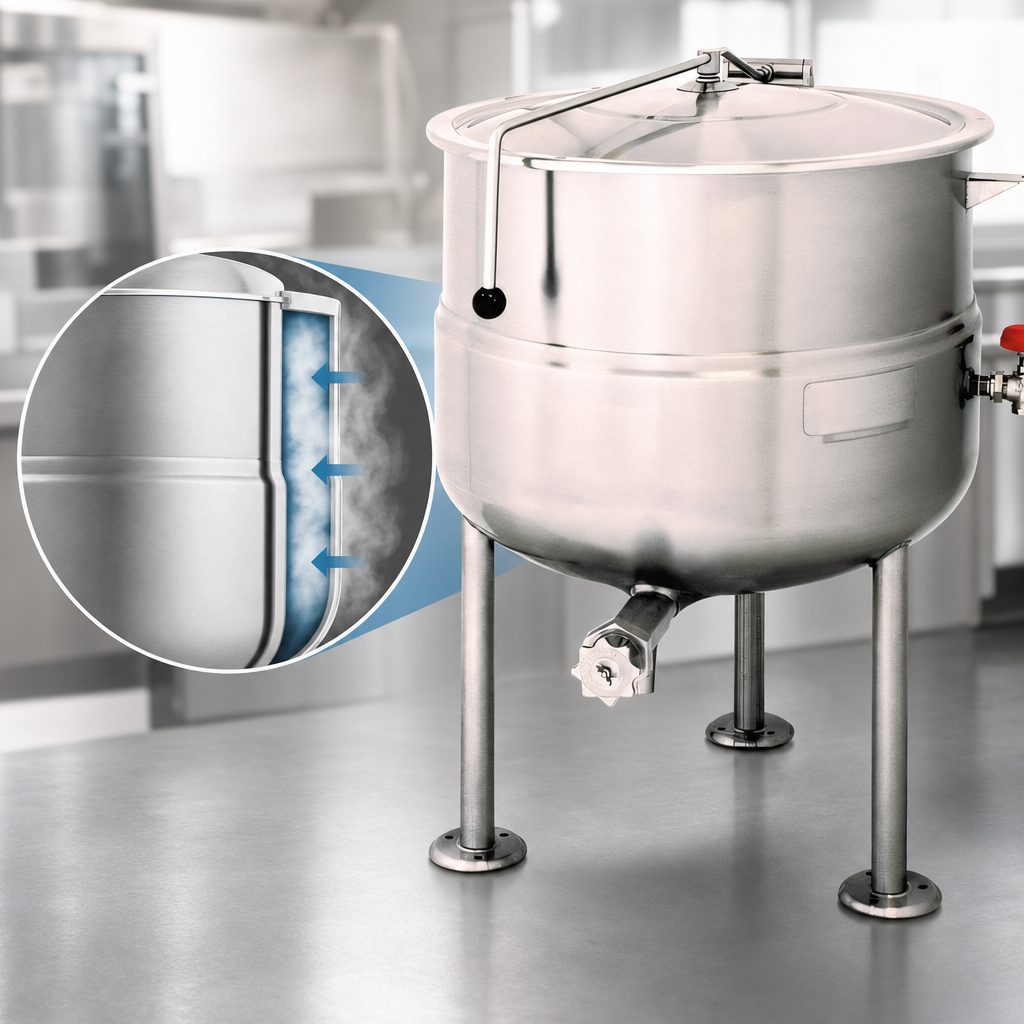

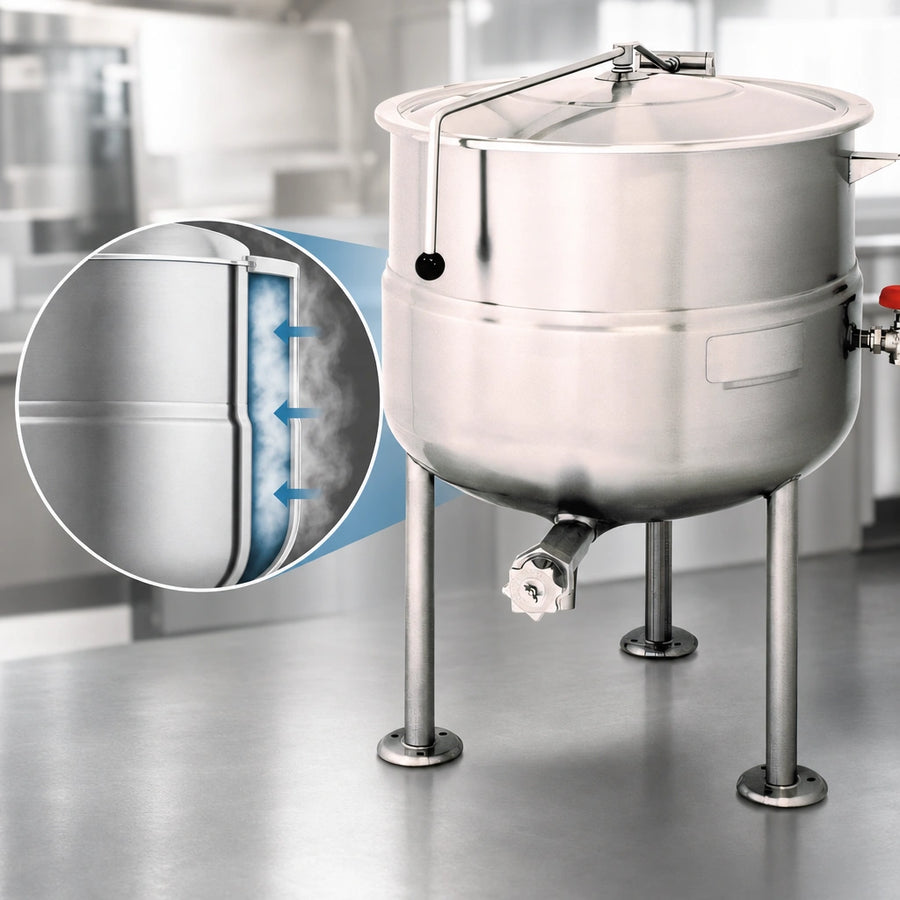

- 50 psi steam jacket rating (safety-valve protected) for rapid heat-up and fast batch turns.
- Spring-assisted domed cover lifts effortlessly and stays put at any angle.
- 2" tangent draw-off valve with removable strainer—clean transfers & easy portioning.
- Built-in steam control valve gives on-the-fly temperature regulation right at the kettle.
- Open tri-leg base with flanged, level-adjustable feet for rock-solid anchoring.
- Heavy rolled rim stands up to daily abuse from whisks, paddles & cleaning tools.
- NSF, ASME certified for peace-of-mind compliance.
At-a-Glance Specs
| Capacity | 40 gal / 150 L (≈ 640 servings, 8 oz.) |
|---|---|
| Jacket Type | 2/3 steam jacket, 50 psi rating |
| Construction | Interior 316 SS, exterior 304 SS |
| Base / Mounting | Open tri-leg, 1.63" Ø SS tubing, flanged feet (floor bolts not included) |
| Cover | Spring-assist, hinged, domed, one-piece rotatable |
| Draw-Off | 2" tangent valve w/ strainer & insulated handle |
| Steam Supply (customer) | ¾" NPT, 5–45 psi direct steam |
| Condensate Return | ½" NPT |
| Dimensions (W × D × H) | 44" × 44" × 54" (1118 × 1118 × 1372 mm) |
| Shipping Weight | ≈ 241 lb / 109 kg |
| Warranty | 1-year parts & labor (additional 1-yr parts available) |
Popular Add-Ons
- Steam Control Kit (steam trap, strainer & check valve assembly)
- Lift-off covers
- Tri-basket supports & perforated cooking baskets
- 3" butterfly or tangent draw-off valves
- Automatic water meter, hot/cold kettle filler or pre-rinse spray hose
Need a different size or pressure rating? Explore Cleveland’s full KDL/KDP stationary kettle line or chat with our team for a tailored recommendation.
