Cleveland Range KDL30F Steam Kettles
Cleveland Range KDL30F Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KDL30F Steam Kettles
Description

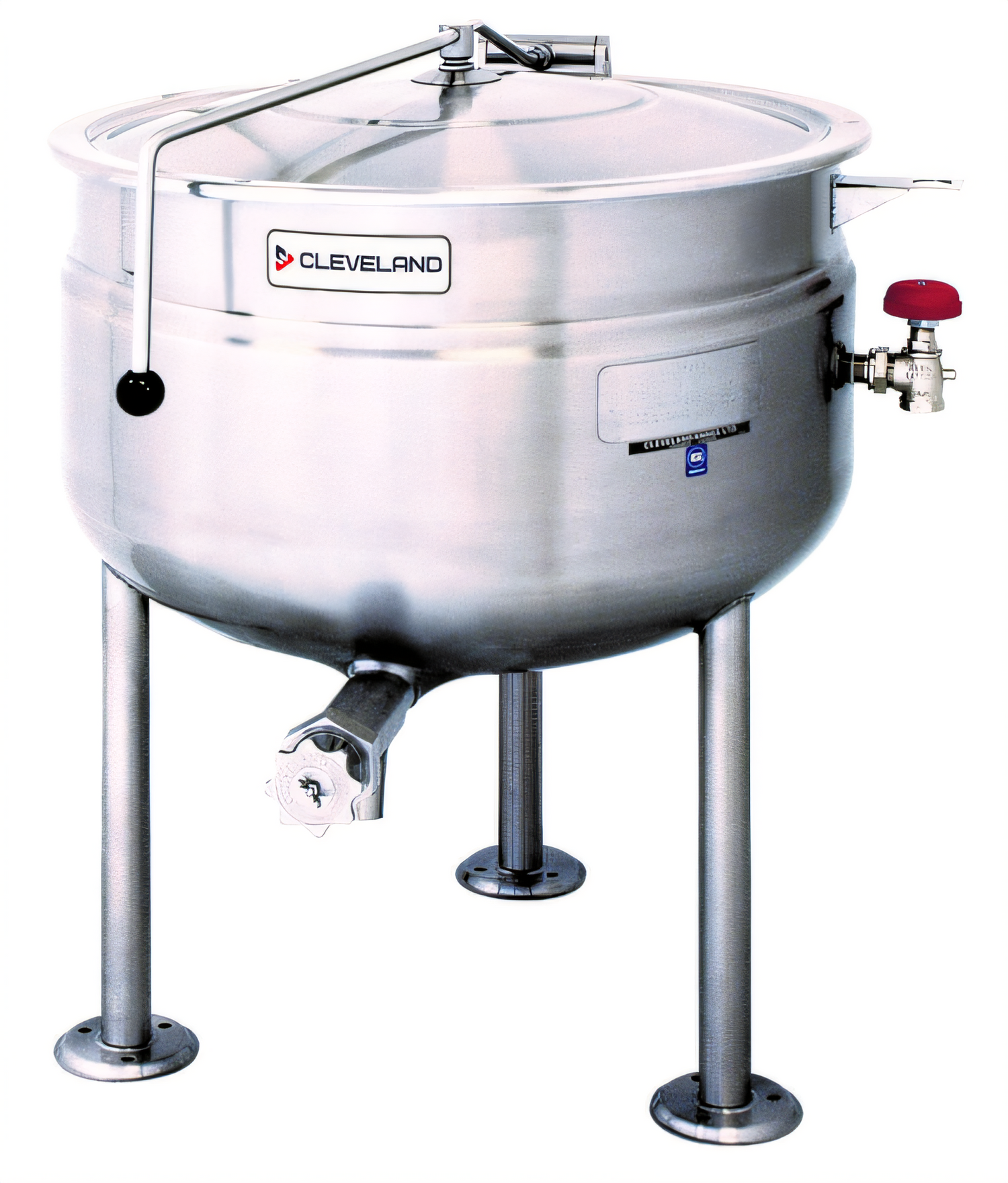

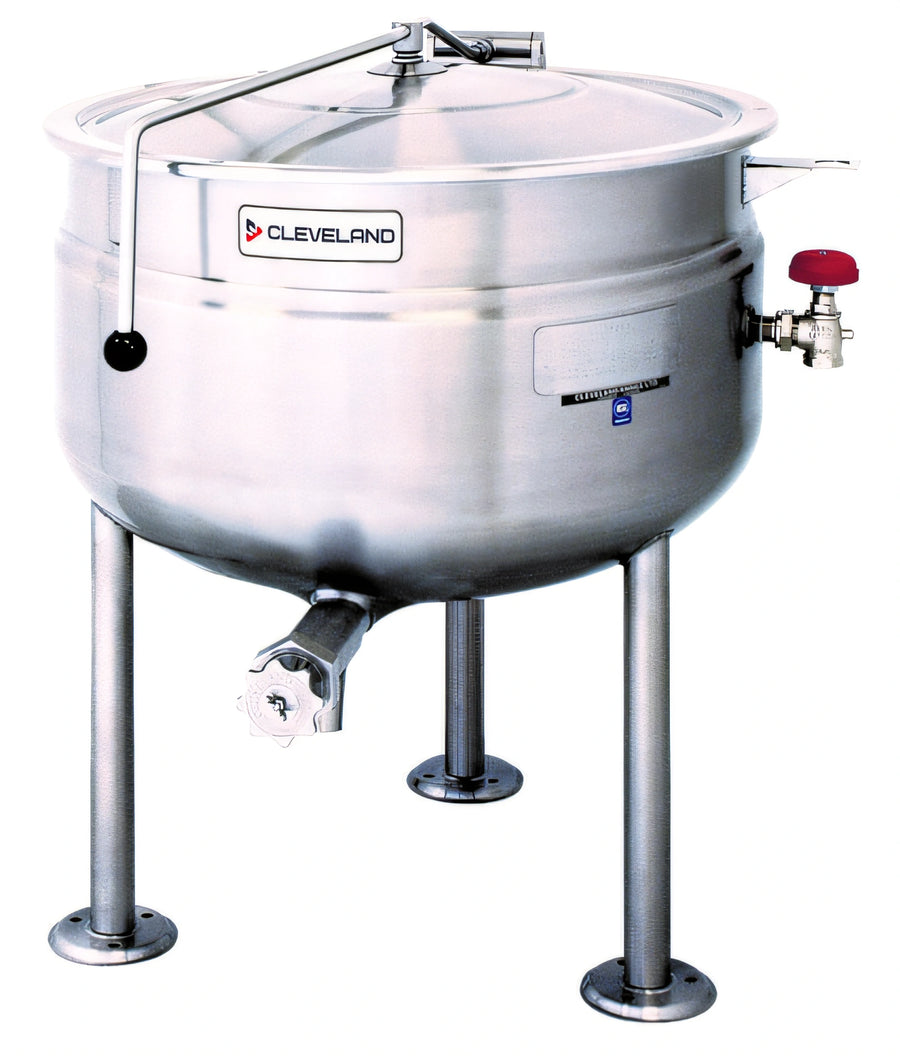

Cleveland KDL-30-F 30 Gallon Tri-Leg Direct Steam Kettle
Full-Steam Jacket • 316 Stainless Interior • 50 PSITurn out batch after batch of perfectly cooked soups, sauces and starches with the Cleveland KDL-30-F. This compact, 30-gallon direct-steam kettle combines a rugged all-stainless build with a full-jacket design that heats quickly, cooks evenly and cleans up fast—exactly what a high-volume kitchen needs.
Key Features

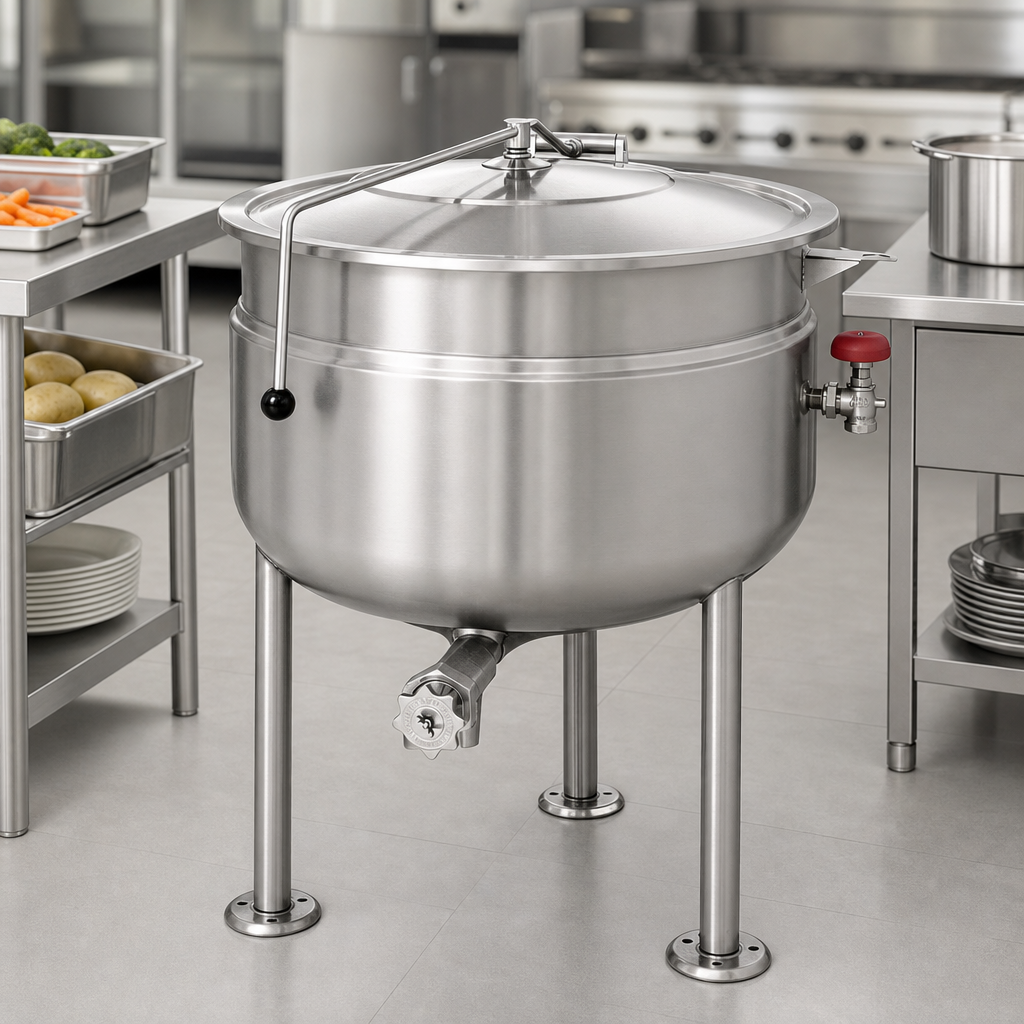

- 30 gal / 110 L capacity - produces up to 480 eight-ounce servings per batch

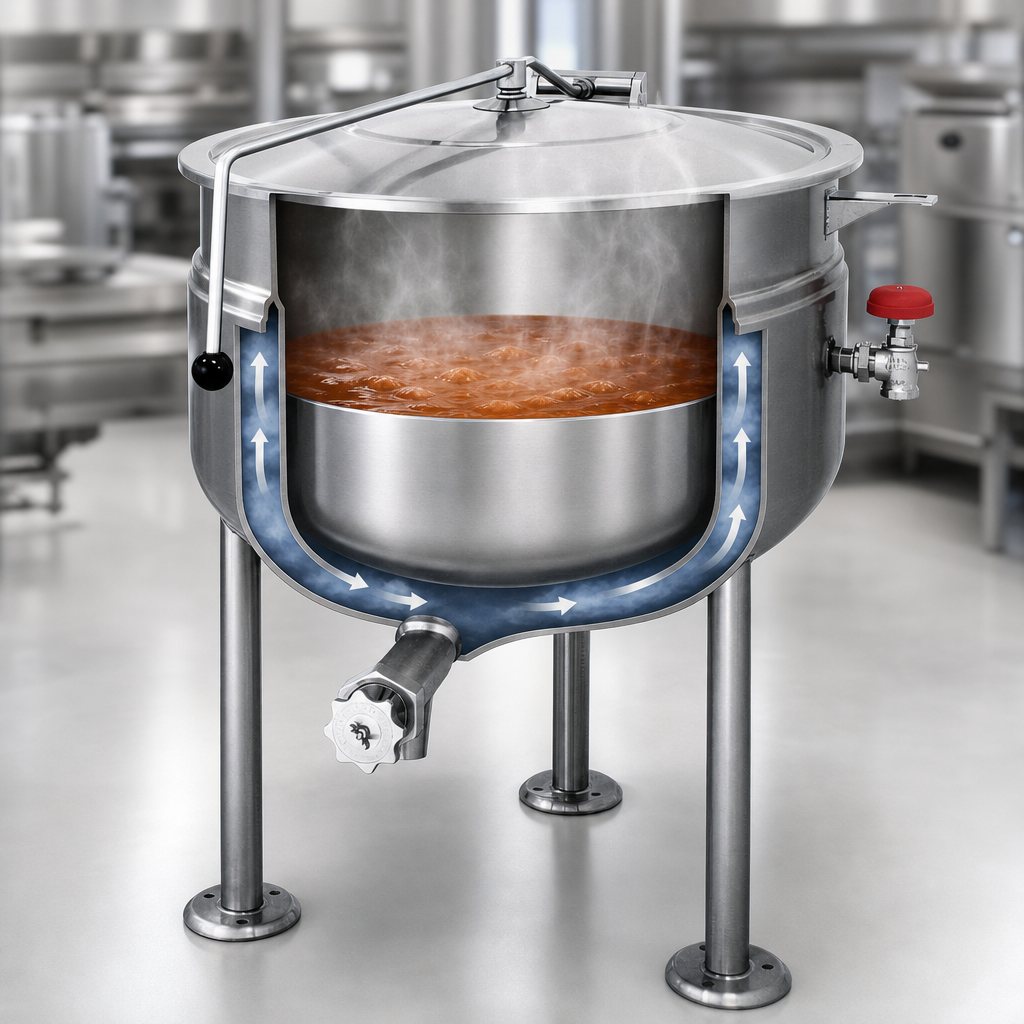

- Full steam jacket surrounds 100 % of the kettle for rapid, uniform heating
- Direct steam connection (5-45 PSI) keeps the unit simple, efficient and low-maintenance
- 316 series stainless steel liner resists acidic and salty recipes for a longer service life
- Open 304 stainless tri-leg base with adjustable flanged feet for rock-solid floor anchoring and easy cleaning underneath
- 2″ tangent draw-off valve with stainless strainer for safe, controlled portioning
- Spring-assisted, domed, hinged cover—lift with one hand and park it anywhere
- Steam control inlet valve and faucet mounting bracket included
- 50 PSI ASME-code jacket with chrome-plated safety valve
- Condensate drain valve with insulated handle keeps floors dry and safe
- Ergonomic 37″ working height reduces operator fatigue
- NSF certified & ASME stamped for code compliance
At-a-Glance Specs
| Model | KDL-30-F |
|---|---|
| Capacity | 30 gal / 110 L |
| Typical Yield | ≈ 480 servings (8 oz) |
| Jacket Rating | Full jacket, 50 PSI |
| Steam Supply | 5–45 PSI (direct connect) |
| Interior Liner | 316 stainless steel |
| Exterior | All stainless steel |
| Base | Tri-leg, 1 ⅝″ O.D. 304 SS with flanged feet |
| Draw-Off Valve | 2″ tangent with strainer |
| Cover | Spring-assist, domed, hinged |
| Working Height | 37.25″ |
| Overall Height (cover up) |
68″ |
| Shipping Weight | 135 lb / 63 kg |
| Approvals | NSF, ASME |
| Warranty | 1-year parts & labor (extended options available) |
Perfect For
- Soups, chowders & stews
- Pasta, rice & grains
- Sauces, gravies & custards
- Poaching, blanching & holding
Looking for more capacity? Cleveland tri-leg direct-steam kettles are also offered in 40, 60, 80, 100, 125 and 150 gallon models.
