Cleveland Range KDL25T Steam Kettles
Description

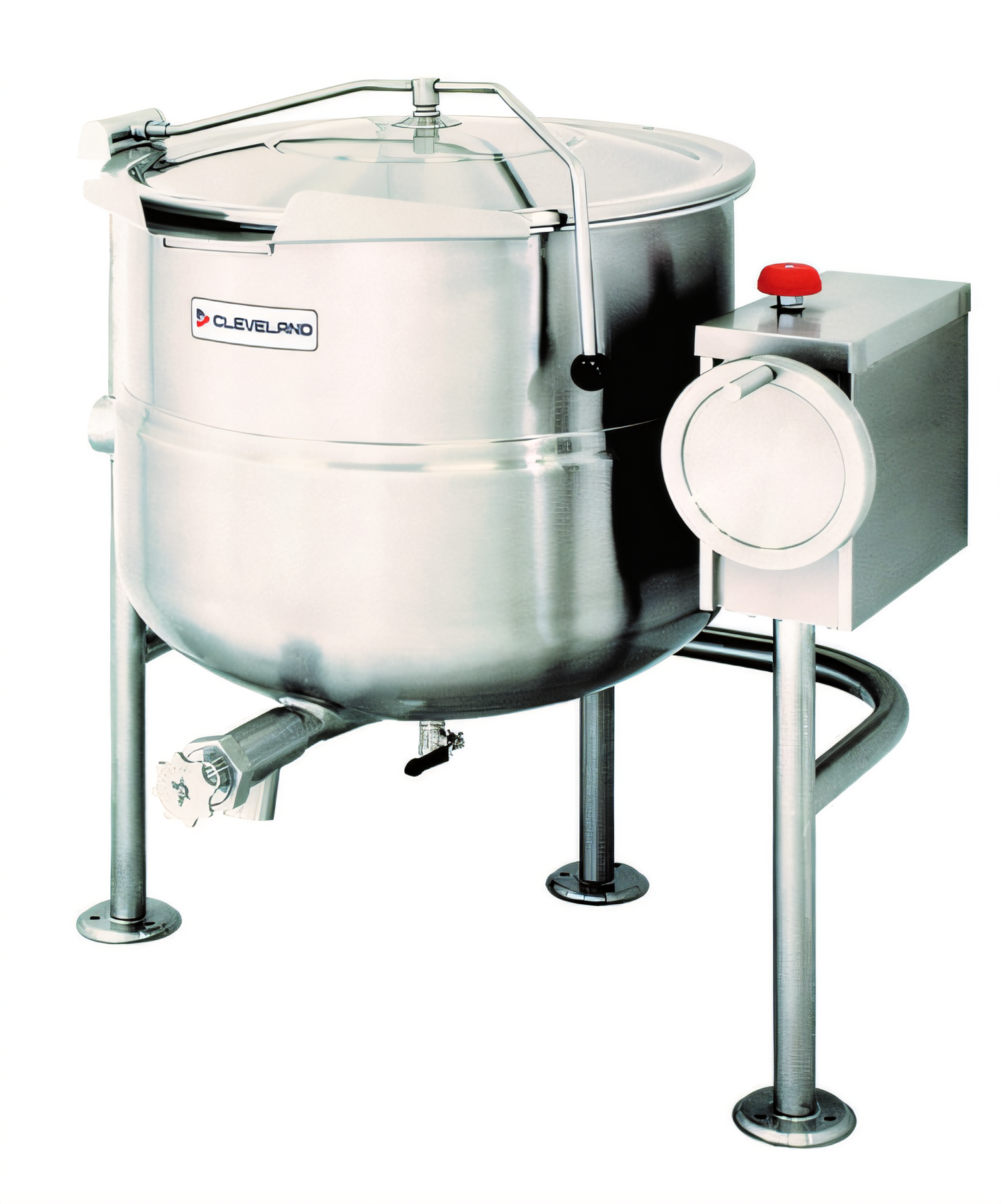

Cleveland KDL-25-T Tri-Leg Tilting Direct Steam Kettle — 25 Gal / 100 L
2/3-steam-jacketed • 316 SS liner • 50 psi ratingTurn out up to 400 eight-ounce servings in a single batch with the Cleveland KDL-25-T. Designed for demanding production kitchens, this 25-gallon direct-steam kettle delivers rapid, even heating, rock-solid durability and fingertip tilting for a safer, more efficient workflow.
Key Advantages

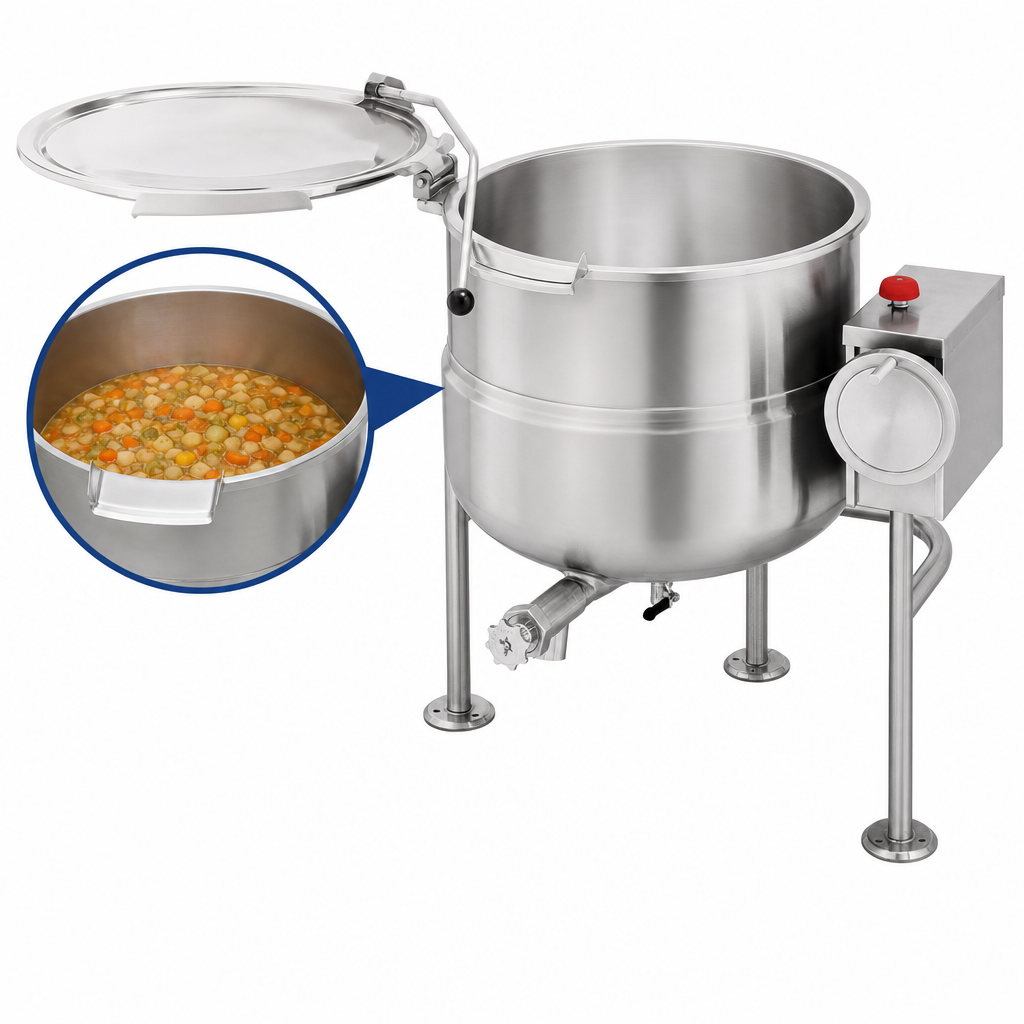

- 25 gal (100 L) capacity — ideal for soups, sauces, stocks & pasta.

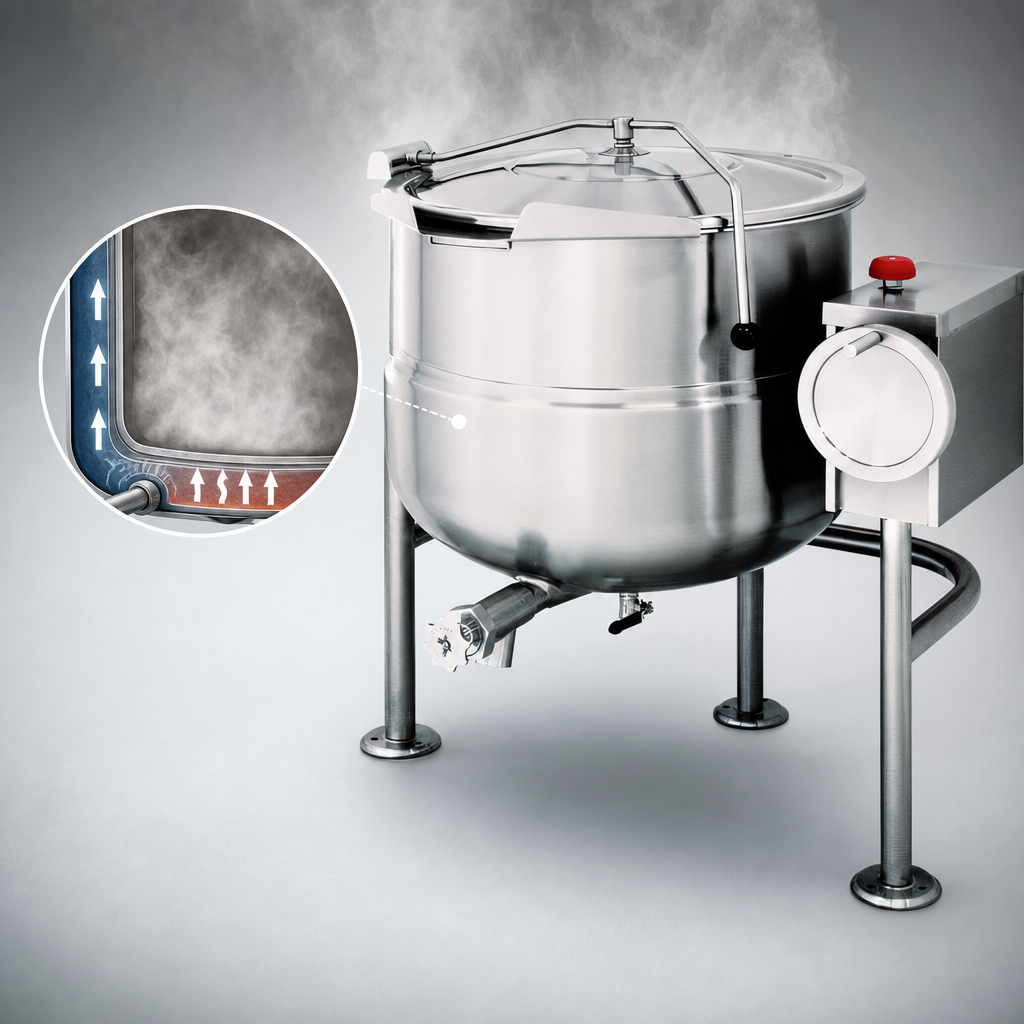

- 2/3 steam jacket transfers heat across the bottom and sidewalls for scorch-free results.
- Connects to an existing 10–45 psi steam supply; no elements or burners to maintain.
- Open tri-leg base with 1 5/8" OD 304 SS legs and adjustable flanged feet for sanitary floor mounting.
- Manual, self-locking worm-gear tilt lets one operator pour with precision and without strain.
- Heavy rolled rim, high-capacity pouring lip and condensate drain valve with insulated handle.
- Factory-mounted steam control valve plus chrome-plated 50 psi safety valve.
- 304 stainless exterior with #4 finish and food-safe 316 stainless liner for maximum corrosion resistance.
- NSF & ASME certified; built in the USA for long-term commercial duty.
Specification Snapshot
| Model | KDL-25-T |
|---|---|
| Capacity | 25 gal / 100 L |
| Yield | ≈ 400 portions (8 oz) |
| Jacket Coverage | 2/3 of kettle body |
| Steam Jacket Rating | 50 psi |
| Required Steam Pressure | 10 – 45 psi (direct connection) |
| Interior Material | 316 series stainless steel |
| Exterior Material | 304 series stainless steel, #4 polish |
| Tilt Mechanism | Manual worm-gear, self-locking |
| Overall Dimensions† | 38" W × 38" D × 54" H |
| Shipping Weight | 285 lb / 129 kg |
†Refer to the official spec drawing for detailed dimensional data.
Factory-Installed Options & Accessories
- Spring-assisted, hinged domed cover
- 2" tangent draw-off valve with strainer
- Hot & cold water faucet with swing spout
- Steam control kit (steam trap, strainer & check valve)
- Butterfly valve, basket supports, gallon markings, measuring strips & more
Warranty & Start-Up
Includes a 1-year parts & labor warranty with additional 4-year prorated coverage on the pressure vessel. A complimentary performance start-up and water quality check is available through your local Factory Authorized Servicer.
Need additional capacity or powered tilt? Check out the 40 gal and 60 gal models in the same series.
