Cleveland Range KDL25 Steam Kettles
$12,539.00
Unit price
/
Unavailable
Description

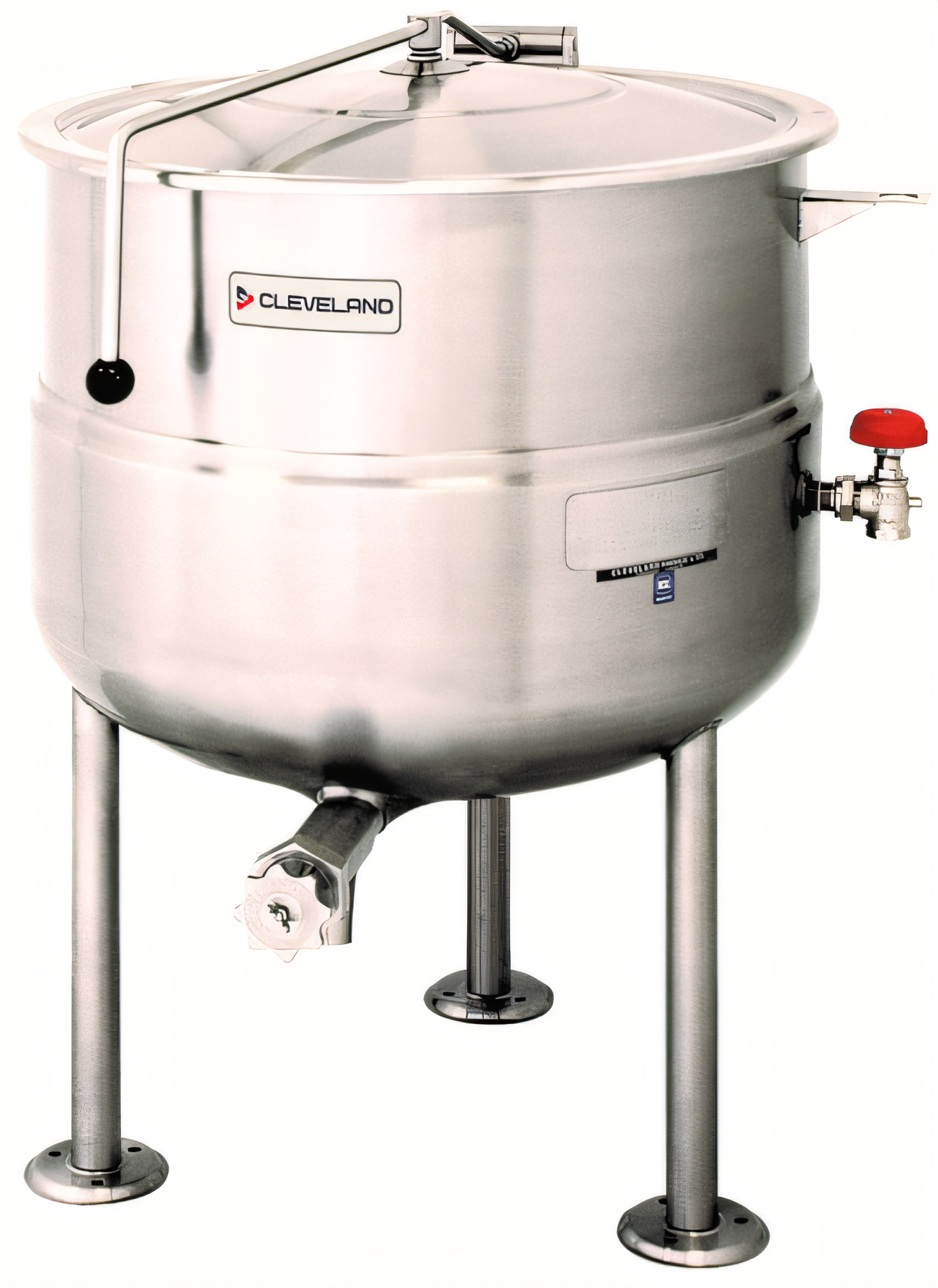

Cleveland KDL-25 Direct-Steam Kettle – 25 gal
Tri-Leg • 2/3 Steam Jacket • 50 psi Rating • 316 SS InteriorBoost batch production without sacrificing consistency. The Cleveland KDL-25 is a 25-gallon, 2/3-jacketed kettle that connects directly to your in-house steam supply, giving chefs lightning-fast heat-up, gentle agitation-free cooking, and legendary Cleveland durability in a compact footprint.
Why This Kettle Rocks

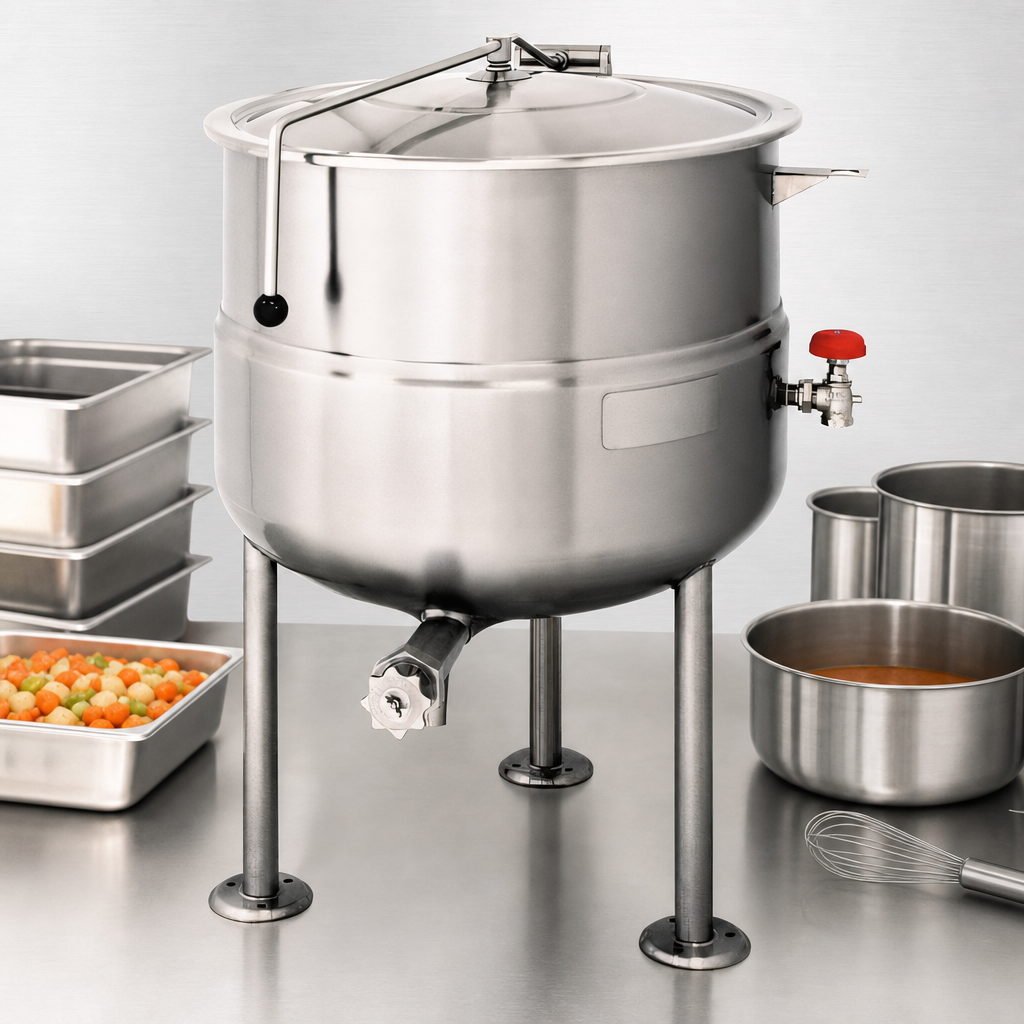

- 25 gal / 100 L capacity – up to 400 eight-ounce servings per batch.

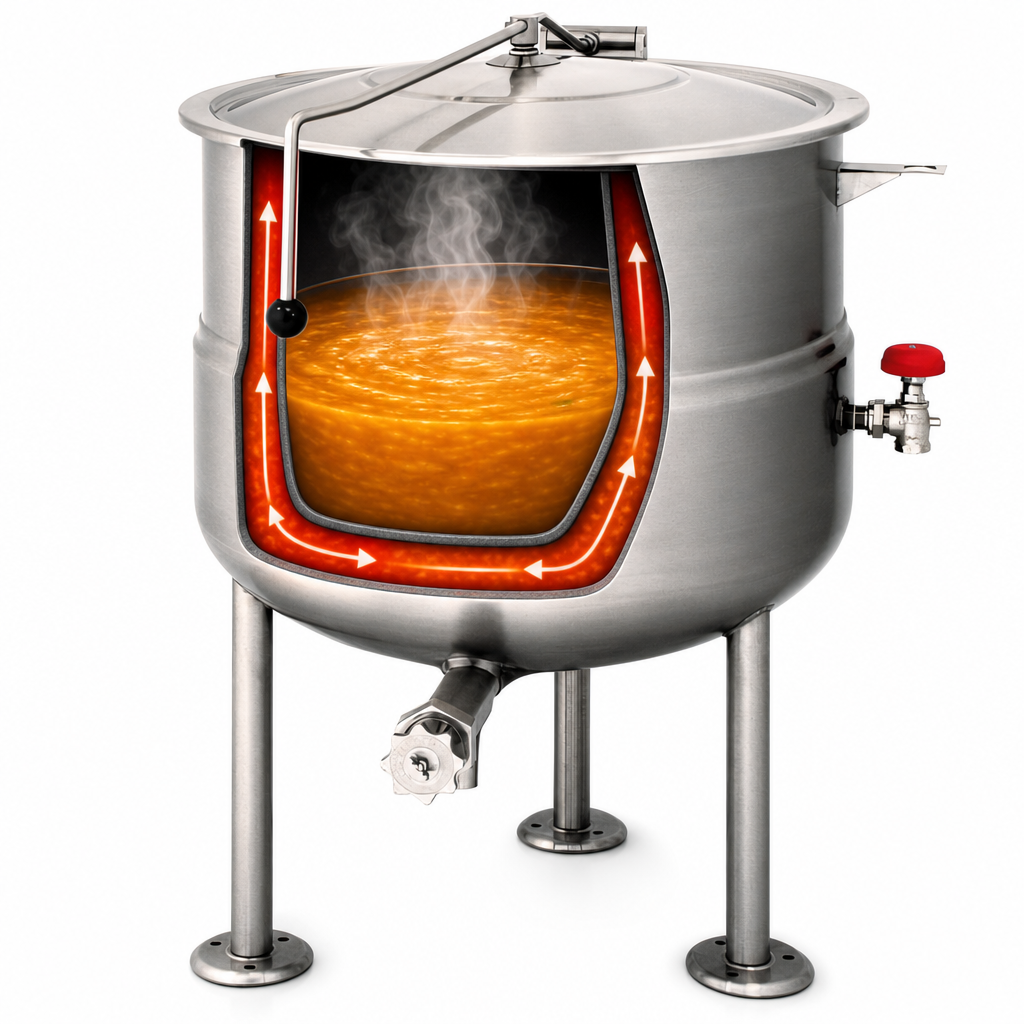

- 2/3-jacketed design surrounds the cooking zone with steam for rapid, even heating.
- 316 series stainless-steel interior handles acidic foods far better than 304 SS.
- Rugged tri-leg base (1.63" O.D., 304 SS) with flanged, level-adjustable feet for rock-solid floor mounting.
- Factory-installed steam control inlet valve for precise modulation.
- Spring-assisted domed cover—hinged & counter-balanced for effortless one-hand operation.
- 2" tangent draw-off valve with perforated drain strainer lets you portion or completely empty the kettle fast.
- Heavy-duty rolled rim resists dents when loading or cleaning.
- Faucet mounting bracket pre-welded—add a kettle filler in minutes.
- Built-in safety & maintenance: 50 psi safety valve, condensate drain valve with insulated handle, and NSF/ASME compliance.
Technical Specifications
| Model | Cleveland KDL-25 |
|---|---|
| Capacity | 25 gal | 100 L (≈400 × 8 oz servings) |
| Jacket Rating | 50 psi (345 kPa) |
| Steam Supply Required | 5 – 45 psi (0.34 – 3.1 bar) external source, ¾" NPT |
| Construction – Interior | 316 stainless steel |
| Construction – Exterior / Base | 304 stainless steel kettle & tri-leg frame |
| Draw-Off Valve | 2" tangent, with removable strainer |
| Cover | Spring-assisted, domed, removable |
| Overall Dimensions (ship) | 38" W × 38" D × 54" H |
| Shipping Weight | ≈170 lb (77 kg) |
| Certifications | NSF, ASME |
| Standard Warranty | 1-year parts & labor • Performance start-up included |
Popular Factory Options
- Chrome-plated Steam Control Kit (steam traps, check valve, condensate strainer & fittings)
- Hot-/Cold kettle filler hose kits
- Cooking baskets & tri-basket supports
- 3" butterfly or tangent draw-off valves
- Automatic water meters, measuring strips, and more
Heads-up: This is a direct-steam kettle and will not generate its own steam.
A properly filtered steam supply (5 – 45 psi) and floor bolting are required for operation.
Always follow local codes and Cleveland installation guidelines.
Need extra peace of mind? Add an optional 1-year extended warranty when you purchase the kettle.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Shipping Weight
170.0lbs
Base
tri-leg
Capacity
18 - 26 gallon
Kettle Liner
316 stainless steel
Kettle Jacket
partial jacket
Specifications
Kettle, direct steam, 25-gallon capacity, 2/3 steam jacket design, open tri-leg base, standard with flanged feet, steam control valve, faucet mounting bracket, 2" tangent draw-off valve & strainer, spring assist cover, stainless steel exterior with 316 series stainless steel interior, 50 psi rating
