Cleveland Range | SKU:
KDL200
Cleveland Range KDL200 Steam Kettles
$48,494.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Cleveland Range KDL200 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range KDL200 Steam Kettles
$48,494.00
Unit price
/
Unavailable
Description

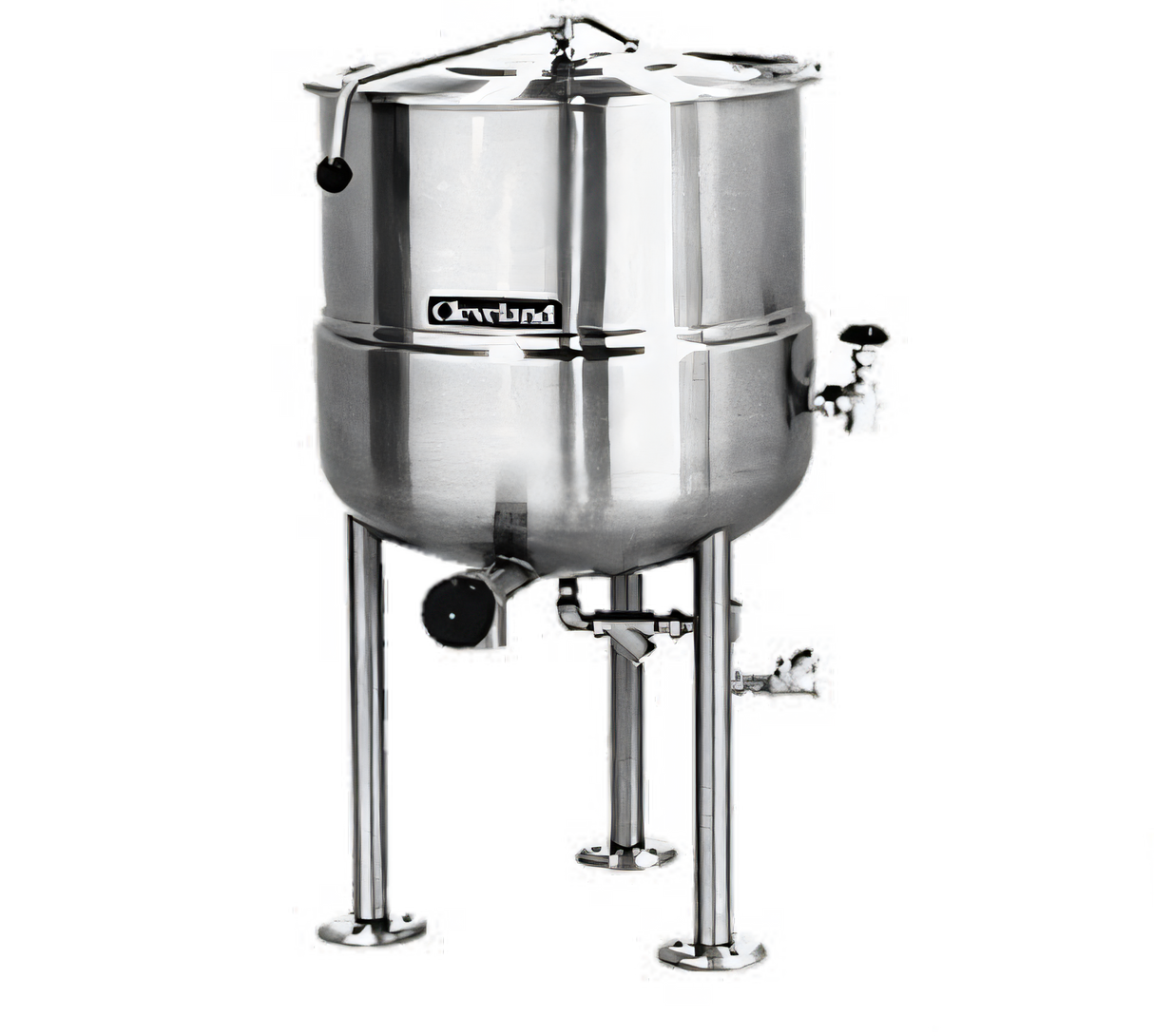

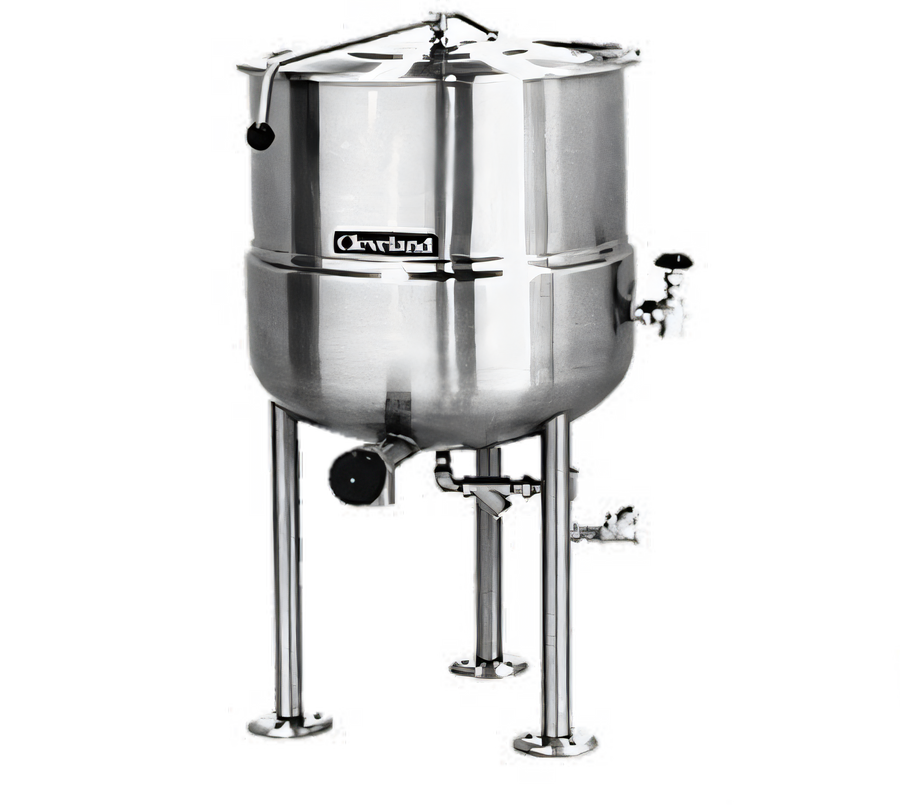

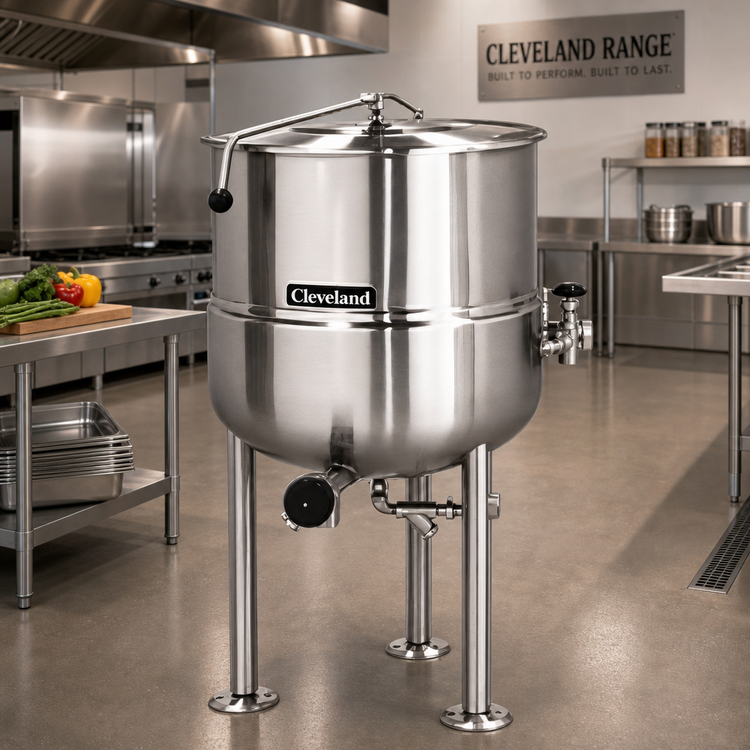

Cleveland KDL-200 200-Gallon Direct-Steam Kettle
Tri-Leg • 2/3 Jacket • 316 Stainless Liner • 35 psi Jacket RatingBuilt for the busiest production kitchens, the Cleveland KDL-200 turns out up to 3,200 eight-ounce servings at a time. Connect it to your house steam line, lock it to the floor and enjoy fast, even heating with virtually no maintenance Downtime.
Key advantages

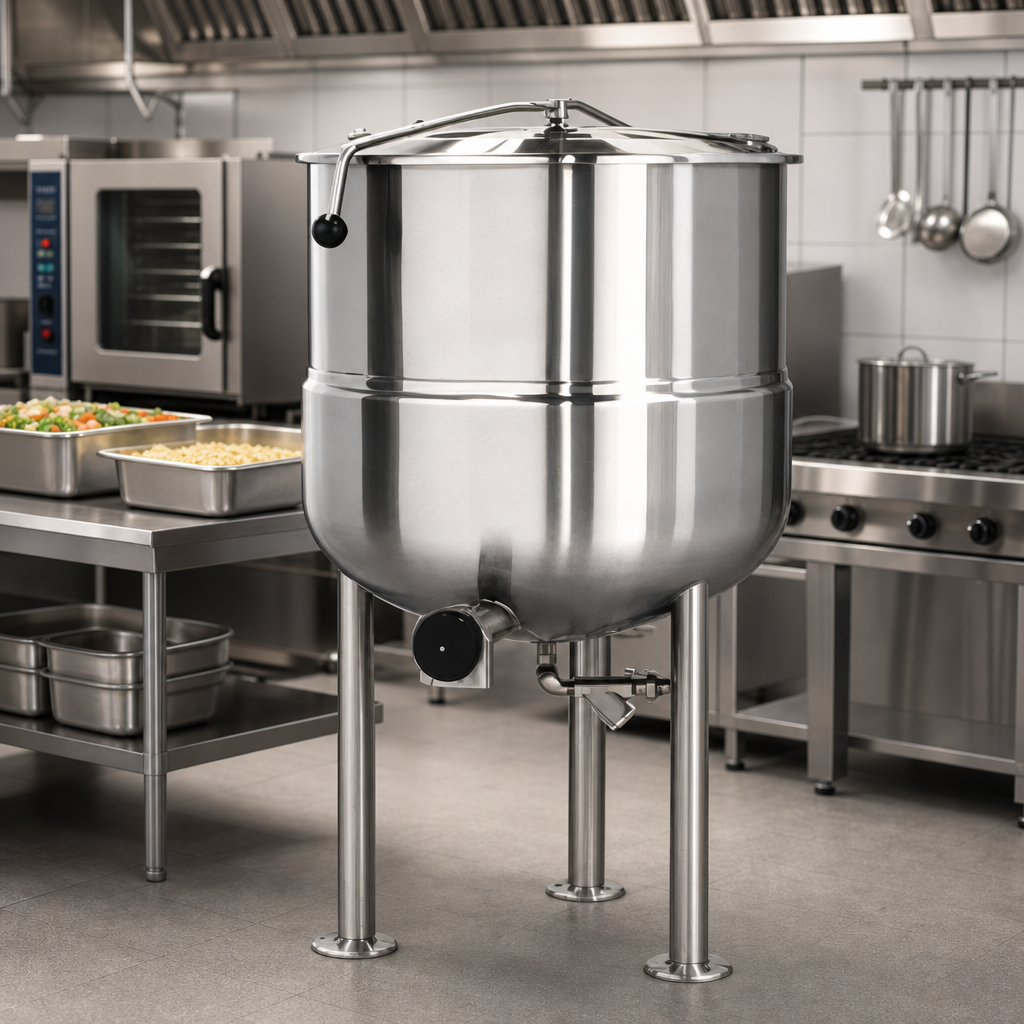

- Massive 200 gal / 760 L capacity for soups, sauces, stocks, pasta and more.
- 2/3 jacketed design surrounds product with steam for rapid, uniform heat transfer.
- Premium 316 stainless steel liner stands up to acidic foods and aggressive cleaning chemicals.
- Open tri-leg base (304 SS, level-adjustable flanged feet) keeps the floor clear for easy wash-down.
- Spring-assisted domed cover lifts effortlessly and parks wherever you leave it.
- 2" tangent draw-off valve with removable strainer lets you portion or fully drain product without tipping.
- ASME-stamped 35 psi jacket and chrome-plated safety valve for reliable over-pressure protection.

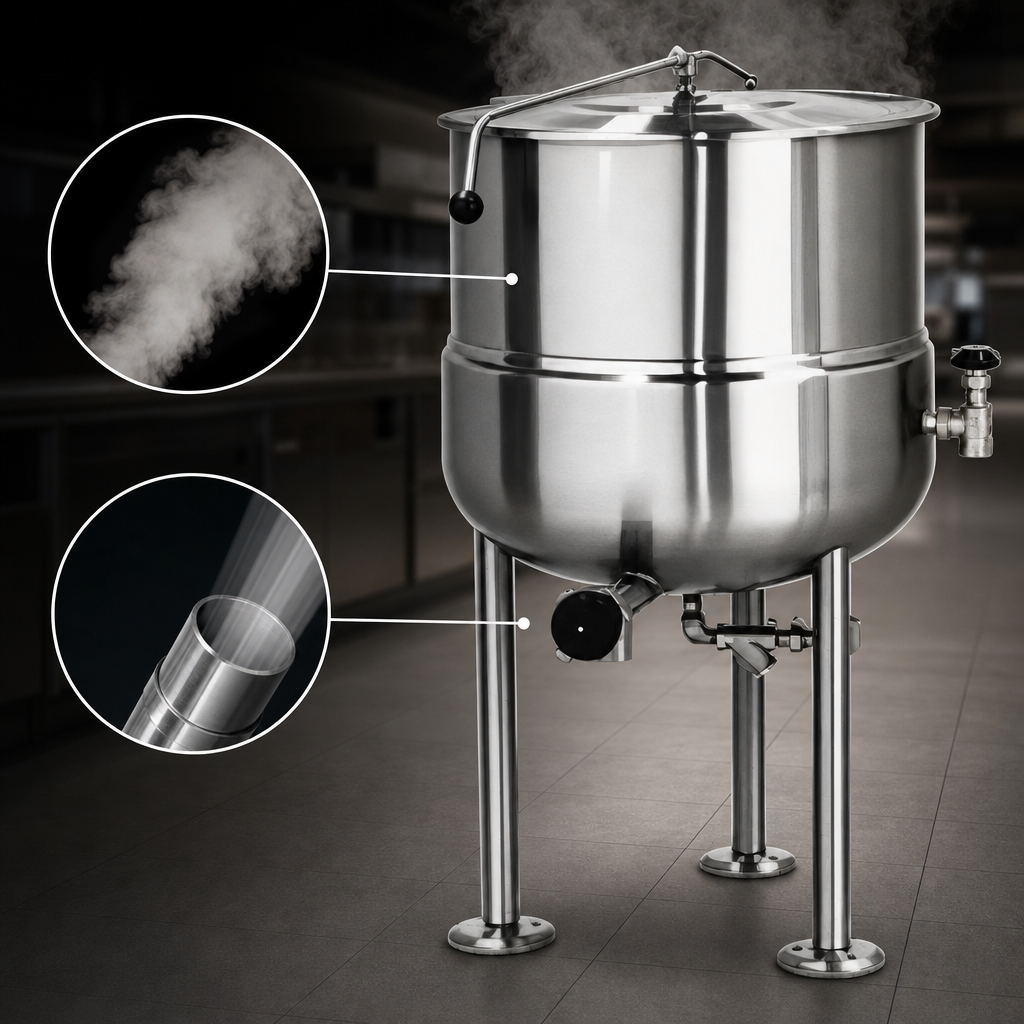

- Direct-steam operation (5-45 psi supply) means no internal steam generator to descale or service.
- NSF & ASME compliant and proudly manufactured by Cleveland Range in the USA.
Technical specs
| Model | KDL-200 (stationary, tri-leg) |
|---|---|
| Usable capacity | 200 gal / 760 L |
| Estimated servings (8 oz) | 3,200 per batch |
| Jacket coverage | 2/3 of kettle body |
| Jacket pressure rating | 35 psi |
| Required steam supply | 5 – 45 psi (direct external) |
| Interior material | 316 series stainless steel |
| Exterior material | All stainless steel |
| Base style | Open tri-leg, 1.63" Ø 304 SS tubing, flanged feet (floor-boltable) |
| Product draw-off | 2" tangent valve with strainer |
| Cover | Spring-assisted, hinged, domed |
| Safety valve | Chrome plated, 35 psi |
| Compliance | NSF, ASME |
| Standard warranty | 1-year parts & labor (18 months from shipment) |
Popular factory options (sold separately)
- Steam Control Kit (steam trap, PRV, check valves, fittings)
- Lift-off cover (CL)
- 3" tangent or butterfly draw-off valves
- Cooking baskets & tri-basket supports
- Hot/cold kettle filler with 60" hose
- Automatic water meter & gallon markings
- Insulated outer jacket for additional energy savings
Warranty reminder: Proper installation, approved water quality and routine maintenance are required for
full warranty coverage. Extended warranty plans are available when purchased with the kettle.
Have questions about steam requirements, accessories or lead times? Our food-service equipment specialists are ready to help.
Features & Specs
Features & Specs
Manufacturer
Cleveland Range
Shipping Weight
560.0lbs
Base
tri-leg
Capacity
151 - 250 gallon
Kettle Liner
316 stainless steel
Kettle Jacket
partial jacket
Specifications
Kettle, direct steam, 200-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, 2" tangent draw-off, spring assist cover, 35 psi rating
