Cleveland Range KDL150T Steam Kettles
Description

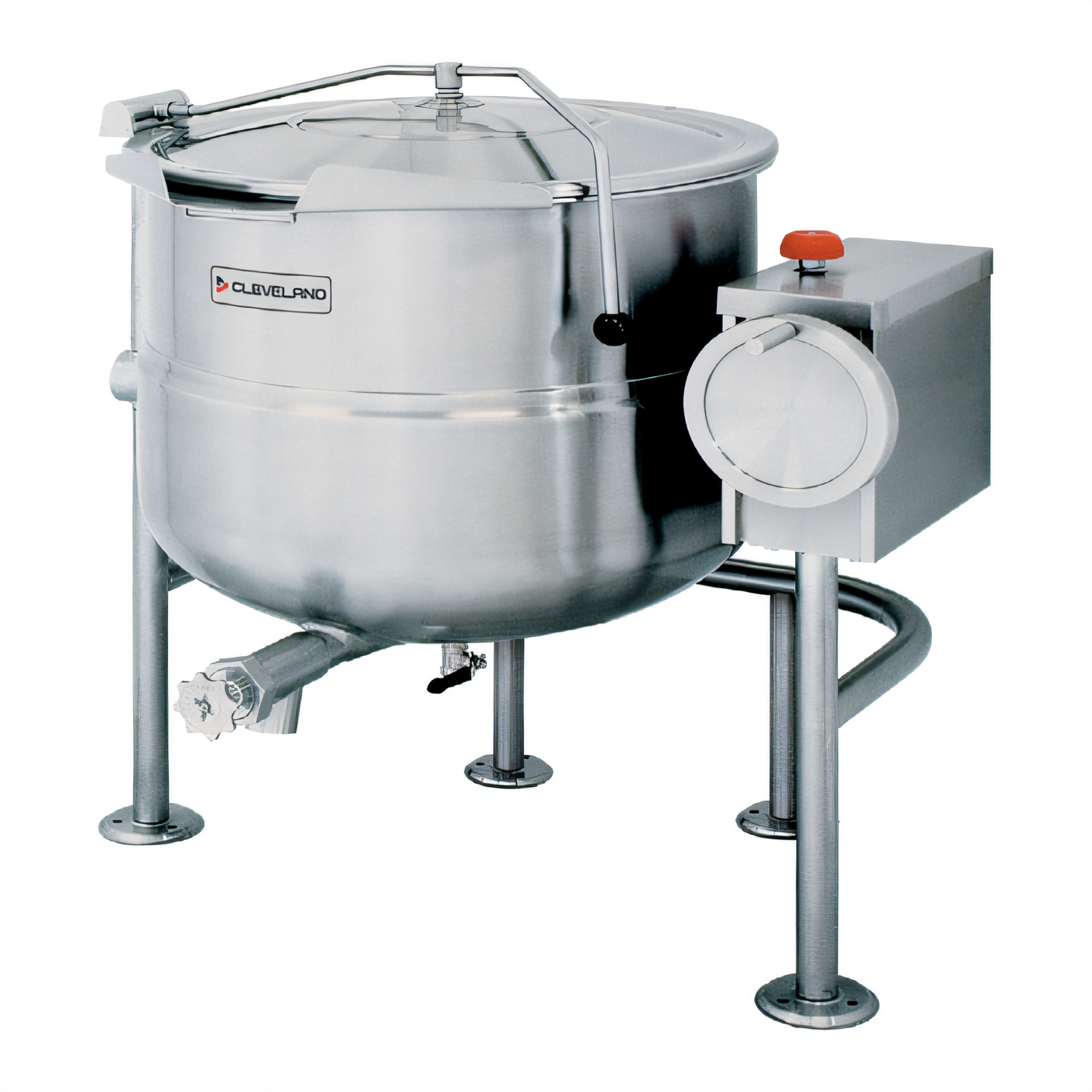

Cleveland KDL-150-T | 150-Gallon Direct-Steam Tilting Kettle
Quad-Leg Base • 2/3 Jacket • 316 SS Liner • 35 psi Jacket RatingFeed the crowd, not the stress. The Cleveland KDL-150-T delivers a full 150 gallons (575 L) of high-efficiency, steam-powered cooking—enough for roughly 2,400 eight-ounce servings per batch. Engineered for relentless, high-volume duty, this kettle couples a rugged open quad-leg frame with a premium 316 stainless interior, giving chefs the speed, control and durability they demand.
Why Choose the KDL-150-T?

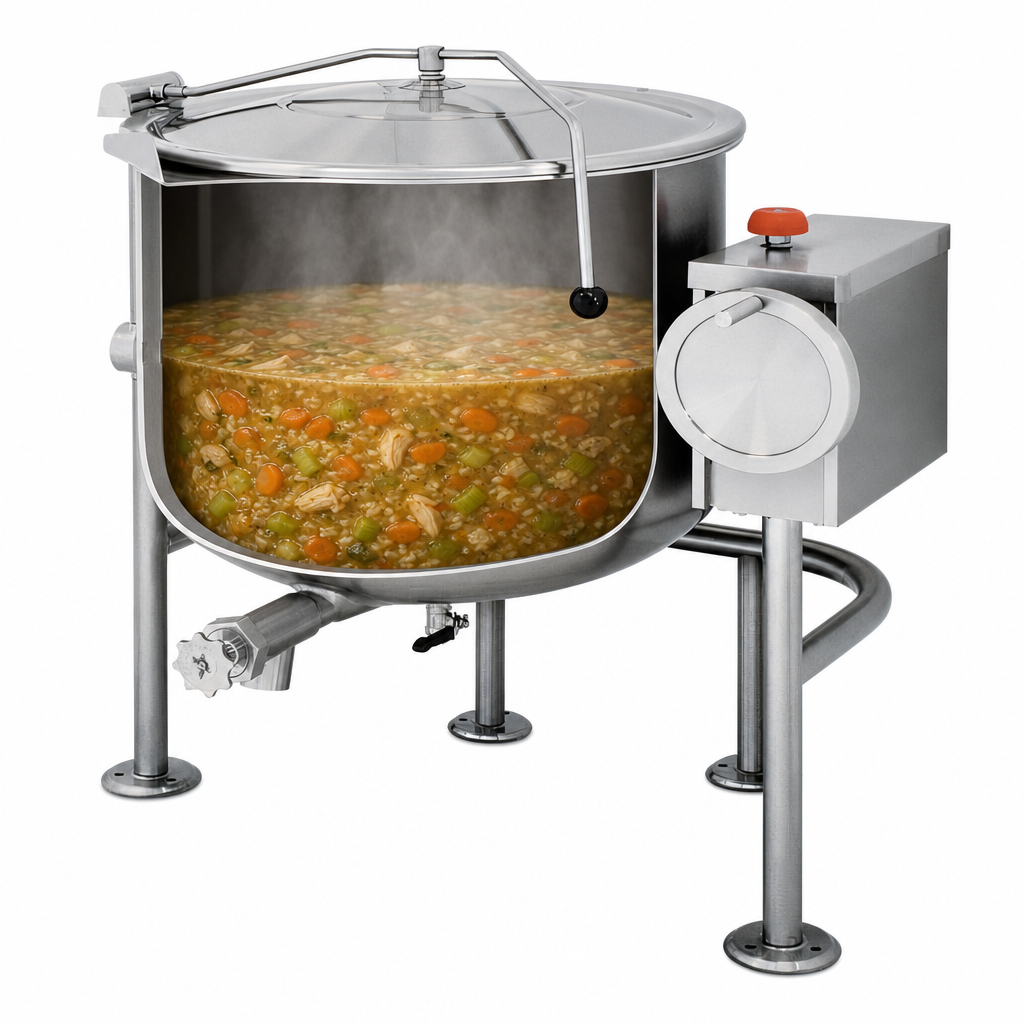

- Massive batch capacity slashes turn-around time for soups, sauces, stews and stocks.

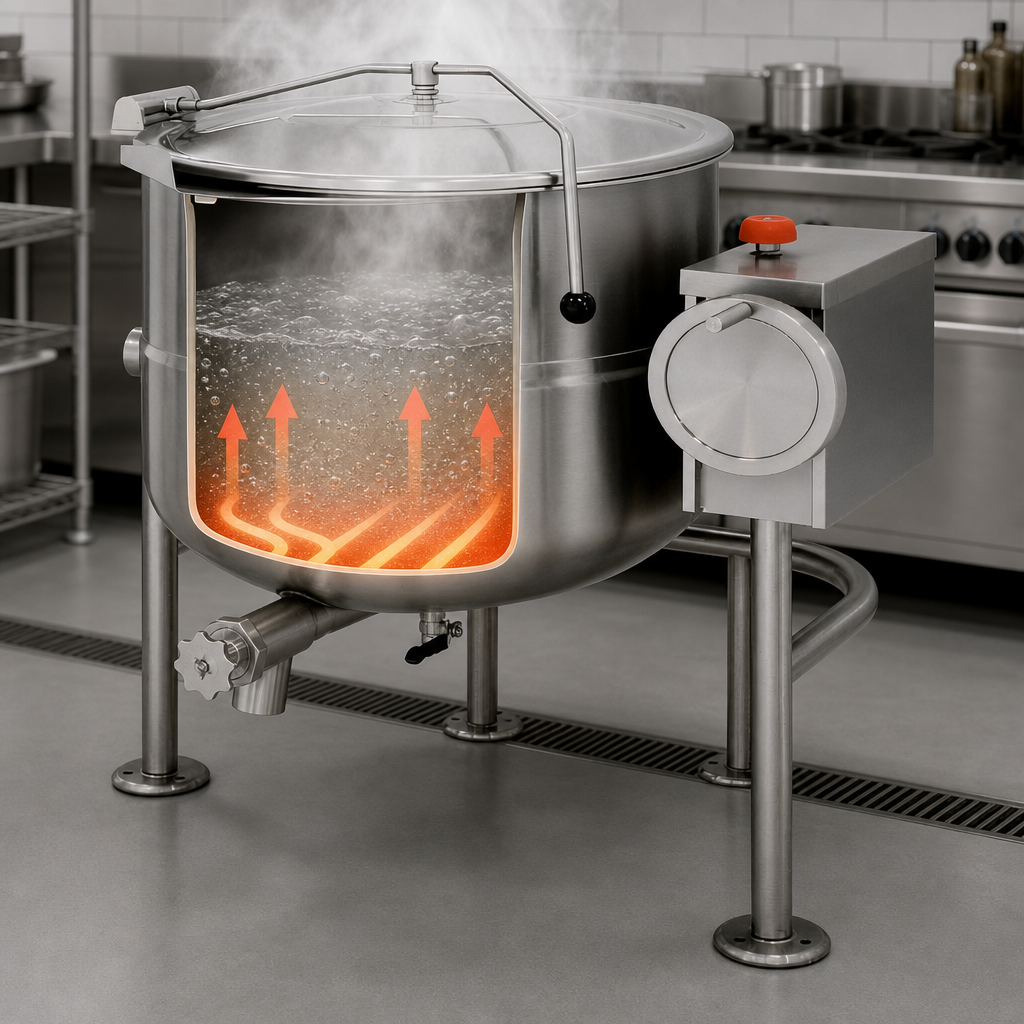

- 2/3 jacketed body provides rapid, even heat transfer—no hot spots, no scorching.
- Acid-resistant 316 SS cooking surface meets the toughest sanitation and HACCP standards.
- 35 psi ASME-stamped jacket safely handles incoming steam from 10 - 45 psi.
- Smooth hand-wheel tilt with self-locking, permanently-lubricated worm drive for controlled pours.
- Reinforced rolled rim with high-capacity lip keeps product off the floor and in the pan.
- Open quad-leg base (1 ⅝″ OD) with flanged, adjustable feet—easy cleaning and rock-solid anchoring.
- Right-hand console houses the factory-installed steam control valve for fingertip regulation.
- NSF-listed, #4 sanitary polish throughout; built to Cleveland’s “Timeless Quality, Trusted for Life” standard.
What’s Included
- Direct-steam connection (installer supplies facility steam 10-45 psi)
- 35 psi chrome-plated safety valve
- Condensate drain valve with insulated handle
- One-year parts & labor warranty with complimentary factory start-up assistance
Popular Factory Options
- Lift-off or spring-assist hinged cover (CL / CHS)
- 2″ or 3″ tangent draw-off valve, or 3″ butterfly valve (TD2, TD3, BV3)
- Hot & cold water faucet with swing spout (DPK) or 60″ filler hose kit (DKF-K / SKF-K)
- Steam control kit with trap, strainer & check valve (SCK2)
- 100 psi jacket upgrade (PO), cooking baskets, measuring strips, accessory kit & more
Technical Specifications
| Model | KDL-150-T |
|---|---|
| Capacity | 150 gal / 575 L |
| Estimated Servings (8 oz) | ≈ 2,400 portions |
| Steam Jacket Rating | 35 psi (ASME) |
| Required Steam Supply | 10 - 45 psi, direct connection |
| Interior Material | 316 series stainless steel |
| Exterior Material | 304 series stainless steel, #4 finish |
| Mounting | Open quad-leg base, flanged & adjustable (±1″) |
| Width (A1) | 55 5⁄8″ / 1,413 mm |
| Depth (B) | 48″ / 1,220 mm |
| Overall Height (E) | 94″ / 2,388 mm |
| Agency Approvals | NSF, ASME |
Dimensions from Cleveland engineering drawing KE004046-54 (02/2021). Allow additional clearance for accessories and service access.

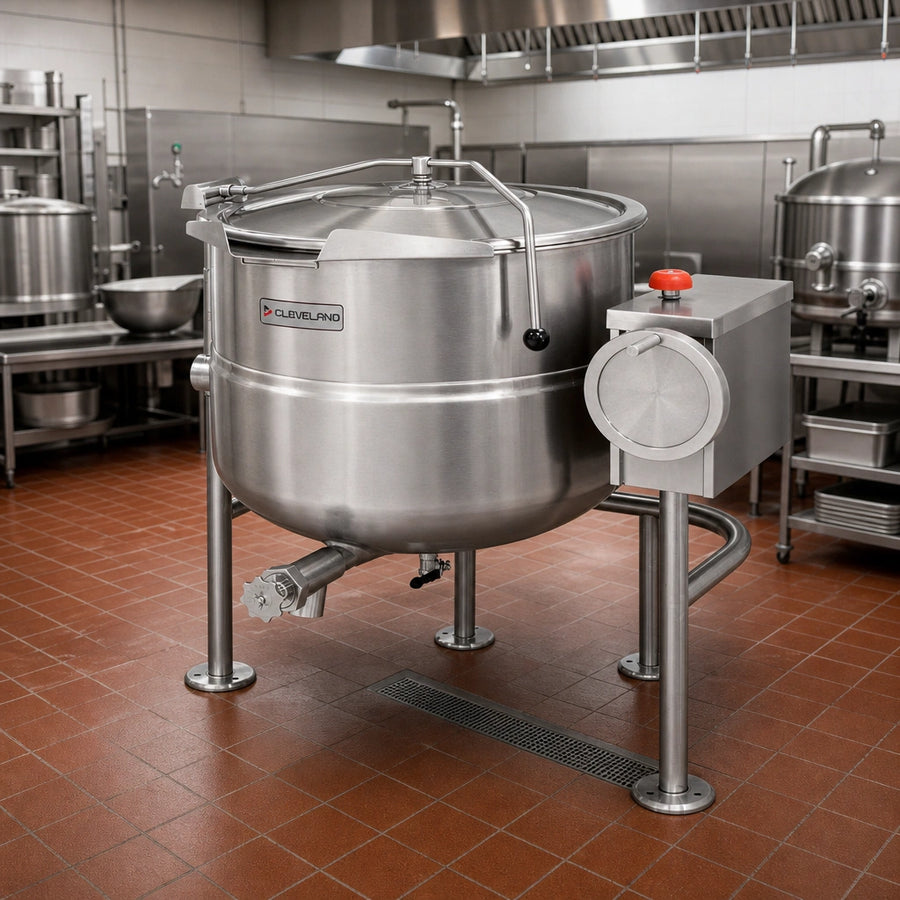

From school cafeterias to correctional facilities and high-volume commissaries, the Cleveland KDL-150-T is the proven choice for operators who simply can’t afford downtime. Invest today and experience the power of steam—delivered the Cleveland way.
