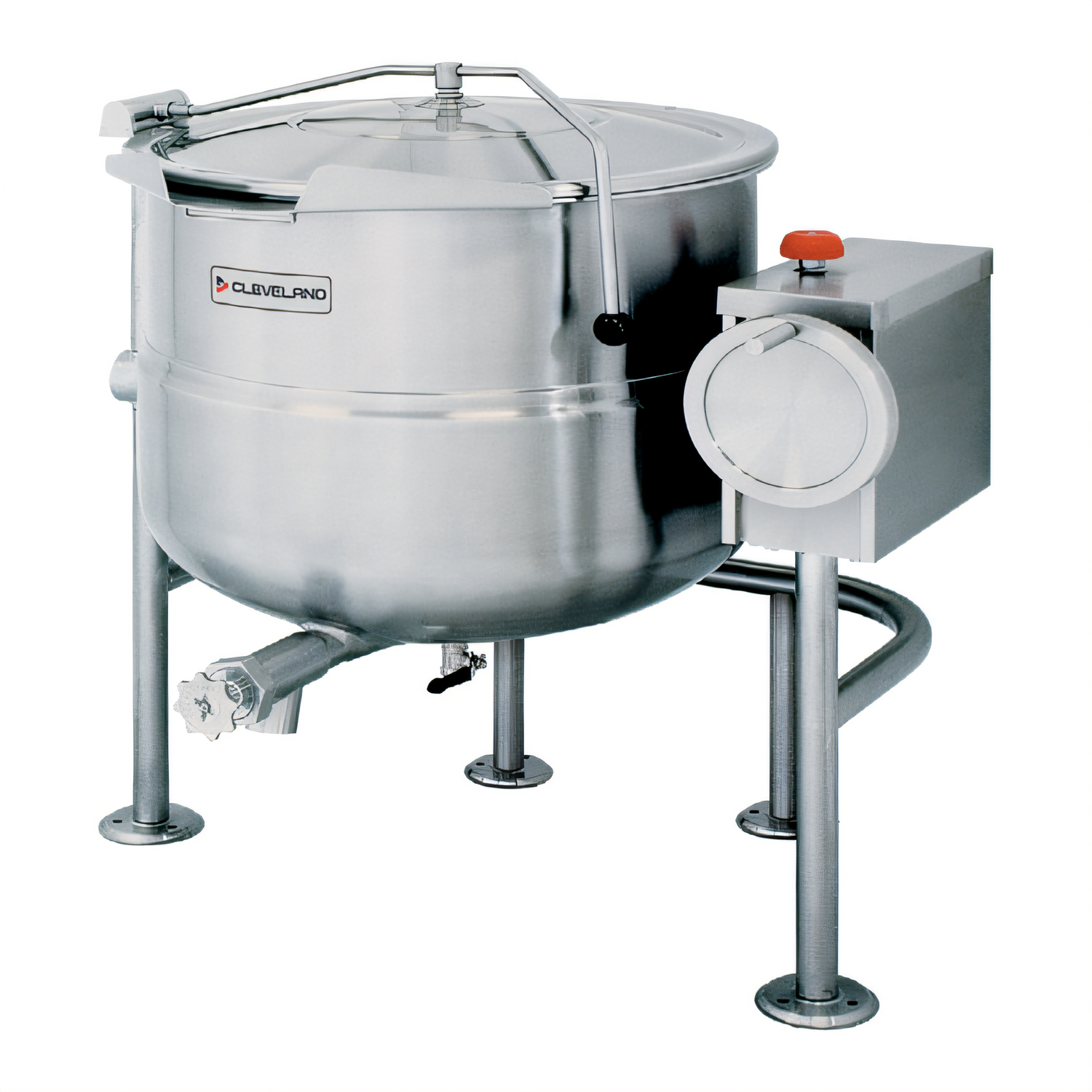

Cleveland KDL-125-T | 125-Gallon Direct Steam Tilting Kettle

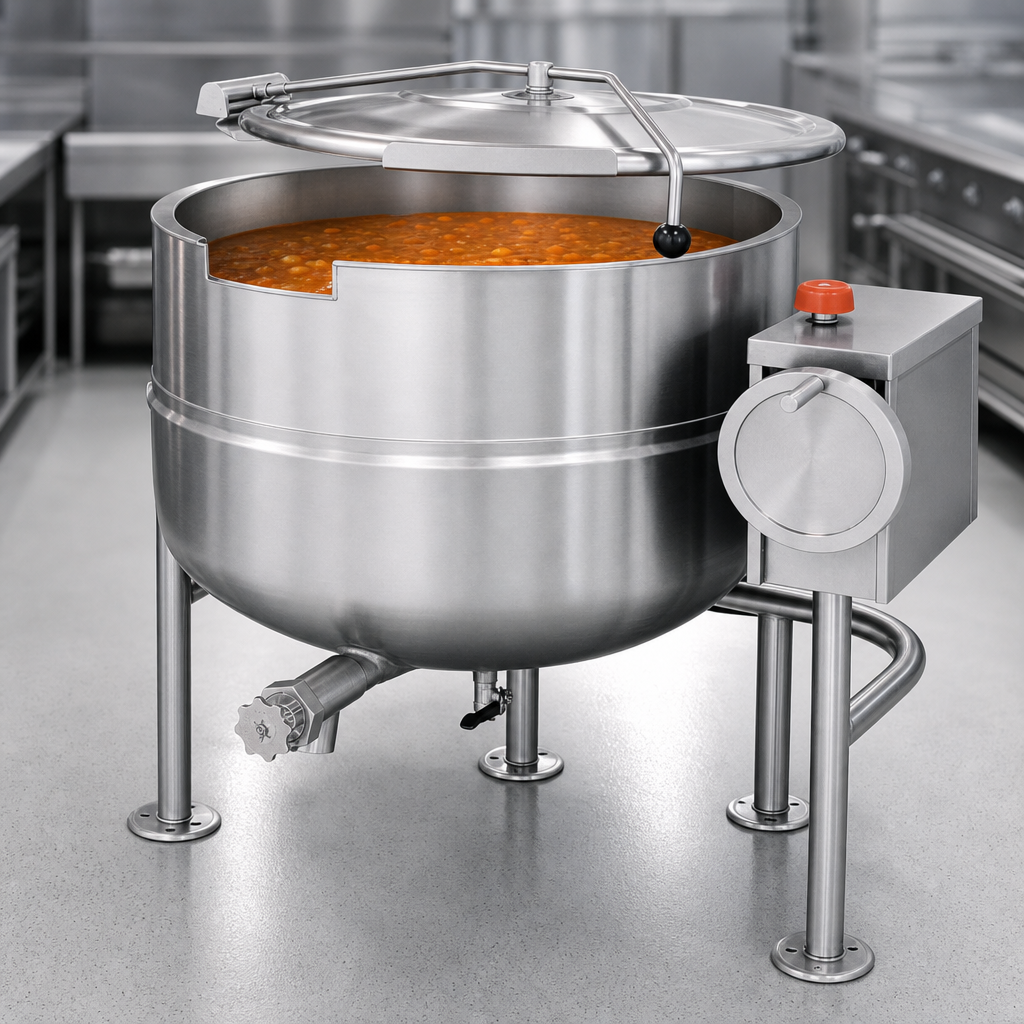

Quad-Leg • 2/3 Jacket • 316 SS Liner • 35 psi RatingEngineered for the heaviest production schedules, the KDL-125-T transforms an external steam supply into 125 gallons (475 L) of evenly-heated, scorch-free cooking power—enough for 2,000 eight-ounce servings per batch. A smooth, self-locking hand-tilt and rugged quad-leg base make pouring and clean-up fast, safe and operator-friendly.
Key Performance Features

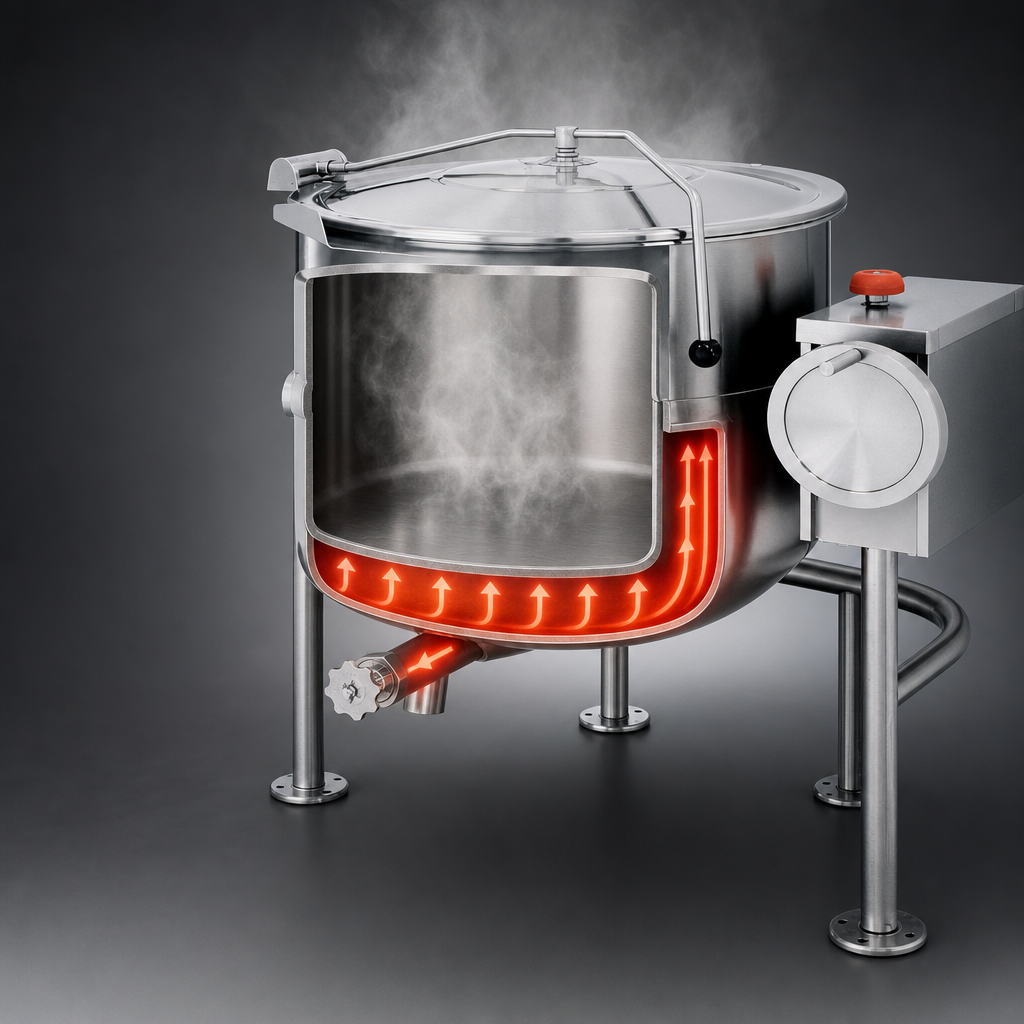

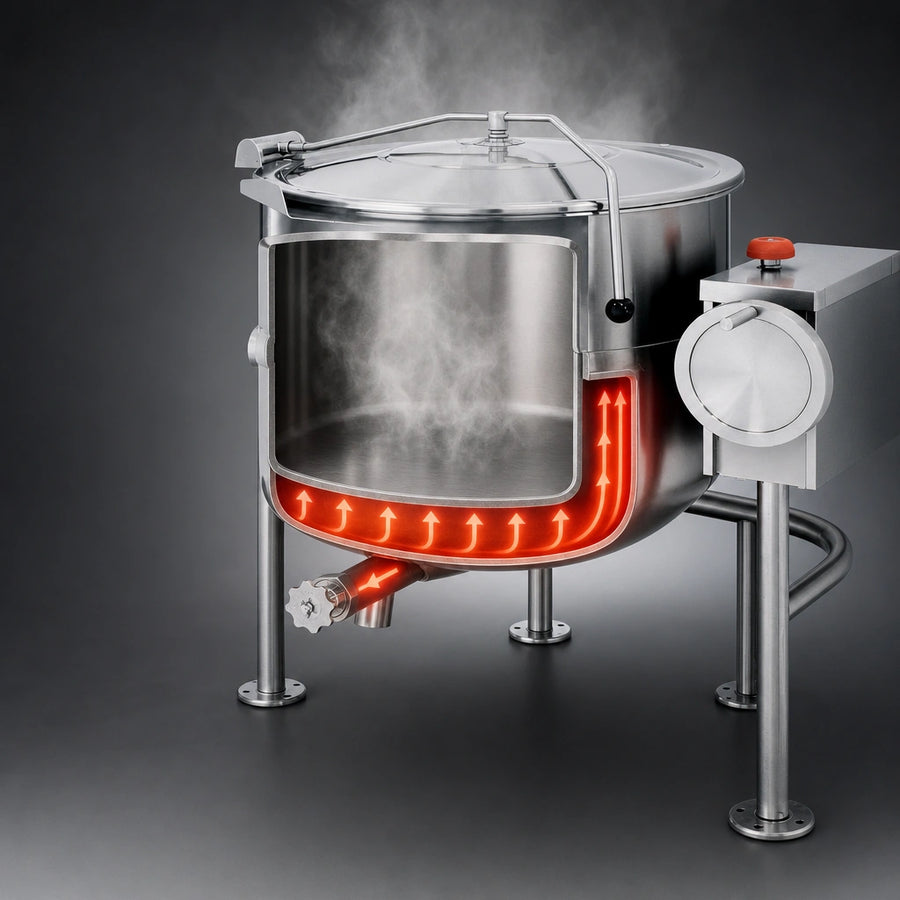

- Direct-steam, 2/3 jacket design reaches temperature fast and maintains it with minimal steam consumption.
- 316 series stainless steel interior stands up to acidic recipes, salt and daily cleaning chemicals.
- Heavy-gauge 304 SS exterior with reinforced rolled rim and oversized pouring lip.
- Quad-leg frame (1 5/8″ Ø) with three-bolt flanged feet—bolt it down and forget it.
- Permanently lubricated, self-locking worm-gear tilt for precise, one-hand control.
- Console-mounted steam control valve and insulated condensate drain valve.
- Chrome-plated 35 psi safety valve protects the jacket; connects to 10–45 psi steam supply.
- NSF & ASME certified and built in the USA for long-term, code-compliant performance.
Technical Specifications
| Model | KDL-125-T |
|---|---|
| Capacity | 125 gal | 475 L (≈ 2,000 8 oz servings) |
| Jacket Coverage | 2/3 of kettle body |
| Jacket Working Pressure | 35 psi (241 kPa) |
| Steam Supply Required | 10 – 45 psi direct steam |
| Interior Material | 316 SS |
| Exterior Material | 304 SS, #4 satin finish |
| Tilt Mechanism | Manual hand crank, self-locking worm drive |
| Kettle I.D. | 40″ / 1,016 mm |
| Overall Height (E) | 90″ / 2,286 mm |
| Overall Width (A1) | 55 5/8″ / 1,413 mm |
| Front-to-Back (B) | 48″ / 1,220 mm |
| Certifications | NSF, ASME |
| Standard Warranty | 1 year parts & labor (extended options available) |
Popular Options & Accessories
- Lift-off cover (CL) or spring-assisted, hinged cover (CHS---)
- 2″ or 3″ tangent draw-off valve (TD2 / TD3) or 3″ butterfly valve (BV3)
- Hot & cold water faucet with swing spout (DPK) or kettle filler hose kits
- Steam control kit with steam trap & check valve (SCK2)
- Gallon/litre markings, cooking baskets, brushes, paddles, ladles & more
Perfect For
- Central production kitchens & commissaries
- Hospitals, universities & correctional facilities
- High-volume soup, sauce, stock & pasta production
- Catering & prepared-foods operations
Have questions about steam supply sizing or accessory compatibility? Chat with us or call—our kettle specialists are ready to help.
