Cleveland Range  |  SKU: KDL125F

Cleveland Range KDL125F Steam Kettles

$57,227.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

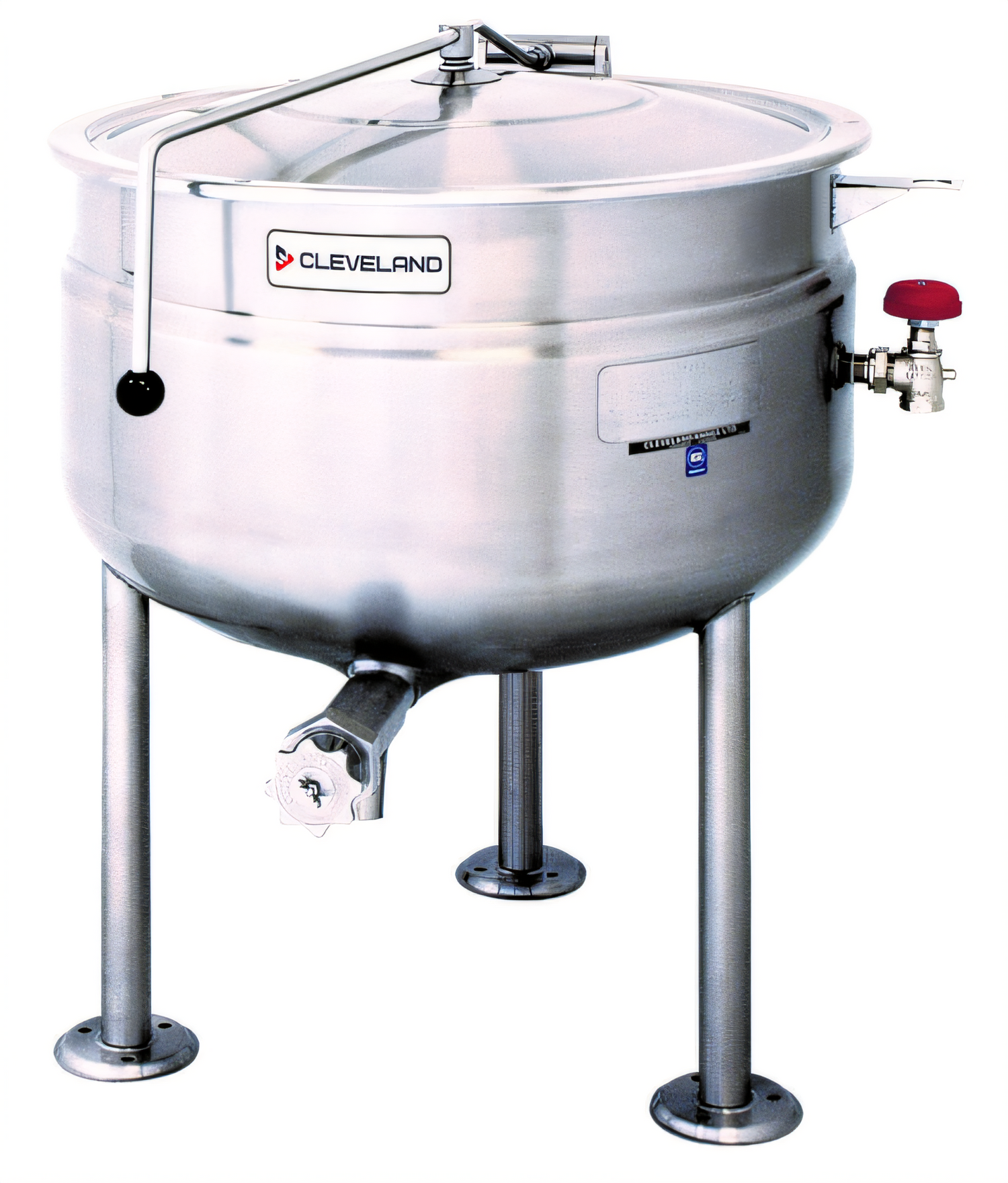

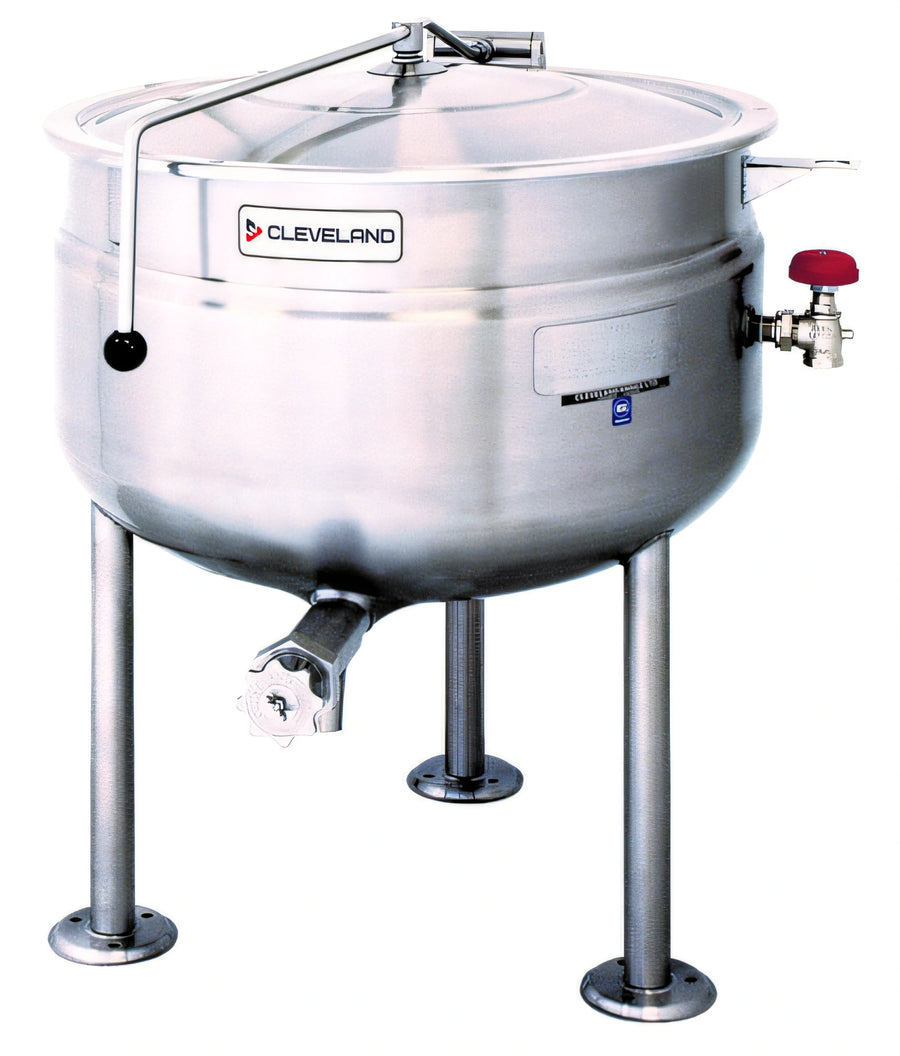

Cleveland KDL-125-F | 125-Gallon Tri-Leg Direct-Steam Kettle

Full-jacket • 316 SS liner • 35 psi rated

Move more product, faster. The Cleveland KDL-125-F delivers a massive 125-gallon (475 L) capacity, rugged stainless build, and the precise, even heating only a full steam jacket can provide—ideal for central kitchens, commissaries, schools and hospitals.

Performance & Productivity
  • Feeds up to 2,000 eight-ounce servings per batch.

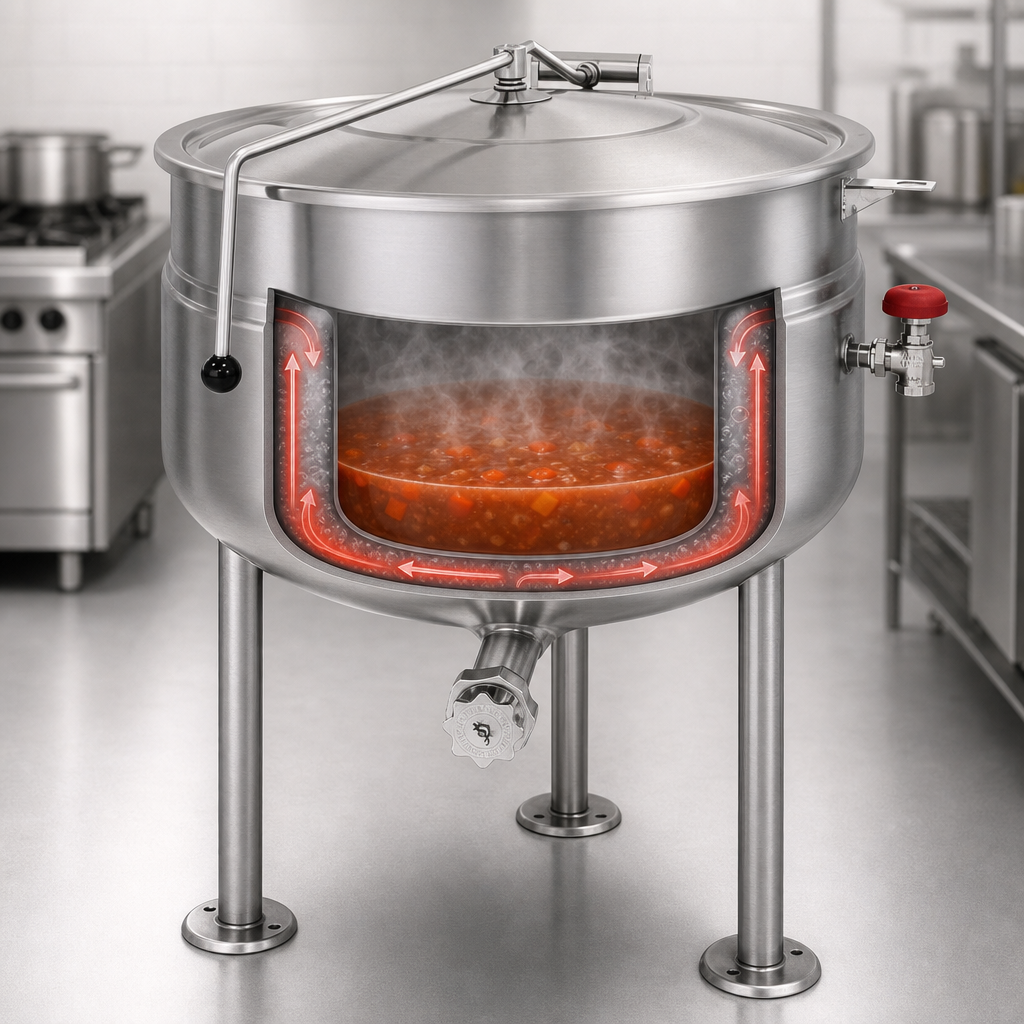

  • Full-jacket design surrounds the kettle with steam for rapid heat-up and uniform cooking.
  • 316 Series stainless-steel liner stands up to acidic recipes such as tomato sauce & chili.
  • Low, 37 in. working height and one-hand spring-assist cover keep operators comfortable and safe.
  • 2 in. tangent draw-off with stainless strainer—plate, portion or transfer product without mess.
  • Open 304 SS tri-leg base with flanged, adjustable feet for rock-solid, floor-bolted installation and effortless cleanup underneath.
  • Factory-mounted steam inlet valve, condensate drain valve and faucet bracket simplify hook-up.
  • NSF & ASME certified; chrome-plated safety valve set to 35 psi for dependable protection.
Specifications
Capacity 125 gal / 475 L
Production ≈ 2,000 servings (8 oz)
Steam Supply Direct steam, 5–30 psi (jacket rated 35 psi)
Interior 316 SS, bead-blasted finish
Exterior All stainless steel with reinforced rolled rim
Base & Legs 1 5/8 in. Ø 304 SS tri-legs, flanged, height-adjustable
Draw-Off Valve 2 in. tangent, removable SS strainer
Cover Domed, hinged, spring-assist (one-piece)
Safety Valve Chrome-plated, factory-set 35 psi
Controls Manual steam inlet & condensate drain valves
Certifications NSF • ASME • CSA
Shipping Weight ≈ 410 lb / 186 kg
Dimensional Data
Overall Length (A) 53.13 in / 1,349 mm
Overall Width (B1) 48.88 in / 1,241 mm
Floor to Rim (E) 39.00 in / 991 mm
Draw-Off Height (G) 10.00 in / 254 mm
Clearance (Q) 8.00 in / 203 mm
Overall Height with Cover Up (D) 89.25 in / 2,267 mm
What’s Included
  • KDL-125-F steam kettle—factory assembled & tested
  • 2 in. draw-off valve & strainer (installed)
  • Spring-assist cover
  • Steam inlet & condensate drain valves
  • 35 psi safety relief valve
  • Faucet mounting bracket
  • Owner’s manual & warranty registration
Popular Accessories (add-ons)
  • Hot & cold kettle filler with 60 in. hose
  • Steam control kit with trap & PRV
  • 3 in. butterfly or draw-off valves
  • Basket inserts & tri-basket supports
  • Lift-off cover
  • Gallon/Litre markings & measuring strips
Installation note: Connect only to a regulated steam source that does not exceed the kettle’s 35 psi jacket rating. Proper ventilation, water quality and preventive maintenance are required to maintain warranty coverage.
Limited warranty: 1 year parts & labor from installation (18 months from shipment). Extended coverage available—ask your representative for details.

Features & Specs

Manufacturer

Cleveland Range

Shipping Weight

410.0lbs

Kettle Jacket

full jacket

Base

tri-leg

Kettle Liner

316 stainless steel

Capacity

80 - 150 gallon

Specifications

Kettle, direct steam, 125-gallon capacity, full steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, standard with flanged feet, faucet bracket, steam control valve, 2" tangent draw-off & strainer, spring assist cover, 35 psi rating
