Cleveland Range KDL125 Steam Kettles
Description

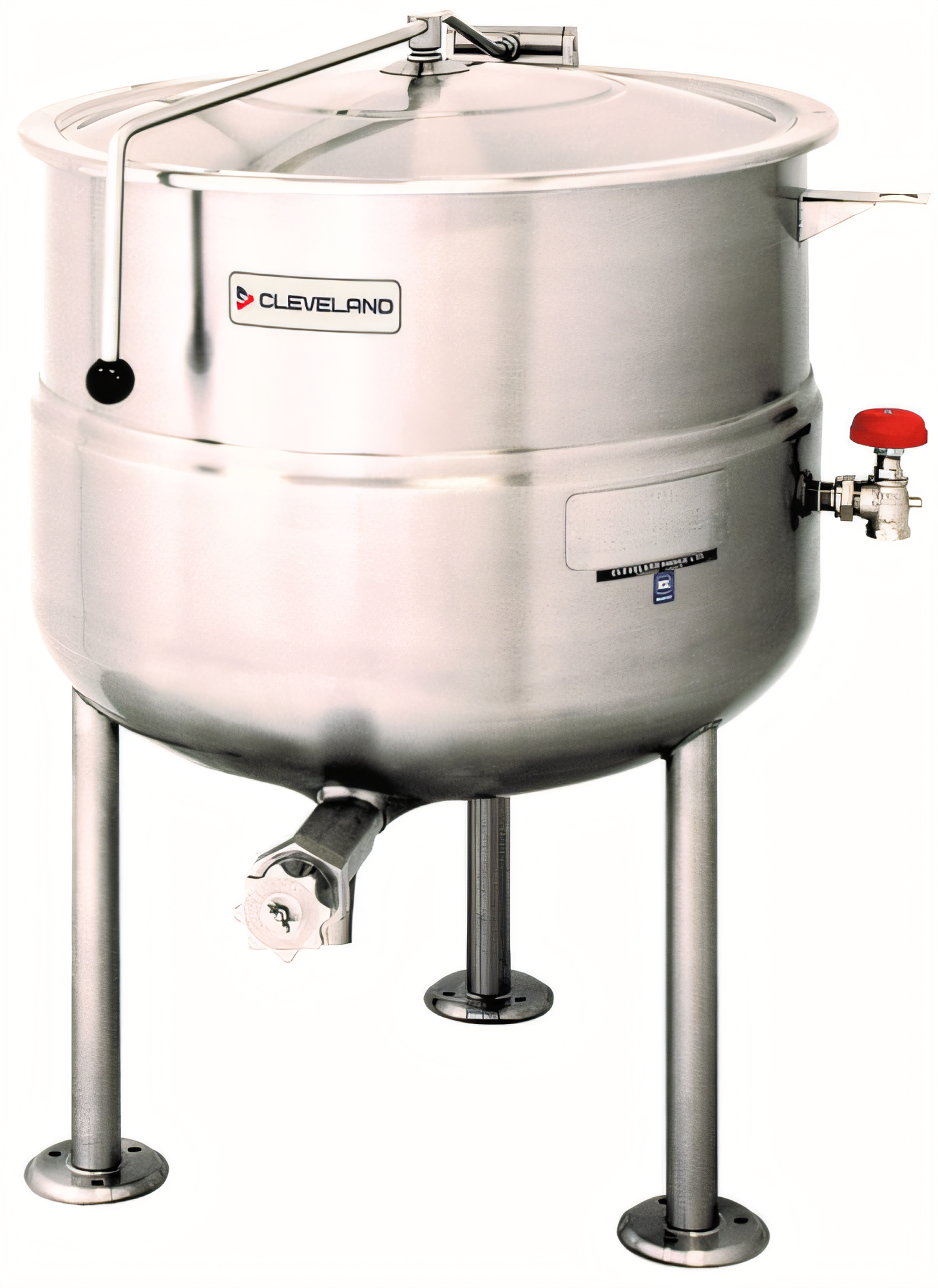

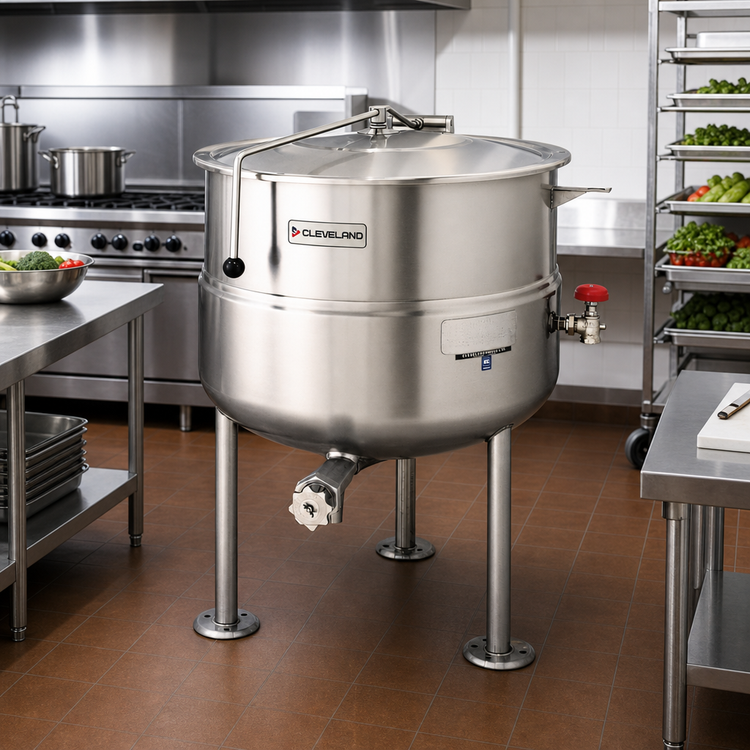

Cleveland KDL-125 125 Gal Direct-Steam Kettle
Tri-Leg Base • 2/3 Jacket • 316 SS Liner • 35 psi Jacket RatingEngineered for high-volume, high-performance kitchens, the Cleveland KDL-125 delivers up to 125 gallons (475 L) of uniform, steam-powered cooking capacity in a space-saving stationary design. A 2/3 steam jacket surrounds the lower kettle body for rapid, even heat transfer, while the open tri-leg base provides rock-solid support and easy floor access for cleaning.
Highlights

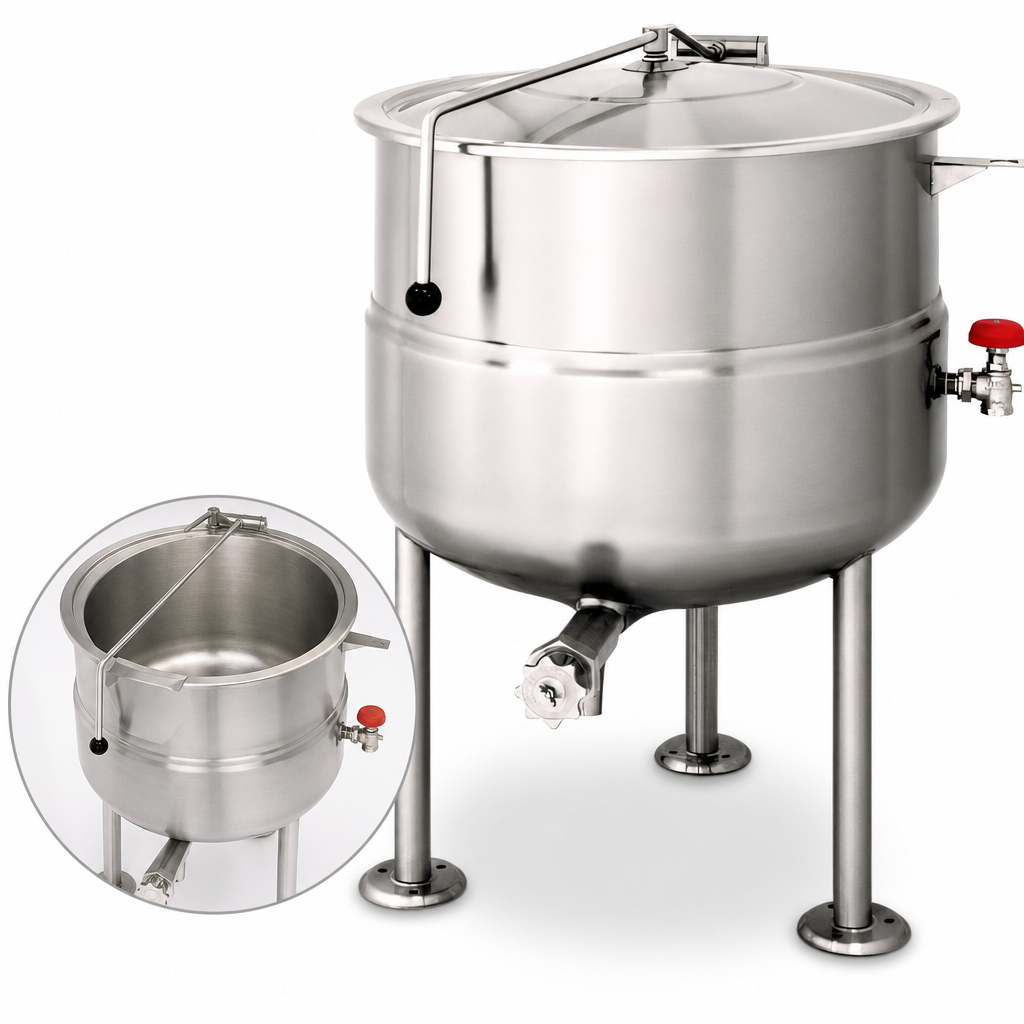

- 125 gal / 475 L capacity – approximately 2,000 eight-ounce servings per batch

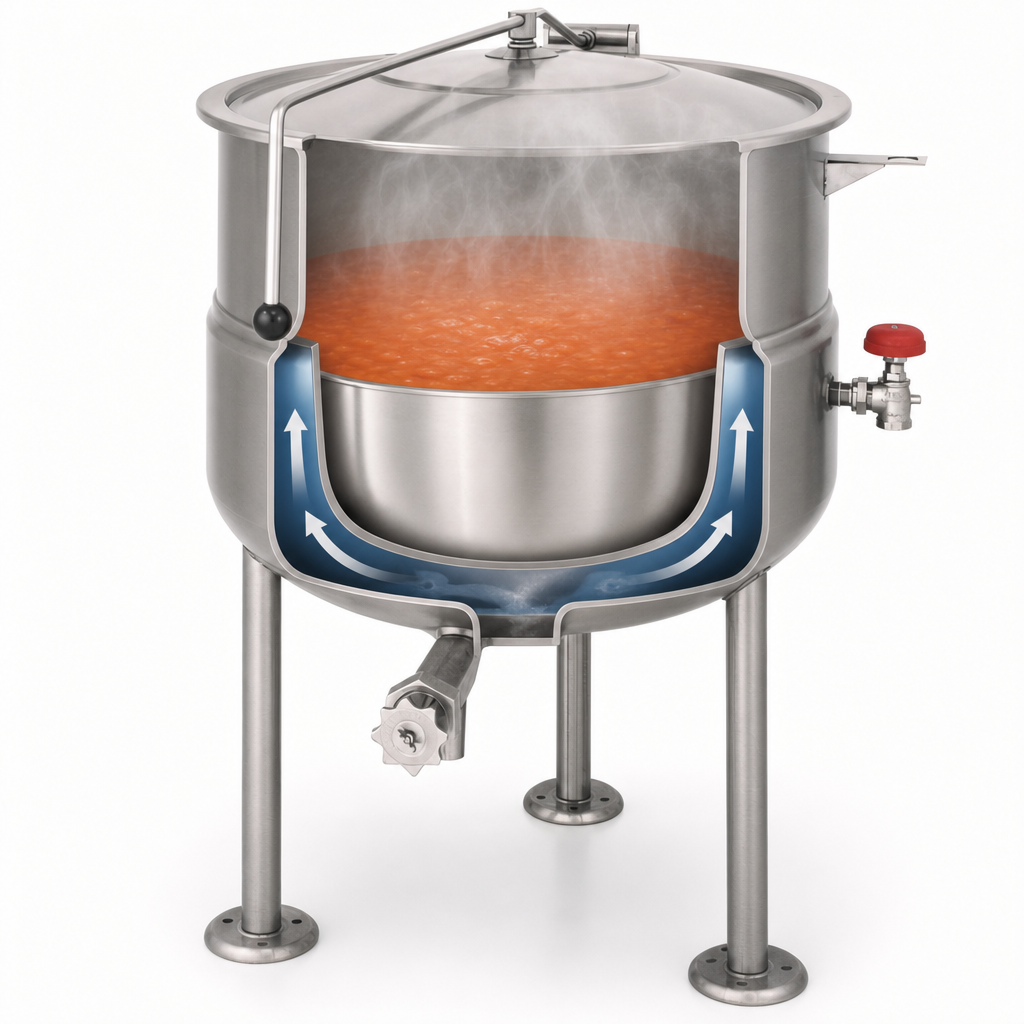

- 2/3 steam jacket design reduces scorch points and speeds heat-up
- Type 316 stainless steel liner withstands acidic foods & aggressive cleaning
- 2" tangent draw-off valve with removable drain strainer for fast, clog-free emptying
- Spring-assist, domed cover – lift with one hand and park at any angle
- 35 psi ASME-rated steam jacket & chrome-plated safety valve (for 125 gal models)
- Open tri-leg base (1.63" Ø 304 SS tube) with flanged, level-adjustable feet for floor bolting
- NSF & ASME compliant construction, built in the USA
Built for Daily Demands
- Rolled-rim lip adds rigidity and resists denting when using paddles or whips.
- Thick 304 SS exterior wipes clean and keeps a professional appearance for years.
- Condensate drain valve with insulated handle protects operators from burns.
- Steam inlet control valve (factory-mounted) makes hook-up quick and simple.
Ideal Applications
- Central/commissary kitchens & ghost kitchens
- Hospitals, universities & correctional facilities
- Sauce, soup, stock & chili production
- Pasta, rice & bulk vegetable blanching
Specifications
| Model | Cleveland KDL-125 |
|---|---|
| Capacity | 125 gal (475 L) |
| Servings (8 oz) | ≈ 2,000 per batch |
| Jacket Coverage | 2/3 of kettle body |
| Steam Jacket Rating | 35 psi (241 kPa) |
| Required Steam Supply | 5–45 psi direct steam |
| Interior Material | 316 series stainless steel |
| Exterior Material | 304 series stainless steel |
| Draw-Off Valve | 2" tangent, stainless, with removable strainer |
| Cover | Spring-assist, domed, hinged (one-piece, rotatable) |
| Base | Open tri-leg, flanged adjustable feet |
| Certifications | NSF, ASME |
| Standard Warranty | 1 year parts & labor (limited) |
Included with Your Kettle
- Factory-installed steam inlet control valve
- 35 psi chrome-plated safety valve
- Condensate drain valve with insulated handle
- 2" tangent draw-off w/ strainer basket
- Spring-assist, domed stainless-steel cover
- Faucet mounting bracket
- Operator’s manual & warranty registration card
Need accessories? Ask about cooking baskets, water meters, pressure-reducing valves, lift-off covers, and other Cleveland Range options tailored to your workflow.
