Cleveland Range KDL100T Steam Kettles
Description

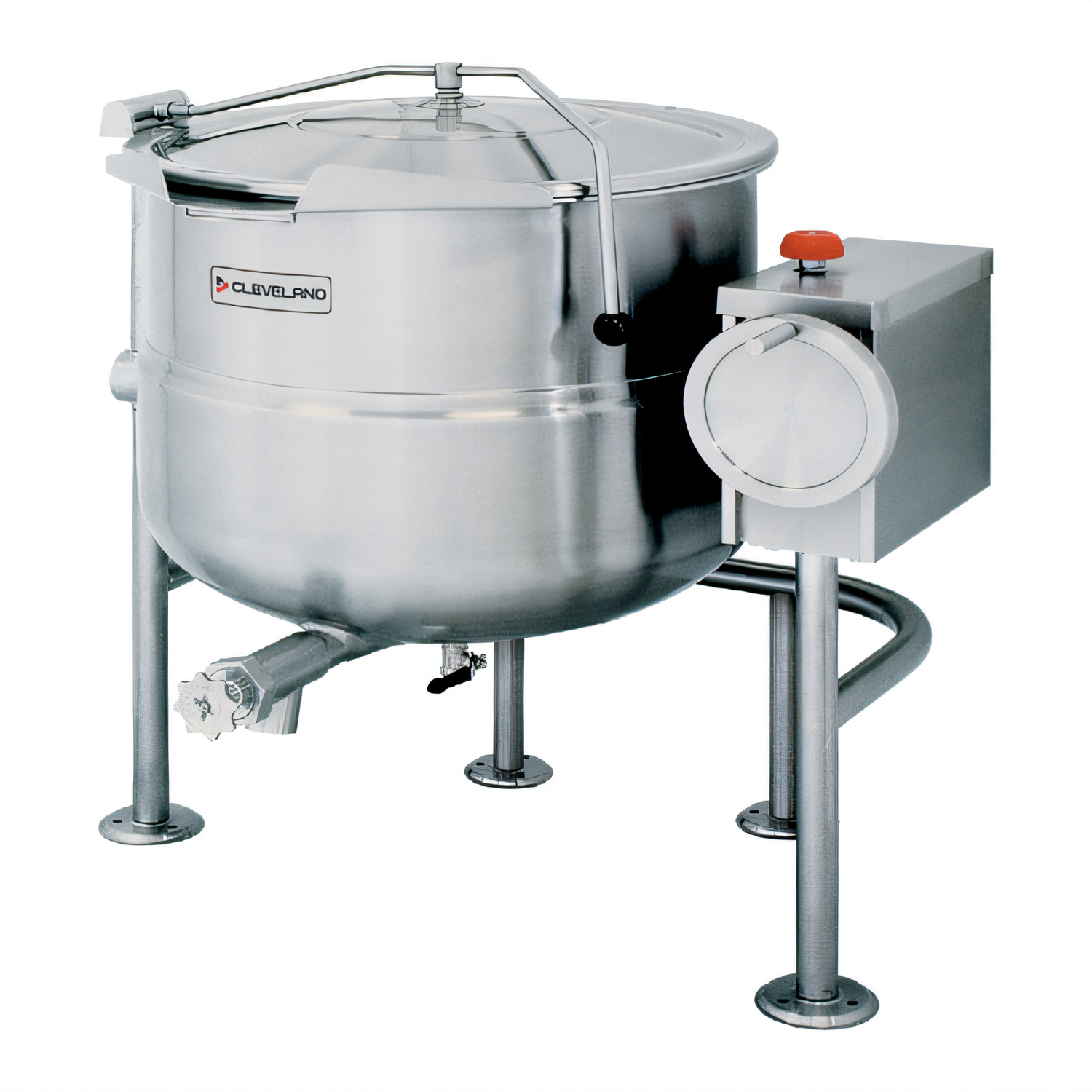

Cleveland KDL-100-T | 100-Gallon Direct-Steam Tilting Kettle
Quad-Leg Base • 2/3 Jacket • 316 SS InteriorBuilt for high-volume, high-performance kitchens, the Cleveland KDL-100-T gives you 100 gallons (375 L) of even, energy-efficient direct-steam cooking power in a space-saving tilting design. From stocks and soups to sauces and sides, batch after batch pours smoothly thanks to a self-locking tilt mechanism and a high-capacity rolled pouring lip.
Why Operators Choose the KDL-100-T

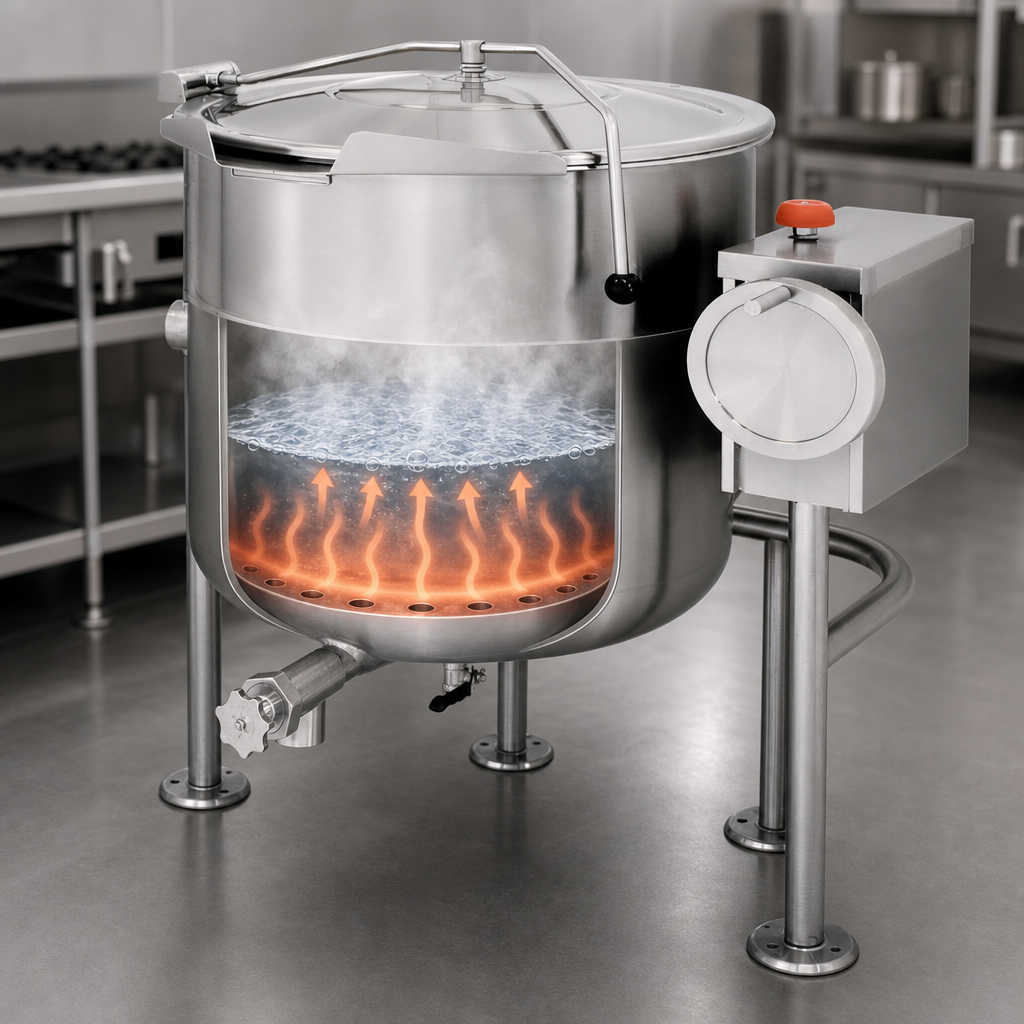

- 2/3 steam jacket surrounds product zone for rapid, uniform heat transfer—no hot spots.
- 316 series stainless steel liner resists corrosion from acidic foods for longer kettle life.
- Manual hand-tilt with permanently lubricated, self-locking worm drive—smooth control and zero drift.
- Open quad-leg base with 1-5/8" OD 304 SS legs & flanged, adjustable feet for rock-solid floor anchoring.
- Factory-mounted steam control valve and insulated condensate drain valve simplify installation.
- NSF & ASME certified; 50 psi jacket rating handles heavy production loads with confidence.
- Yields up to 1,600 eight-ounce servings per batch—ideal for commissaries, schools & healthcare.
At-a-Glance Specifications

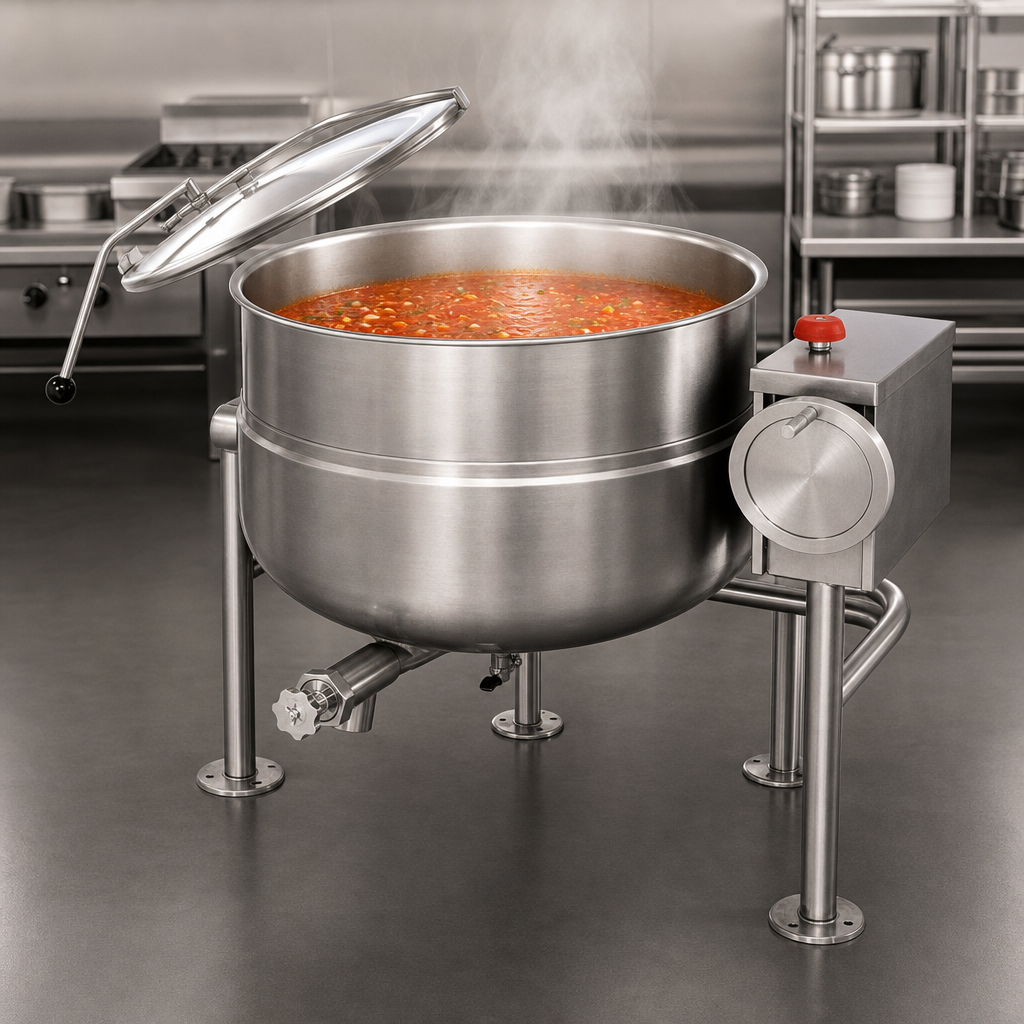

| Capacity | 100 gal | 375 L |
|---|---|
| Serving Yield* | ≈ 1,600 (8 oz portions) |
| Jacket Design | 2/3 steam jacket, 50 psi (ASME) |
| Steam Supply (Required) | Direct steam, 10–45 psi |
| Interior Liner | 316 SS |
| Exterior / Base | 304 SS, #4 sanitary finish |
| Tilt Mechanism | Manual hand wheel, self-locking worm gear |
| Controls | Steam control valve (console-mounted) & condensate drain valve with insulated handle |
| Mounting | Open quad-leg base, flanged feet for floor bolting |
| Approvals | NSF, ASME |
| Standard Warranty | 1-year parts & labor (extended options available) |
*Serving capacity based on 8 oz portions; other sizes proportionally.
Common Add-Ons (Sold Separately)
- Spring-assisted or lift-off stainless steel cover
- 2" or 3" tangent draw-off valve, or 3" butterfly valve
- Hot & cold water swing-spout faucet kit
- Cooking basket systems, measuring strips & gallon markings
- Kettle accessory kit (paddles, whips, brushes & ladle)
Installation must conform to all applicable local codes. Proper water quality and ventilation are required to maintain warranty coverage.
