Cleveland Range KDL100F Steam Kettles
Description

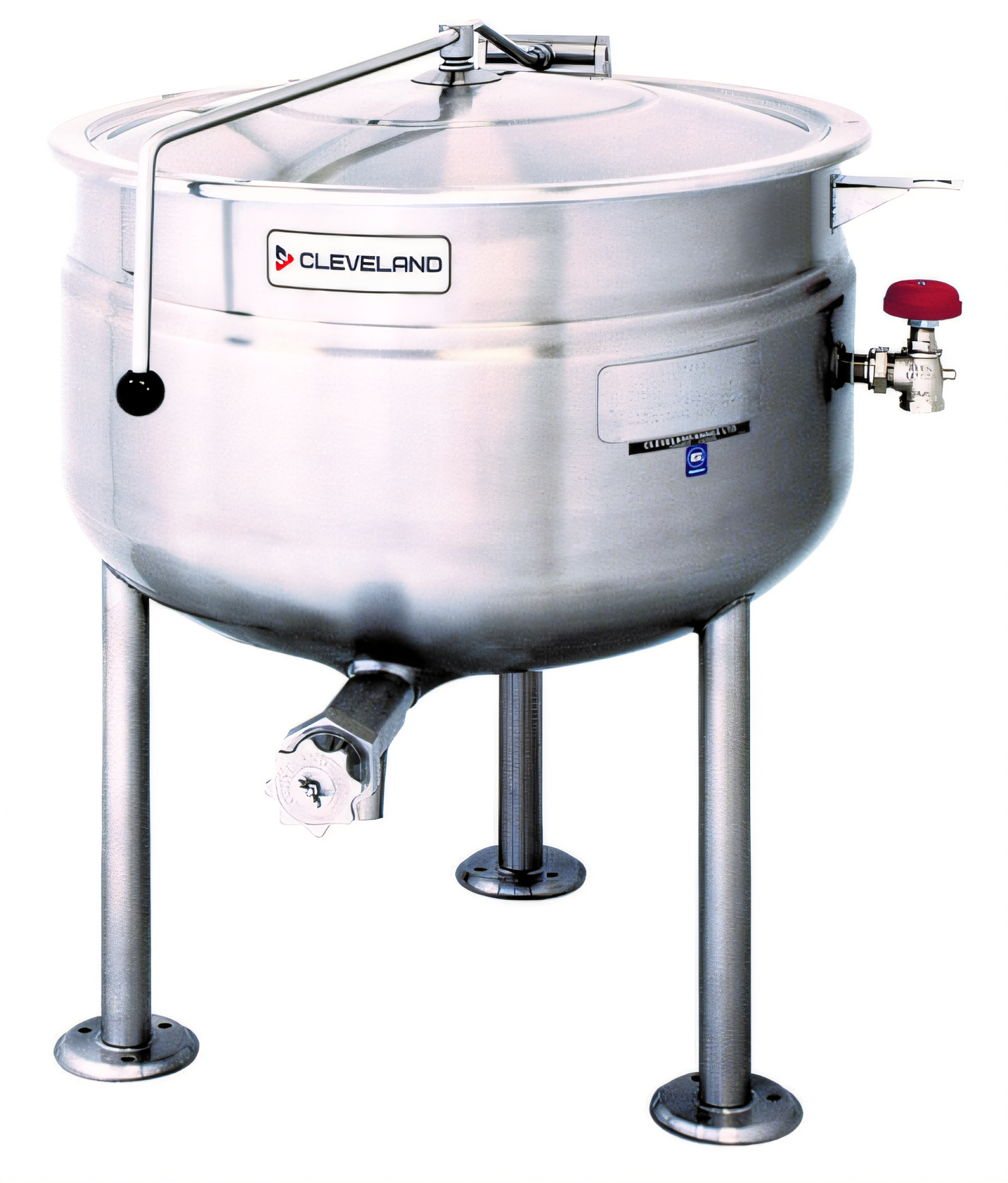

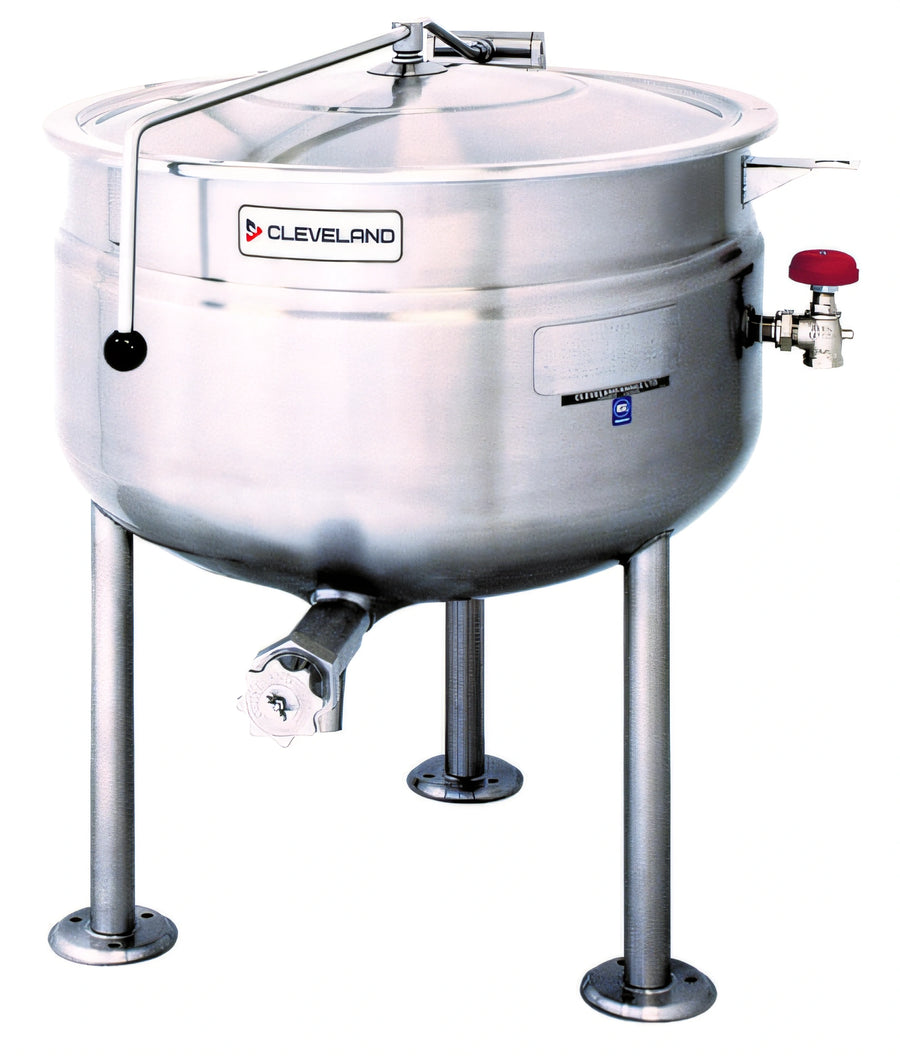

KDL-100-F | 100-Gallon Tri-Leg Direct Steam Kettle

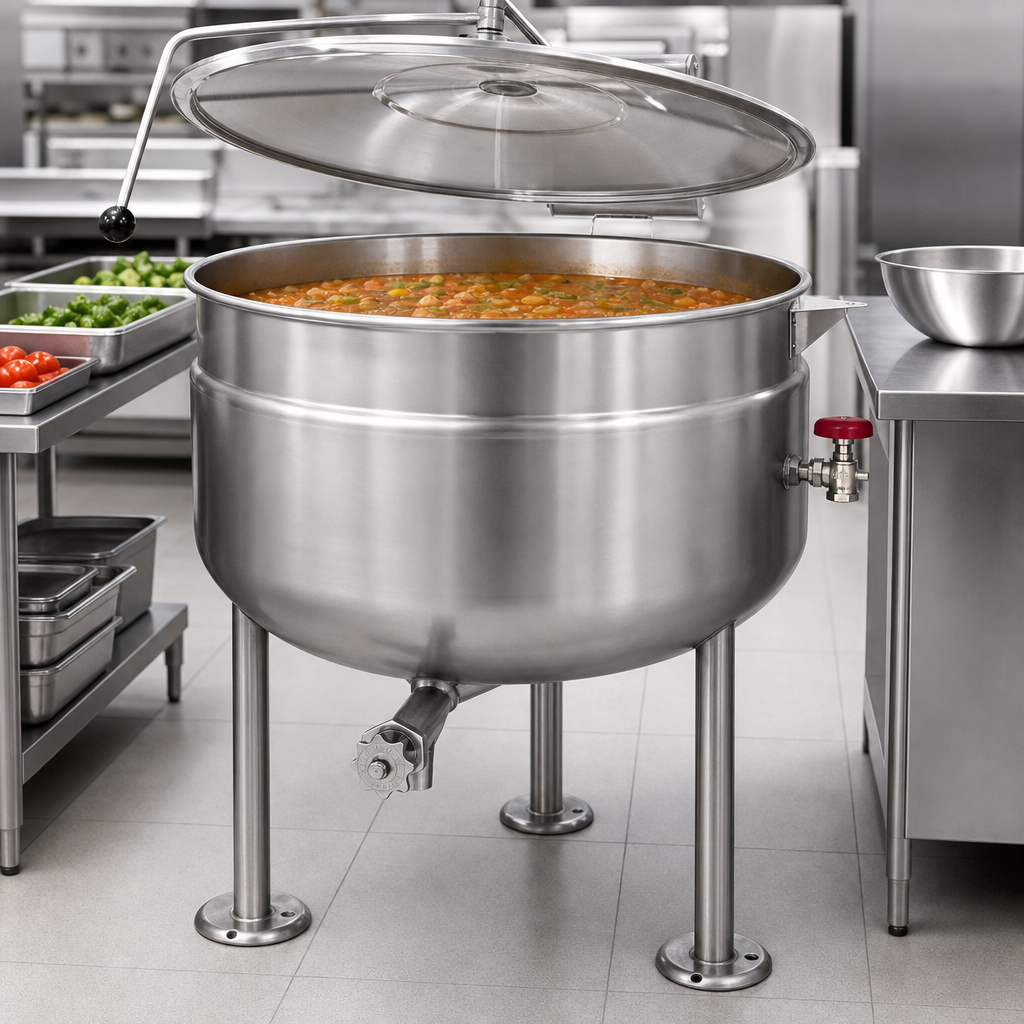

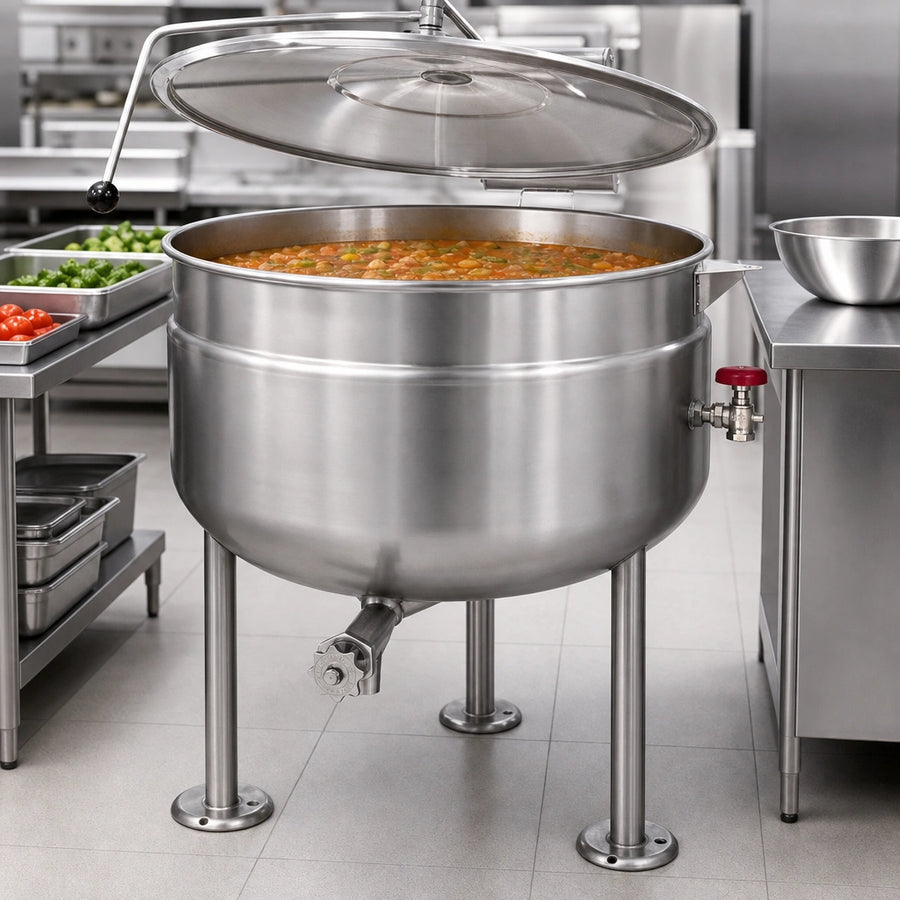

Cleveland Range – Timeless Quality, Trusted for Life®Turn out up to 1,600 eight-ounce servings in a single batch with Cleveland’s 100-gallon, full-jacketed direct steam kettle. Built entirely of stainless steel—including a 316 series liner—this workhorse delivers fast, even heat transfer, rock-solid durability, and operator-friendly ergonomics in high-volume kitchens.
Why Choose the KDL-100-F

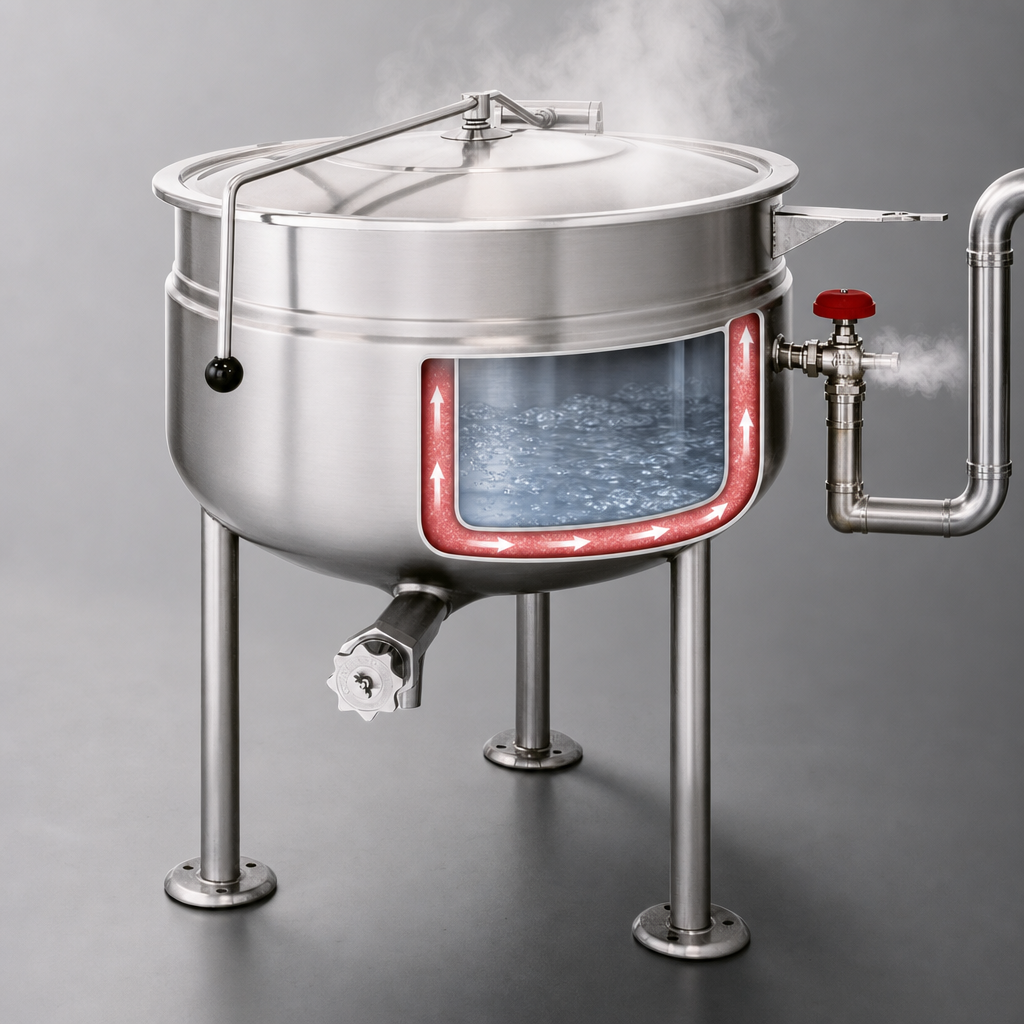

- Full-steam jacket surrounds the kettle for rapid, uniform heating with no hot spots.
- 316 stainless steel liner resists acidic foods, pitting, and corrosion for a longer service life.
- Tri-leg open base with flanged, height-adjustable feet—easier cleaning & rock-steady installation.
- Low 37" working height keeps the rim comfortably within reach of every operator.
- Spring-assist domed cover lifts effortlessly and stays where you put it—no heavy lid to wrestle.
- 2" tangent draw-off valve & stainless strainer for quick, clog-free portioning and clean-out.
- Built-in steam control valve provides precise, fingertip regulation of incoming steam.
- 35 psi ASME-rated jacket with chrome-plated safety valve—built for real-world kitchen pressures.
Standard Package
- 100-gal (375 L) stationary kettle, fully steam jacketed
- Open tri-leg base (1 5⁄8" O.D. 304 SS tubing) with flanged feet for floor bolting
- Spring-assist, hinged stainless steel cover
- 2" tangent draw-off with removable perforated strainer
- Steam inlet control valve, condensate drain valve & faucet mounting bracket
- NSF & ASME compliance, serial-tagged and pressure tested
Technical Specifications
| Capacity | 100 gal / 375 L (≈1,600 8-oz servings) |
|---|---|
| Jacket Pressure Rating | 35 psi (241 kPa) max. working pressure |
| Steam Requirements | 5–45 psi incoming steam, 3/4" NPT inlet |
| Condensate Return | 1/2" NPT |
| Working Height (rim) | 37.0" / 940 mm |
| Overall Height (cover up) | 82.0" / 2,083 mm |
| Interior Diameter | 45.0" / 1,143 mm |
| Shipping Weight | ≈360 lb / 164 kg |
| Construction | 316 SS liner, 304 SS exterior & frame |
Commonly Ordered Accessories
- Chrome-plated Steam Control Kit (steam traps, check valve, strainers)
- Hot & cold kettle filler with 60" swing spout
- Tri-basket cooking system for pasta & vegetables
- 3" butterfly draw-off valve (high-particulate foods)
- 316-SS measuring strip & gallon markings
Warranty & Support
• 1-year parts & labor warranty (18 months from shipment if earlier).
• Additional 4-year prorated jacket coverage on pressure vessels.
• Free factory-authorized start-up available upon request.
NSF & ASME certified. Install in accordance with local codes and provide clean, treated steam for optimal performance and warranty protection.
