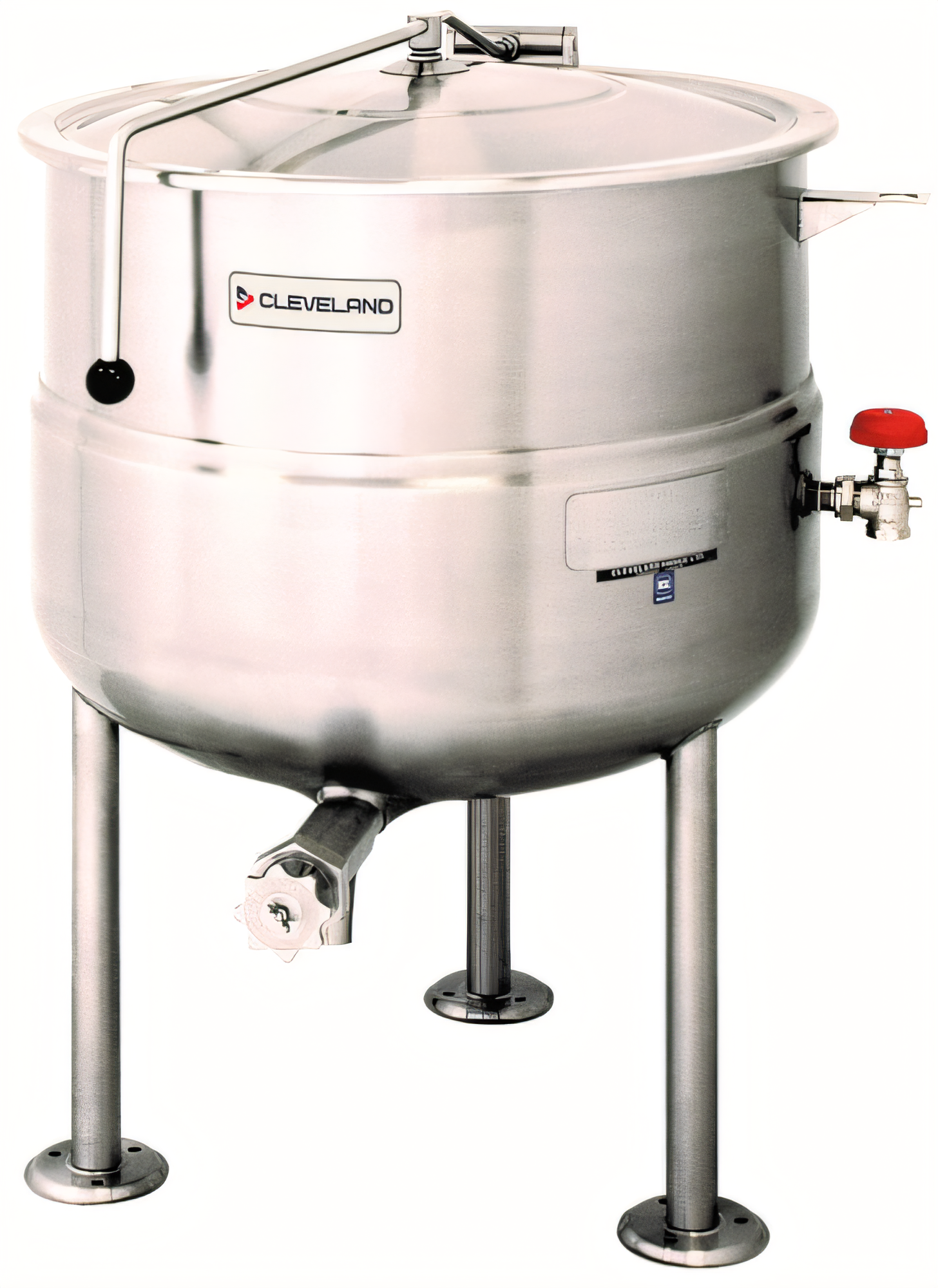

Cleveland KDL-100 | 100-Gallon Direct-Steam Kettle
Tri-Leg Stationary • 2/3 Steam Jacket • 316 SS Liner • 50 psi RatedBuilt for high-volume, high-acid production, the Cleveland KDL-100 gives you 100 gallons (375 L) of uniform steam-jacketed cooking power—enough for approximately 1,600 eight-ounce servings per batch. Its open tri-leg base, fully stainless construction and factory-standard accessories make it the industry’s go-to workhorse for soups, sauces, pasta, braises and more.
Key Features & Benefits
- 316 series stainless interior resists acidic ingredients better than 304 SS—ideal for tomato-based and citrus recipes.

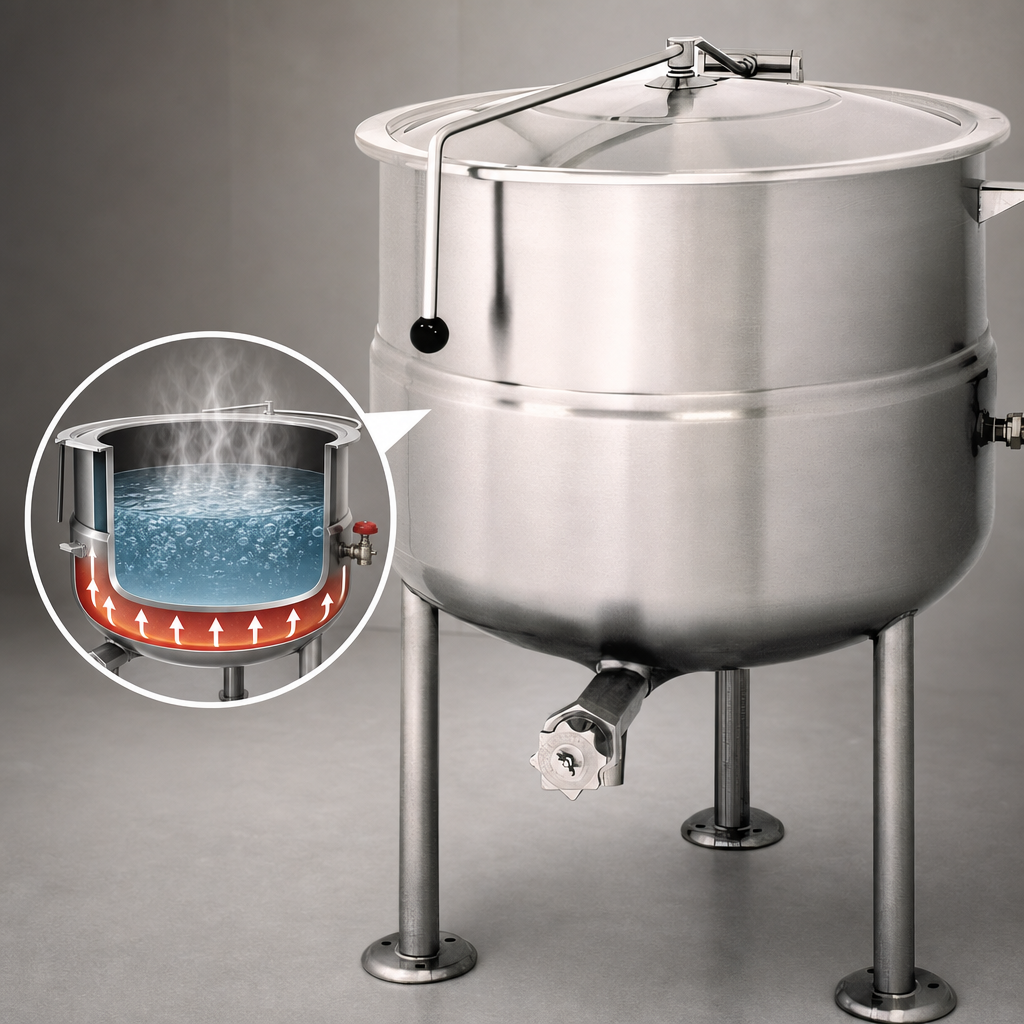

- 2/3 steam jacket design surrounds product for faster heat-up, even simmering and reduced scorching.
- 50 psi jacket rating & safety valve (ASME certified) handles incoming steam pressures from 5–45 psi with headroom to spare.
- Spring-assisted domed cover stays open at any angle for effortless loading, stirring and inspection.
- 2″ tangent draw-off valve (with removable strainer) speeds product transfer and simplifies clean-out.
- Steam control inlet valve supplied—connect directly to your building’s steam line, no external kit required.
- Tri-leg frame uses 1.63″ O.D. 304 SS tubing with level-adjustable flanged feet for secure floor anchoring and easy wash-down.
- NSF & ASME compliant for safe, code-ready installation in any commercial kitchen.

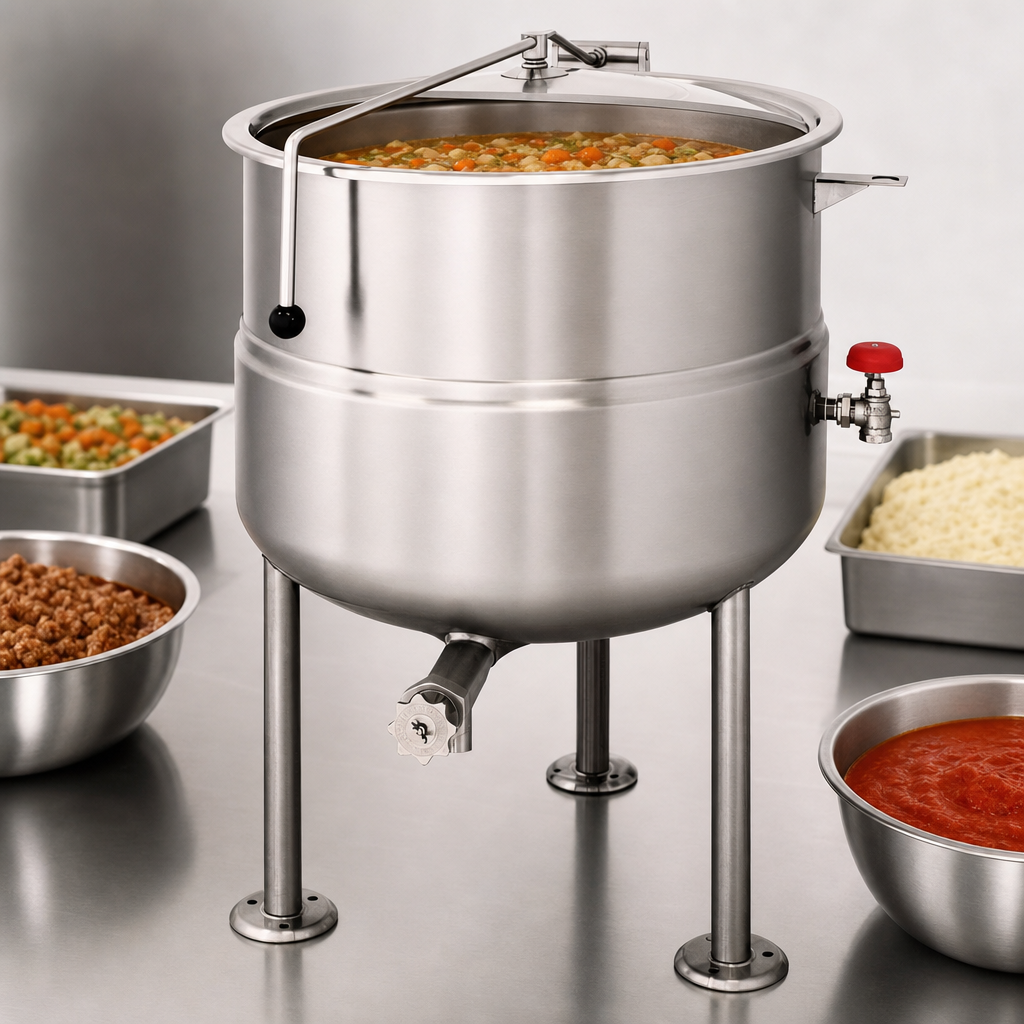

Batch Capacity
Approximate yields using standard 8 oz (237 mL) portions.
| Volume | 100 gal / 375 L |
|---|---|
| Portions per Batch | ≈ 1,600 servings |
Technical Specifications
| Model | Cleveland KDL-100 (Stationary, Tri-Leg) |
|---|---|
| Interior | 316 series stainless steel |
| Exterior Finish | All stainless steel |
| Jacket Coverage | 2/3 of kettle body |
| Steam Jacket Rating | 50 psi (345 kPa) |
| Operating Steam Supply | 5–45 psi, 3/4″ NPT inlet (installer to size) |
| Draw-Off Valve | 2″ tangent, lever-operated, w/strainer |
| Cover | Hinged, spring-assist, domed stainless steel |
| Supports | Open tri-leg base, 304 SS, flanged & level-adjustable |
| Overall Dimensions* | W 44″ • D 44″ • H 54″ (shipping) |
| Shipping Weight* | ≈ 496 lb (225 kg) |
| Certifications | NSF, ASME |
*Dimensions and weight are approximate and subject to change without notice.
Installation Requirements
- Direct, clean steam supply at 5–45 psi.
- 3/4″ NPT condensate return (min. valve size +1″ to floor drain recommended).
- Secure flanged feet to level, non-combustible floor; allow 4″ rear & 0″ side clearance.
- Provide adequate ventilation to manage ambient heat and humidity.
Warranty & Support
Includes Cleveland’s 1-year parts & labor warranty (18 months from shipment, whichever occurs first), with optional extended coverage available at time of purchase. Performance start-up by a Factory Authorized Servicer is offered at no additional charge.
